Locate harness clip T32a behind the climate control module–remove the lower dash trim to access it. Pin 16 delivers 12 V constant from fuse SB24, a 10 A mini-blade, while pin 6 carries switched power via fuse SB22 (same rating). Disconnect the battery negative terminal before probing to avoid transient shorts across the CAN-H (pin 12) and CAN-L (pin 27) lines.
Aftermarket head units with ISO 10487 connectors require an adapter; solder bridge pins 4 and 5 to retain steering-wheel control emulation. Ground reference is shared on pins 1, 2, and 7; daisy-chain a single 16 AWG wire back to chassis ground at bolt G12 beneath the driver’s footwell to eliminate alternator whine.
Speaker outputs follow a consistent polarity: front-left on pins 13 (+) and 18 (-), rear-right on 23 (+) and 29 (-). Verify impedance with a multimeter–stock tweeters measure 4 Ω; replacing with 2 Ω components may trip the amplifier’s thermal shutdown.
Colour codes are partial: power lines–red/black stripe for 12 V constant, violet/white stripe for switched; CAN pairs–orange/green (H) and orange/brown (L). Clip T32b, adjacent on the firewall, handles HVAC signals–cross-wiring voids climate feedback.
Electrical Guide for Volkswagen Sedans: Aftermarket Audio Setup
Begin by locating the factory harness behind the dashboard unit on the driver’s side. The connector contains 12 pins in two rows, labeled A through L. Pin assignments vary slightly between base and premium sound systems–base models lack the amplified signal leads. Use a digital multimeter to verify voltages: constant 12V appears at pin C (red/yellow wire), switched power at pin G (yellow/red), and ground at pin J (brown). Miswiring here risks fusing the vehicle’s fuse box or damaging the OEM harness.

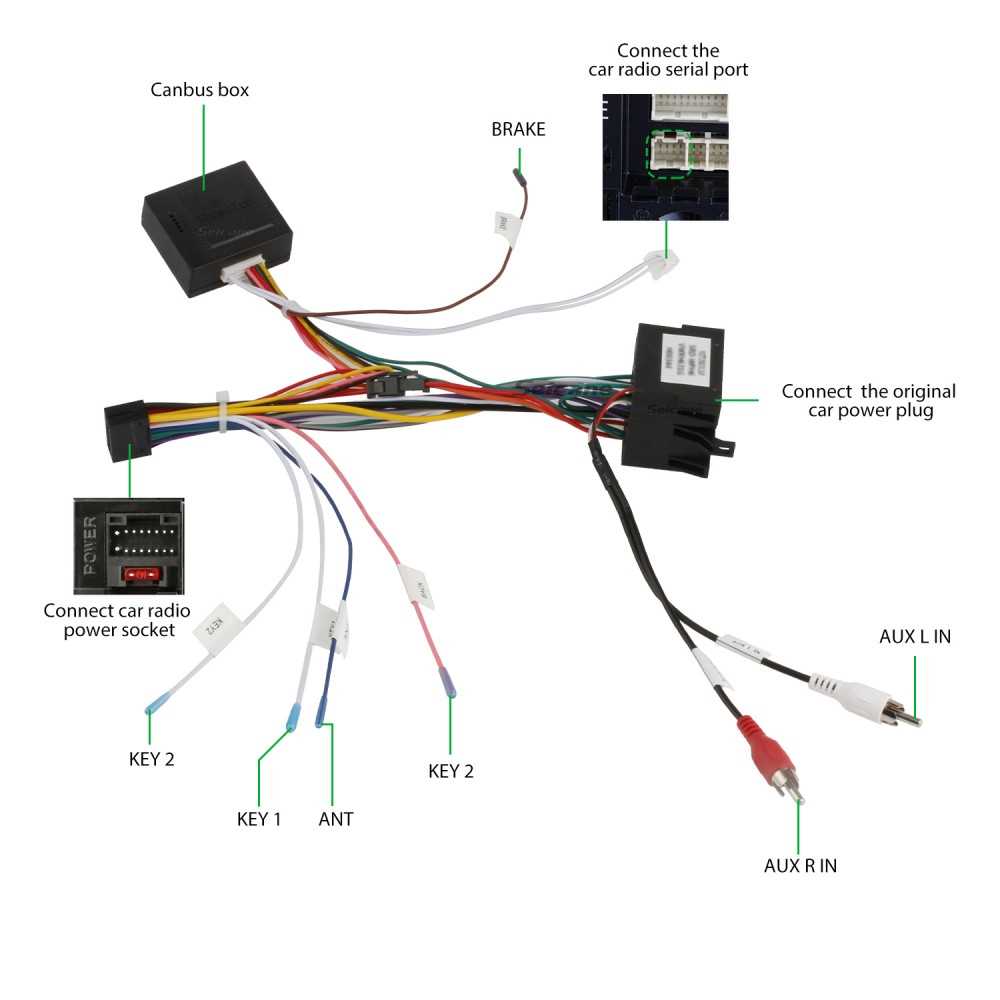

Aftermarket adapters labeled “Metra 70-9008” or “Scosche VW03” include pre-mapped connectors that align with the sedan’s harness without cutting. These adapters translate CAN-BUS signals for seamless integration–failing to use one may trigger dashboard warnings or prevent power window synchronization. Connect speaker outputs as follows:
- Front left (+): gray/violet (pin B)
- Front left (-): gray/brown (pin H)
- Front right (+): green/white (pin D)
- Front right (-): green/brown (pin L)
- Rear left (+): purple/yellow (pin F)
- Rear left (-): purple/brown (pin K)
- Rear right (+): blue/red (pin E)
- Rear right (-): blue/brown (pin A)
Amplified systems (often found in SEL trims) add a separate 8-pin amplifier harness beneath the front passenger seat. Identify this by the green connector–it carries low-level RCA-style outputs. Use a line-output converter (LOC) rated for 50W RMS to bridge aftermarket amplifiers; direct connection risks clipping or signal distortion. Set LOC gain to match the vehicle’s 4V preamp output to prevent overdriving the new amplifier.
Stealth installation requires tucking wires behind the glove compartment’s upper panel–remove the two 8mm screws to access this space. Secure wires with automotive-grade cloth tape to avoid rattles. For vehicles equipped with satellite tuners, retain the OEM antenna adapter (part #000-098-402) to preserve AM/FM functionality. Skipping this step forces reliance on apps like TuneIn, which drain mobile data.
Troubleshooting Wire Integrations
If the unit powers off intermittently, probe the yellow/red switched wire for voltage drops–common when tapping into the ignition circuit. Replace the 10A fuse in position #22 with a 15A fuse rated for aftermarket loads. Dimmed lighting or erratic display signals a missing illumination lead (purple wire, pin I); connect this to a 1kΩ resistor tied to ground if the adapter lacks this output. Check for parasitic draws by disconnecting the negative battery terminal and measuring current–exceeding 50mA indicates incomplete isolation.
For multimedia interfaces, prioritize adapters supporting MIB1 protocol, avoiding generic “iPod” cables that fail to recognize track metadata. Verify compatibility with firmware versions via the VW dealer tool–some aftermarket systems brick the OEM unit if mismatched. Keep a spare fuse kit (#3, 10A; #22, 15A; #30, 10A) during installation; blowing fuse #22 disables the entire infotainment system until replaced.
Finding the Original Sound System Connector Behind the Dashboard
Begin by removing the center trim panel below the climate controls–it snaps off with minimal pressure, revealing two 10mm bolts securing the head unit bracket. Once unscrewed, gently pull the assembly outward until the rear harness plugs become visible. On the right side of the unit, a 24-pin ISO connector (usually black or gray) carries all speaker, power, and antenna feeds; its upper row handles permanent 12V, switched ignition, and illumination, while the lower row splits into left-front, right-front, left-rear, and right-rear channels.
- Identify the antenna lead–its thin coaxial cable terminates in a small round plug distinct from the larger multi-pin connectors.
- Check for ground wires: a single thicker wire, often brown or black, may be bolted directly to the chassis behind the bracket.
- Trace CAN bus wires–look for yellow and green twisted pairs; these carry steering-wheel control signals and must not be cut.
If the dash has never been opened, factory tape wraps the harness tightly to the metal frame–carefully slice this with a hobby knife to free enough slack for testing without detaching the entire loom. Label every wire with masking tape and a marker before any modification: note function (e.g., “LF+”, “Illum+”), color-coding (e.g., “GRN/WH”), and corresponding pin number from the ISO chart. For vehicles equipped with premium audio, an additional 8-pin connector sits on the left side feeding the amplifier; this must be bridged to retain bass response.
Reinstall all screws finger-tight until final alignment–this prevents stripped threads and ensures proper grounding. Plug in a multimeter set to DC voltage; probe each pin while cycling ignition ON: switched 12V should read 10-14 volts, permanent 12V remains constant even with ignition OFF, speaker wires show near-zero voltage, and CAN wires pulse at 2.5V with subtle fluctuations.
Color Codes and Pin Configurations for OEM Head Unit Replacement
Match the aftermarket harness to the factory connector by verifying wire colors against the vehicle’s original signal grid. The 12-pin ISO block typically splits into two 6-pin plugs: power/ground (upper) and speaker/output (lower). Pin 1 (yellow) delivers constant 12V; pin 4 (red) handles accessory voltage. Swap these only if the new deck lacks a memory saver–otherwise, retain the original yellow lead to preserve presets. Pin 6 (black) is chassis ground; ensure it terminates to bare metal with a star washer to prevent intermittent faults.
Speaker circuits follow a consistent pair pattern: front-left (gray/gray-black, pins 2-5), front-right (white/white-black, pins 7-1), rear-left (green/green-black, pins 4-3), and rear-right (purple/purple-black, pins 6-9). Confirm polarity with a multimeter–positive leads carry solid colors; striped wires carry negative. Avoid daisy-chaining grounds; route each speaker’s ground directly to the head unit’s chassis point to eliminate crosstalk. Loose connectors can mimic blown fuses; secure all terminals with dielectric grease after crimping.
Illumination control (pin 5, orange/white) requires a 1kΩ resistor if the aftermarket stereo lacks auto-dimming. Without it, dash lights may stay on full brightness or flicker. Factory amp turn-on (pin 8, blue/white) activates only when the ignition cycles–ignore this if bypassing the stock amplifier. Steering wheel controls need an adapter (ASWC-1 or equivalent); tap into the orange lead (pin 12) for CAN bus data if retaining OEM buttons. Voltage drops across long runs–use 16-gauge wire for power and 18-gauge for speakers to maintain signal integrity.
Security features like antitheft (pin 3, brown) may trigger faint static if left unconnected. Disable these systems via the new stereo’s settings menu or jumper the brown lead to ground. USB integration (if applicable) taps into the fuse box via a mini relay–pins A1 and A5 on the 10-pin micro connector carry 5V and data. Check for reversed polarity on the USB cable; some aftermarket units reverse the shield and ground, causing charging failures. Test all connections with the key in ACC position before finalizing the dash assembly.
Harness adapters labeled “Metra 70-1761” or “Scosche VW02B” match the original connector’s pinout exactly. If splicing manually, tin all stripped ends to prevent oxidation and wrap each joint in adhesive-lined heat shrink. Antenna power (pin 10, pink/black) requires 12V constant–verify this with a voltmeter before attaching the FM lead, as missing power here kills AM reception. Some European variants include a separate SAT radio plug; leave this disconnected unless adding satellite capability. Final step: snap the trim panel into place only after confirming all functions work–glove box lights, door chimes, and backup camera (if equipped) share a data bus with the audio system.
Integrating Factory Harness Connections for Audio System Upgrades
Locate pin assignments on the vehicle’s existing 16-pin ISO interface–match voltage supplies (typically 12V constant and switched) to their designated slots by referencing color codes from the OEM service manual. Red wires usually carry permanent power, while yellow or orange traces activate with ignition; cross-check with a multimeter to avoid false positives. Ensure the ground cable (commonly black or brown) attaches to a bare metal surface near the mounting bracket for optimal current return.
Strip 5-7mm of insulation from speaker leads, twist strands tightly, and insert into the corresponding harness ports without crimping–male spade connectors should slide into factory female terminals. Front left and right outputs (often grey/white and grey/black) handle mid-range frequencies, while rear channels (violet/green pairs) may include dedicated bass signals; verify impedances (4-8 ohms) before finalizing connections to prevent amplifier overload.
Key Connections to Verify Before Final Assembly
Test illumination wires (standard blue with white stripe) by toggling headlights–dash lights should dim or brighten accordingly. If integrating steering wheel controls, splice the serialized data line (commonly green or purple) through a resistive network matching the stock unit’s protocol (CAN bus or analog voltage) to maintain functionality. Disconnect the battery’s negative terminal during this phase to prevent short circuits.
For systems requiring auxiliary inputs, repurpose unused pins (e.g., CD changer or satellite radio slots) by soldering 3.5mm audio cables to the corresponding traces on the mainboard. Use heat-shrink tubing to insulate joints against vibration-induced failures. When reassembling the trim panel, route cables away from moving components (gear shift linkages, climate control motors) to avoid chafing or intermittent disconnections.
After securing all terminals, perform a static test by powering the system without reinstalling the head unit–confirm each channel produces sound by touching speaker wires to a 1.5V battery. Address any phase inversions (evident as muffled output) by reversing polarity on the problematic pair. Finalize the installation by reattaching trim clips with plastic pry tools to avoid scratching surfaces.
Troubleshooting Persistent Audio Issues
If static persists, inspect for loose grounds or RF interference from unsuppressed alternator noise–relocate the ground point or add a 1000µF capacitor across the power input. For inaudible rear fills, trace speaker wires back to the amplifier module (often beneath rear seats or cargo areas) and verify signal continuity. When all else fails, consult the vehicle’s electrical schematic for hidden inline fuses (typically 10A-15A) protecting individual circuits.
