For a seamless installation of your aftermarket stereo unit, locate the harness connector behind the factory head unit in the central dash panel. The standard 20-pin plug interfaces directly with most replacement receivers, eliminating the need for wire splicing. Pin assignments follow a consistent pattern: constant 12V (pin 1, typically white/blue), switched ignition (pin 4, red/white), ground (pin 6, brown), and antenna trigger (pin 14, pink/black). Verify these before proceeding–incorrect connections risk blowing fuses or damaging the electrical system.

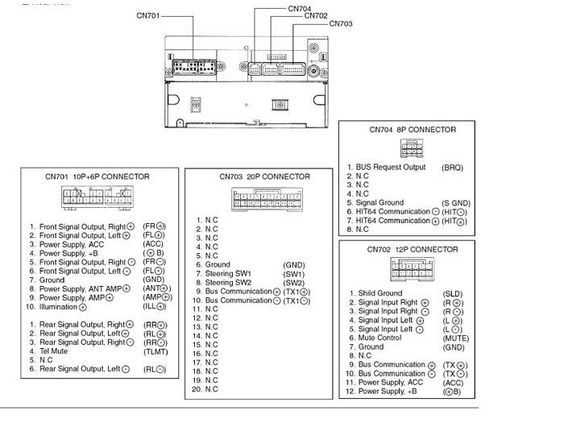

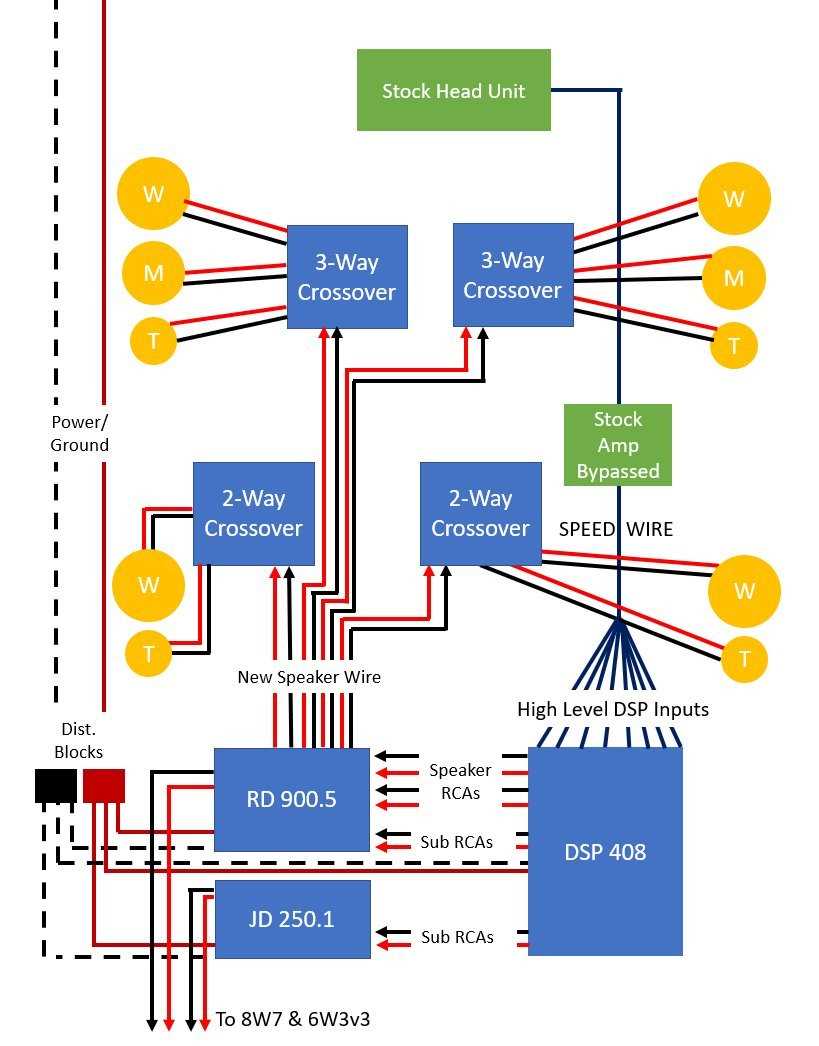

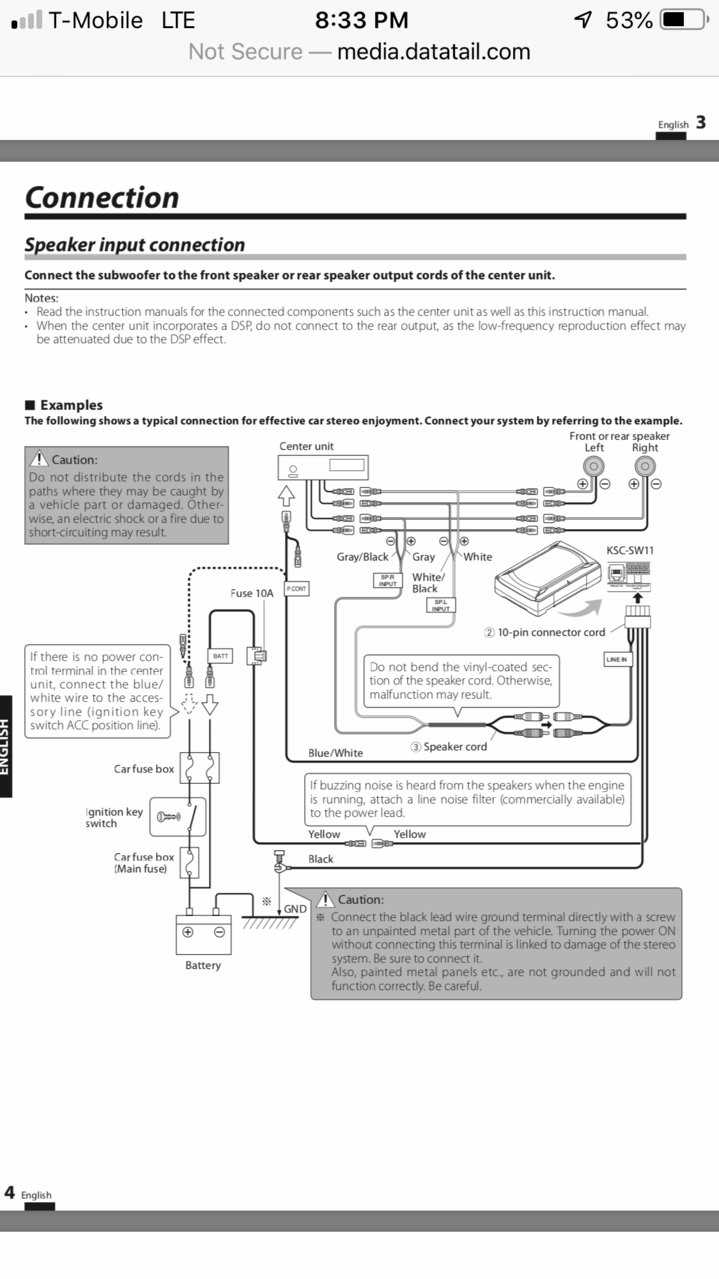

Factory premium audio models (JBL systems) include an amplifier bypass circuit; failure to integrate this results in silent or distorted output. The amplifier harness uses two 6-pin connectors (A and B) on the passenger-side kick panel. Match these to an external amplifier’s input by following the color-coded wires: front left (gray/black), front right (gray), rear left (green/black), and rear right (green). Ground the amplifier directly to the chassis, using a dedicated bolt near the glove box–do not share grounding points with other accessories.
LCD screen interfaces for navigation-enabled units require an additional RGB/Video harness (OEM part #86150-0C040). This connects to pins 15–20 on the main harness, providing both video signal and reverse-camera feed. Incorrect polarization here will render the display inoperable. Always use a multimeter to confirm wire functions before powering the system–factory schematics occasionally vary between trim levels (e.g., SR5 vs. Limited).
For auxiliary devices (USB, Bluetooth modules), splice into the accessory power line (pin 16, purple/white) rather than tapping the main ignition wire. This prevents parasitic drain when the vehicle is off. Keep wiring away from moving parts (steering column, pedals) and secure with nylon wire ties every 6–8 inches–loose connections cause intermittent failures. If static persists, add a noise filter (inline capacitor) rated at 2,000–4,000 microfarads across the power input.
Aftermarket Audio Harness Guide for Full-Size Pickup Trucks
Locate the OEM connector behind the factory head unit–it’s a 24-pin Molex plug labeled “16A” on the back of the stock receiver. Pins 1-4 (red, yellow, black, and orange) carry constant 12V, accessory power, ground, and illumination feed respectively. Tap these directly if retaining steering-wheel controls; splices on these wires risk voltage drop that triggers the amp’s protection mode.
Front speaker outputs sit on pins 5-12: left positive (light blue), left negative (dark blue), right positive (light green), right negative (dark green). Rear channels occupy pins 13-20: left positive (gray), left negative (gray-black), right positive (purple), right negative (purple-black). Strip only 3 mm of insulation; tin the strands with 60/40 solder to prevent fraying that causes intermittent shorts.
Color-Coded Auxiliary Feeds
Identify the telematics interface on pin 21 (brown-violet) and mute signal on pin 22 (pink). If your new deck lacks these inputs, cap them with silicone-filled crimp connectors–exposing bare leads invites RF interference that manifests as hiss at high volumes. The factory amplifier harness, tucked beneath the driver-side kick panel, uses an 8-pin mini-ISO plug: four speaker outputs and four grounds; matching aftermarket adapters eliminate the need to cut the vehicle’s subwoofer harness.
Parking brake safety wire (pin 23, solid brown) must be grounded to enable video playback; bypassing it by bridging to chassis ground trips the airbag light within 10 ignition cycles. For uninterrupted GPS during navigation, route the antenna lead (pin 24, pink-white) through the A-pillar channel–coiling excess cable near the alternator induces signal drift.
Ground Loop Prevention
Mount the new head unit’s chassis ground ring terminal onto the same bare-metal stud the OEM harness uses–typically a 10-mm bolt behind the glove box. Apply dielectric grease between the ring and the stud to prevent corrosion that creates a 300-mV potential difference, audible as engine-speed hum through the subwoofer. If swapping in a navigation head unit, connect the reversed-polarity parking sensor wire (pin 9, brown-yellow) to the deck’s parking assist module input; failure here disables rear camera display during reverse.
The amplifier remote turn-on (pin 6, violet) activates with ignition unless the new deck requires a dedicated remote wire. Use a 22-gauge relay triggered by the accessory circuit to avoid overloading the factory fuse tap–maximum draw on that circuit is 500 mA. For vehicles equipped with JBL premium audio, retain the factory bridging harness between pins 7 and 15 (dark blue and gray); omitting it drops rear channel output by 6 dB.
Secure all splices with heat-shrink tubing containing adhesive liner–standard 3:1 polyolefin won’t seal against condensation that corrode connections within 18 months. Label every wire at both ends with alphanumeric heat-shrink sleeves corresponding to the vehicle’s build sheet; online color charts frequently transpose purple (right rear positive) and gray (left rear positive) on base trim models without navigation.

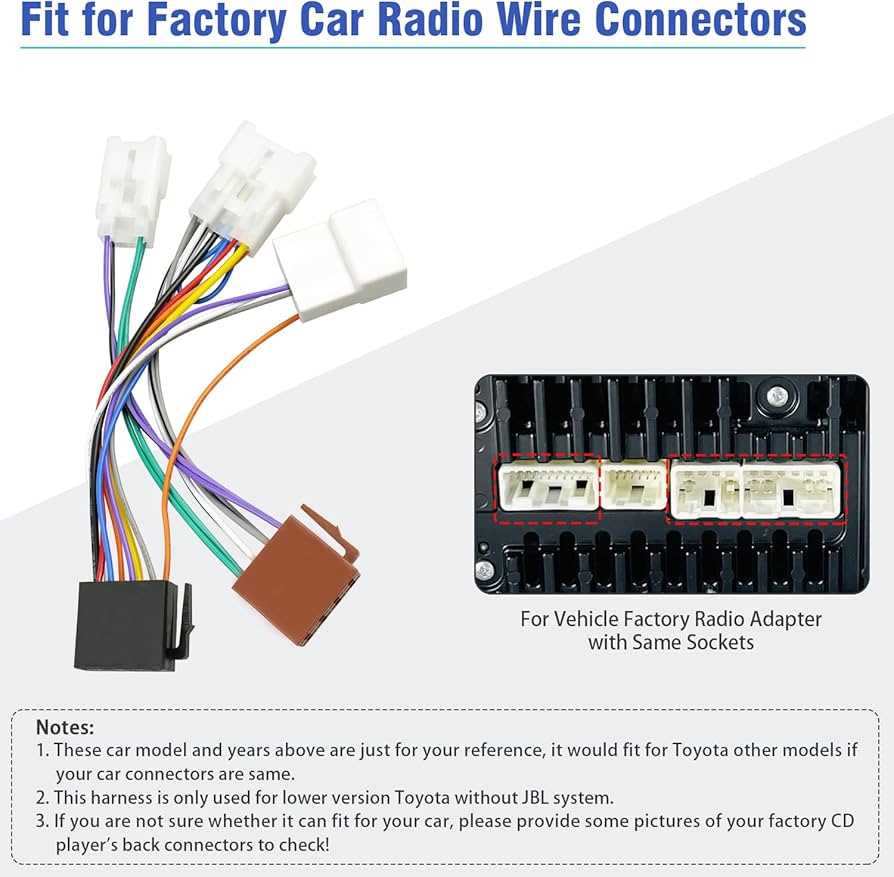

Finding the Audio System Plug Interface on Your Pickup
Begin by removing the center console panel directly beneath the climate controls. Use a trim removal tool to carefully pry the plastic clips holding the panel in place–these are fragile and prone to breaking if forced. The connector lies tucked behind this section, often obscured by insulating foam that must be peeled away gently.
Trace the bundle of cables emanating from the back of the head unit. Follow them downward approximately 15 centimeters until they terminate at a rectangular 24-pin plug. This junction is typically positioned slightly to the right of the vehicle’s vertical transmission tunnel, secured by a small retaining bracket that requires a 7mm socket for removal.
The harness often incorporates multiple branches–for climate controls, steering wheel inputs, and amplifier feeds. Identify the primary audio feed by locating the wires with colored insulation matching the vehicle’s original speaker outputs: typically solid blue, green with stripes, and gray pairs. These will connect to the aftermarket stereo’s corresponding inputs.
If accessing the connector requires tilting the climate control module forward, disconnect the single small plug behind it first. This avoids straining the attached ribbon cable. The module pivots on two tabs at the base and lifts upward without unbolting anything else.
Label each terminal before disconnecting anything. Use masking tape or a dry-erase marker on the plug housing itself–notes on paper are easily misplaced during installation. The upper row of pins usually carries power and illumination signals, while the lower row handles speaker outputs and ground connections.
Check for hidden fasteners beneath the gear shifter boot if the console panel refuses to release. A single Phillips screw is often concealed under a small rubber grommet near the rear edge. Removing this screw allows the entire assembly to slide rearward freely.
Avoid pulling on any wires directly during removal. The harness can be unplugged by depressing the small locking tab on the side of the connector and wiggling it laterally–forceful tugging risks damaging the terminals. If resistance persists, ensure no secondary latch on the opposite side remains engaged.
For vehicles equipped with rear entertainment screens, an additional sub-harness branches off near the parking brake mechanism. This is separate from the main audio interface and should be left undisturbed unless upgrading those systems as well.
Matching Cable Colors to Power, Audio, and Reference Points
Locate the solid yellow lead–this carries constant 12V ignition-independent juice from the fuse panel. Pair it with the red stripe cable only if your aftermarket receiver needs memory retention; otherwise isolate red to prevent parasitic drain. Black with white tracer or bare black always ties to chassis ground–solder or crimp it directly to exposed metal near the dash frame for stable return. Double-check resistance below 0.5 ohms using a digital multimeter before securing.
- Solid blue: Remote turn-on for amplifiers, typically 100–200 mA–use 18-gauge fused link if splicing to aftermarket subs.
- Orange stripe: Illumination dimmer signal–taps into the vehicle’s rheostat for backlight sync; verify +10–12V swing at full brightness.
- Grey stripe (+) / gray stripe (−): Front right speaker–twist these with 16-gauge OFC wire to minimize impedance mismatch.
- White stripe (+) / white (−): Front left–polarity must match factory door tweeters to avoid phase cancellation.
- Purple (+) / purple (−): Rear right–routes through the B-pillar; ensure grommet seals are intact to prevent shorts.
- Green stripe (+) / green (−): Rear left–common failure point; test continuity from head unit to tailgate harness.
Strip 5–7 mm of insulation, align copper strands, and secure with gold-plated butt connectors; heat-shrink tubing prevents corrosion even after a decade of thermal cycling.
Step-by-Step Guide to Removing the Factory Head Unit for Aftermarket Upgrades
Disconnect the negative terminal of the vehicle’s battery first–failure to do so risks short-circuiting the electrical system or triggering airbag faults. Use a 10mm socket to loosen the clamp on the battery post, then tuck the cable away from any metal surfaces. Wait at least 10 minutes before proceeding to allow residual current in the capacitor-based circuits to dissipate fully.
Pry off the trim panel surrounding the dash console using a plastic removal tool–start at the bottom corners to avoid snapping clips. Work methodically around the perimeter, applying even pressure to release the eight hidden clips securing the panel. If resistance is felt, stop and check for additional screws or adhesive strips, particularly near the hazard light button and climate control vents.
Required Tools and Safety Precautions
| Tool | Purpose | Alternative |
|---|---|---|
| Plastic trim removal tool | Avoids scratches on dash surfaces | Flathead screwdriver wrapped in electrical tape |
| Phillips #2 screwdriver | Removes factory screws (4x, 8mm length) | Magnetic ratcheting screwdriver for faster work |
| 10mm socket wrench | Battery terminal disconnection | Adjustable wrench (less precise) |
| DIN removal keys | Releases head unit from mounting cage | Bent paperclips (risk of damaging cage) |
Remove the four screws anchoring the original unit to the dash frame–two at the top behind the trim panel and two at the bottom, accessible once the lower vents are detached. Slide the head unit forward carefully, as its rear connectors may still be partially engaged. Note the orientation of the white plastic retaining clips on the sides–they must face outward to release properly.
Label each wiring harness connector with masking tape before unplugging–factory installations use color-coded plugs for power, speakers, and antenna, but aftermarket adapters may require manual pin reassignment. For vehicles with premium audio systems, locate the separate amplifier harness (typically a 12-pin connector) behind the glove box and disconnect it before removing the head unit completely.
Reconnecting Aftermarket Components
Install the new mounting kit by securing the included cage to the dash frame with the original screws–match thread depth to prevent stripping. Route the aftermarket wiring harness through the dash opening, ensuring no wires interfere with HVAC components or moving parts. Connect the labeled factory plugs to the corresponding aftermarket harness, using dielectric grease on each terminal to prevent corrosion.
Test all functions before final reassembly–power, volume, Bluetooth pairing, and steering wheel controls. If static or distorted audio is detected, check ground connections (black wire with ring terminal) and ensure it’s fastened directly to bare metal. Secure the new unit into the mounting cage until it clicks into place, then reinstall the trim panel by aligning the top edges first before pressing firmly around the remaining clips.
Reconnect the battery terminal and verify all electrical systems function normally–dashboard lights, navigation (if applicable), and climate controls should initialize without error codes. If the vehicle’s check engine light illuminates, scan for codes using an OBD-II tool, as some models require a reset procedure for non-factory infotainment systems.
