Begin by locating the central fuse box beneath the front storage compartment–this is the primary hub for system connections on this model. Use a multimeter set to continuity mode to verify each circuit before disassembly; corrosion at terminal 3B (green/orange stripe) is a frequent issue, leading to intermittent starter failures. Replace the 20A ignition fuse if resistance exceeds 0.5 ohms, as degraded contacts mimic solenoid malfunction.
The CDI unit’s trigger wire (gray with yellow stripe) must maintain uninterrupted connection to the stator; disconnecting it without a load resistor risks permanent module damage. Check harness routing near the exhaust manifold–chafing here disrupts sensor signals, causing erratic idling. For lighting circuits, trace the brown/white wire from the main relay to the headlight switch; voltage drops below 11.8V here indicate a faulty ground at the frame mount behind the front bumper.
Color-coded wiring sections simplify diagnostics: red handles battery power, blue manages ignition, and purple correlates to fuel injection. When repairing wire harnesses, use heat-shrink tubing with adhesive lining over splices–electrical tape alone fails under vibration stress. Test the rectifier by probing the yellow stator wires; readings should alternate between 12–18V AC with the engine at 3,000 RPM. Deviations signal stator failure, requiring replacement rather than repair.
For auxiliary accessories like winches, tap into the auxiliary power port (red/black wire) at the dash connector–bypassing this circuit overloads the main harness. If the reverse override solenoid engages erratically, inspect the violet/white wire from the gear position sensor; intermittent opens here cause false engagement signals. Store digital backups of all schematics before modifying circuits, as aftermarket components often necessitate rerouting.
Electrical Schematic for the 2012 ATV Model 500cc: Key Connections

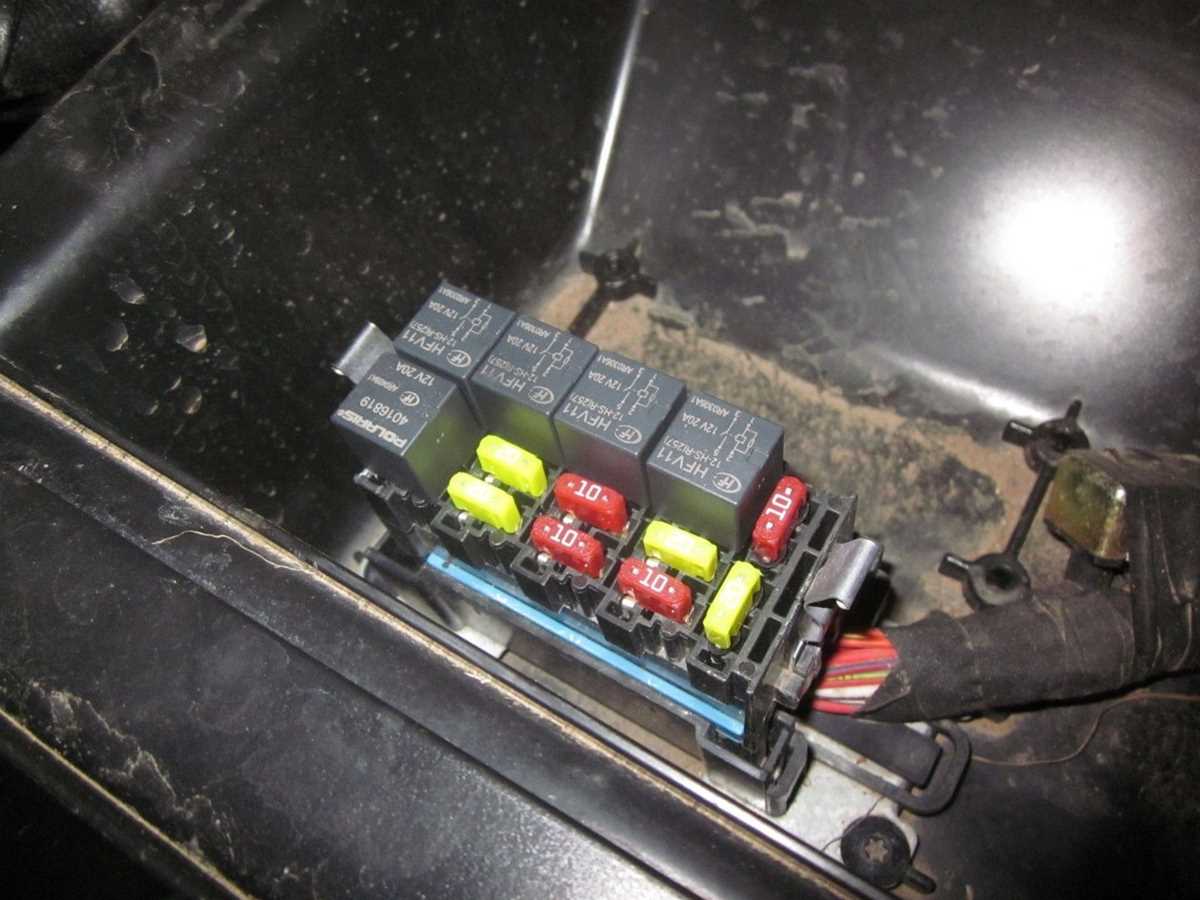

Start troubleshooting by locating the main fuse box under the left-side panel–remove the plastic clip with a 10mm socket to access the primary 30-amp fuse protecting the ignition system. Verify continuity with a multimeter; a blown fuse often indicates a short in the starter relay circuit.
The CDI unit, mounted behind the engine cover near the airbox, requires a 12V reference signal from the stator. Check the white/red wire (pin 3) against ground–readings below 8V DC suggest a failing stator or corroded connector at the ignition coil harness. Replace the stator if resistance exceeds 300 ohms between phases.
Critical Wire Color Codes and Functions
| Wire Color | Component | Expected Voltage (DC) | Troubleshooting Notes |
|---|---|---|---|
| Red/white stripe | Main power feed (battery) | 12.6V (nominal) | Check for voltage drop at the solenoid; corrosion here drains the system overnight. |
| Black/yellow stripe | Ignition switch output | 12V when key is ON | Intermittent connection causes stalling–clean terminals with electrical contact cleaner. |
| Green/white stripe | Neutral safety switch | 0V in gear, 5V in neutral | Faulty switch prevents start; bypass temporarily to test (not for riding). |
| Blue/white stripe | Starter relay coil | 12V during crank | Failed relay clicks but doesn’t engage starter–replace if coil resistance < 50 ohms. |
Inspect the headlight circuit by disconnecting the 7-pin connector under the front rack. Probe the yellow wire with a test light–if dim or flickering, replace the regulator/rectifier (common failure point). Excessive heat at the regulator’s heat sink indicates overcharging; check stator output first before replacement.
The fuel pump relay, controlled by the ECM via a gray/red wire, should click audibly within 2 seconds of turning the key. No click? Jumper the relay’s 30 and 87 terminals to verify pump function. If the pump primes, the ECM or crankshaft position sensor may be faulty–resistance for the sensor should measure 500–1500 ohms.
Grounding Points and Corrosion Prevention
Four primary ground points exist: two near the battery tray (10mm bolts), one behind the left rear fender, and one under the seat bracket. Remove each bolt, scrape paint/surface rust with a wire brush, and apply dielectric grease before reinstallation. Weak grounds cause erratic sensor readings and parasitic drain.
For the transmission range sensor, unplug the 6-pin connector below the seat. The brown/white wire should show 5V reference voltage–any deviation suggests a short to the gray wire (ground), often caused by chafed insulation near the rear swingarm pivot. Secure loose wires with cable ties or spiral wrap to prevent recurrence.
Critical Electrical System Elements and Their Color Identifiers
Always begin troubleshooting by verifying the ground reference at the battery negative terminal. A corroded or loose connection here disrupts every downstream circuit, mimicking symptoms of failed components. Use a multimeter to confirm zero resistance between the battery post and engine block; readings above 0.1 ohms indicate a problem needing immediate attention.
The main harness branches into three primary bundles: powertrain, lighting, and instrumentation. Powertrain circuits control ignition, fuel injection, and charging. Lighting handles headlights, brake lights, and turn signals, while instrumentation powers the speedometer, tachometer, and warning indicators. Each bundle’s entry point into the fuse box is labeled with a unique identifier–match these labels to the schematic sheet for accurate tracing.
- Ignition coil primary: Brown with yellow stripe (Br/Y)
- Injector feed: Pink (P)
- Battery positive lead: Red (R)
- Stator output: Yellow (Y)
- Regulator/rectifier AC input: Orange (O)
- ECU power input: Gray (Gr)
- Neutral switch: Dark green with white stripe (Dg/W)
- Brake light switch: Light green with red stripe (Lg/R)
Trace the yellow wire from the stator to the regulator/rectifier. This wire carries unregulated AC voltage; voltage should read between 30-60V AC at 3000 RPM. If readings fall outside this range, test stator windings individually for continuity–each winding should show 0.1-0.3 ohms. Resistance deviations suggest internal shorting or open circuits, necessitating stator replacement.
For the charging system, focus on the orange wire. It delivers rectified DC voltage to the battery; expected readings are 13.5-14.8V DC at 3000 RPM. Lower voltages indicate a faulty regulator/rectifier or stator; higher voltages risk battery damage. Check the orange wire’s connection at the battery positive terminal for corrosion or loose terminals–clean with a wire brush and apply dielectric grease to prevent future oxidation.
- Disconnect the battery negative cable before working on any electrical component to prevent accidental shorts.
- Label every connector and wire before disassembly; photograph connections for reference during reassembly.
- Use heat-shrink tubing on repaired splices–electrical tape degrades over time, exposing wires to moisture.
- Test diodes within the regulator/rectifier using a multimeter’s diode check function; a faulty diode will show continuity in both directions.
The Dark green with white stripe wire connects the neutral safety switch to the ECU. If the vehicle fails to start in neutral or park, test this wire for continuity. Remove the seat to access the switch; probe terminals with the multimeter while shifting the transmission. No continuity in neutral or park confirms a faulty switch–replace it rather than attempting repairs.
Lighting circuits rely on consistent voltage from the brown wire (tailights) and dark blue wire (headlights). If lights flicker or fail, first check the brown wire at the fuse box for 12V DC. Voltage drops here often stem from a weak battery or corroded fuse terminal. Clean fuse box terminals with contact cleaner and reseat fuses. For headlight failures, inspect the dark blue wire at the headlight connector–voltage should match battery voltage when the switch is on.
Critical sensors–TPS, IAT, and MAP–communicate with the ECU via gray, violet, and white wires respectively. TPS voltage ranges from 0.5V (closed throttle) to 4.5V (wide open throttle). IAT resistance varies from 200 ohms (hot engine) to 10,000 ohms (cold). MAP sensor readings should correlate with altitude and engine load. Deviations outside expected ranges necessitate sensor replacement–adjustments are not possible.
Step-by-Step Guide to Tracing the Ignition System Circuit
Locate the primary ignition coil by following the thickest cable from the spark plug. This wire terminates at the coil’s positive (+) terminal–verify continuity with a multimeter set to ohms (expected reading: 0.5–3 Ω for a functional unit). If resistance deviates, replace the coil before proceeding.
Isolating the Trigger Signals
Disconnect the battery’s negative terminal to prevent accidental shorts. Trace the coil’s trigger wire (often orange or violet) back to the engine control module (ECM) connector. Probe the ECM side of the connector with the multimeter (set to DC volts) while cranking the engine–healthy signals should oscillate between 0.2V and 4.5V. Absence of fluctuation indicates a faulty ECM, broken wire, or corroded pin.
- Examine the main harness where it bends near the frame–check for chafing against sharp edges.
- Wiggle the wire loom near the ECM while monitoring voltage to catch intermittent breaks.
- Test ground integrity by measuring voltage drop (
For the kill-switch circuit, locate the red/white wire from the ignition switch to the ECM. A continuity test should show 0Ω when the switch is in the “run” position. If resistance exists, inspect the switch contacts for oxidation or bypass the circuit temporarily to rule out wiring faults. Reassemble components in reverse order, ensuring all connectors click securely–loose fits cause erratic spark behavior.
