Start by locating the factory connector behind the dashboard’s lower panel. Disconnect the negative battery terminal first to prevent short circuits–this step is non-negotiable. For most models of this generation, you’ll find an 8-pin harness with color-coded wires: yellow for constant power, red for accessory, black for ground, and purple/blue variants for speaker outputs. Refer to the vehicle’s service manual for exact pin assignments, as manufacturers occasionally deviate from standard conventions.
Use a multimeter to verify voltage on the yellow wire (12V) before proceeding. If readings fluctuate, inspect the fuse box–common culprits include blown 10A or 15A fuses. Crimp connectors securely; soldering is optional but recommended for long-term reliability. Avoid twisting wires together, as this leads to signal degradation and intermittent failures.
For aftermarket upgrades, match impedance ratings (4-8 ohms) between new units and factory speakers. Mismatches cause distortion or damage. If integrating amplifiers, run dedicated power cables from the battery with inline fuses (20-40A) sized for the amplifier’s draw. Route wires away from sharp edges and moving components like the steering column to prevent chafing.
Test each connection incrementally: power, ground, then speakers. If the display powers on but produces no sound, check the mute wire (often orange or grey) and ensure it’s not shorted to ground. Static or popping noises typically indicate a loose ground–reattach at the chassis or a paint-free metal surface. Replace any corroded or frayed wires immediately; temporary fixes like electrical tape will fail under vibration.
Document every step with photos or labels to simplify troubleshooting. Keep the original harness intact if reverting to stock configuration later. For advanced diagnostics, an oscilloscope can confirm signal integrity, though a multimeter suffices for most setups. Prioritize safety–avoid bypassing safety features like the vehicle’s security interface unless you’re comfortable with CAN bus protocols.
Vehicle Audio System Connection Guide for 2012 Model Compact SUV
Locate the factory harness behind the dashboard’s central console. Identify the 12-pin connector labeled C101–this carries power, ground, and speaker outputs. Pin assignments follow: A4 (battery constant), A6 (ignition-switched), C2 (ground), and speaker wires coded by color (front left-positive: dark green; front left-negative: gray/violet; rear right-positive: brown/yellow). Use a multimeter to verify voltages (12V on A4, 0V on C2) before splicing.
- Amplifier turn-on lead (A7, violet) requires a 4.7kΩ resistor if connecting aftermarket units.
- Rear camera input (C1, yellow) shares the same harness–disable via fuse #17 if unused.
- Factory antenna control (A12, pink) outputs 5V to motorized systems; bypass with a 10-ohm resistor to prevent faults.
For auxiliary installations, tap into the CAN bus wires (A1 white/violet, A2 orange/black) using a LIN protocol interface. These handle steering wheel controls–mismatched connections trigger instrument cluster errors (U0140 code). Use solder joints and heat-shrink tubing for splices; twist-and-tape methods fail under vibration.
Test speaker impedance with a 1kHz sine wave. Factory outputs tolerate 2Ω–4Ω loads, but aftermarket units often require 6Ω–8Ω stability. Replace overheating wires (red flags: melted insulation, popping sounds) with 18-gauge OFC copper cable. For persistent noise, route power cables away from ground loops–separate them by at least 8 inches from chassis paths.
Selecting the Proper OEM Audio Harness Connector for Your Compact SUV

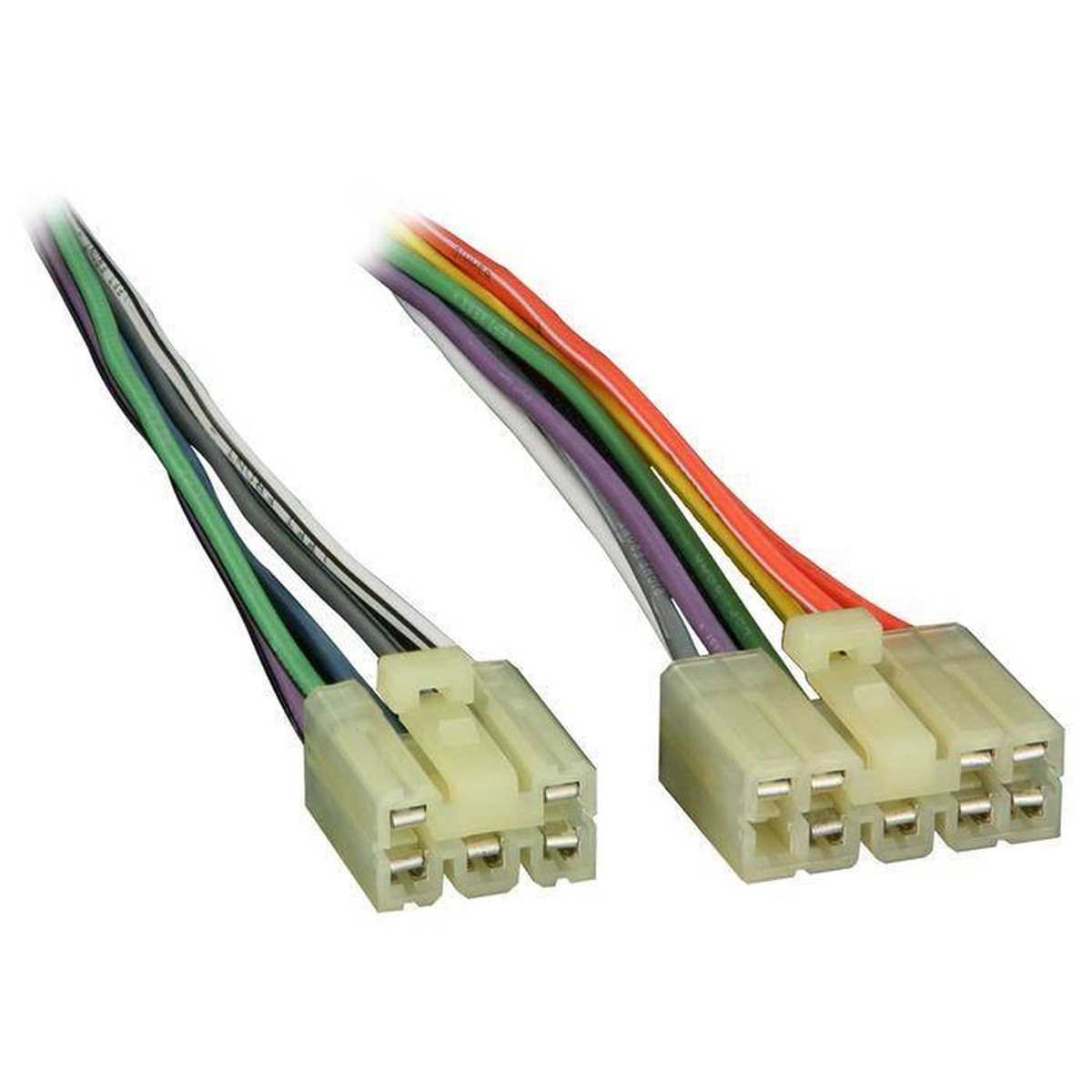

Begin by locating the vehicle’s original connector behind the dashboard–it will be a 10-pin (or occasionally 12-pin) rectangular plug with a distinct locking tab. Verify the pinout configuration using a multimeter: pins 1-4 handle power (constant 12V, ignition, ground), 5-8 carry speaker outputs (front/rear, left/right), and 9-10 manage antenna/amplifier triggers. Common mismatches occur when substituting aftermarket harnesses–factory harnesses from Mopar (part #05094678AA) or Metra (82-73-1017) ensure exact pin alignment, preventing signal dropout or short circuits.
Compatibility Reference by Trim Level
| Trim | Harness Type | Key Features | Antenna Connector |
|---|---|---|---|
| Sport | Standard 10-pin | Basic 4-speaker layout, no amp | FAKRA Type A |
| Limited | 10-pin w/ amp interface | Rear subwoofer wiring, BOSE branding | FAKRA Type B |
| Latitude | 12-pin extended | Steering wheel controls preserved | FAKRA Type C |
Trim-specific harnesses differ in auxiliary connections–Latitude models require a separate control module pigtail (Metra 70-7321) to retain steering wheel functions. For BOSE-equipped variants, bypassing the factory amp without a load resistor (4-ohm, 50W) risks error codes; Metra’s amplified harness (AX-CVF-11) includes pre-terminated resistors. Always confirm compatibility by cross-referencing the fuse box diagram–fuse #18 (10A) protects the audio system circuit.
Step-by-Step Color Codes and Pinout for Factory Audio System Extraction
Begin by disconnecting the negative battery terminal to prevent short circuits. The dashboard trim surrounding the unit is secured with clips–use a plastic pry tool to gently release them without damaging the fascia. Work from the bottom edges upward to avoid breaking tabs.
Identify the retaining screws: two 7mm bolts located behind the climate control vents and two Torx T20 screws beneath the ashtray or cupholder assembly. Remove these first before attempting to slide out the chassis. The factory harness connector locks in place with a green tab–press it downward while pulling the plug straight back.
Key wire color codes for aftermarket integration:
Power feeds include yellow (constant 12V), red (switched 12V), and black (ground). Speaker outputs follow a consistent pattern: front left (+) gray, (-) gray/black; front right (+) white, (-) white/black; rear left (+) green, (-) green/black; rear right (+) violet, (-) violet/black. The illumination wire (orange) dims with dash lights, while the pink/light blue stripe delivers antenna power.
Harness Adapter Pinout Verification
If using a plug-and-play harness, match the colors one-to-one. For direct splicing, strip 1/4 inch of insulation and use solder or crimp connectors–avoid twisting wires bare. Test continuity with a multimeter before reassembly. The CAN bus wires (tan/yellow and tan/orange) carry data; avoid cutting these if retaining steering wheel controls.
Slide the new unit into the cavity, ensuring the mounting sleeve clicks into place. Reattach the harness connector until it audibly snaps. Secure the retainer screws finger-tight first, then torque to 8-10 inch-pounds to prevent stripping. Reconnect the battery, then power on the system to verify all functions before finalizing trim installation.
If static or no sound occurs, recheck ground connections and speaker polarity. Factory amplifiers in premium packages may require a blue/white remote turn-on wire–connect this to the aftermarket harness’s remote lead to activate external power amplifiers.
Step-by-Step Guide to Integrating a New Head Unit with Factory Harness Connections
Locate the stock plug behind the dashboard panel on the driver’s side. Use a Torx T20 screwdriver to remove the trim covering the OEM connector. The harness typically has nine to twelve pins, color-coded for power, ground, speakers, and antenna control. Verify each wire’s function with a multimeter set to 12V DC; expect 10-14 volts on the constant power (yellow), accessory power (red), and illumination wires (orange). Ground (black) should show zero resistance to the chassis. Mismatched readings indicate a fused or corroded circuit requiring immediate repair.
Match the aftermarket harness adapter to the OEM plug by aligning the color codes. For models without a direct plug-and-play solution, manually splice wires using solder and heat-shrink tubing–avoid crimp connectors due to vibration risks. Connect the constant power wire (yellow) to the vehicle’s battery lead, accessory wire (red) to the switched ignition source, and ground (black) to a bare metal point within 18 inches of the unit. Route speaker wires (white, white/black, gray, gray/black, purple, purple/black, green, green/black) to their corresponding door or rear outputs, ensuring polarity consistency to prevent phase cancellation.
Test the antenna signal before final mounting. If reception weakens, install a high-output antenna booster or relocate the factory mast connector closer to the windshield’s top-center. Some units require an additional ground wire from the antenna base to the chassis; failure to secure this link causes intermittent signal drops. Check for interference by turning on all vehicle systems (blower, headlights, A/C) while scanning FM bands–static spikes indicate poor shielding or insufficient grounding.
Program the new head unit’s fader and balance settings to align with the vehicle’s original audio zones. Factory door woofers often run in a bridged configuration; aftermarket amplifiers may need a line output converter to avoid distortion. Adjust the equalizer’s low-frequency cutoff to 80Hz for door-mounted midbass, preventing subwoofer overlap. If the system includes steering wheel controls, integrate a PAC RP4-CH11 or Metra ASWC-1 module–these require splicing into the OEM control wires (typically purple and gray) and configuring via a learn sequence.
Seal the wiring harness connections with silicone dielectric grease before reassembling the dash. Secure loose wires away from moving parts (pedals, steering column) using nylon zip ties. Power on the system, then enter the security code if prompted–this usually matches the last four digits of the vehicle identification number. Verify all inputs (USB, aux, Bluetooth) function, and perform a final volume sweep to detect rattles or electrical whine, which may require ferrite choke installation on power cables.
For backup camera integration, tap into the OEM reverse light circuit (purple/white) and connect it to the head unit’s dedicated input. If the vehicle lacks a factory camera, use a universal 12V trigger from the reverse light switch. Calibrate the camera’s parking guidelines via the unit’s settings menu, ensuring alignment with bumper height. Store the wiring diagram and adapter pinout under the driver’s seat for future reference.
