For precise repairs on the 1500-series heavy-duty pickup, refer directly to the fused junction block beneath the driver-side dashboard. The high-beam circuit (terminal 30 on connector C2) carries a 12V pulse from fuse F18, while the low-beam feed (terminal 53) taps fuse F19–both rated 20A. Ground points G305 and G306, located behind the left inner fender liner, ensure consistent return paths; corrosion here often mimics bulb failure.
Trace the multi-function switch outputs before replacing the entire lamp assembly. Pin A on the driver-side harness (pinout 54169831AA) delivers park-light voltage; if absent, inspect the twilight sensor relay (R11) tucked near the central fuse panel. The automatic dimming module (part 68087569AA) links via a separate 4-wire pigtail–crossed signals often trigger erratic operation.
Test continuity across each lamp socket terminal using a 21W load resistor to simulate bulb resistance; standard meters read false positives due to diode drops. For adaptive forward illumination, verify the steering-angle sensor pairing–misalignment causes premature motor wear in the bi-xenon projector assemblies.

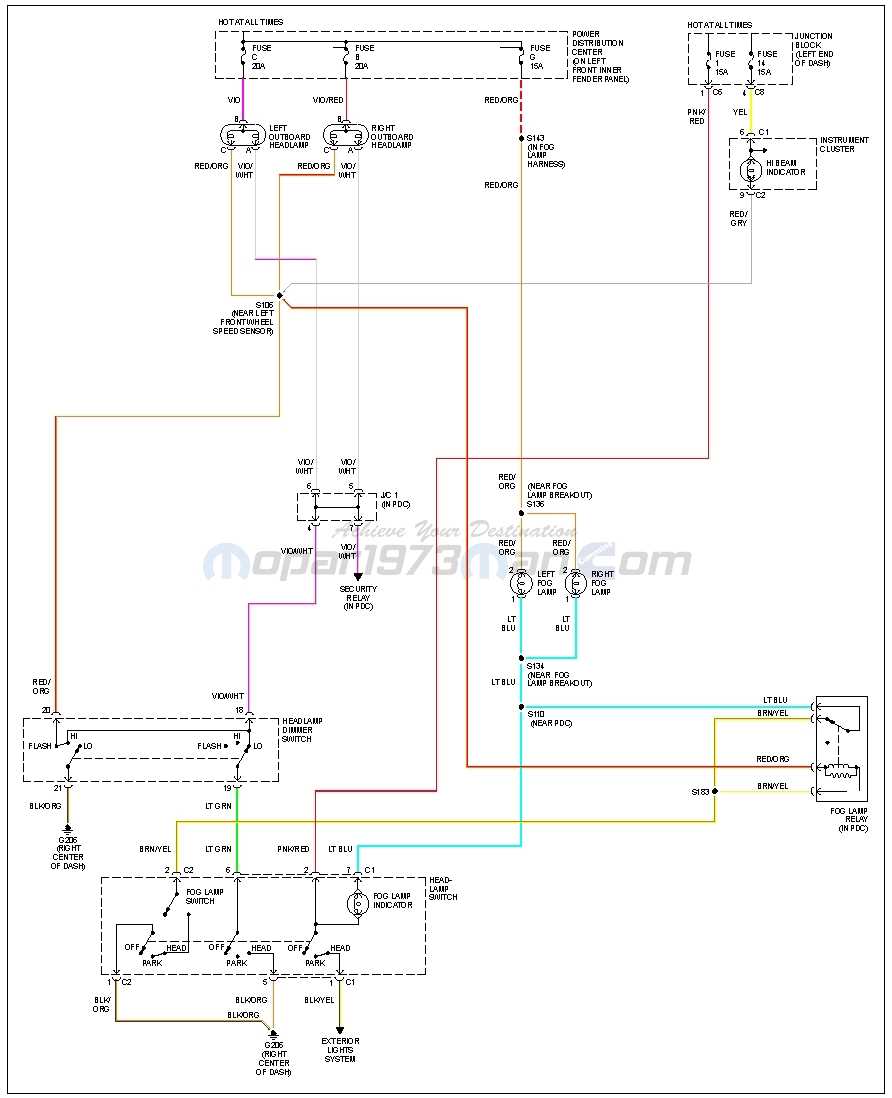

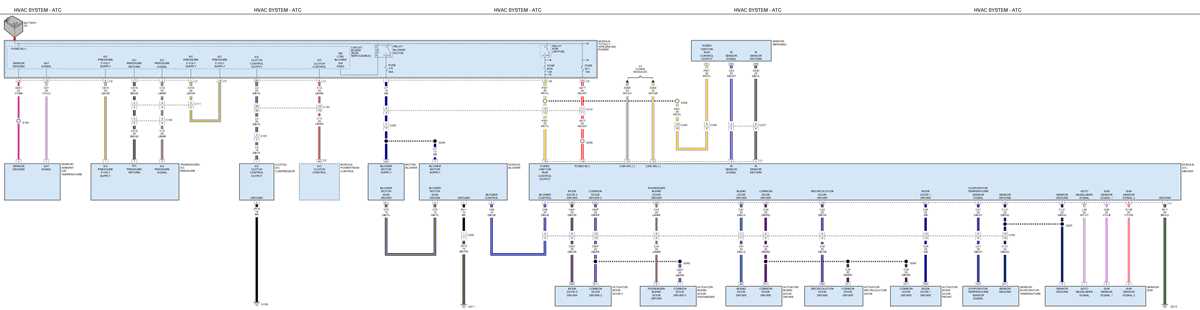

Electrical Schematic for Full-Size Pickup Front Lamps
Locate the fuse box beneath the dashboard on the driver’s side to access the 30-amp circuit labeled “EXT LAMPS.” Verify continuity with a multimeter by probing terminal 10 (light green wire) against ground–readings should register near zero ohms when the switch is engaged. Replace any blown fuse with an identical rating; using a higher-amperage fuse risks damaging the harness.
Inspect the headlamp switch connector (12-way, black) for corrosion or bent pins. Clean contacts with electrical cleaner and a small wire brush if resistance exceeds 0.2 ohms. The switch outputs a low-voltage signal on the orange wire (pin 5) when activated; test this with a no-load voltage of 12.6V. Faulty switches often exhibit intermittent behavior–tap the switch during testing to confirm.
Trace the light green wire from the fuse box to the junction under the front fascia, where it splits into two branches. One branch routes to the left assembly (yellow/black stripe), the other to the right (light blue). Use a continuity tester to confirm each path remains intact; chafing near the radiator support is common and requires rewrapping with 3M Super 33+ vinyl tape.
Component-Specific Testing
Disconnect the bulb socket from the reflector housing before testing–residual moisture can skew readings. The high-beam filament (9005 bulb) receives power on the black/white wire; low beams (H13 bulb base) activate via the yellow/black or light blue wires. Apply a 12V direct power source to each wire while observing filament glow–dim or flickering output indicates a failing ground, typically at the chassis connection near the hood latch.
Daytime running lamps operate through a dedicated module (gray plastic, 3×2-inch) mounted behind the front bumper. The module receives a 12V signal from the ignition circuit (pink wire) and outputs pulsed power to the amber running lamps via the brown/orange wire. Test module function by back-probing the output wire; a healthy module delivers 8-10V pulses at 100Hz. Replace the module if pulses are irregular or absent.
Check the headlamp relay (square, four-pin) in the under-hood fuse box. Swap it with the horn relay (identical part) to isolate internal coil failure–clicking should be audible during low-beam activation. The coil draws 0.3A; readings beyond 0.6A indicate shorting. Always reinstall relays with dielectric grease to prevent terminal oxidation.
For vehicles with automatic headlamps, the ambient light sensor (mounted on the dash) sends a variable resistance signal (100 ohms in darkness, 10k ohms in sunlight) to the body control module. Bypass the sensor by jumping the two outer pins with a 1k-ohm resistor; if lamps activate, replace the sensor. Ensure the module’s software calibration aligns with build date codes–flashing errors often stem from mismatched updates.
Replace damaged connectors with OEM terminals (part #68028121AA). Crimp terminals using a ratcheting crimper, then solder for durability. Apply heat-shrink tubing over splices–electrical tape degrades under UV exposure within 18 months. Route harnesses away from moving components (e.g., suspension travel) with heavy-duty zip ties spaced every 6 inches.

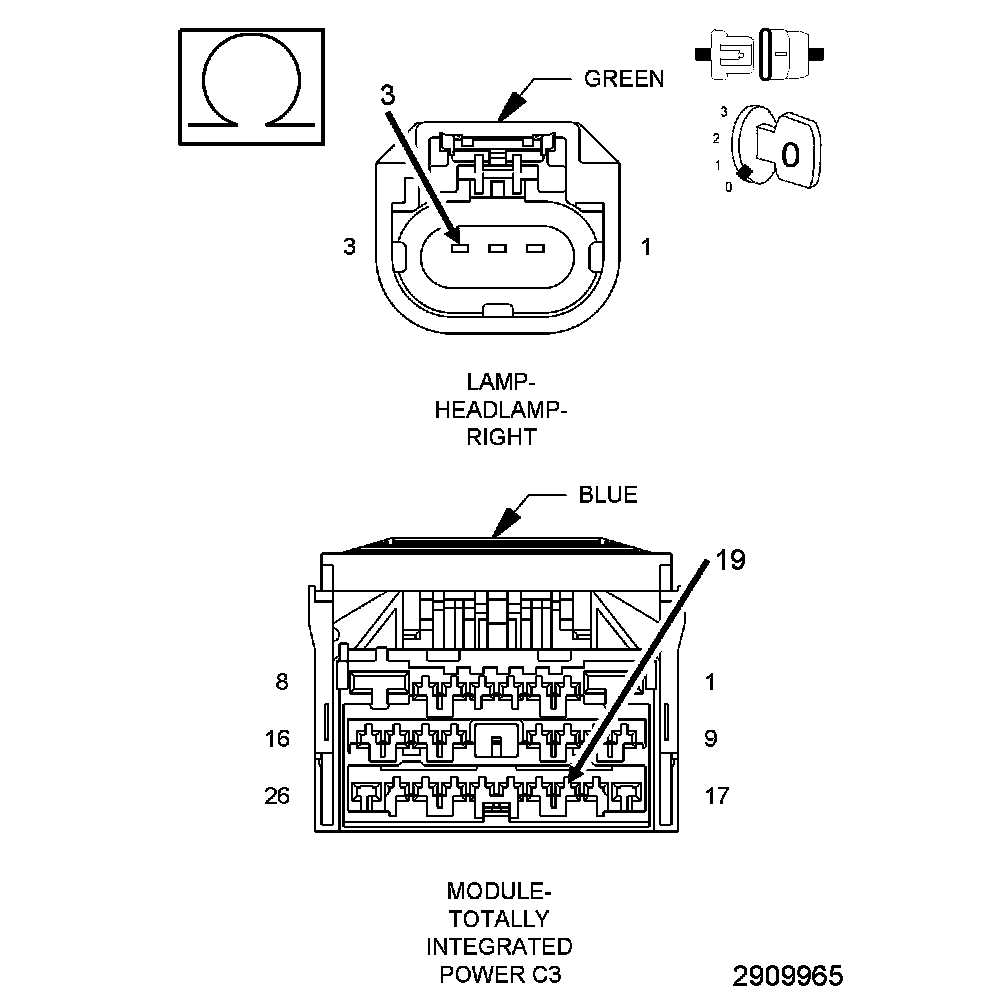

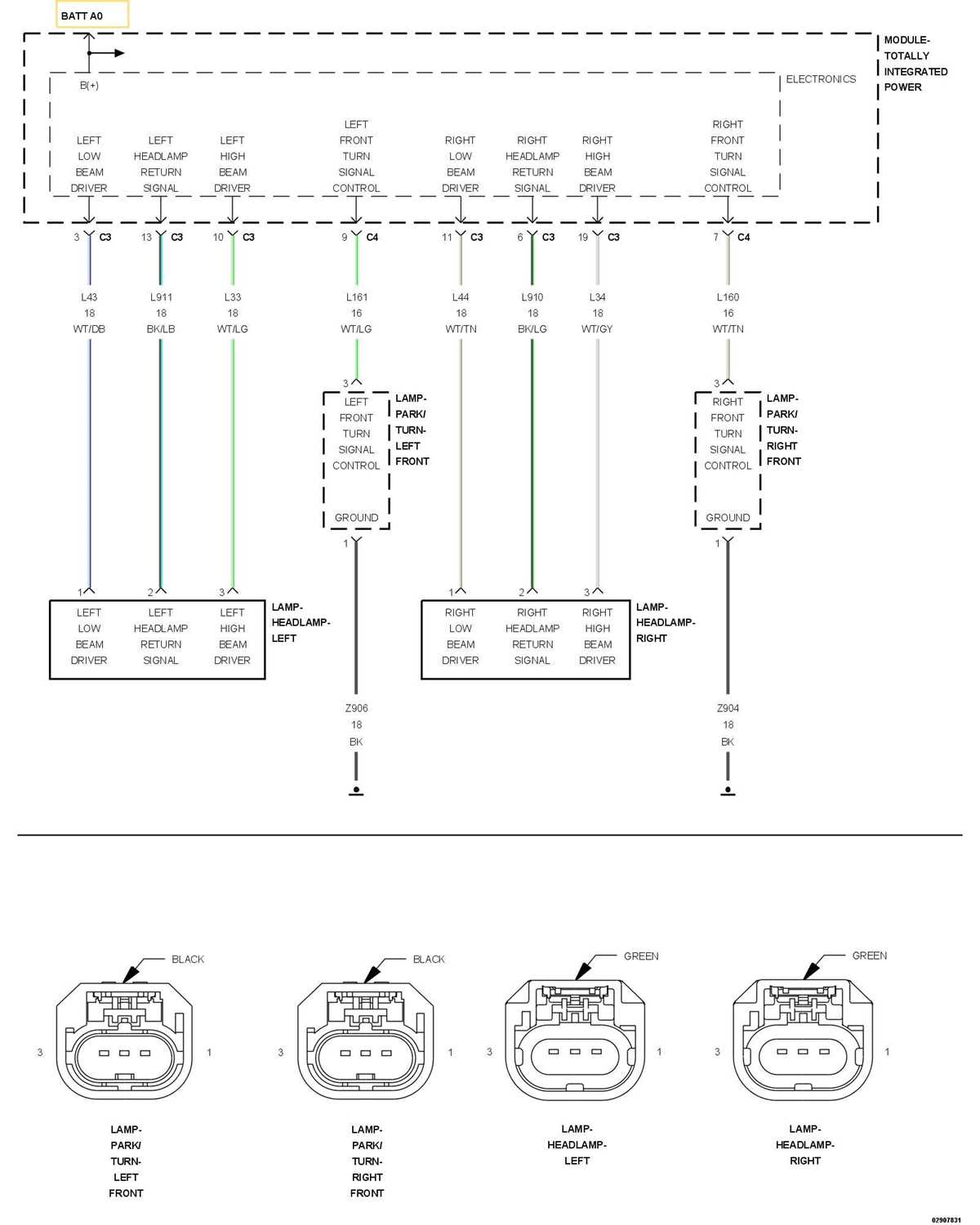

Finding the Illumination Module Pinouts on a 1500 Series Pickup
Begin by removing the front fascia cover beneath the lamp assembly–access requires a 10mm socket to detach the six fasteners securing the under-bumper shield. Once exposed, the connector sits directly behind the left or right lens housing, identifiable by its rectangular, black plastic housing with two locking tabs and a central release latch.
Use a small flathead screwdriver to depress the latch while gently pulling the plug outward. Avoid tugging on wires; grip the connector body firmly. The pinout configuration follows a standard three-terminal layout: terminal one (outer left) carries the low-beam feed, terminal two (center) is the ground return, and terminal three (outer right) supplies the high-beam circuit.
Verifying Pin Functionality
Test continuity between each terminal and the corresponding bulb socket using a multimeter. Low-beam voltage should register 12.6V with the ignition on and the lamp switch set to “on.” High-beam engagement should produce the same voltage at terminal three when toggling the stalk lever. If readings deviate, inspect the inline fuse (30A) located in the power distribution center under the hood–fuse number 23 for the left assembly, 25 for the right.
The connector’s potting compound can degrade over time, leading to moisture ingress and intermittent failure. Check for corrosion on pin surfaces; clean with electrical contact cleaner and a fiberglass pen if oxidation is present. Reapply dielectric grease before reconnecting to prevent future oxidation.
Trace the harness backward from the connector toward the firewall–approximately 18 inches–where it splices into the main loom. This junction point often suffers from chafing due to engine vibration. Secure loose sections with spiral wrap and inspect for bare wires; repair any damage with heat-shrink tubing and solder.
Alternative Access Points
If accessing the connector from beneath proves difficult, remove the entire lamp housing by unscrewing the three rear fasteners (one 8mm bolt at the top, two 10mm bolts at the sides). This provides direct visibility of the rear connector and simplifies pinout verification. Reinstall the housing by aligning the guide pins before tightening bolts to 12 ft-lbs torque.
For models with daytime running lights, an additional two-terminal connector exists adjacent to the primary plug. This smaller connector (white or gray) handles the DRL resistor–verify it draws 6.2V with a multimeter to confirm proper load balancing. If voltage is absent, inspect the ambient light sensor mounted behind the grille, as its output influences DRL operation.
Step-by-Step Light Assembly Wire Color Guide for Dual-Filament Bulbs
Locate the gray wire with a black stripe (GY/BK) on the truck’s front lamp connector–this carries the ground signal for both beam modes and must be secured to a clean metal surface with a 10mm ring terminal. Verify continuity with a multimeter before proceeding; resistance above 1 ohm indicates corrosion at the chassis point. For the low-beam circuit, connect the dark blue wire (DK BLU) to the 9006 bulb terminal–this channel draws 6.5 amps at 12.8V and should fuse at 10A. Use solder and heat-shrink tubing for splices to prevent voltage drop in wet conditions.
High-Beam Circuit Specifics
The light blue wire (LT BLU) delivers power exclusively during high-beam activation, requiring a 15A fuse due to the 9.2-amp draw. Attach it directly to the 9005 bulb’s center pin, ensuring no contact with the bulb’s outer shell–shorts here will blow the wiring harness entirely. Test functionality by toggling the stalk-mounted switch while monitoring voltage at the connector; a reading below 12V suggests a faulty relay in the TIPM module, often located behind the glove box liner under the dash.
Inspect the purple wire with a white stripe (PPL/WT) last–this triggers the dedicated daytime running lights module when the ignition is on, but only if the parking brake is disengaged. Bypass it temporarily by jumping the PPL/WT wire to the DK BLU wire during troubleshooting to isolate whether the issue lies in the module or the upstream sensor. Always tape exposed wires with high-temperature silicone tape, not electrical tape, as under-hood temperatures exceed 220°F in summer.
For bulbs with integrated LED strips, the orange wire (ORN) provides a switched 12V feed to the side markers–no load here should exceed 2 amps. If LEDs flicker, replace the inline resistor with a 1.5-ohm ceramic unit rated for 10W to stabilize current. Label every connection with heat-resistant tags to simplify future diagnostics.
How to Test Fuses and Relays in the Front Lighting System
Locate the vehicle’s fuse box; it’s typically under the dashboard on the driver’s side or in the engine compartment. Remove the cover and use the fuse box diagram printed on it or in the owner’s manual to identify the fuses corresponding to the low- and high-beam circuits–usually labeled “LT LO” and “LT HI” along with their amperage (commonly 10A or 15A). Visually inspect each fuse: a blown fuse will show a broken filament or blackened area inside the transparent body. For confirmation, use a multimeter set to continuity mode–touch the probes to both fuse terminals; a reading of 0 ohms indicates a good fuse, while OL (open line) confirms a blown one.
If fuses are intact, shift focus to the relays. Most vehicles use a standard ISO mini-relay configuration: terminals 85 (coil ground), 86 (coil power), 30 (input), 87 (output), and 87a (optional normally closed). Remove the relay and perform a bench test using a 12V power source. Connect the power source to terminals 85 and 86; you should hear a distinct click. If no click occurs, the relay coil is faulty. Next, test continuity between terminals 30 and 87–no continuity means the contacts are damaged. Replace any relay that fails these checks.
For in-situ relay testing, backprobe the relay socket with the multimeter. With the ignition on and lights activated, check for 12V at terminal 86 (coil power) and 85 (ground). Voltage present but no relay function suggests a bad relay. Verify terminal 30 receives constant 12V from the battery; terminal 87 should show 12V when the relay is energized. If terminal 30 lacks voltage, trace the wiring to the fuse or power distribution module–corrosion or broken wires are common culprits.
When voltage reaches the relay but fails to reach the light assembly, check the relay socket pins for corrosion. Clean each pin with electrical contact cleaner and a small wire brush, ensuring no debris remains. Reinsert the relay and retest. If the issue persists, inspect the wiring harness between the relay and the lighting unit. Use a test light to probe each wire–start at the relay socket and work toward the bulb. No light indicates an open circuit; proceed to the next accessible connector and repeat until the break is located.
| Test Point | Expected Voltage | Tool Used | Fault Indication |
|---|---|---|---|
| Fuse input | 12V battery voltage | Multimeter (DC volts) | No voltage or less than 12V |
| Relay terminal 86 | 12V with ignition on | Multimeter (DC volts) | No voltage |
| Relay terminal 30 | Constant 12V | Test light | Test light does not illuminate |
| Relay terminal 87 | 12V when relay energized | Multimeter (continuity) | No continuity to terminal 30 |
After identifying a faulty fuse, relay, or wiring, replace components with OEM-spec parts. For fuses, match the amperage exactly–never substitute a higher-rated fuse. Install relays with identical terminal configurations and coil resistance (typically 50-120 ohms). Secure all connectors with dielectric grease to prevent future corrosion. Perform a final system check: activate both lighting modes and verify illumination, confirming all circuits operate correctly before reassembling the fuse box cover.
Advanced Troubleshooting: Signal Path Verification
For intermittent failures, use an oscilloscope to capture voltage signals at key points. Connect the scope probes to relay terminal 86 and the corresponding bulb socket wire. With the lights cycling on/off, monitor the waveform–consistent square waves indicate proper switching; jagged or erratic patterns suggest poor ground or corroded connections. Repeat the test at the body control module (if equipped) and compare results–discrepancies pinpoint where the signal degrades.
