The powertrain control module (PCM) relies on precise voltage readings from the sender assembly to regulate pressure and flow. If voltage drops below 0.5V at idle or fails to rise above 4.5V under load, inspect the gray/black and violet/white circuits for continuity–resistance should measure <2 ohms across 12 inches of wire. Corrosion at the underhood fuse block often mimics pump failure; verify Fuse 32 (20A) for integrity before disassembly.

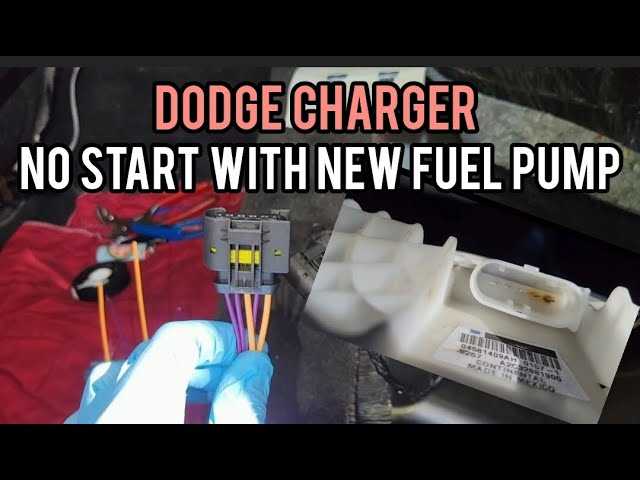

Disconnect the rear seat cushion to access the sender flange–remove the four T20 Torx bolts with a magnetic driver to avoid dropping fasteners into the tank. The four-pin connector (labeled A, B, C, D) must mate securely with zero play; use dielectric grease on terminals B (gray/black) and D (violet/white) to prevent oxidation. Momentary short circuits during engine cranking often trace back to chafed wires near the subframe bracket–route harnesses through protective loom to avoid abrasion.
Use a bidirectional scan tool to command fuel pressure tests–expected values: 58–62 psi at key-on (KOEO), dropping to 51–55 psi within 2 seconds of engine start. If pressure holds steady but flow rate is insufficient, replace the in-tank strainer–clogged units starve the module despite correct voltage. For intermittent stalling, backprobe connector A (tan/light blue) and monitor voltage during ignition cycles–spikes above 13.8V indicate a faulty relay control circuit in the PCM.
Before soldering repairs, strip 1/4 inch of insulation and twist strands clockwise–crimp with a double-wall butt connector, then apply heat-shrink adhesive over the joint. Avoid vinyl tape on high-temperature sections near the exhaust crossover; use silicone-jacketed wire rated to 200°C instead. Document all modifications with timestamped photos–mismatched wire gauges (18 AWG vs. 20 AWG) introduce fire hazards under sustained demand.
Electrical Layout for the Sedan’s Power Delivery System: Step-by-Step Troubleshooting
Locate the TIPM (Totally Integrated Power Module) under the dashboard on the driver’s side–this unit controls voltage distribution to the energy supply circuit. Use a multimeter set to 20V DC to check pin 51 on connector C2 for battery voltage while the ignition is in the ON position. If voltage is absent, inspect fuse F52 in the under-hood box; a blown fuse often indicates a short in the downstream power feed.
Trace the purple wire from the TIPM to the rear sender assembly–this high-current line carries 12V to the primary relay coil and should maintain 0.3 ohms or less resistance to ground. At the tank’s harness connector, probe terminal C for continuity; corrosion here mimics a defective relay by disrupting the activation signal. Clean contacts with a wire brush and dielectric grease if oxidation is visible.
Remove the rear seat cushion to access the tank’s top plate–four 10mm bolts secure the assembly. Disconnect the three-wire harness plug; the gray wire carries the sender signal to the PCM (powertrain control module). Back-probe this line with the ignition ON–if the reading varies outside 0.5–4.5V during cranking, the level sensor requires replacement or calibration via a bidirectional scan tool.
Test the inertial impact switch mounted on the chassis rail near the spare tire well–this safety device cuts power during a collision. Press the reset button once; if the red indicator remains illuminated, bypass the switch temporarily with a fused jumper wire to confirm it’s the root cause. Replacement switches cost under $40 and require torquing the mounting bolts to 8 Nm.
Inspect the fuel module’s internal ground strap–this braided wire connects the sender housing to the vehicle frame. A loose or fractured strap causes erratic voltage readings; attach a temporary 12-gauge wire from the tank flange to a clean chassis ground point to test. If normal operation resumes, replace the OEM strap with a aftermarket upgraded unit or solder a new terminal using marine-grade heat shrink tubing.
For vehicles with adaptive idle strategies, ensure the MAP sensor reads between 28–32 kPa at sea level–incorrect readings prompt the PCM to lean the mixture, falsely triggering pump fault codes. Reset learned values by disconnecting the battery for 15 minutes; on reconnection, perform a drive cycle with 20 minutes of cruising above 2,500 RPM to recalibrate the air-fuel tables.
Finding the Electrical Connector for the Sending Unit in Your Sedan
Begin by lowering the rear seat cushion to expose the access panel covering the tank assembly. The cover is typically secured with three 8mm screws–remove them using a socket wrench. Once the panel is off, you’ll see a circular flange with a six-pin connector leading to the tank’s internal module. Trace the harness back along the underbody, noting its path through a plastic conduit running parallel to the frame rail on the driver’s side. Use a flashlight to confirm the connection point, as the harness is often obscured by protective loom and undercoating.
Key Landmarks for Harness Identification
| Location | Wire Color Codes | Connector Type |
|---|---|---|
| Tank flange (top) | Dark Green/White, Orange/Light Blue | 6-pin rectangular |
| Mid-frame junction | Pink/Black, Violet/Yellow | 2-pin inline |
| PCM link near firewall | Gray/Red, Brown/Light Blue | 8-pin circular |
Disconnect the negative terminal of the battery before probing any connections to avoid short circuits. The harness splits near the rear axle into separate branches–one leading to the sending unit, another to the in-tank pressure sensor. The main power feed (thicker gauge, pink/black wire) originates from the TIPM under the hood; follow it backward to verify continuity. If resistance exceeds 0.5 ohms between the tank connector and TIPM, inspect for corrosion at splice points or chafed insulation along the frame rail. Replace any section showing exposed copper or melted plastic sheathing.
Step-by-Step Electrical Hookup for the Energy Delivery Relay
Begin by locating pin 85 on the control module; connect it to a 12V switched ignition source using 18-gauge wire with red insulation. Ensure the terminal is crimped with a weatherproof butt connector and sealed with heat-shrink tubing to prevent corrosion. Pin 86 grounds to the vehicle’s chassis near the module–use 16-gauge black wire, securing it with a star washer and bolt torqued to 8-10 ft-lbs. Verify continuity with a multimeter before proceeding; resistance should not exceed 0.5 ohms.
Attach pin 30 to the battery’s positive post via a 20-amp inline fuse, routing the cable away from moving components and heat sources. For pin 87, splice a 14-gauge orange wire into the existing circuit feeding the supply line, matching the factory color-coding (check OEM schematics for deviations). Test the relay’s operation by cycling the key–listen for a brief hum from the sender unit within 2-3 seconds; absence indicates a faulty connection or failed component.
Decoding Conductor Hues in the Power Delivery Network for Fuel Injection Support
Locate the primary power feed by tracing the orange conductor–this strand delivers 12V+ from the ignition-controlled relay output. Verify continuity with a multimeter at the harness connector (terminal 1) before proceeding. Interruptions here often mimic system failures, yet the root cause lies in cracked insulation or corroded pins rather than module defects.
- Dark Green with Yellow Stripe: Ground return path–this wire bonds the circuit to chassis earth near the sender unit. Poor grounding creates voltage drops, triggering erroneous pressure readings. Scrape chassis paint to bare metal at connection points for reliable conductivity.
- Gray with Black Stripe: Sensor signal line carries variable resistance values from the tank module to the ECM. Expect 0.5–4.5V sweep during operation. Noise on this line (detected via oscilloscope) indicates failing sender or water intrusion in the float mechanism.
- Pink with Dark Blue Stripe: Fuel level gauge input–5V reference from the instrument cluster. Shorts here disrupt both gauge accuracy and injection pulse timing. Test for 4.8–5.2V with ignition ON; lower readings confirm a dead short to ground.
Identify the purple with white stripe–this exciter lead activates the relay coil when the ECM validates crankshaft position. Probe for 0V-to-12V transition at KOEO (key-on-engine-off) using a logic probe. Absence of pulse suggests ECM output failure or open in the relay winding. Replace the relay only after confirming inbound 12V+ and outbound ground at its socket.
Inspect harness integrity where it routes over the rear subframe–vibration fractures commonly occur in light blue and tan conductors. Splicing requires heat-shrink crimp connectors; solder-and-tape repairs degrade within 12 months. Document resistance values between harness pins (Pin A-to-Pin B) before disassembly; deviations >3Ω indicate pin-fit corrosion or internal breakage.
- Set DVOM to diode test mode: probe yellow with violet stripe (ECM command output) against chassis ground. Expect ~0.3–0.6V drop during KOER (key-on-engine-running). Reversed polarity or >0.8V confirms transistor failure in ECM.
- For intermittent faults, monitor amperage draw on the dark green power feed during pump prime cycles (KOEO). Normal range: 4–7A; spikes >10A indicate seized rotor or contaminated strainer.
- Cross-reference observed voltages with OEM Pinout Chart 9W-5041B–Especially pins 3, 5, and 7–before declaring a module fault. Third-party scan tools often misreport P1230 as a mechanical issue, but the true culprit is commonly a chafed pink wire grounding against the chassis rail.
