Start with the factory harness adapter. GM’s OEM audio connections for this model year use a 12-pin Molex plug (part #88986617) for power, ground, and speaker outputs. Skip splicing–order a pre-made adapter (Metra 70-2003 or Scosche GMOS-LAN) to retain steering-wheel controls and OnStar. Verify the adapter’s pinout against the truck’s wiring: pins 1–4 deliver +12V constant, ignition-switched, and ground; pins 5–12 split front and rear speaker channels, each pair carrying 4-ohm, 20W RMS signals.
Disconnect the negative battery terminal before touching any wires. GM’s body control module stores radio presets and chime settings; interrupting power resets these but prevents short circuits. Use a 10mm socket to remove the terminal clamp–wait at least 10 minutes if the truck has keyless access to drain capacitors in the door modules.
Mount the new head unit before routing cables. The dash kit (Metra 99-3303) clips into the stock radio cage without drilling. Secure the unit’s rear USB and aux inputs to the kit’s side brackets–GM’s center console lacks clearance for bulky harnesses. Route the adapter’s harness under the heater box, avoiding the HVAC blend door actuator (located at driver-side knee bolster). Use zip ties every 4 inches to prevent rattles.
Test each connection with a multimeter. Probe the speaker wires: front-left (+) white/black stripe, (-) black; front-right (+) light green, (-) dark green stripe. Rear channels match: left (+) gray, (-) gray/black stripe; right (+) purple, (-) purple/black stripe. If the meter reads DC voltage instead of ~2.5V AC, the channel is shorted–inspect the harness for pinched wires behind the glove box.
Reintegrate OnStar if removed. The OnStar module (part #25920495) taps into pins 9 (serial data) and 12 (GPS antenna) of the factory harness. Connect these to the adapter’s brown and dark blue wires, respectively–wrong polarity bricks the module. Flash the ECU with a Tech2 scanner to reinitialize hands-free calling.
Guide to Factory Audio System Electrical Connections for GM Pickup Models
Start by locating the 14-pin harness behind the stereo unit–pin 1 (yellow) supplies constant 12V power, while pin 6 (red) delivers ignition-switched voltage. Connect the ground wire (black, pin 9) directly to the chassis using a 16-gauge ring terminal secured with a 10mm bolt to prevent pops during startup. For speaker outputs, match the following pairs to the factory harness:
- Front left (+): light green (pin 11)
- Front left (-): gray (pin 7)
- Front right (+): orange (pin 10)
- Front right (-): violet (pin 8)
- Rear left (+): tan (pin 12)
- Rear left (-): dark green (pin 4)
- Rear right (+): brown (pin 13)
- Rear right (-): white (pin 3)
If retaining OnStar or steering wheel controls, splice the retained accessory wire (blue, pin 5) into the new head unit’s mute/control input using a T-tap connector–do not cut the original wire. For aftermarket amplifiers, disconnect the factory amp power lead (pink, pin 14) and reroute it to the new amp’s remote turn-on terminal. Always verify connections with a multimeter before finalizing–measure for 12V on the power wires and continuity on ground. Use a non-conductive zip tie to bundle excess wiring away from moving parts.
Finding the Audio System Connector Behind the Instrument Panel
Disconnect the negative battery terminal before working behind the dash to prevent short circuits or accidental airbag deployment. Remove the lower dashboard trim panel secured by plastic clips–use a trim removal tool to pry near the clip locations marked along the edges. The panel typically snaps off without screws, but check for hidden fasteners near the steering column.
Trace the bundled cables from the back of the head unit downward; the main harness emerges as a single 12-pin rectangular plug attached to a black plastic housing. Look for a secondary 8-pin circular connector with smaller gauge wires–this controls auxiliary functions like steering wheel controls. Both connectors share a single retention clip; press the tab to release before pulling.
- White/black wire: constant 12V power
- Pink wire: ignition-switched power
- Yellow wire: memory keep-alive
- Black wire: ground
- Dark green/white: left front speaker (+)
- Light green/white: right front speaker (+)
- Gray/black: left front speaker (-)
- Light blue/black: right front speaker (-)
If the connectors are not immediately visible, follow the fused wiring loom upward from the fuse block on the driver’s side. The loom splits into two branches–one leads to the head unit, the other merges with the vehicle’s main electrical backbone. Use a flashlight to identify the color-coded wires without tugging; excessive force can damage the insulation or dislodge the connector seal. Reattach the trim panel only after confirming no loose wires interfere with moving components.

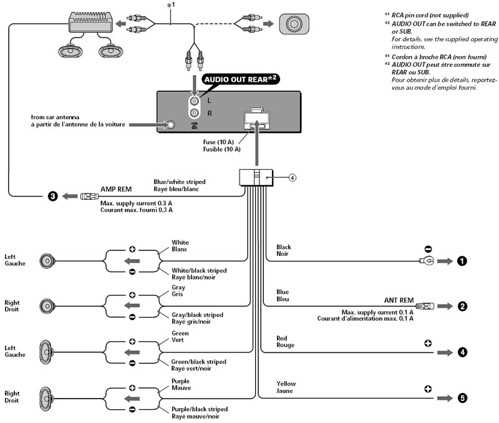

Step-by-Step Guide to Identifying Wire Colors and Functions
Locate the harness connector behind the infotainment unit–it typically has 12 to 16 pins arranged in two rows. Use a multimeter set to 12V DC and probe each terminal while referencing the pinout table below. Ground wires (black or brown) will show 0V; power sources (yellow, red, or orange) register battery voltage (~12.5V); speaker wires (gray, white, purple, green) alternate between low resistance and ~4-8 ohms when tested with audio signal.
| Color Code | Function | Voltage/Resistance | Testing Method |
|---|---|---|---|
| Yellow | Battery power (constant) | 12.5V (engine off) | Multimeter direct probe |
| Red | Ignition-switched power | 12.5V (key ON)/0V (key OFF) | Cycle ignition, observe voltage drop |
| Black | Ground | 0V | Continuity to chassis |
| Gray (+) Gray/Black (-) |
Front right speaker (+/-) | 4-8Ω (with tone generator) | Audio probe or resistance test |
| White (+) White/Black (-) |
Front left speaker (+/-) | 4-8Ω (with tone generator) | Audio probe or resistance test |
| Purple (+) Purple/Black (-) |
Rear right speaker (+/-) | 4-8Ω (with tone generator) | Audio probe or resistance test |
| Green (+) Green/Black (-) |
Rear left speaker (+/-) | 4-8Ω (with tone generator) | Audio probe or resistance test |
| Orange | Illumination/dimmer | 0-12V (varies with dash lights) | Adjust dash brightness, measure voltage |
| Blue/White | Amplifier remote turn-on | 12V (unit ON)/0V (unit OFF) | Check with unit powered |
Strip ¼ inch of insulation from each wire using a precision stripper–avoid nicking copper strands. Crimp bullet connectors or solder joints, then insulate with heat-shrink tubing. For aftermarket integrations, splice into existing circuits using T-taps or Scotchlok connectors; avoid cutting factory wires unless necessary. Verify all connections with the multimeter once more before reassembling the dashboard panels.
Installing a New Head Unit in Factory Harness Without Mistakes
Start by disconnecting the vehicle’s battery terminals to prevent short circuits. Locate the original connector behind the dash–usually a 12-pin or 16-pin plug matching the automaker’s harness. Verify wire functions using a multimeter: constant 12V (yellow), switched power (red), ground (black), illumination (orange), and speaker outputs (gray, purple, green, white). Avoid relying solely on wire colors–labels vary between models.

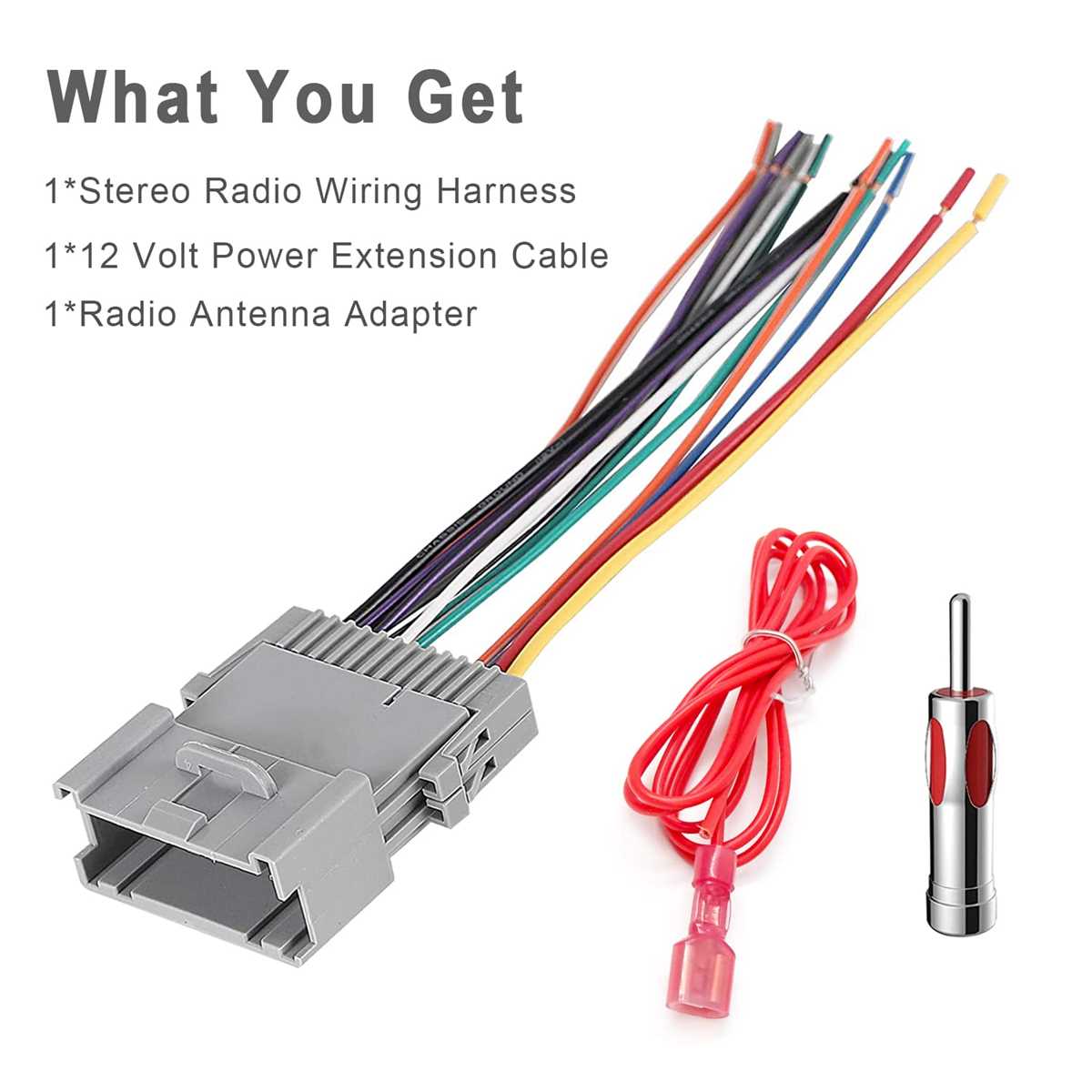

Use a dedicated adapter harness (Metra 70-1002, Scosche GM02B) to bridge the aftermarket stereo and factory loom. These pre-wired connectors eliminate splicing, preserving the vehicle’s electrical integrity. Match each adapter pin to the new unit’s harness: constant power to B+, accessory to ACC, ground to chassis points with dielectric grease to prevent corrosion.
Test speaker wires before finalizing connections. Probe the factory harness with a 9V battery to confirm polarity–momentary contact should produce a popping sound through the speaker. Reversed polarity causes phase cancellation, muffling audio. For premium audio systems, retain the factory amplifier by tapping into the amplified outputs (usually twisted pairs) instead of bypassing it.
Route auxiliary inputs carefully. If the new stereo lacks a dedicated 3.5mm aux port, solder an add-on module to the main board’s left/right channels. Shield the cables with braided sleeve to reduce interference from the alternator or ignition systems. Avoid coiling excess wire near the ECU or fuse box.
Secure connections with solder and heat-shrink tubing instead of crimp connectors. Cold joints corrode over time, causing intermittent sound or electrical gremlins. For rear-view camera integration, identify the reverse trigger wire (typically pink/white) and splice it to the aftermarket unit’s camera input. Confirm the backup signal engages when shifting into reverse.
Program steering wheel controls using a compatible interface module (Axxess ASWC-1, iDatalink Maestro). The module translates factory button presses into signals the new stereo recognizes. Follow the vehicle-specific programming sequence: hold the “volume up” and “next track” buttons simultaneously for 3 seconds, then pair the module via Bluetooth or USB.
Reconnect the battery and verify all functions before reassembling the dash. Check dimming compatibility by adjusting the headlight switch–some aftermarket units require a resistor on the illumination wire to sync brightness. If static persists, ground the stereo’s chassis directly to the vehicle’s frame using a dedicated 10-gauge wire, bypassing factory ground points.
Troubleshooting Common Sound System Issues Post-Installation
Check for loose or improperly seated connectors at the head unit and amplifier. Verify the ground wire is securely attached to bare metal, not painted surfaces, using a multimeter to confirm under 0.5 ohms resistance. If static or intermittent audio persists, inspect the antenna cable for kinks or corrosion–replace if damaged. Test speaker wires for continuity, ensuring polarity matches (+ to +, – to –) to prevent phase cancellation, which causes muffled sound. For distorted output, reduce amplifier gain settings and confirm signal cables aren’t routed near power wires, as interference causes audible buzzing.
Swap RCA cables with known-good ones if the system produces no sound or only partial output. Confirm the head unit’s fuse isn’t blown and the vehicle’s fuse box isn’t triggering a parasitic drain. If subwoofers produce no bass, check the low-pass filter settings on the amplifier and ensure the head unit’s EQ isn’t cutting lower frequencies. For Bluetooth or auxiliary input issues, reset the head unit to factory defaults and re-pair devices–verifying the source isn’t muted or outputting through another channel. Use a signal tracer to isolate breaks in wiring if sound cuts out at certain volumes or vibrations.
