Start with the engine compartment fuse block–locate the cover labeled “Junction Block” near the battery. Remove the retaining clip to reveal the internal layout. Pin 1B (black/white stripe) delivers constant 12V power; verify with a multimeter before proceeding. If voltage reads below 11.8V, inspect the main fuse (100A) in the auxiliary box adjacent to the driver-side kick panel.
Trace the fuel pump circuit by identifying connector C3 behind the instrument cluster. Disconnect the harness and probe terminal 3 (yellow/blue wire) for 5-7V during ignition-on. Absence of signal suggests a fault in the ECM relay (R5, mounted under the dash). Replace only with OEM part #90987-02024 to avoid intermittent failures.
Ground points G1 (left frame rail near the driver door) and G2 (passenger-side firewall) are critical for accessory circuits. Clean corrosion using a wire brush and apply dielectric grease to prevent future oxidation. For trailer lights, prioritize the sub-harness (part #PT227-34080) instead of splicing factory wires–third-party kits often omit the required 20A fuse for the brake controller.

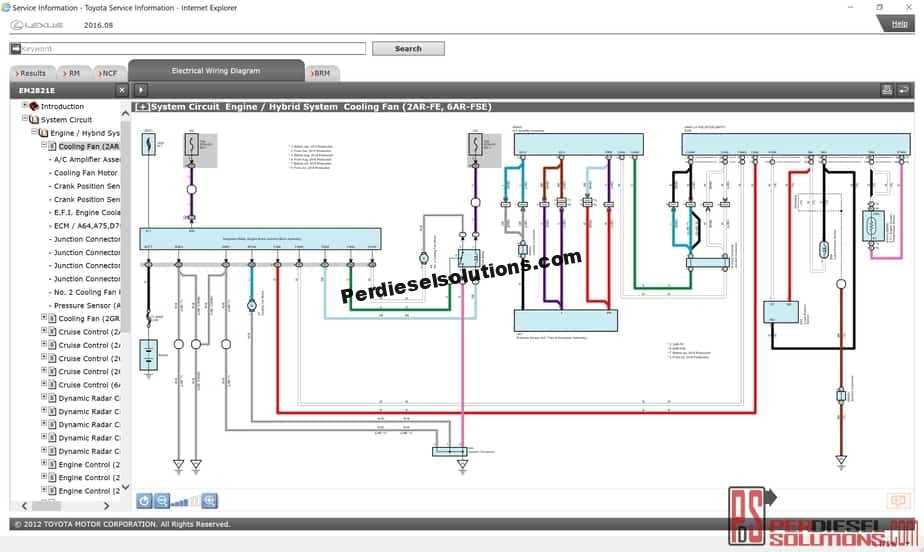

Download the official EWD-481 manual from Toyota’s technical portal for full color-coded schematics. Avoid aftermarket PDFs–they frequently mislabel pins, particularly for the VSC off switch (gray connector, 8-pin, behind glove box). For ABS troubleshooting, focus on wheel speed sensor plugs (left front: P2, right rear: P4) and measure resistance (1.0-1.4 kΩ at 20°C).
Toyota Truck Electrical Schematics: Hands-On Repair Tips
Locate the fuse box under the dashboard on the driver’s side–remove the cover by squeezing the sides to release the tabs. Use a multimeter set to continuity mode to test each fuse: insert probes into the slots on the fuse’s face (not the metal clips) while the key is in the ON position. A reading below 0.1 ohms confirms functionality; replace blown fuses with identical amperage (e.g., 10A for interior lights, 20A for power outlets). For trailer harness diagnostics, trace the green connector behind the rear bumper: pin 1 (yellow/blue stripe) carries brake lights, pin 4 (green/white) powers running lights–cross-reference with the vehicle’s service manual for splice locations if voltage drops below 12.4V.
Critical Connection Points
| Component | Wire Color (Gauge) | Connector Type | Test Voltage (Key ON) |
|---|---|---|---|
| Alternator B+ terminal | Red (8 AWG) | Ring terminal | 13.8–14.5V |
| Starter solenoid trigger | Black/yellow (16 AWG) | Push-on spade | 9.5V+ (crank) |
| PCM power relay | White/red (20 AWG) | Blade fuse socket | 12V constant |
Aftermarket stereo installations often disrupt factory grounding–route new cables through the firewall grommet near the brake master cylinder, avoiding the harness bundle that feeds the ECU. For dimmer switch failures, probe the orange/white wire at the headlight switch: voltage should toggle between 0V (low beams) and 10–12V (high beams) when cycling the lever. If readings fluctuate, inspect the 110-ohm resistor inline with the switch–corrosion here mimics bulb burnout.
Pinpointing the Correct Electrical Schematic for Your Toyota Pickup Variant
Start by identifying the build sheet decal inside the driver’s door jamb–this label lists the exact factory-installed options (e.g., SR5, Limited, or Platinum) that dictate unique circuit layouts. Toyota’s official repair manual divides schematics by these trim-specific modules; the 4.6L V8 Platinum, for instance, includes heated rear seats wired through a separate power distribution box absent in base trims. Search for Toyota’s Technical Information System (TIS) subscription or a HaynesPro WorkshopData download–both index diagrams by Vehicle Identification Number suffix rather than model year alone.
- Central junction block connectors differ: SR5 uses 24-pin J17 while Limited upgrades to 32-pin J25–swap these without confirmation risks open circuits in the trailer brake controller loop.
- Bluetooth audio retrofit diagrams for Regular Cab versus Double Cab vary; the latter integrates a 10-pin microphone harness absent in single-row variants.
- Engine bay ground points shift between 4.0L V6 and 5.7L V8–check beneath the passenger strut tower for the second ground strap exclusive to eight-cylinder builds.

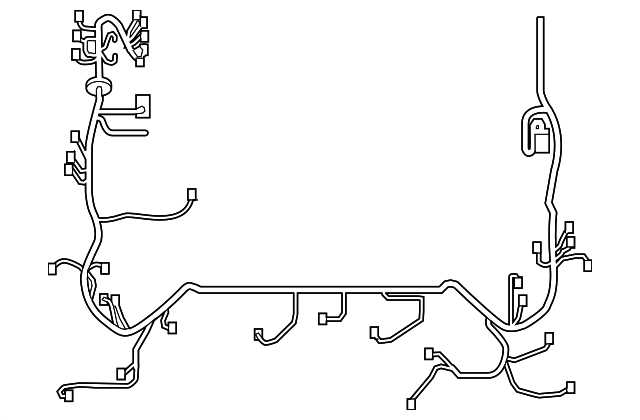

Obtain the harness routing map from Toyota’s collision repair manual; it overlays pin-to-connector assignments on actual chassis photos–Schematic ID TC0034-12E covers trailer wiring, while TC0034-17E details rear body multiplex links. Verify fuses against the fuse box label, noting that the 30A ECU-B fuse powers both power sliding rear window (Double Cab) and rear defogger (Platinum)–a dual-fuse oversight can fry the integrated relay board behind the instrument cluster.
How to Interpret Your Full-Size Pickup’s Electrical Blueprint
Locate the power distribution box symbols first–usually marked with inline fuses, relay coils, and bus bars. Each fuse number corresponds to a specific circuit on the legend; cross-reference it immediately to avoid misdiagnosis. The solid lines indicate direct current paths, while dashed or dotted lines represent ground returns or switched circuits.
Identify the color codes printed alongside each conductor–Toyota’s scheme uses standard abbreviations like R (red), W (white), B (black), and G (green). Mixed colors denote striped wires; for example, L-Y signifies a light-yellow stripe on a base wire. Measure these connections with a multimeter set to continuity mode to confirm integrity before proceeding.
Trace the ignition-controlled circuits–look for labels like IG1, IG2, or ACC. These circuits only energize when the key is turned, so knowing their paths prevents accidental shorts during repairs. Check the diagram’s legend for symbols resembling switches or sensors; these components often link to critical modules like the ECM or ABS system.
Note the splice points marked with small circles or diamonds. These junctions split current to multiple destinations, such as tail lights or interior lamps. Probe each branch with a test light to verify proper voltage division–faulty splices cause erratic power fluctuations.
Examine the ground points–denoted by arrows or tree-like symbols. Poor grounding creates voltage drops that mimic sensor failures. Clean corroded connections with emery cloth and apply dielectric grease to prevent future oxidation.
Decode the relay footprints by matching pin numbers to the schematic’s coil and contact diagrams. Common relays control high-load devices like cooling fans or horn circuits; swap them with known-good units if symptoms persist. The wiring map often includes internal relay wiring–don’t assume pinouts without verification.
Focus on the data link connectors, typically shown as rectangles with multiple small pins. These communicate with OBD-II scan tools; corroded pins disrupt diagnostic readings. Use a probe to check signal flow on pins 6 (CAN-H) and 14 (CAN-L) while monitoring live data.
Compare the printed layout against the physical harness route under the dash or hood. Discrepancies indicate previous repairs or aftermarket modifications–never rely solely on the schematic. Label each wire with masking tape and pen during disassembly to simplify reassembly.
Key Harness Color Codes and Their Purposes in Toyota’s Full-Size Pickup
Trace black (B) wires first–they universally ground circuits in the powertrain, lighting, and cabin modules. For instance, the engine control module’s B terminal pin 3 connects to chassis ground via a 16-gauge black lead, while infotainment ground joints use thinner 18-gauge strands. Locate the splice points where multiple black wires converge; these often terminate at grounding bolts behind the left kick panel or beneath the driver’s seat.
Critical Color Combinations
Look for yellow/black (Y-B) stripes–they carry switched 12V power from the ignition relay to fuel pumps, PCM, and transmission controllers. A single 10-gauge Y-B wire feeds the EFI main relay; resistance above 0.2 ohms between relay socket terminal 5 and ground indicates corrosion. Red/blue (R-B) leads deliver constant battery voltage to memory circuits like ECUs and body control modules; expect 14-gauge thickness for high-draw circuits like the power outlet, dropping to 16-gauge for audio systems. Green/white (G-W) signals trigger fuel injectors and A/C compressors, while solid green wires monitor oxygen sensors–O2 heater circuits use 20-gauge strands. Pink (P) wires, often paired with green or white stripes, handle illumination feeds for gauge clusters and exterior marker lamps.
Isolating Faults in Toyota’s Pickup Electrical Networks
Locate fuse C/LO CKT on the interior panel labeled “INST 15A” to verify power supply to the instrument cluster. Use a multimeter set to 20V DC; probe the fuse terminals while the ignition is ON. A reading below 12.4V indicates a corroded junction (J8) behind the left kick panel or a compromised fusible link (FL3) near the battery. If voltage is absent, trace back to the junction box (IB1) and inspect pin 1B for oxidation.
For intermittent dome lamp failures, focus on splice S203 in the headliner harness. Disconnect the connector at the overhead console, then check for continuity between wire WHT/BLK (T-S) and body ground. If resistance exceeds 0.5 ohms, the fault likely lies within the door jamb switches or a frayed segment near the rear hatch striker plate. Replace the striker swivel pin if voltage drop persists when actuating the latch.
Diagnosing Trailer Brake Controller Circuits
- Remove the under-dash panel to access controller module CN3. Probe pin 4 (RED/YEL) for 12V with brake pedal pressed–failure points to a failed stoplight fuse (STOP 10A) or a broken splice at P108.
- For no output, measure voltage at pin 5 (BRN) during brake activation; readings below 9V necessitate replacing the solenoid relay (R5) or testing continuity through the trailer plug sockets.
- Ground issues often stem from corroded frame grounds (G101). Scrape paint beneath the driver-side rear fender and verify zero resistance between the negative battery post and the exposed metal.
HVAC blend door motors frequently fail due to seized gears or wiring chafing. Begin at connector M2, checking BLK/WHT (T-G) for constant ground. Next, verify 5V reference at ORN (T-O) pin 2; if absent, inspect the climate control module’s A30-10 terminal for loose pins. For erratic operation, remove the glovebox and test continuity across the door actuator’s position sensor (pins 1 and 3)–values should shift smoothly between 0.5V and 4.5V as the lever moves.
