Begin by locating the fan speed control module behind the lower glove compartment panel, secured with three 8mm bolts. Disconnect the battery’s negative terminal before handling any connectors to prevent short circuits. The module interfaces with a four-wire harness: two for power (12V constant and switched ignition), one for ground, and one for variable resistance output. Use a multimeter to test continuity on the violet/orange wire–it should register between 0.5 and 4.5 ohms depending on the selected speed.
If voltages are absent or erratic, trace the circuit back to the climate control head unit. The tan/light blue wire carries the speed command signal; probe it at the 16-pin connector (pin 10) with the ignition on and fan set to medium. A reading of 5-8V confirms proper signal transmission. Failed readings often indicate a corroded connector or broken wire near the firewall grommet–inspect these zones with a flashlight for green oxidation or frayed insulation.
Replace the module only after verifying the wiring harness integrity. Cut back damaged sections and solder in fresh 18-gauge wire (matching original color codes) using heat-shrink tubing for insulation. Reinstall components in reverse order, ensuring the ground wire–typically a black/yellow stripe–is tightly secured to chassis metal. Test all fan speeds before reassembling trim panels; intermittent operation suggests a missed connection.
For persistent issues, reference the factory schematic (page 12-14 of EATC wiring section) to cross-check pin assignments. The resistance values should align with this table:
- Low speed: 3.8Ω ±0.2Ω
- Medium-low: 2.1Ω ±0.1Ω
- Medium-high: 0.9Ω ±0.1Ω
- High speed: 0Ω
Deviations outside these ranges confirm a failed control unit, requiring OEM part #YS4Z-19E624-AA for accurate speed calibration.
Electrical Guide for Climate Control Fan Speed Regulator in Mid-Size Sedans

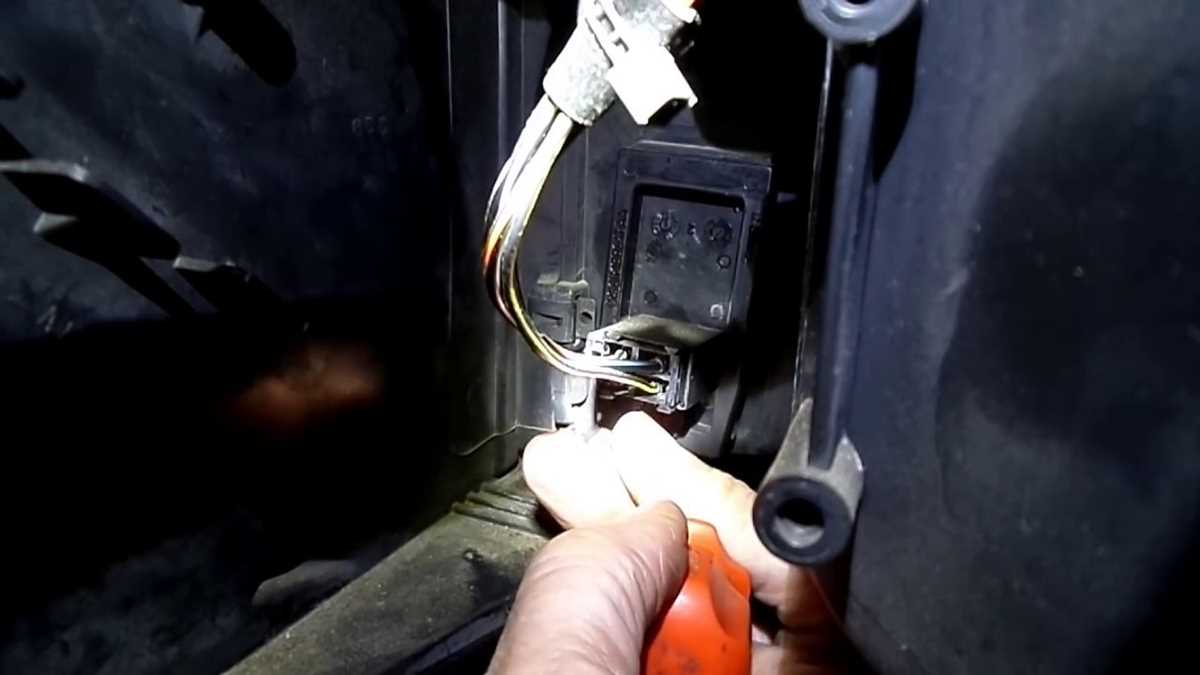

Locate the series resistance module behind the passenger-side dashboard panel below the glovebox. Disconnect the battery’s negative terminal before handling connectors to prevent accidental short circuits. The unit typically has four wires: a common ground (black), power input (purple/white), and two feedback lines to the control module (light blue/red and grey/red). Verify each wire’s continuity with a multimeter–readings should show near-zero resistance between output terminals and ground when the fan operates at specified speeds.
Key Connections for Troubleshooting
- Power Feed: Purple/white (circuit 546) delivers 12V from the fuse panel (15A fuse #25).
- Outputs: Grey/red (circuit 53L) and light blue/red (circuit 53K) return voltages to the climate control module to signal speed selections.
- Ground: Solid black (circuit 57) connects to chassis ground at G201.
Replace corroded connectors by crimping new terminals (AMP 170258-2) onto 18-gauge wire. Solder joints introduce failure risks under thermal cycling–avoid unless repairing broken traces on the regulator’s printed circuit. When testing, simulate speed selections by jumping the grey/red or light blue/red wires to chassis ground; the fan should respond with corresponding RPM changes within two seconds.
If the fan operates solely on high speed, check the regulator’s internal resistors–each segment handles discrete voltage drops (0.5Ω, 1.2Ω, and 3.5Ω). A failed segment disrupts lower speeds while high speed bypasses the module entirely via the bypass relay. Scorch marks on the PCB indicate overheating; clean solder pads before installing a replacement part (Motorcraft DY-1392 or equivalent).
Precision Testing Steps
- Set multimeter to DC voltage mode (20V scale).
- Probe purple/white wire with ignition ON–reading should match battery voltage (12.6–14.4V).
- Activate climate controls to medium-low; grey/red wire should show 4.8–5.2V.
- Shift to medium-high; light blue/red wire should drop to 2.3–2.7V.
- Test ground continuity between black wire and chassis–resistance below 0.5Ω.
Reassembly requires securing the regulator’s mounting tabs–loose installation causes vibration failures. Route wires away from the HVAC housing to prevent chafing; use split-loom tubing for secondary protection. Reconnect the battery and validate all speeds before reinstalling dash panels. Delayed response often traced to oxidized pins; clean with electrical contact cleaner (CRC 05103) before reconnecting.
For intermittent faults, probe wire harnesses while gently flexing–frayed insulation inside door jams or under carpets creates periodic opens. Replace damaged harnesses with OEM-spec wire (GXL/TWP) and weatherproof connectors. Diagram variations exist across trim levels (SEL vs. Titanium); confirm wire colors match the specific vehicle’s harness before splicing.
Finding the Climate Control Module in Your Mid-Size Sedan
Begin by removing the lower dashboard panel beneath the glove compartment. Use a 7mm socket to unscrew the two fasteners securing the panel–one near the driver’s side kick plate, the other adjacent to the center console. Once removed, the panel will pivot downward, revealing the HVAC housing assembly. The thermal regulator is typically mounted on the right side of this assembly, pressed against the firewall.
Identify the component by its two-wire connector and finned aluminum body–distinct from the fan assembly, which has a larger, circular housing. Trace the harness leading from the climate control switch: the wires split here, with one branch feeding into the regulator’s connector. If corrosion is present on the terminals, clean with electrical contact spray before proceeding further.
Tools You’ll Need for Safe Access
Mandatory: 7mm socket, trim panel removal tool (or flathead screwdriver), flashlight with narrow beam, digital multimeter. Optional but helpful: magnetic tray for loose screws, dielectric grease for reinstallation, zip ties to secure the harness away from moving parts.
Disconnect the battery’s negative terminal before handling electrical components–this prevents short circuits and preserves any stored fault codes in the PCM. If the regulator has failed, expect the fan to operate only at high speed, as the circuit bypasses the faulty element entirely. Test continuity across the resistor’s terminals with the multimeter: a working unit will show decreasing resistance (ohms) as you move along the contacts.
Avoiding Common Mistakes During Removal
The regulator’s mounting clip can break if forced–apply steady pressure while rocking it side-to-side until it releases. Never pull on the wiring harness; grip the connector body firmly while depressing the locking tab. Check for melted plastic around the housing, a telltale sign of overheating–this often indicates failure due to airflow restriction (e.g., clogged cabin filter).
Reinstallation follows the reverse order: reconnect the harness, snap the regulator into place, secure the dashboard panel, and reconnect the battery. Test all fan speeds before fully reassembling the dash–if low or medium speeds remain inoperative, the issue may lie upstream in the switch or fuse relay.
Step-by-Step Guide to Accessing the Climate Control Electrical Linkage
Disconnect the negative battery terminal first to eliminate risk of short circuits. Use a 10mm socket to loosen the clamp–wait at least three minutes for residual current to dissipate before proceeding.
Locate the glove box hinge screws–upper panel contains four Torx T-20 fasteners, while the lower accesses the fan assembly via two Phillips #2 screws. Remove the right-hand dashboard side trim by prying outward with a plastic trim tool, starting at the rear edge to avoid cracking the clips.
Trace the black/yellow-striped lead from the speed selector switch downward until it terminates at the white six-pin connector. Depress the retaining tab on the connector housing and gently wiggle it free–never pull on the wires directly. Inspect the connector for oxidized contacts; clean with electrical contact cleaner if resistance readings exceed 0.2 ohms between pins.
Remove the cabin filter housing cover beneath the instrument panel to expose the rear of the fan relay module. The module’s mounting bracket requires a 5/16-inch socket; three bolts secure it, and the third bolt also grounds the unit–verify torque of 8-10 ft-lbs after reattachment.
| Connector Pin | Wire Color Code | Function | Expected Voltage Range (Ignition ON) |
|---|---|---|---|
| 1 | Black/Orange | Low Speed Control | 11.8–12.2 V |
| 2 | Black/Yellow | Medium-Low Input | 11.5–12.3 V |
| 3 | Black | Ground | 0.0–0.1 V |
| 6 | Red/White | High Speed Feed | 13.5–14.1 V |
Reinstall components in reverse sequence. Secure the cabin filter cover last–ensure the tab aligns with the upper slot before tightening the clip. After reconnecting the power source, cycle the fan selector through all settings and listen for smooth transitions between speeds; abnormal noise or hesitation indicates loose connector crimps or faulty ground path.
Test continuity between the dashboard switch harness and the relay module using a multimeter. Measure across the violet wire (pin 4) and ground–values below 0.5 ohms confirm proper circuit integrity. If readings fluctuate, inspect the firewall grommet for corrosion or torn insulation.
Verify fan operation at each speed with a scan tool before closing the dash panels. Record live data PID 45 (in-car temperature sensor) and PID 46 (ambient sensor) to rule out HVAC blend door actuator misalignment–both should read within ±2°F of each other when the system reaches equilibrium.
