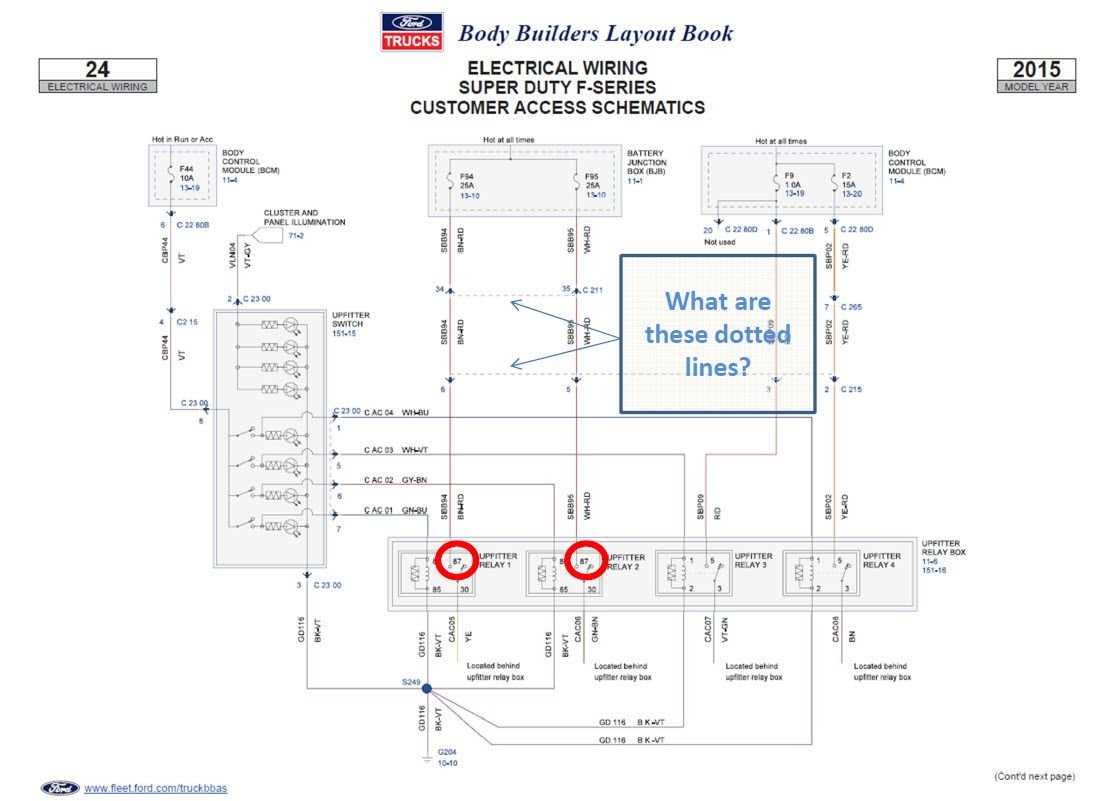

For aftermarket modifications on late-model Super Duty chassis, the factory-integrated auxiliary relay circuit provides a direct interface with the vehicle’s OEM harness. Locate the gray 10-pin connector (OEM p/n BC3Z-14A006-A) behind the instrument panel, driver’s side kick panel–this is the primary access point for third-party device integration.
Pin assignments follow a consistent pattern: pins 1–3 deliver battery-positive outputs, each fused at 20A, while pins 8–10 offer switched outputs tied to ignition run/start. Verify voltage at each terminal with a multimeter before connecting load devices; pin 7 serves as a chassis ground reference. Avoid exceeding 15A per circuit to prevent overloading the factory fuse block.
Wire gauge for extensions should match the OEM 14 AWG standard–any downgrade risks voltage drop under sustained loads, particularly with high-draw accessories like light bars or compressors. For relays, use ISO 7588-compliant units with suppression diodes to protect against inductive spikes.
Label all splices with heat-shrink tubing and corrosion-resistant terminals; the factory harness uses sealed connectors (Metri-Pack 280 or Weather-Pack) for environmental resistance. If tapping into existing circuits, prioritize unused pins–modifying active circuits (e.g., powertrain control) risks triggering diagnostic trouble codes.
For sequential activation of multiple devices, leverage the vehicle’s CAN bus via the OBD-II port. Use a J2534-compliant interface with manufacturer-approved software (e.g., FORScan) to configure aux output behavior without physical rewiring. Avoid analog bypass methods, which can disable stability control interventions.
Electrical Integration Guide for Heavy-Duty Truck Auxiliary Controls
Begin by locating the fuse box beneath the dashboard on the driver’s side–pin C232B provides a 12V power source with ignition-controlled relay protection, critical for preventing parasitic drain. Verify continuity using a multimeter before connecting auxiliary circuits to avoid voltage drops across extended harness runs.
Factory-installed blue and white wires at the rear module (RPO code 541) serve as trigger signals for aftermarket relays. Splice into these using solder-seal connectors rated for 20A minimum–avoid crimp-style terminals for high-current applications exceeding 15A per circuit.
Ground connections should terminate at bare metal chassis points near the frame rail, specifically at the pre-drilled hole adjacent to the rear axle (Torx T-30 fastener). Clean surfaces with 80-grit sandpaper and apply dielectric grease to prevent corrosion in high-humidity environments.
Relay Configuration for Secondary Loads
Use SPDT relays with flyback diodes for inductive loads (e.g., winches, compressors). Coil terminals connect to the upfitted signal wires, while the common/output terminal routes to the accessory. For pulsed signals, a 1N4007 diode across the coil suppresses voltage spikes that can damage control modules.
Label all wires with heat-shrink tubing printed with circuit numbers–standardize colors to SAE J560 (red for power, black for ground, yellow for switched outputs). Store spare 18-gauge wire (100 feet minimum) in sealed bags with silica gel packs to prevent oxidation during prolonged storage.
Test each circuit under load before finalizing installations. A 55W halogen bulb connected between power and ground validates relay operation without risking high-current damage. Document amperage draws for each accessory, ensuring totals remain below 80% of the fuse rating (e.g., 20A fuse supports 16A continuous load).
For dual-battery systems, isolate auxiliary circuits using a solenoid rated for 200A continuous. Trigger the solenoid via the ignition-switched 12V line, not the starter circuit, to prevent accidental engine cranking during accessory use. Route positive leads through a 120A ANL fuse within 7 inches of the battery terminal.
Final inspection requires a voltmeter check at the farthest accessory terminal–readings below 12.4V indicate voltage drop issues requiring heavier-gauge wire or shorter runs. Seal all connections with adhesive-lined heat shrink to meet IP67 ingress protection standards for off-road applications.

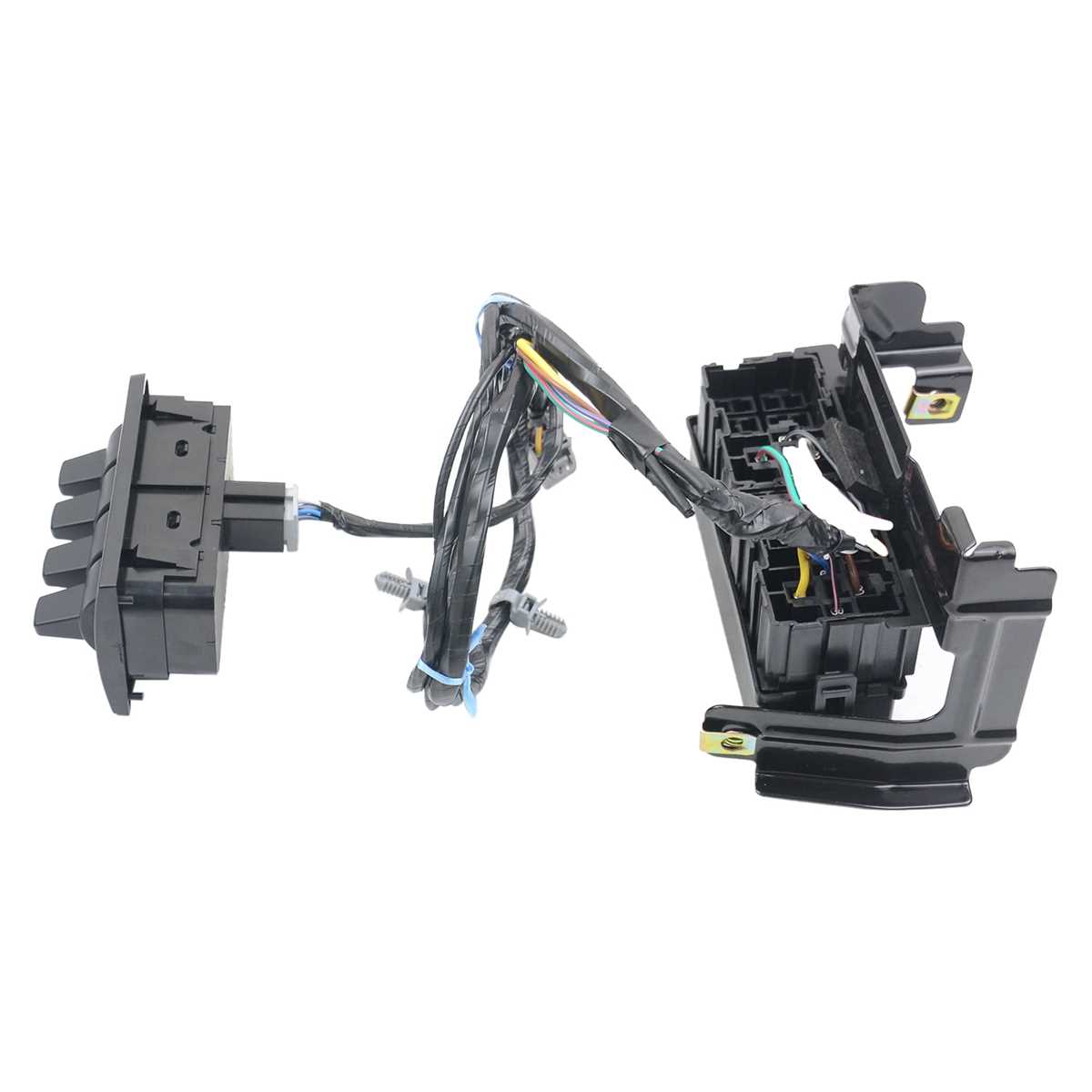

Finding the Auxiliary Control Circuit Bundle Behind the Instrument Panel
Begin by removing the lower knee bolster panel beneath the steering column. Use a 7mm socket to unfasten the three bolts securing it–two exposed near the pedal assembly and one tucked behind the fusebox cover. The harness enters from the driver’s side firewall grommet, running parallel to the main OBD-II port conduit. Look for a gray corrugated sleeve containing six small-diameter cables (typically 18-22 AWG) bundled with zip ties; this distinguishes it from the thicker powertrain wiring.
Trace the bundle upward toward the junction block mounted on the left side of the dash frame. The connector–often a 12-pin rectangular plug (AMP 179384)–is clipped to a metal bracket above the brake pedal. If obscured, detach the lower dash trim by pulling outward from the bottom edges; two plastic push-pins secure the left-side panel near the hood release. Exercise caution when unclipping retention tabs–they snap easily under excessive force.
Connector Pinout Reference
| Pin | Wire Color | Typical Function | Voltage (Key ON) |
|---|---|---|---|
| 1 | Red/White stripe | Constant 12V supply | 12.6-14.2V |
| 3 | Dark Blue/Orange stripe | Fused ignition feed | 12.0-13.8V |
| 5 | Light Green/Black stripe | Ground reference | 0.0-0.2V |
| 7 | Pink/Black stripe | Relay control | 0.3-0.7V (idle) |
For auxiliary circuits requiring higher amperage (e.g., lighting or compressors), splice into the pink/black conductor at Pin 7–it triggers the integrated relay housed in the same junction block. Verify voltage drop across the relay coil before finalizing connections; values exceeding 0.5V indicate corroded terminals or undersized wiring. Probe the socket with a multimeter while cycling the intended control to confirm signal integrity.
If modifications involve aftermarket modules, route extensions behind the glove compartment for cleaner access. The passenger-side airbag mounting plate exposes a hollow cavity leading to the center console riser–ideal for concealing splices. Avoid taping joints with electrical tape; use heat-shrink tubing instead to prevent moisture ingress. For frequent reconfigurations, install a secondary terminal block inside the knee bolster cavity using existing screw bosses.
Label each conductor at both ends using shrink-wrap markers. Color-coding alone proves unreliable over time–document installation notes directly on the vehicle’s build sheet stored in the glovebox. When reinstalling trim panels, ensure no cables impede pedal movement; test brake and clutch travel with the dash assembly partially secured before final fastening.
Pinout Identification for Custom Control Modules
Locate the auxiliary relay center beneath the driver-side dashboard–every connector harness incorporates a color-coded sheath distinguishing each control line. The first bank governs auxiliary outputs 1–3, while the second handles 4–6; label identifiers printed on the plastic housing read PIN A (power input), PIN B (ground return), and PIN C (load activation) for each position.
- Position 1: Pin A – orange wire with violet tracer (constant 12V); Pin B – black wire with white tracer (ground); Pin C – dark blue wire with white tracer (output)
- Position 2: Pin A – orange wire with red tracer; Pin B – black wire; Pin C – dark green wire with yellow tracer
- Position 3: Pin A – orange wire with light green tracer; Pin B – black wire with orange tracer; Pin C – brown wire with red tracer
- Position 4: Pin A – pink wire with black tracer; Pin B – black wire with brown tracer; Pin C – yellow wire with red tracer
- Position 5: Pin A – pink wire with light blue tracer; Pin B – black wire with pink tracer; Pin C – purple wire with white tracer
- Position 6: Pin A – pink wire with yellow tracer; Pin B – black wire with purple tracer; Pin C – white wire with orange tracer
Verify continuity using a multimeter set to ohms; probe each terminal against chassis ground–valid ground returns measure below 0.5 ohms. Cross-check power feeds with ignition on; expect 11.8–12.4V when toggled through the integrated panel. Avoid back-feeding circuits by isolating accessory loads during testing–parallel connections risk fusing the onboard fuse block rated at 25A per channel.
Integrating Auxiliary Equipment into Factory-Controlled Circuits
Begin by locating the pre-installed, OEM-engineered relay bank beneath the driver-side dashboard–typically mounted near the central fuse panel. Identify terminals labeled “C3” through “C6” on the auxiliary relay harness, as these correspond to the four programmable outputs with 30-amp fused capacity each. Verify voltage at the source pin (terminal 30) using a multimeter set to DC 12V before proceeding; readings below 11.8V indicate a weak battery or corroded ground, requiring immediate attention.
For high-draw devices like recovery winches (8,000–16,500 lbs pull rating), bypass the factory relay’s internal contacts and route power directly from the battery via a standalone 125–150 amp ANL fuse within 18 inches of the positive terminal. Connect the winch solenoid’s positive lead to a 4/0 AWG cable, terminating at the auxiliary relay’s output (terminal 87) with a brass crimp lug and heat-shrink tubing to prevent oxidation. Avoid solder-only connections; mechanical crimps with dielectric grease outperform solder in high-vibration environments.
Auxiliary lighting (LED light bars, flood lamps, or amber beacons) demands separate relay activation for each circuit to prevent voltage drop. Wire a 30–40 amp relay for each light bank, triggering the coil (terminal 85) from the OEM harness’s C-terminal outputs. Use T-tap connectors to splice into the factory wiring–avoid butt splices, which introduce resistance. For 55W+ halogen or HID setups, include a transient voltage suppressor diode across the relay coil to protect against inductive kickback.
Grounding strategy dictates performance: terminate all auxiliary grounds at a single chassis point near the relay bank, using a common 3/8-inch star washer and locknut to ensure metal-on-metal contact. Paint, undercoating, or surface corrosion at the grounding location will create resistance; scrape clean to bare metal and apply zinc-based antiseize compound. For winches, route the negative lead through a second 4/0 AWG cable alongside the positive, terminating at the same chassis point to reduce ground-path resistance.
Label every connection with heat-shrink labels printed at 12-point font minimum–use a Brother PT-D600 or equivalent. Include:
- Circuit identifier (e.g., “Front Winch, C3”)
- Wire gauge (e.g., “4 AWG”)
- Fuse rating (e.g., “150A ANL”)
- Date of installation
Store a digital copy of the schematic in the vehicle’s glove box, noting relay pinouts and fuse locations for troubleshooting.
Test each circuit under load before finalizing. For winches, engage in free-spool mode first to verify solenoid function, then apply 50% load via a snatch block anchored to a tree or vehicle rated for the pulling capacity. Monitor battery voltage at the winch terminals; a drop below 10.5V signals insufficient alternator output or undersized battery. Lighting circuits should exhibit steady current draw on an ammeter–fluctuations above 0.3A indicate loose connections or failing LED drivers.
Secure all wiring with Adel clamps or spiral wrap every 8–12 inches, avoiding rigid conduit that traps moisture. Route bundles away from sharp edges, exhaust components, or steering shafts, maintaining a minimum 2-inch clearance. For off-road configurations, encase critical sections in split-loom tubing and seal ends with silicone dielectric compound to prevent dirt ingress. Document final voltage readings across each circuit at rest and under load, comparing against factory specs to establish a baseline for future diagnostics.
