Locate pin A8 on the vehicle’s harness connector–this is the constant 12V power source, critical for memory retention in your audio unit. Connect it directly to the corresponding pin on the back of the receiver using 18-gauge wire with a yellow insulation sleeve. Failure to secure this connection properly will result in lost station presets and clock resets after engine shutdown. Verify voltage stability with a multimeter before finalizing; fluctuations above 14V or below 10V indicate alternator issues.
Ground wire must attach to bare metal chassis points, preferably near the original factory harness ground. Avoid painted surfaces; scratch down to clean steel with a wire brush and apply dielectric grease to prevent corrosion. The antenna lead, typically blue with a white stripe, requires a direct run to the mast motor for automatic activation. Skip using extension cables–signal degradation begins at lengths over 18 inches, causing weak AM/FM reception in urban areas.
Speaker connections follow a consistent color scheme: front left (+) light green, front right (+) gray, rear left (+) dark green, rear right (+) tan. Match these with the radio’s aftermarket harness adapter to avoid phase cancellation. Impedance mismatches between 2-ohm factory speakers and 4-ohm aftermarket units will overheat amplifier circuits. Check resistance with an ohmmeter before powering up; readings outside 3.5–4.5 ohms necessitate inline resistors or rewiring.
Illumination wire (orange) dims dashboard lights in sync with headlights. Connect this only if retaining OEM dimming function–otherwise, cap it securely to prevent dashboard warning lights. Auxiliary input circuits, if present, use a purple wire; confirm compatibility with modern media players by testing resistance before splicing. Double-check every connection with a 12V test light or continuity meter–crossed wires can fry integrated circuit boards beyond repair.
Manual splicing increases failure risks. Use soldering for permanent joints and heat-shrink tubing rated for 125°C minimum. T-taps and crimp connectors introduce resistance over time; reserve them for quick diagnostics only. For security systems wiretap into door trigger wires (light blue) at the BCM, not the radio harness–this preserves factory anti-theft features.
Understanding the 2011 Compact Sedan Audio System Connections
Begin by locating the vehicle’s harness behind the factory stereo unit–remove the dash panel using a trim tool to avoid damaging plastic clips. The primary connector (labeled “A”) contains 12 pins: pins 1-4 deliver 12V constant power, accessory power, ground, and illumination signals respectively. Pins 5-8 handle front speaker outputs (left positive/negative, right positive/negative), while 9-12 manage rear speaker wiring in the same configuration. Use a multimeter to confirm voltage (12V on pins 1 and 2) before proceeding.

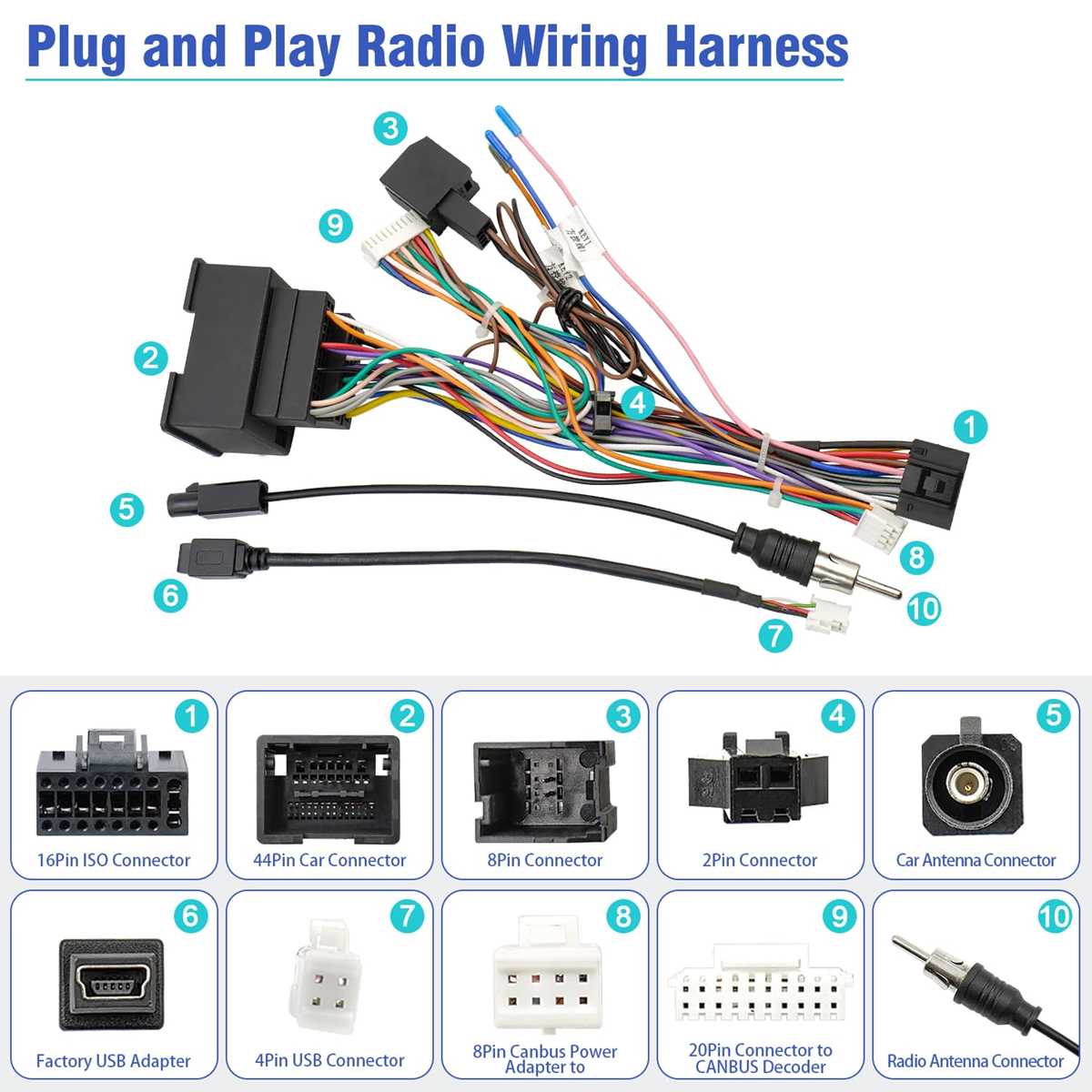

Aftermarket adapters like Metra 70-2103 simplify integration by matching OEM pinouts without splicing. For direct wiring, splice into the correct cables using solder or crimp connectors–avoid twist-and-tape methods. Here’s the pin-to-color mapping critical for avoiding shorts:
| Pin | Function | Wire Color |
|---|---|---|
| 1 | Battery + | Yellow |
| 2 | Ignition | Red |
| 3 | Ground | Black |
| 4 | Dimmer | Gray |
| 5 | Front Left + | Light Green |
| 6 | Front Left – | Dark Green |
| 7 | Front Right + | Light Blue |
| 8 | Front Right – | Dark Blue |
For amplified systems, the amplifier control wire (typically orange/white) must be connected to retain fade/balance functionality. Disconnect the battery terminal before handling the harness to prevent airbag deployment or module resets. If static persists, verify ground connections–clean paint around the chassis bolt for bare metal contact. AM/FM antenna retention requires the coaxial cable from the original setup to mate with the new head unit’s antenna lead.
Troubleshooting Common Issues
No power? Check fuses (interior fuse box, 10A “Radio” fuse) and wiring harness continuity. If speakers emit distortion, test each channel individually–swap left/right inputs to isolate a faulty speaker. For Bluetooth or USB malfunctions, ensure the data port (behind the center console) is properly connected; some aftermarket stereos require a separate USB adaptor to retain steering wheel controls and OnStar features.
Finding the Audio System Harness Links in Your Compact Sedan
Start by removing the central dashboard trim panel. Use a plastic pry tool to carefully detach the climate control bezel–it snaps off without screws. Behind this panel, you’ll expose the main entertainment unit’s rear connectors. Look for two primary plugs: an 8-pin grey harness (power, ground, illumination) and a 12-pin brown harness (speaker outputs, antenna signal). The grey plug sits on the left, brown on the right–label them immediately to prevent swapping during reinstallation.
Trace the harnesses further by following them downward into the dash cavity. The cables route behind the HVAC housing and merge with the vehicle’s fuse box harness. A grey rectangular retaining clip secures the bundles–press its tabs to release. Once freed, gently pull the harnesses outward; avoid tugging at an angle to prevent damaging the delicate connector pins. If resistance is felt, check for hidden fasteners–some models include a secondary support bracket near the lower trim.
Inspect the harness sleeves for color-coded wires matching OEM specifications. The power feed is yellow (constant 12V), ground black, dimmer orange/white, and illumination grey. Speaker wires follow a standardized pairing: front left (light green/dark green), front right (light blue/dark blue), rear left (brown/yellow), and rear right (dark green/white). Cross-reference these with an aftermarket guide–misalignment risks short circuits or blown fuses.
For aftermarket upgrades, identify the connector types before splicing. The grey plug uses a rectangular Molex-style interface, while the brown plug has a more complex circular design with offset pins. Purchase adapters pre-wired for GM vehicles–generic harnesses won’t align correctly. If bypassing the stock harness entirely, note the factory amplifier’s location (mounted below the glovebox) and its 6-pin connector; cutting this requires bridging capacitor wires to prevent audio distortion.
Reassembly requires routing cables precisely as found. Ensure no wires pinch against the climate control tracks or interfere with the airbag sensor (mounted behind the radio cavity). Test all connections before fully securing the trim–an improper ground will trigger dashboard warning lights. If static or intermittent power occurs, recheck the ground wire’s attachment to the chassis (sand paint at the connection point for better conductivity).
Understanding Vehicle Audio Harness Wire Color Standards for a 2011 Model
Cut into the main 16-pin connector first–yellow (B+) delivers constant power from the battery, critical for memory retention in aftermarket units. Verify this with a multimeter; a reading below 12V suggests a weak or corroded connection. Black (ground) must link directly to chassis metal; bypassing factory points risks electrical noise, especially in amplified setups. Red (ignition) activates the system when the key turns, so splice carefully–shorts here kill accessory circuits without warning.
Speaker outputs follow a dual-color scheme: gray/black (front right positive), gray (front right negative), green/black (rear left positive), and green (rear left negative). Polarity mismatches distort midrange–test with a 9V battery before final crimps. Purple/black (rear right positive) and purple (negative) handle highs; swap these with rear left wires to diagnose balance issues in minutes. Brown/black (front left positive) and brown wires require heavier gauge extensions if relocating tweeters beyond stock mounts.
Seek the light blue/white (remote turn-on) lead–this triggers external amplifiers at just 200mA. Overloading it fries sensitive amp circuits; fuse it with a 1A inline for safety. Orange (illumination) dims dashboard lights–connect to stock rheostat or replace with a 500Ω potentiometer for adjustable brightness. Pink (data bus) occasionally carries OnStar or backup camera signals; tapping it may disable factory features unless bridged through a retaining module.
Troubleshooting Common Harness Pitfalls
White (left rear negative) wires often hide near the kick panel–strip carefully; factory insulation cracks under heat. If subwoofer output sounds weak, check tan (subwoofer positive) and tan/black (negative) for continuity; these carry low frequencies exclusively, so shield them with foil tape near power cables to reduce interference. Dark blue (mute) wires ground momentarily during calls–interruptions here cause phone audio to cut in and out.
When splicing, twist strands clockwise before soldering–counter-clockwise twists loosen over time, risking intermittent failures. Heat shrink tubing must overlap cut ends by at least 5mm; cheaper alternatives melt at 85°C, exposing connections to moisture. For vehicles with Bose systems, grey (audio sync) wires carry factory equalizer settings–bypassing them flattens sound curves unless an outboard DSP compensates.
Always disconnect the negative terminal before probing wires–shorts to the frame drain batteries overnight. Use a non-contact voltage tester on yellow and red leads to confirm power flow; corrosion in the fuse box mimics harness failure. If static persists, strip back the speaker wires inch by inch–false grounds hide beneath factory tape, invisible until exposed.
