If you’re replacing a damaged fuse box, upgrading auxiliary lights, or diagnosing intermittent sensor faults, start with the official OEM wiring schematic included in the factory service manual. Avoid generic aftermarket drawings–these often omit critical splice points or mislabel ground locations, especially in the engine bay and rear taillight circuits.
The driver side kick panel harness carries signals for the power window switches, door lock actuators, and courtesy lights. Trace the violet wire cluster first–this section frequently suffers corrosion from water intrusion. Use a digital multimeter set to 200-ohm continuity mode to verify each pin before disassembly. Replace any terminal showing resistance above 0.5 ohms.
For trailer wiring retrofits, locate the integrated trailer module behind the spare tire mount. The stock relay only supplies fused 10-gauge circuits for the brake lights and turn signals. If adding a 7-pin connector, splice new 12-gauge wire directly to the alternator output terminal to support heavier loads. Secure all junctions with heat-shrink adhesive-lined connectors–standard butt splices will fail under vibration.
When troubleshooting a non-responsive A/C compressor, inspect the pressure transducer connector near the accumulator. The brown/white wire should read 5VDC at idle with the system off. If voltage drops below 3VDC, replace the sensor–attempting to bypass it risks damaging the HVAC control module.
For fog light upgrades, avoid tapping into the low-beam circuit. Instead, use the secondary headlamp relay under the hood, which provides a dedicated 25-amp fused circuit. Route new wiring through the firewall grommet adjacent to the brake master cylinder to prevent chafing.
Electrical System Schematic for the 2010 Full-Size Pickup Truck
Locate the main power distribution block under the driver-side dashboard–pinouts for the 40-pin ECM connector (labeled C1) are mapped as follows: terminals 1-4 (IGN relay input), 5-8 (fuel pump control), 9-12 (sensor ground), 13-16 (VSS signal), and 17-20 (MIL circuit). Use a fluke 87V multimeter set to 200 mV DC scale to verify continuity between pin 19 and chassis ground; readings above 50 mV indicate corrosion at the fuse panel splice near the hood released.
Replace the front engine bay harness if resistance exceeds 0.5 ohms across the CAN-H and CAN-L lines (pins 25 and 26 on connector C2)–the factory splice at the driver-side kick panel consistently fails due to moisture ingress. Label each wire with T-tap or heat-shrink butt connectors before cutting; stock color codes: RED/YELLOW (12V constant), BLACK/WHITE (ground), BLUE/ORANGE (fuel sender), and GREEN/BLACK (starter signal).
Quick Reference Pinout Table
Verify each circuit with a diode test before reconnecting:
– C1-37: Tachometer output (4.5-5.2V square wave)
– C2-12: A/C clutch relay control (duty cycle modulated)
– C3-23: O2 sensor heater ground (10-12Ω at 20°C)
How to Pinpoint Key Electrical Bundle Link Points in Your Full-Size Pickup
Begin beneath the dashboard on the driver’s side. Remove the lower trim panel secured by four 10mm bolts and two plastic clips near the pedal assembly. The central junction block–black rectangular housing–lies tucked behind the brake master cylinder. Three primary connectors snap into its rear: a 22-pin main feed, a 16-pin engine control branch, and an 8-pin fuse relay link. Label each before separation to avoid confusion during reassembly.
The engine bay holds critical splice hubs near the firewall. Locate the white trapezoidal connector just above the windshield washer reservoir. This split serves the engine sensors and transmission control module with a 32-pin assembly. Inspect for corrosion–greenish deposits indicate degraded seals; clean with electrical contact cleaner and a nylon brush before reinstallation.
On the passenger side, the airbag module integrates with the electrical network via a yellow 34-pin bundle hidden behind the glove compartment. Lower the compartment door fully, then squeeze the retaining tabs to release the underside panel. Avoid tugging forcefully; the retention clip can break, requiring replacement. The bundle feeds the sensor suite and dashboard indicators.

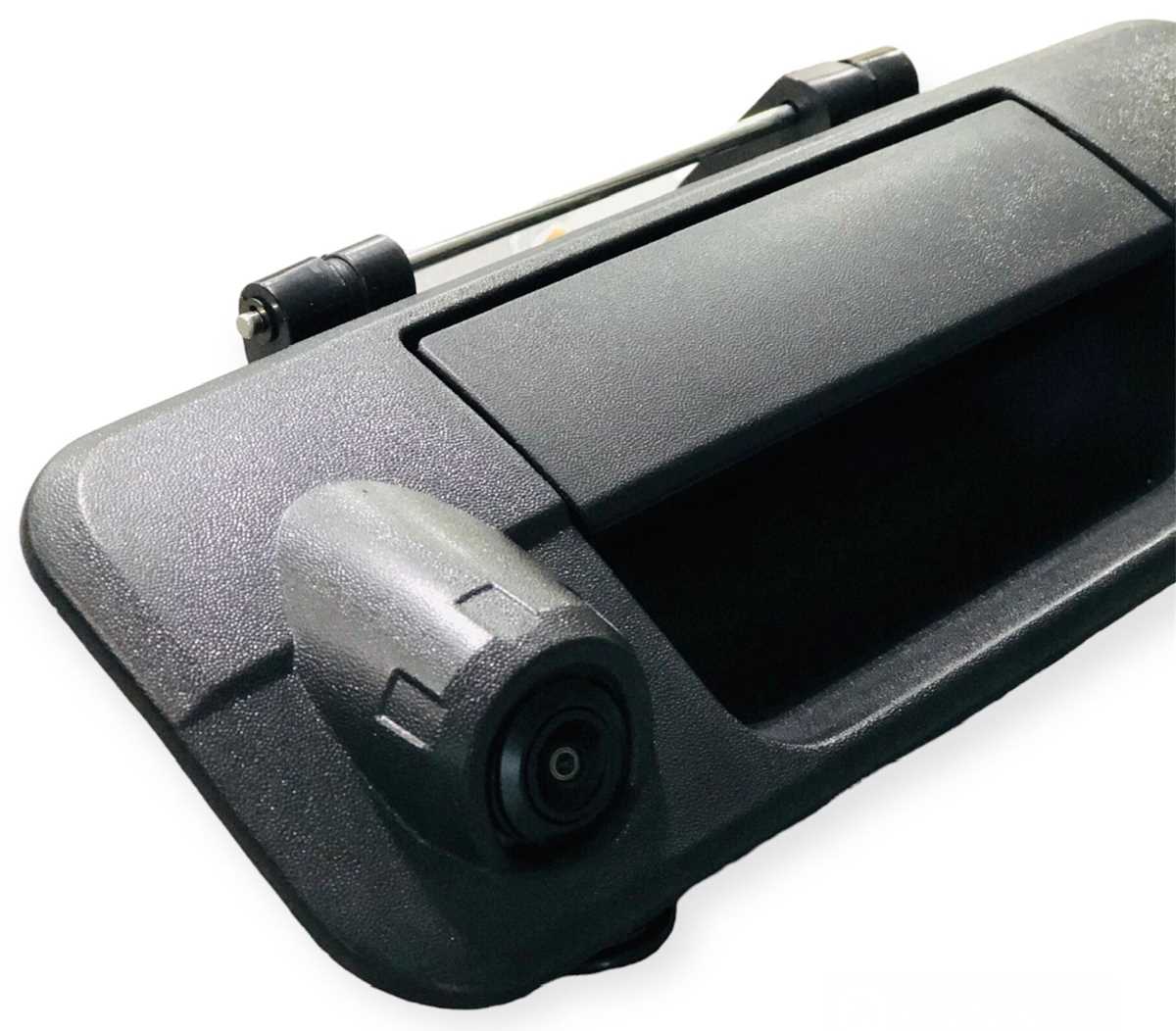

Trace the rear tailgate loom along the pickup bed’s underside. A corrugated conduit shields the wires–slice the protective sleeve lengthwise using a utility knife. Inside, a gray 12-pin connector unites the taillight circuits, reverse signal, and bed camera system. Disconnect by pressing the central release tab; check for brittle insulation, especially near heat sources like the exhaust routing.
Cabin fuse box hides yet another cluster beneath the instrument cluster. Drop the steering column cover by removing two Torx T20 screws along its lower edge. The 18-pin green harness plugs directly into the body control module–each pin correlates to specific systems: power windows, seat heaters, or keyless entry. Annotate wire colors using a repair manual to cross-reference.
Under the hood, the alternator’s power distribution center merges multiple feeds. A 14-pin black connector sits adjacent to the coolant reservoir. Release the latch by lifting upward with a flathead screwdriver–no excessive force needed. This hub consolidates battery current, ignition circuit, and starter relay signals; verify tightness of each pin to avoid voltage drops.
Behind the rear seats, a 10-pin orange bundle connects the fuel pump assembly. Recline the seatbacks fully to access the access panel held by two Phillips screws. The connector’s locking tab snaps audibly upon engagement. Water intrusion here triggers sporadic no-start conditions; seal gaps with dielectric grease during reassembly.
Step-by-Step Guide to Interpreting an Electrical Schematic for Powertrain Elements
Locate the power distribution block first–usually marked with thick red or orange lines on schematics. Trace these high-current pathways backward to the fuse box, noting amperage ratings (typically 20A-60A) labeled adjacent to symbols. Identify ground points next, represented by triangular or inverted T-shaped symbols; confirm their physical locations in repair manuals or via chassis tags, as poor grounds cause intermittent faults. Isolate sensor circuits by color-coding: MAF (Mass Air Flow) uses yellow/black, O2 (Oxygen) pairs black/white with signal wires (gray or purple). Measure voltages at connectors using a multimeter–the MAF should read 0.5V-4.5V at idle, O2 sensors 0.1V-0.9V post-catalytic converter.
- Match terminal numbers on connectors (e.g., ECU pin 38 = CMP sensor) with component labels on the chart–cross-reference with OEM service literature if discrepancies arise.
- Follow ignition-controlled lines (often purple or pink) to relays, verifying coil resistance (40Ω-120Ω) and diode continuity in dual-spool configurations.
- Check actuator circuits: fuel injectors (impedance 12Ω-18Ω) and ignition coils (primary 0.5Ω-1.5Ω) require pulse-width verification via oscilloscope at 50%-90% duty cycle under load.
- Examine CAN bus lines (twisted pair, typically green/orange or blue/yellow) for 2.5V nominal voltage; shielded cables prevent EMI interference–resistance should measure <1Ω between nodes.
Frequent Electrical Bundle Problems and Troubleshooting Advice
Inspect ground connections first when diagnosing flickering lights or intermittent power loss. Corrosion at terminal points–especially near the frame rails or under the hood–disrupts conductivity. Use a multimeter to test resistance: readings above 0.2 ohms indicate poor grounding. Clean contact surfaces with a wire brush, then secure clamps tightly to bare metal for reliable circuits.
Check for chafe damage where cables route through tight spaces or near moving components. Common failure points include the driver’s side kick panel, behind the instrument cluster, and along the firewall. Examine sheathing for cracks or exposed strands; even minor breaches can trigger shorts under vibration. Replace compromised sections with OEM-spec insulation to prevent future faults.
- Test fuse continuity before assuming faults–install a known-good fuse to rule out blown elements.
- Measure voltage drop across connectors: values exceeding 0.5V suggest high resistance.
- Scan for trouble codes with an OBD-II tool; pending codes often point to wiring faults.
- Inspect relay sockets for heat damage; burnt contacts cause voltage irregularities.
For trailer plug malfunctions, verify pin assignments match the load requirement. Misaligned pins create voltage cross-talk, frying modules. Use dielectric grease when reseating connectors to block moisture ingress. If tow features behave erratically, probe the tow module’s power feed with a test light–absence of signal confirms a severed lead or failed module.
Where to Locate Trusted Electrical Connection Blueprints for Trailer Configurations
Begin with the manufacturer’s official repair manuals or owner’s guides. These documents include verified schematics for auxiliary power setups, ensuring compatibility with factory systems. Toyota’s technical information site (TIS) provides downloadable PDFs with color-coded pinouts for connectors, trailer brakes, and lighting circuits. Subscription fees apply, but the accuracy justifies costs–avoid third-party “free” versions that may omit critical updates or mislabel wires. For OEM-level clarity, check if your local dealer offers printed manuals or digital access codes for older models.
Alternative Sources for Accurate Layouts
| Source | Format | Pros | Cons |
|---|---|---|---|
| Vehicle-specific forums (e.g., TundraSolutions, iH8MUD) | User-uploaded scans, threads | Free, real-world adaptations | Potential errors, outdated revisions |
| Aftermarket suppliers (Curt, Bargman, Hopkins) | Product installation guides | Tailored for plug-and-play kits | Limited to their brand’s components |
| YouTube tutorials (search: “[model] trailer plug wiring color codes”) | Video walkthroughs | Visual confirmation of connections | Varies in detail, ads disrupt flow |
For precision, cross-reference at least two sources. Aftermarket wiring kits often include laminated reference cards with simplified layouts–these map 7-way connectors to the vehicle’s fuse box and ground points. DIY auto repair databases (Mitchell1, ALLDATA) aggregate OEM data with aftermarket adaptations; expect to pay $20–$40 for a one-time report. Avoid generic diagrams labeled “universal”–they ignore model-specific relays or integrated brake controllers.
