Replacing or troubleshooting the sound module in this model requires precise pin assignments. The factory harness splits into four primary connectors: a 12-pin main interface (A), a 6-pin antenna lead (B), an 8-pin amplifier bus (C), and a 4-pin power bundle (D). Always disconnect the negative battery terminal before probing any circuits to prevent damage to the microprocessor or accidental shorts.
The yellow wire (pin A-6) delivers constant 12V power directly from the fuse block, designated for memory retention–never route it through any switch. Red (A-4) carries switched ignition voltage; if the audio cuts out abruptly, trace this circuit back to the ignition relay or a blown #23 fuse. Ground connections terminate at two points: black/white (D-1) links to chassis ground near the kick panel, while bare black (D-4) ties directly to the transmission tunnel ground stud–verify both with a multimeter for 0.2 ohms or less.
Signal feeds for the six speakers follow this pattern: front left (+) gray/light blue (C-2), front left (-) gray/dark blue (C-3), rear left (+) gray/light green (C-4), rear left (-) gray/dark green (C-5), front right (+) gray/light brown (C-6), front right (-) gray/dark brown (C-7). If speaker output distorts, isolate each channel by disconnecting all but one and testing with a 1kHz sine wave at 50% volume–impedance should read 4 ohms ±0.5 ohms at the harness side.
For auxiliary audio input retrofit, splice into the violet (A-2) and violet/white (A-3) lines, originally reserved for OnStar. These carry balanced left/right signals at line level (1V RMS); cap unused ends to prevent noise coupling. Antenna trimmer calibration–often overlooked–requires adjusting the small brass screw on the back of the tuner module until FM reception peaks at 98 MHz without adjacent channel bleed.
Rewiring Your G6 Audio System: Pinout Connections Explained
Identify the 12-pin connector at the rear of the head unit–harness color codes follow this pattern: yellow (constant 12V), red (accessory power), black (ground), orange (illumination), gray (left front speaker +), gray/black (left front speaker -), white (right front speaker +), white/black (right front speaker -), green (left rear speaker +), green/black (left rear speaker -), purple (right rear speaker +), and purple/black (right rear speaker -). Splice each wire directly to the corresponding aftermarket amplifier or speaker leads, ensuring bare metal contact without twisting or taping.
For vehicles equipped with OnStar or Bose premium sound, locate the separate 8-pin data plug–pins 1–4 handle OnStar microphone input/output, while 5–8 manage the amp turn-on signal (blue) and data bus (pink). Always bypass the factory amplifier by connecting speaker wires directly to the head unit harness; running new 16-gauge oxygen-free copper wire prevents signal degradation across the 15-foot chassis run to rear door tweeters.
Antena motor operation requires a dedicated 12V trigger (brown wire) spliced to accessory power–failure to connect this causes intermittent reception. Steering wheel control retention involves matching the gray/white resistor-ladder output to the aftermarket interface module; use a multimeter to measure resistance between buttons (e.g., volume up = 620Ω, next track = 1.5kΩ) before soldering connections.
Ground the new harness to the chassis via a 10mm bolt behind the glovebox–scrape paint to bare metal and apply dielectric grease to prevent corrosion. If retaining factory subs, run new RCA cables from the head unit’s subwoofer pre-out (dark green wire) through a 4-channel amp crossover set to 80Hz low-pass; adjust gain until distortion disappears at 75% volume.
Finding the OEM Audio System Plug Interface
Begin by removing the center trim panel surrounding the entertainment unit in the dash. Use a trim removal tool or flathead screwdriver wrapped in electrical tape to pry the edges without scratching surfaces. The panel is secured with hidden clips–apply steady pressure at the bottom first, then work upward to release them sequentially. Avoid twisting the tool to prevent breaking the fragile plastic tabs.

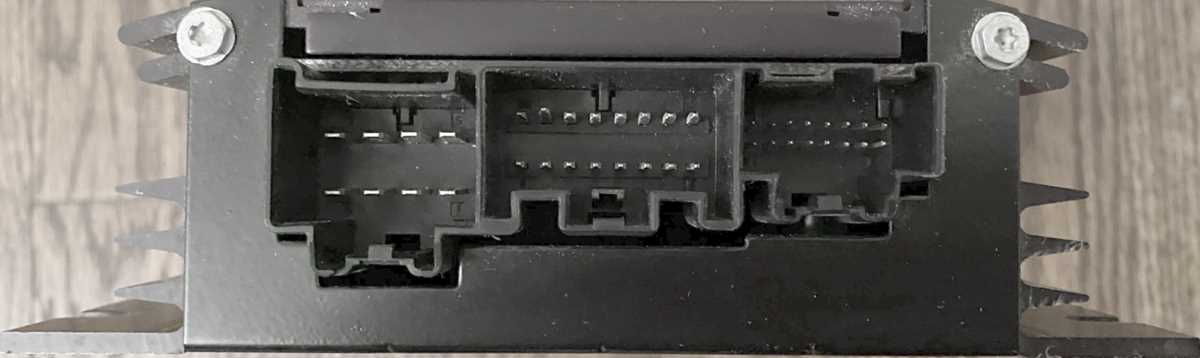

Once the trim is detached, locate the bolt securing the original head unit. It’s typically mounted with a single 10mm bolt at the top center, though some variants may have two smaller screws. Remove it with a socket wrench, then gently slide the device out from its housing. The factory plug interface will be exposed at the rear–identify the 12-pin rectangular harness connector, usually white or gray, tucked behind the unit’s bracket.
Check for additional retention clips on the harness connector itself. Some models require squeezing metal spring tabs on the sides while pulling the plug outward. If resistance is felt, inspect for secondary locking mechanisms–a small gray lever may need to be flipped counterclockwise before separation. Tugging forcefully can damage pins; ensure all locks are disengaged before attempting removal.
Trace the wiring loom from the plug to its entry point beneath the dash. A 2-inch section of the loom is often routed behind a black plastic conduit secured by zip ties or adhesive mounts. Cut these carefully with wire strippers to free the harness, leaving enough slack for testing or splicing. The conduit may also conceal a ground wire–follow it to its chassis attachment point, typically a bolt near the steering column brace.
Inspect the connector’s pin layout before handling. The left side usually carries constant 12V power (yellow), fuse-protected ignition (red), and illumination feed (orange). The right side handles speaker outputs–front left (gray/light blue), front right (gray/dark blue), rear left (green/light blue), and rear right (green/dark blue), with polarity marked via stripe patterns. Verify connections against a multimeter; a 4-6 ohm load confirms intact speaker wires.
Reinstallation requires aligning the connector’s keyed notch with the head unit’s port before pressing firmly. Listen for a click to confirm full engagement. If modifications are needed, wrap splices with heat-shrink tubing instead of electrical tape to prevent signal interference or corrosion. Secure excess wiring with split loom tubing and route it away from moving parts like the climate control actuator to avoid future pinching.
Understanding Color Standards for G6 Audio System Cables
For the G6 sedan’s sound system, front left speaker connections use dark green (positive) and gray with a black stripe (negative). The right front unit pairs light blue (positive) with light green and a black stripe (negative). Rear left channels follow violet (positive) and tan with a black stripe (negative), while rear right components match gray (positive) to brown and black (negative). Verify polarity during installation–reversed leads can degrade stereo imaging and bass output. A multimeter set to continuity mode helps confirm correct pairing before final connections.
Additional Circuit Guidance
- Orange: Illumination control input (12V when headlights active).
- Yellow: Constant 12V memory wire (retains presets).
- Red: Switched 12V accessory line (activated with ignition).
- Black: Ground reference (chassis connection).
- Purple/white stripe: Antenna trigger (extends motorized unit).
- Pink/purple stripe: Amplifier remote turn-on (factory Monsoon system).
Use heat-shrink tubing or solder for all joins to prevent corrosion–twist-and-tape methods fail within 18-24 months. Strip insulation back 3/8″ (9.5mm) for secure crimps; avoid nicking conductor strands which reduces current capacity.
Locating Power and Earth Connections in Your Audio System
Begin by isolating the constant 12V supply–typically a yellow or orange cable on most harnesses. Verify with a multimeter set to DC voltage; probe the wire while the key is off–readings should remain steady between 12-14V. If voltage drops, trace back to the fuse box and check for blown fuses or loose connections. Avoid assuming color codes alone; manufacturer deviations exist, especially in aftermarket adapters.
Key Wire Characteristics
- Battery lead (yellow/orange): Unswitched power, must hold voltage with ignition off.
- Accessory wire (red): Switched power, activates only with key in ACC or ON position.
- Ground (black/brown): Zero resistance to chassis; test with multimeter continuity mode. Poor grounding causes static, weak output, or intermittent failures.
For ground connections, use a bare metal surface free of paint, rust, or corrosion. Scrape the mounting point down to shiny metal, then secure with a star washer to ensure a solid contact. Avoid bolted joints near moving parts or heat sources–they expand and contract, loosening connections over time. If buzzing persists, run a dedicated ground cable directly to the battery negative terminal.
- Disconnect the negative battery terminal before probing any circuits to prevent short circuits.
- Label each wire with masking tape during testing–misconnections can fry the head unit’s circuitry.
- Use a soldered, heat-shrunk connection instead of twist-and-tape joints for long-term reliability.
- Inspect the harness plug for bent pins or melted plastic–both indicate overheating or improper voltage.
Steps to Extract the OEM Audio System Without Harming Connections
Disconnect the negative terminal of the vehicle’s battery first. This prevents shorts while handling live circuits. Locate the terminal under the hood–typically secured by a 10mm bolt–and loosen it until the cable detaches cleanly. Set the cable aside where it won’t accidentally reconnect.
Remove the trim panel surrounding the dashboard unit using a plastic pry tool. Starting at the top center, slide the tool into the seam and gently twist to release the clips. Work clockwise, applying even pressure to avoid snapping retaining tabs. Once free, lift the panel straight out to expose the mounting screws.
| Trim Clip Locations | Replacement Cost (USD) | Tools Required |
|---|---|---|
| Upper dashboard bezel | $3–$8 per clip | Plastic pry bar, flashlight |
| Lower console surround | $5–$12 per set | Trim removal kit, flathead screwdriver |
| Side air vent panels | $7–$15 per side | T15 Torx driver, needle-nose pliers |
Identify the four mounting bolts securing the head unit–two at the top, two at the bottom. Use a 7mm socket to remove each bolt, turning counterclockwise. Store bolts in a magnetic tray to prevent loss. If bolts resist, apply penetrating oil and wait 5 minutes before retrying.
Grasp the faceplate firmly and pull the unit outward until the wiring harnesses and antenna cable come into view. Press the release tabs on each connector–typically black or gray–and slide them off the rear pins. For the antenna, depress the small plastic lock on the coaxial plug and pull straight back. Avoid yanking wires; uneven force can damage pins.
Inspect each connector for corrosion or bent terminals before reinstallation. Use dielectric grease on contact points if repurposing the harness. For temporary storage, wrap connections in anti-static foam or a clean microfiber cloth to shield them from dust and moisture.
Reinstall the trim by aligning the bottom clips first, then pressing the top edges until they snap into place. Test the battery connection, then verify all dashboard functions–turn signals, climate controls–to confirm no circuits were disrupted during the process.
