Locate the starter relay first–it’s behind the right side panel, adjacent to the battery. Trace the red wire (14 AWG) from the relay’s terminal 87 to the main fuse (30A), ensuring continuity before progressing. If resistance exceeds 0.5 ohms, replace the wire or fuse immediately; corrosion on the terminals is a common failure point here.
Examine the ignition system next. The black/yellow wire runs from the ignition switch to the CDI unit (connector C2, pin 4). Verify voltage at pin 4 with the key in the “ON” position–expect 12V ±0.5V. A lower reading signals a bad ground or faulty switch. For the lighting circuit, the blue/white wire splits from the regulator/rectifier (yellow connector, pin 3) to the headlight. Use a multimeter to check for 13.8V AC at full throttle; deviations indicate diode failure in the rectifier.
For the sensor network, focus on the red/white wire feeding the ECU (connector A, pin 16). This carries battery voltage; if absent, inspect the kill switch and clutch lever sensor (gray connector) for loose connections. The neutral light (green/yellow wire) ties directly to the gear position sensor–test by engaging neutral; the bulb should illuminate within 1 second. Delays suggest a worn sensor or oxidized contacts.
When troubleshooting the charging system, probe the yellow wires from the stator to the regulator. Measure AC voltage across any two wires at 3,000 RPM: values below 30V AC demand stator replacement. For the horn circuit, the brown/yellow wire must show 12V under load; intermittent operation often stems from a weak horn relay (located near the front forks).

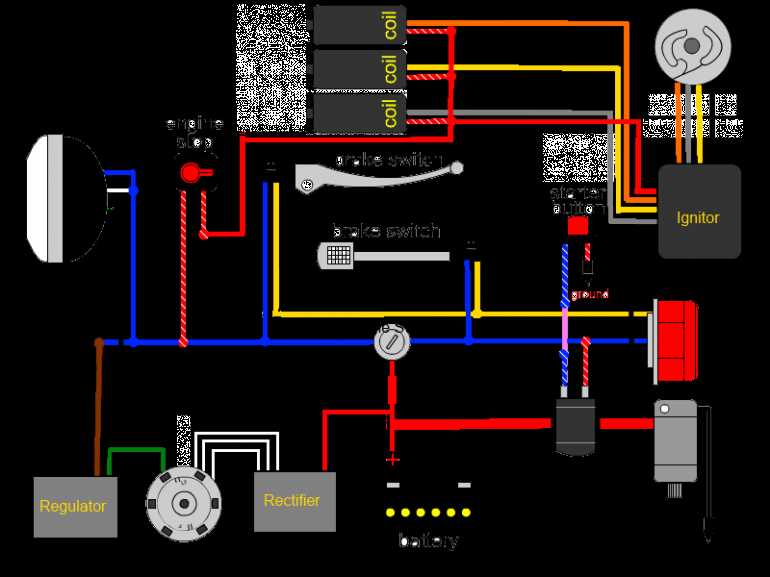

Electrical Schematic for the EX250G Model: Hands-On Reference
Start by locating the main fuse block under the left-side fairing–remove the plastic clip holding the cover to access terminals 1, 2, and 3. Terminal 1 (red/white) supplies ignition power, while terminal 2 (black/white) grounds the system. Terminal 3 (green) handles the starter relay trigger. Verify continuity with a multimeter set to 200 ohms; readings above 0.5 ohms indicate corrosion. Clean contacts with electrical cleaner and a brass brush if needed.
Trace the headlight harness from the handlebar switch (white/black wire) back to connector C101. The low-beam circuit (yellow/red) and high-beam circuit (blue/white) split here. Check for voltage at both wires when activating the switch–low beam should read 12V, high beam 14V under load. If readings drop below 11V, inspect the 10A headlight fuse in the block beneath the seat. Replace blown fuses with identical amperage only.
Examine the turn signal circuit starting at the flasher relay (gray unit, right-side panel). The relay receives power from the ignition switch (orange/white wire) and outputs pulsed 12V to the signal bulbs via brown/white (left) and light green/white (right) wires. Test relay function by jumping the input and output pins with a screwdriver–clicking confirms operation. Non-functional signals often stem from broken wire strands near the handlebar pivot; splice repairs here require heat-shrink tubing to prevent moisture ingress.
The engine control module (ECM) connects via a 12-pin black connector near the airbox. Pin 1 (black/yellow) delivers battery voltage, pin 2 (green/black) grounds the unit, and pin 5 (yellow/red) transmits RPM data to the tachometer. Disconnect the ECM before measuring resistance across pins 2-5 (should read 200-400 ohms). Higher readings suggest a faulty crankshaft position sensor requiring replacement–a procedure demanding removal of the stator cover and flywheel.
Inspect the alternator output by probing the three yellow wires at the regulator/rectifier (silver box, left side of frame). Each wire should produce AC voltage between 30-50V at 5,000 RPM when disconnected from the rectifier. Voltages below 25V necessitate stator inspection; resistance between any two yellow wires should stay between 0.1-1.0 ohms. Failed stators often disintegrate internally–visually check for copper windings pulled from the core before condemning.
Route the neutral switch wire (light green/white) from the transmission to the ECM connector. This wire must read 0V when the bike sits in gear, then switch to 5V in neutral. Splicing into this circuit for aftermarket accessories requires a relay to prevent feedback; direct connections risk ECM damage. Always disconnect the negative battery terminal when working on sensitive components to avoid transient voltage spikes.
For coolant temperature sensor verification, back-probe the single blue/red wire at the sensor (near cylinder head) with the ignition on. Voltage should start at 4.5V cold, dropping to 0.5V at 220°F. Erratic readings point to sensor failure or air in the cooling system. Replace sensors with OEM units only–aftermarket variants often lack proper calibration curves, causing false temperature readings and erratic idle behavior.
Identifying Critical Parts in the Electrical Schematic
Begin by pinpointing the ignition switch on the upper left corner of the layout. It connects to three primary circuits: starting, charging, and lighting. Trace the red wire from the switch to the main fuse–this path carries battery voltage and splits into sub-circuits. The 30-amp fuse safeguards the entire system; a failure here cuts power to all downstream components.
Locate the alternator next, marked by a circular symbol near the engine outline. Follow the yellow wire from its output terminal to the voltage regulator, then to the battery. This loop maintains charge during operation. If voltage drops below 13.8V at 5000 RPM, inspect the stator or rectifier for resistance outside 0.2–1.2 ohms.
The CDI unit appears as a rectangular block adjacent to the engine controller. Its black/orange wire links to the ignition coil, while the white/red line syncs with the pick-up coil. Unplug the connector and test for 80–150V AC across these terminals when cranking–lower readings indicate a faulty pulse generator.
Turn signals share a common flasher relay, represented by a diamond shape near the headlight assembly. Each bulb’s circuit–front left, front right, rear left, rear right–feeds through individual orange/white and gray/red wires. Verify continuity between the relay and bulb sockets; corrosion here causes intermittent operation. Replace the relay if flash rate exceeds 120 cycles per minute.
For the fuel pump, follow the purple wire from the relay to the tank module. A 12V pulse during ignition checks confirms proper operation. If silent, measure pump resistance at 10–20 ohms; deviations suggest internal shorting. The ground strap (black wire) must connect directly to the frame–loose connections mimic pump failure.
Step-by-Step Tracing of Ignition System Wires
Locate the ignition coil near the engine’s left side, mounted adjacent to the frame. Identify the two primary wires–one black with yellow stripe (positive) and one solid black (ground). Trace the black/yellow wire back to the ignition switch using a multimeter in continuity mode to confirm no breaks. The switch connector will show three terminals; the wire should terminate at the middle terminal labeled “IG1”.
Examine the kill switch circuit next. The switch interrupts power by grounding the ignition coil’s positive lead. Disconnect the handlebar switch harness and check for resistance between the black/yellow wire and ground when the kill switch is off. A closed circuit (near 0 ohms) confirms proper grounding. If resistance exceeds 0.5 ohms, inspect the switch contacts for corrosion or loose connections.
| Wire Color | Function | Expected Voltage (Key On) | Test Point |
|---|---|---|---|
| Black/Yellow | Ignition Coil (+) | 12V–14V | Coil terminal |
| Black | Ground | 0V | Chassis ground |
| Green | CDI Trigger | Pulsing 1V–3V | CDI module |
Follow the green wire from the CDI unit to the pulse generator mounted behind the crankshaft cover. The generator’s connector has two terminals–green and white/red. Probe the green wire with the multimeter set to AC voltage while cranking the engine. A reading between 0.5V and 2V AC indicates correct signal generation. No voltage suggests a faulty generator or wiring short.
Inspect the CDI module’s output wires–black/white (ignition pulse) and orange (to coil). Backprobe the orange wire at the CDI connector while cranking; expect a pulsing 100V–300V signal. Absence of voltage indicates a failed CDI or broken orange wire. Secure all connections with dielectric grease to prevent moisture ingress, focusing on the CDI and coil connectors.
Verify the sidestand safety circuit last. The sidestand switch interrupts ignition when the stand is down. Locate the switch near the footpeg and disconnect its connector. With the stand retracted, measure continuity between the switch’s green/white wire and ground. An open circuit confirms the switch is functional. Replace the switch if continuity exists in both positions.
Test the entire system under load. Reconnect all components and start the engine. Use an oscilloscope on the orange wire to observe a clean pulse train with sharp edges. Irregular waveforms or low amplitude point to a deteriorating CDI unit or coil, requiring replacement. Keep wire runs away from sharp edges or moving parts to prevent chafing.
Identifying and Testing Circuit Protection Components in Small-Bore Sport Bike Schematics
Locate the fuse panel under the seat near the battery compartment–remove the plastic cover by squeezing the retaining clips at the rear. The printed legend on the reverse side maps each fuse slot to its protected circuit: ignition, lighting, fuel pump, and ECU. Use a multimeter set to continuity mode; a blown fuse will show infinite resistance. Replace only with identical amperage–typically 10A (yellow), 15A (blue), or 20A (red) for this model series. Never substitute higher amperage “to be safe,” as this risks melting downstream wiring and connector failure.
Relays cluster adjacent to the fuses in a secondary plastic box. Their purpose: switching high-current loads like the starter motor, cooling fan, and auxiliary lighting without running heavy gauge wires through the entire harness. Test by swapping a suspect relay with a known-good one of identical part number–look for “98011-1076” or “98011-1077” stamped on the top. If the issue resolves, the original relay has failed; confirm by measuring coil resistance (typically 50-120 ohms) across pins 85 and 86, and switch continuity between pins 30 and 87 when 12V is applied to the coil.
Common failure points include corroded fuse clips and cracked relay sockets caused by engine vibration. Inspect the clips: bright metal without black or green oxidation indicates reliability; darkened or powdery surfaces require cleaning with a fibrous glass pen, followed by a light coat of dielectric grease. For relay sockets, flex each terminal gently with needle-nose pliers to restore tension if contact feels loose. Relays drawing excessive current–audible buzzing or warmth–signal imminent failure and should be replaced immediately to prevent intermittent electrical faults.
- Primary fuse layout (left to right, rear of panel forward):
- #1 (10A)–Ignition system
- #2 (15A)–Headlamp, position lamp
- #3 (15A)–Tail/brake lamp, license plate, meter illumination
- #4 (10A)–ECU, diagnostic connector
- #5 (15A)–Cooling fan
- #6 (20A)–Horn, turn signals
- Main fuse (30A)–Starter circuit protection
If testing reveals intact fuses and relays yet electrical gremlins persist, shift focus to the relay control wires–thin gauges running from ECU output pins to relay coils. Probe the ECU-side connector with a multimeter set to DC voltage range; 12V should appear on the control wire (pin 86) when the corresponding system is activated via ignition switch or ECU command. Missing voltage suggests either a loose ECU connector, broken wire, or failed ECU output driver.
Tools Required for Accurate Diagnosis
- Digital multimeter (auto-ranging preferred)–minimum 10A current measurement capability
- Fine-tipped needle probe set–isolates back-probed terminals without damaging insulation
- Set of genuine spade-blade fuse pullers–protects clips from bending
- Headlamp dimmer switch–quick visual reference for lighting circuit integrity
- Dielectric grease–prevents future corrosion on cleaned contacts
- Replacement fuses and relays–exact matches, stored in seat compartment for emergencies
Quick diagnostic routine: Turn ignition to “ON” position but do not start engine. Listen for fuel pump prime–audible click and whir at the rear near side fairings. If absent, test pump relay as described; if relay checks out, probe yellow/red pump wire directly–12V should appear within 2 seconds of ignition activation. Voltage present at pump but no operation indicates pump failure; absent voltage points to main fuse or ignition switch fault.
Avoid probing relays by back-feeding voltage from an external power supply–this bypasses critical upstream protection and risks melting relay coils or ECU outputs. Instead, use the bike’s own battery voltage via jumper wires clipped to known-good circuits (e.g., battery positive) to simulate control signals during bench testing. Always connect ground leads before applying voltage to prevent inadvertent shorts across adjacent pins.
