To replace or upgrade the stock sound unit, locate the connector harness behind the dashboard panel on the driver’s side. The harness will have twelve wires: six for power, ground, and antenna control, and six for speaker outputs. The primary power feed–yellow (PWR)–requires a 12V constant source, typically fused at 10 amps. A secondary switched power lead–red (ACC)–draws current only when the ignition is in the RUN or ACC position. Ground is handled by a black (GND) wire secured to the chassis near the unit.
The antenna trigger wire–dark blue (ANT)–activates the power mast when the receiver powers on. Speaker outputs follow a consistent color-coding pattern: front left (+) gray / (-) gray-black, front right (+) white / (-) white-black, rear left (+) green / (-) green-black, and rear right (+) violet / (-) violet-black. Verify each wire with a multimeter before connecting aftermarket components to prevent short circuits.
For amplification, splicing into the constant power lead with a 2-gauge cable rated for 100 amperes ensures stable voltage under load. Route the new wiring away from moving parts and heat sources, securing with cable ties every 12 inches. If retaining the OEM harness for auxiliary features like steering wheel controls, maintain pin integrity on the 38-pin connector at the back of the head unit.
Measure voltage on all wires before finalizing connections. The switched power lead should read 12V only with the key in RUN, while the constant power feed remains live regardless. Failure to confirm can result in drained batteries or damaged electronics.
Electrical Connection Guide for Original Vehicle Audio System
For direct installation, locate the harness behind the dashboard center stack. The 16-pin connector splits into power (red/yellow), ground (black), antenna (blue), and speaker wires (gray/white, gray/black, green/purple, green/orange, violet/gray, violet/white, brown/yellow, brown/white). Match colors precisely–reversing polarity damages components. Test voltage with a multimeter before connecting to avoid short circuits.
Critical Wire Functions
Constant power (red/yellow) maintains memory settings; never splice it with ignition (pink). The ground wire (black) must attach to bare metal–corrosion or paint here causes intermittent failures. Speaker wires follow a standard pattern: front left (+ gray/white, – gray/black), front right (+ green/purple, – green/orange), rear left (+ violet/gray, – violet/white), rear right (+ brown/yellow, – brown/white).

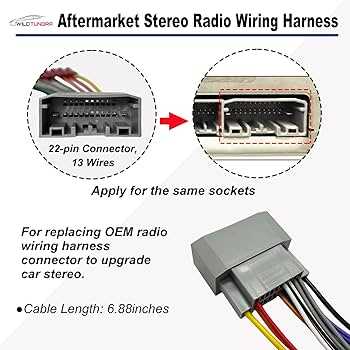

Aftermarket adapters simplify connections but may lack steering wheel control wiring. Use a retaining clip removal tool to release the original unit–prying risks dash damage. For Uconnect systems, retain the microphone harness (thin gray wire) pinned behind the climate controls. Replace blown fuses (15A for radio, 10A for amp) if power cuts occur post-installation.
Verify dimmer functionality (orange/gray wire) before final assembly. If illumination fails, trace the dimmer wire to the headlight switch–disruption here affects all dash lighting. Secure all connections with solder or crimp connectors; electrical tape alone degrades over time. Note: Some models include a separate amp (brown/red wire)–disrupting this disables rear speaker outputs.
How to Find the Audio System Harness Connections in Your Sedan

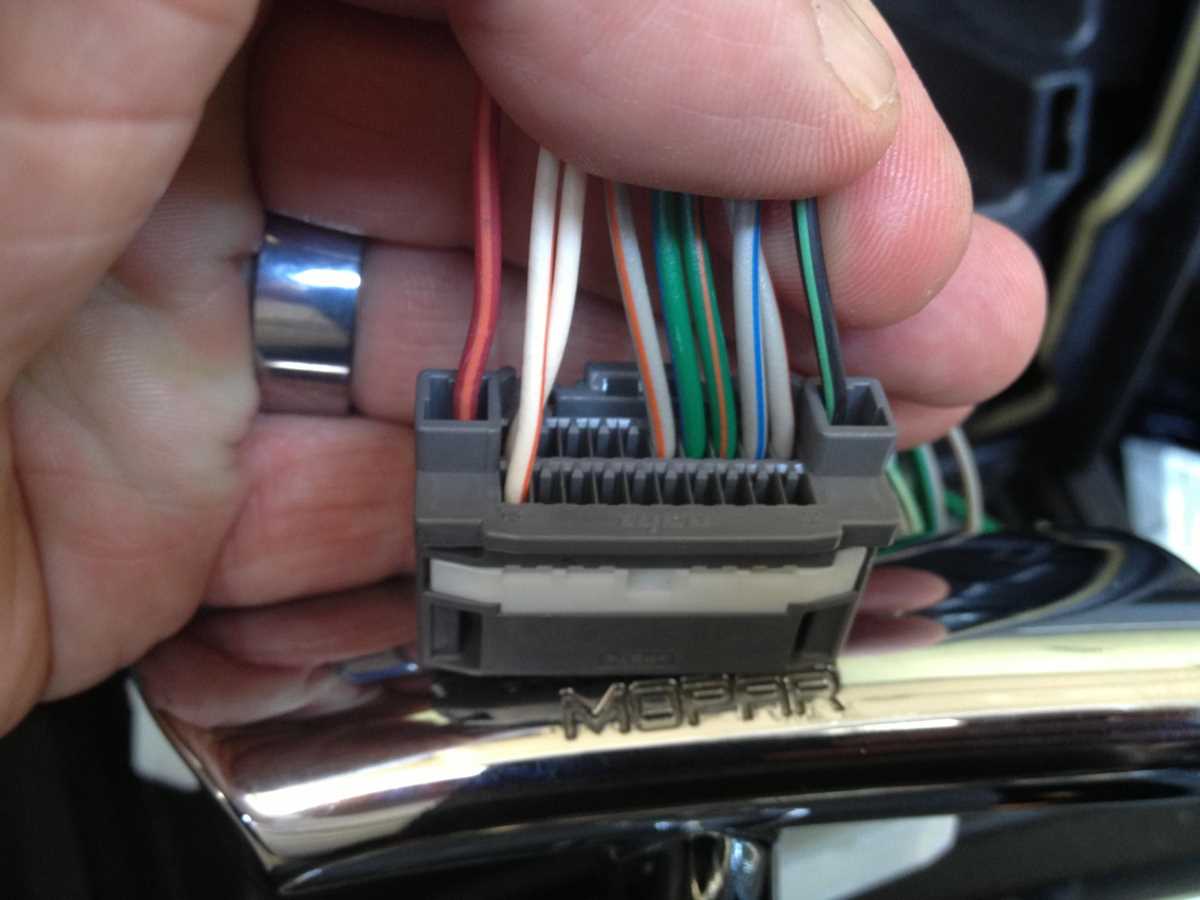

Begin by removing the center console trim panel. Locate the Phillips screwdriver and unfasten the two screws directly beneath the climate controls. Gently pry off the trim using a plastic trim tool, starting from the bottom edge near the gear shift. Work upward to avoid snapping the retaining clips. Behind this panel, you’ll find two main connectors: a 16-pin rectangular plug with color-coded wires and a smaller 8-pin square harness.
Key Connector Locations and Wires
- 16-pin plug: Connects to the vehicle’s main electrical system–yellow (constant 12V), red (switched 12V), black (ground), orange/white (illumination), and purple/purple-white (vehicle speed sensor).
- 8-pin plug: Handles speaker outputs–gray/black (front right), gray (front left), green/black (rear right), green (rear left), and two violet wires for subwoofer or amp trigger if equipped.
- Single-pin connections: Look for a blue wire (antenna trigger) and a separate white/black wire (mute signal) near the climate control module.
Trace the harness bundle toward the firewall. Follow the thickest cluster of wires–this leads to the original audio unit’s mounting bracket. The harness splits near the glovebox hinge; the upper branch powers the head unit, while the lower branch supplies rear speakers and amplifier feeds. Label each connector with masking tape before disconnecting to avoid misalignment during reinstallation.
If the connectors are obscured by tape or foam, slice through carefully with a hobby knife. Avoid pulling wires by hand–they’re secured with adhesive strips and may break. For hybrid models, locate the orange safety plug above the pedals before proceeding; disconnecting it prevents short circuits while working on electrical components.
Color Coding and Pin Configuration for Original Head Unit Connections
Begin by locating the 12-pin and 16-pin harness connectors on the back of the unit–these carry all audio, power, and accessory feeds. The left connector (typically 12-pin) contains constant 12V, switched ignition, ground, illumination, and antenna trigger wires. Verify polarity before attaching: yellow delivers permanent battery voltage to retain presets, red supplies switched power for on/off operation, and black must connect to chassis ground to prevent noise.
On the right (16-pin) plug, speaker outputs follow a standardized color scheme: front-left positive is gray, front-left negative is gray/black stripe; front-right positive is white, front-right negative is white/black stripe. Rear channels mirror this pattern: violet for rear-right, dark green for rear-left. Prevent polarity swaps–reversals cause phase cancellation, reducing bass response and spatial imaging.
Constant 12V (yellow) requires a direct fuse-protected battery link; splicing into existing circuits risks voltage drops. Switched 12V (red) should tie into an ignition-switched source–commonly the fuse box tap for the instrument cluster. Avoid tapping stereo power wires from cigarette lighter circuits; these often carry fluctuating loads, introducing electrical interference.
Pinout Reference for Quick Troubleshooting
Use a multimeter to confirm continuity on the 12-pin plug: pin 2 (red) reads 12V only when ignition is ON; pin 4 (yellow) remains live regardless of key position; pin 5 (black) should show 0Ω to ground. On the 16-pin side, measure between gray/gray-black (pins 1–2) and white/white-black (pins 5–6) for 4Ω impedance–any significant deviation indicates shorted or open speaker coils.
Illumination wire (orange) dims in tandem with dashboard lights; link this to the vehicle’s dimmer circuit to maintain nighttime visibility synchronization. Antenna booster wire (blue) must connect to the powered mast–reverse current causes motorized antennas to retract uncontrollably. Secure all connections with soldered joints or crimp connectors coated in heat-shrink tubing; tape wraps degrade over time, exposing wires to corrosion and vibration-induced shorts.

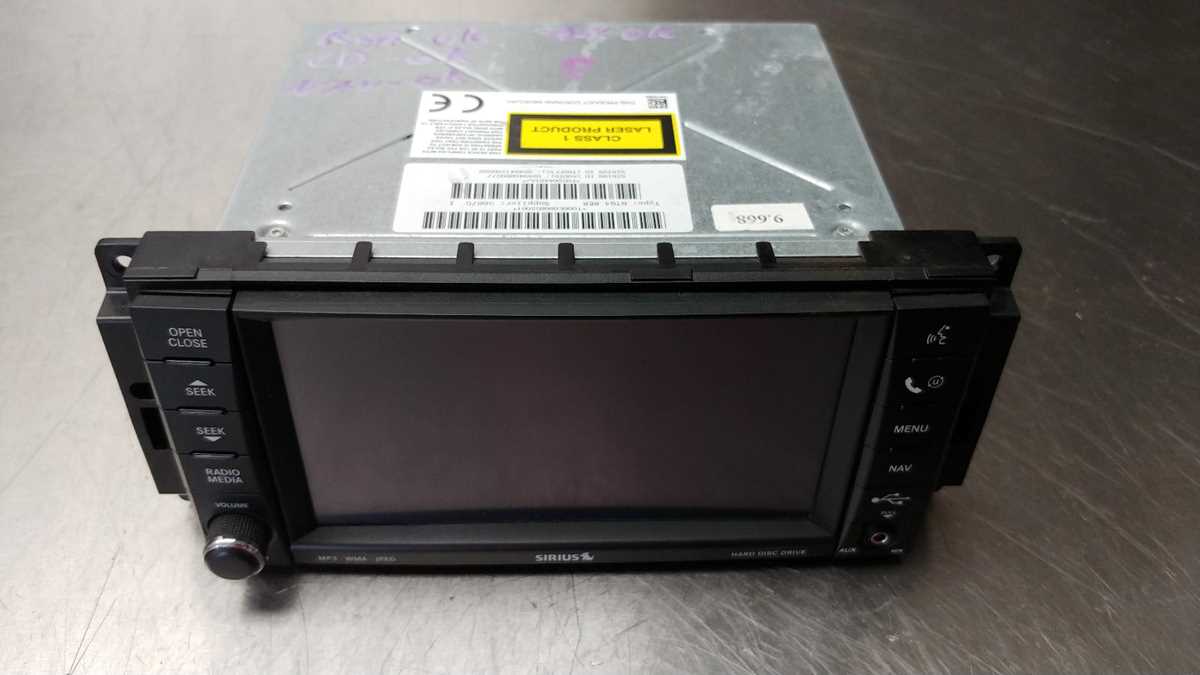

Step-by-Step Guide to Safely Extracting the OEM Audio Unit
Disconnect the negative terminal of the vehicle’s battery before touching any connectors. This prevents short circuits and accidental airbag deployment during removal. Locate the 10mm bolt securing the negative cable and loosen it with a socket wrench–keep the cable isolated from metal surfaces.
Removing Trim Panels Without Snap Damage
Use a plastic trim removal tool to pry the dashboard bezel starting from the lower corners. Work upward, releasing clips at 6-inch intervals; apply firm but controlled pressure to avoid cracking the clips. If resistance persists, slide a thin guitar pick along the seam to locate hidden fasteners–never force the panel.
Disengage the climate control harness by pressing the release tab on the side of the connector. Gently wiggle it loose while pulling straight out–angled removal risks bending pins. For the audio unit’s main plug, depress the center lock with a small flathead screwdriver before sliding the connector free. Store connectors in a labeled bag to prevent misplacement.
Release the mounting brackets by removing the four Torx T20 screws–two on each side. Hold the unit with both hands while tilting it forward to access the antenna lead (green coaxial cable) at the rear. Press the collar inward and twist counterclockwise to detach it. Reinstall all components in reverse order, ensuring clips audibly snap into place.
Locating Key Connections in the OEM Audio Harness
Begin by isolating the constant 12V power lead–typically marked in solid red or red with a thin stripe. This wire maintains memory settings and must connect directly to a fuse-rated circuit capable of 10A continuous load. Verify with a multimeter: voltage should read 12–14V regardless of ignition state. Adjacent to it, the switched 12V (often yellow) activates only when the ignition is on; this powers the head unit’s primary functions.
Ground wires are usually black or brown, bundled in a thick gauge to prevent signal noise. Attach these to a bare metal chassis point, ensuring no paint or corrosion interferes. A poor ground causes static, erratic display behavior, or complete power failure. For speaker outputs, trace each pair: left-front positive (gray), left-front negative (gray-black), right-front positive (white), right-front negative (white-black), and rear pairs following similar gray/white conventions but with violet or green bases.
| Wire Color | Function | Voltage/Resistance Check |
|---|---|---|
| Solid Red / Red (thin stripe) | Constant 12V | 12–14V (ignition off/on) |
| Yellow | Switched 12V | 12–14V (ignition on only) |
| Black / Brown | Ground | < 0.5Ω to chassis |
| Gray (solid) | Left-front (+) | 4–8Ω with negative gray-black |
| White (solid) | Right-front (+) | 4–8Ω with negative white-black |
Speaker wires follow a non-polarized standard but can damage amplifiers if reversed. Use a 9V battery to test polarity: touch positive and negative leads briefly–correct polarity produces an audible pop from the corresponding speaker. If silence follows, reverse the connections. Avoid relying on color alone; cross-reference with a pinout chart, as aftermarket harnesses may deviate.
Illumination wires (orange or orange-black) adjust screen brightness with the vehicle’s dimmer. These register 0V when lights are off and up to 12V when activated; a failing connection causes the display to remain fully bright or off entirely. Antenna triggers (blue or blue-white) activate powered antennas–these carry 12V momentarily during power-on and must be routed separately from amplifier remote turns to prevent interference.
Aftermarket integration demands strict adherence to the original pinout. Misrouted power leads can blow fuses or trigger OEM theft-deterrent systems. Label each wire before disconnecting, and use a circuit tester to confirm continuity before finalizing connections. Retain the original harness for future diagnostics–modifying it directly complicates warranty claims or reverting changes.
