Locate the C-206 (16-pin) harness behind the dashboard’s lower trim panel–access requires removing the two 10mm bolts securing the driver’s kick panel. Pin #2 (light green/black) delivers constant 12V power, while pin #4 (pink/black) supplies switched ignition. Ground sits on pin #14 (black/white).
Audio signal cables split into front and rear channels: pins #7 (purple/white) and #8 (purple/black) for front left and right, pins #13 (gray/white) and #10 (gray/black) for rear left and right. Antenna control rests on pin #11 (dark blue). Verify harness integrity by probing with a multimeter–expected voltage drop should not exceed 0.2V under load.
Adapter compatibility varies: aftermarket stereos with ISO 10400 connectors require re-pinning pins #2, #4, and #14 to match the OEM harness. For integrated amplifiers, splice pin #1 (yellow/black, amp turn-on) directly into the receiver’s remote wire. Blind splicing risks shorting the CAN bus–use crimp connectors rated for 18-20 AWG.
Troubleshooting sequence: first, confirm fuses #17 (10A) and #30 (20A) in the junction box. Next, inspect the 12-pin aux harness (C-205) for corroded terminals–common at pins #3, #6, and #9. If the display dims but no audio plays, check the BCM (Body Control Module) settings via scan tool–reset DTCs U0100 (lost communication) before reinitializing the system.
Electrical Connections for the 2008 Facelift SUV Audio System
Locate the 12-pin ISO harness behind the factory stereo unit–pins are arranged in two rows of six. First row (top, left to right): constant power (yellow, 2 mm²), ignition-switched lead (red, 1.5 mm²), ground (black, 2.5 mm²), front right positive (purple, 1 mm²), front left positive (gray, 1 mm²), and rear left positive (brown, 1 mm²). Second row mirrors this sequence for negative speaker wires: blue, green, white, and tan.
Tap the yellow wire directly to the fuse box at slot 24 (10A fuse), avoiding splices–use a crimp connector rated for 25 A. For ignition-switched power, connect red to fuse slot 18 (15A fuse) using an Add-A-Circuit adapter to preserve the original circuit. Verify voltage with a multimeter: 12.6 V at constant, 11.8–14.2 V switched.
Ground the chassis via the bolt behind the glove box–scrape paint to bare metal and apply dielectric grease. Secure with a star washer to prevent corrosion. For aftermarket amplifiers, route power cables through the firewall grommet near the brake master cylinder; use split loom tubing to shield against abrasion.
Speaker impedance must match the head unit’s output (4 Ohms nominal). If resistance exceeds 4.2 Ohms, solder a 0.5 Ohm resistor in parallel to each channel. Check polarity by probing wires with a 9 V battery: positive deflection on a multimeter confirms correct pairing.
Retain steering wheel controls by splicing into the gray/white wire (buttons) and gray/black (ground) behind the climate control panel. Use a 680 Ohm resistor in-line for volume up/down; 470 Ohm for track changes. Adapter harnesses like Metra ASWC-1 simplify this but may require flash updates via USB.
For satellite tuners, connect the blue antenna trigger wire to the aftermarket module–limit current draw to 200 mA to avoid blowing the fuse. Route the pink mute wire to the parking brake circuit to comply with safety regulations; bypass this only for rear-view camera activation.
Test all connections before finalizing the dash assembly. Power on the unit and verify all channels produce clean sound without distortion or hissing. If amp clipping occurs, reduce gain by 3 dB and recalibrate the crossover settings (80 Hz low-pass for subwoofers).
Document your wiring layout with colored tape labels and photograph the harness before reinstalling trim panels. This reference simplifies future diagnostics or upgrades, such as adding a DSP or reversing sensors.
Finding the OEM Audio Connector in Your Crossover
Begin by removing the center dash panel, secured with clips along the bottom edge. A trim removal tool helps pry it off without scratches–work from the driver’s side toward the passenger to access hidden latches. Behind this panel, the main entertainment control unit sits attached to a metal bracket; disconnect the single 10mm bolt holding it in place, then lower the module carefully to expose the wiring cluster. The factory harness is a gray 24-pin plug with color-coded leads–identify it by locating the thicker gauge wires (orange with black stripe for constant power, red with white for switched ignition) that feed into the back of the unit.
Key Landmarks and Disassembly Steps
- Upper glove compartment: Remove the two Philips screws beneath the latch to drop the compartment and reveal the HVAC ducts; the harness runs horizontally behind them, secured by a zip tie.
- Kick panel: Peel back the driver-side carpet near the pedals to find a secondary ground cable–detach this first to avoid interference during extraction.
- Instrument cluster: The beige 12-pin connector feeding the tachometer shares a grounding point with the audio system; disconnecting it temporarily simplifies access.
- Rear hatch release: The wiring bundle for the liftgate motor runs parallel to the main harness–trace it upward to the roof rail, where a foam-insulated junction hides behind the overhead console.
Use a multimeter set to 12V DC to verify connections before unplugging anything: probe the male pins on the harness side for consistent voltage (constant: 12V, switched: fluctuating with key position). Label each wire with tape–note that the dimmer circuit (light green with red stripe) carries negligible current but is prone to shorting if mishandled. Store the detached harness in a plastic bag to prevent moisture ingress during upgrades.
Understanding Wire Color Standards and Connector Layout for Factory Stereo Systems
Begin by identifying the solid black wire as the primary ground connection–this must be securely fastened to bare metal for stable system operation. The red cable delivers constant 12V power from the fuse box, while the yellow line carries switched power, activating only when the ignition is engaged. Mismatching these can drain the battery or prevent audio startup.
Connnector A (often a 12-pin plug) typically holds:
- Light blue/white – front left speaker positive
- Gray/black – front left speaker negative
- Light green/black – front right speaker positive
- Dark green/red – front right speaker negative
- Purple/white – rear left speaker positive
- Brown/blue – rear left speaker negative
- Dark blue/orange – rear right speaker positive
- Dark brown/yellow – rear right speaker negative
Verify polarity with a multimeter before connecting aftermarket amplifiers.
Connector B usually contains auxiliary inputs and illumination signals. The orange wire with white stripe controls dimming for backlit controls, requiring a 1kΩ resistor in series if bypassing factory lighting. Pink with black stripe carries the speed signal for automatic volume adjustment–critical for adapting third-party units.
Aftermarket Integration Quick Reference
For OEM harness adapters, match factory colors precisely–most universal kits reverse engineered for this model align pink to ACC, red to battery, and black to chassis ground. Smaller gauge purple wires often indicate mute or parking brake detection; tap into these only if replicating stock safety features. Incorrect splicing here can trigger error codes.
When upgrading to a double-DIN head unit, the gray 8-pin connector carries CAN bus data–interrupting this risks disabling climate controls or onboard diagnostics. Use a harness with built-in termination resistors if retaining factory displays. For navigation retrofit, the purple/green stripe delivers vehicle speed pulses–calibrate new GPS units to match 8,000 pulses per mile signal.
Always compare pinout diagrams against physical inspection; production variations exist between trim levels. A common deviation: Limited models may substitute dark gray for ground on certain speaker wires. Confirm with continuity testing rather than relying solely on documented standards.
Step-by-Step Guide to Safely Extracting the Factory Audio Unit
Disconnect the vehicle’s battery terminal first–negative cable only–to prevent electrical shorts or airbag deployment warnings. Use a 10mm wrench to loosen the clamp, then set the cable aside where it won’t reconnect accidentally. Wait at least 3 minutes before proceeding; this allows residual power in the system to dissipate fully, reducing the risk of component damage.
Remove the dash trim surrounding the head unit by prying along the edges with a plastic trim tool–start at the bottom center and work outward. Avoid metal tools to prevent scratching. Detach the hazard light and climate control knobs if present by pulling them straight out; these often have small retaining clips. Set all removed parts aside in order, grouping screws by size in separate containers to avoid mixing during reassembly.

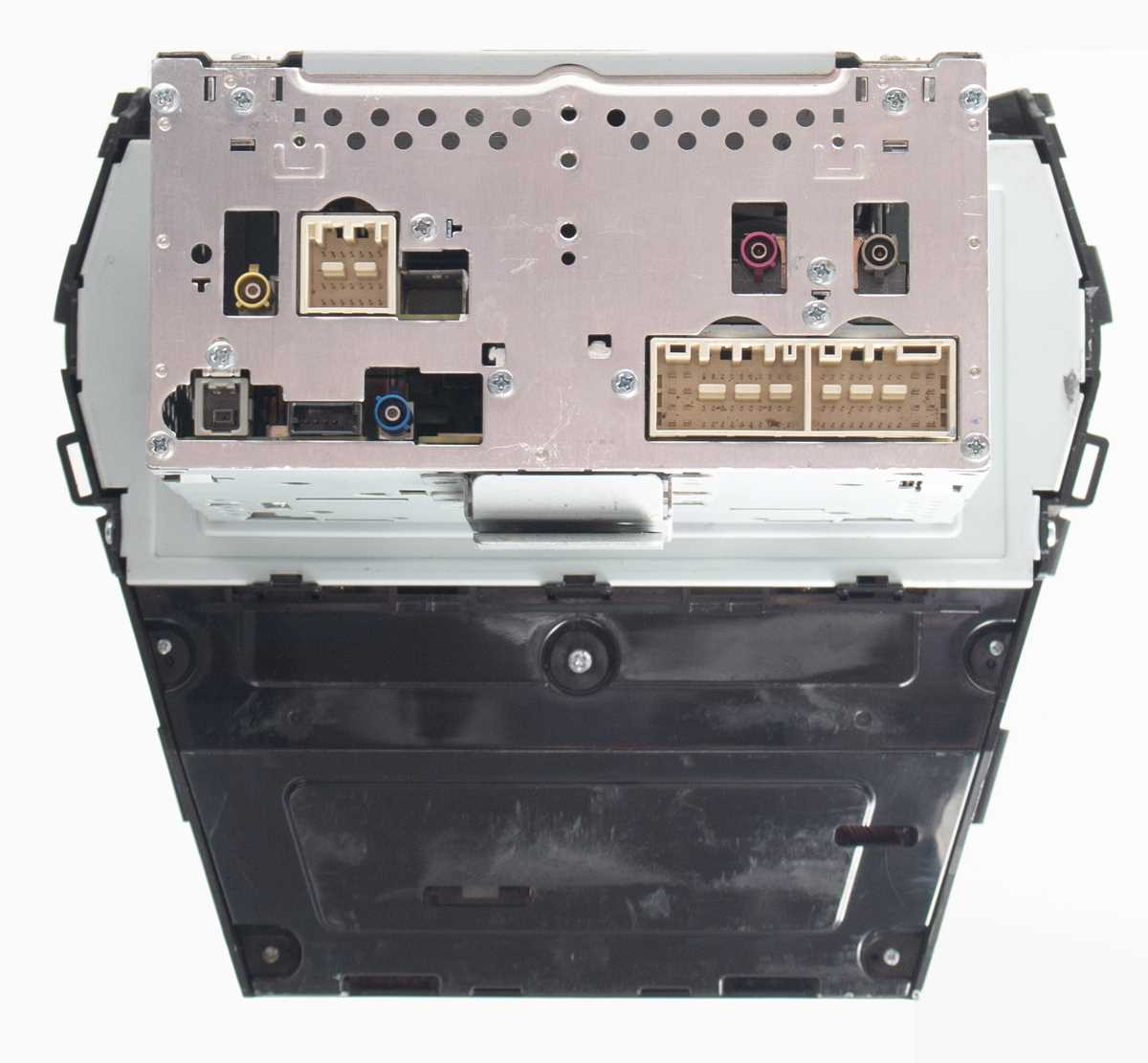

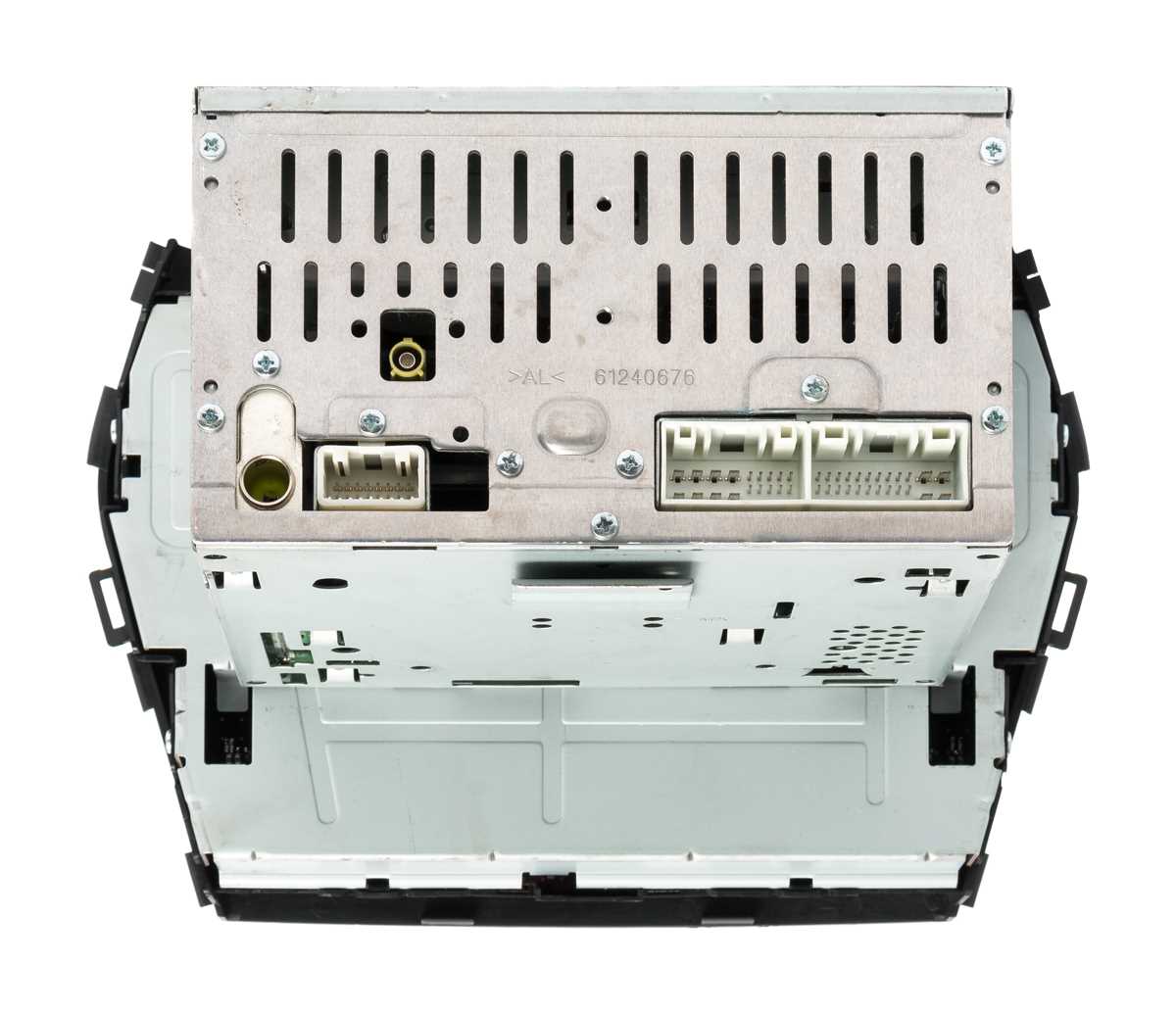

Locate the four bolts securing the audio head unit–they’re typically recessed behind the trim panel at each corner. Use a 7mm socket to remove them; one may have a security torx bit if the model includes theft-deterrent hardware. Slide the unit forward gently–don’t force it–until the wiring harness and antenna plug become visible at the rear. Press the release tabs on each connector to detach them; some may require a flathead screwdriver for extra leverage if corroded or stuck.
Label each connector with masking tape and a marker: note colors, harness shapes, and any unique identifiers like “AMP” or “NAV” to ensure correct reinstallation. Store the factory unit in a padded bag if keeping it; dust or moisture can damage internal circuitry over time. Inspect the mounting cage for debris or warping–bend any misaligned tabs back into position with pliers to prevent fitment issues when installing a replacement.
Reconnect the battery terminal last, tightening the clamp securely. Power on the ignition to test dashboard functions–check for error messages or malfunctioning gauges that may indicate incorrect harness reconnection. If installing an aftermarket system, follow manufacturer instructions for coding or firmware updates to enable full functionality with steering wheel controls and vehicle settings.
