Begin by locating the factory radio harness behind the dash panel. Disconnect the negative terminal of the vehicle’s battery to prevent short circuits during installation. The adapter harness for models of this generation typically includes color-coded wires: yellow (constant 12V), red (switched 12V), black (ground), blue/white (remote turn-on), gray/white (left front +), gray/black (left front –), green/white (right front +), and green/black (right front –). Verify these connections with a multimeter before proceeding.

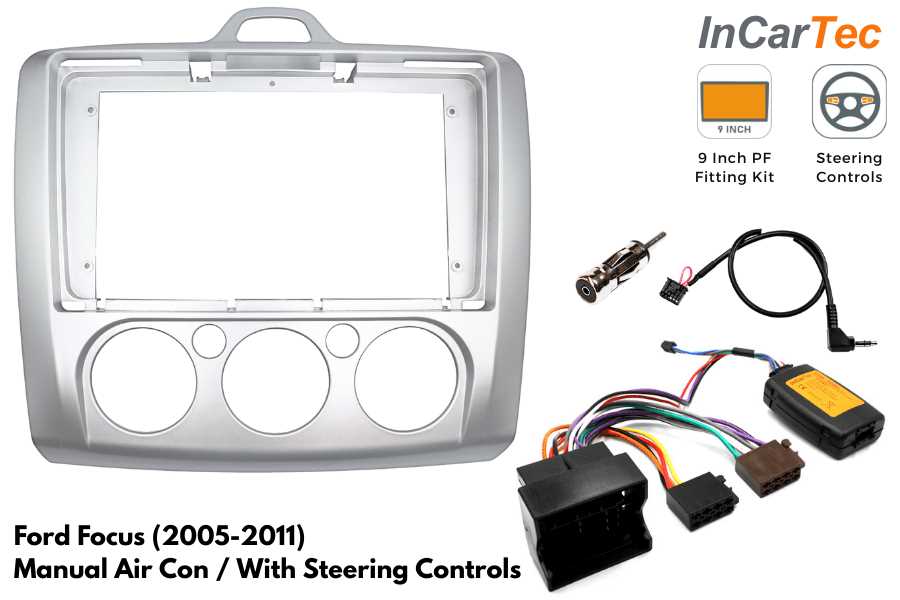

If retaining steering wheel controls, integrate a compatible interface module. For basic setups, splice the adapter’s blue/white wire into the aftermarket unit’s remote turn-on lead. Ensure all splices are secured with solder or crimp connectors and insulated with heat-shrink tubing. Avoid twisting wires together without proper protection–exposed joints corrode over time and cause intermittent signal loss.
Ground the system properly by attaching the black wire to a clean, bare metal surface near the installation site. Paint or rust can impede conductivity; scratch the surface until shiny. For amplified systems, route power cables directly to the battery using 8-gauge or thicker wire, protecting them with fusible links rated for the amplifier’s current draw. Skip this step only if using a low-wattage head unit without external power.
Test the installation before reassembling the dash. Reconnect the battery and power on the unit. Check all speakers for balanced output and clarity. If distortion occurs, verify speaker polarity–reversed leads cause phase cancellation. Adjust fader and balance settings to confirm each driver functions independently. Finalize by securing the radio in the dash sleeve using the original mounting clips or aftermarket brackets included with the adapter.
Wiring Guide for Factory Audio System in a Mid-2000s Compact Car
Start by locating the harness behind the head unit–yellow (constant 12V), red (switched 12V), black (ground), and orange (illumination) wires are critical. Verify voltages with a multimeter before connecting an aftermarket receiver to avoid fuse blows. Factory amplifiers often require a data bus connection, typically a pink or purple stripe; cutting this wire disables steering wheel controls. Use a bypass module like Metra ASWC-1 to retain functionality.
Speaker outputs follow this color code: front left (+) white, (-) white/brown; front right (+) gray, (-) gray/brown; rear left (+) green, (-) green/orange; rear right (+) violet, (-) violet/light blue. Avoid bridging wires directly to chassis ground–this creates a short risk to the vehicle’s electrical system. Check resistance with an ohmmeter; factory speakers usually measure 3-4 ohms.
If installing a subwoofer, tap the rear speaker outputs through a line-out converter. The blue/white remote turn-on lead must connect to an accessory source, not the battery. For vehicles with SYNC or MyFord Touch, the black/light green wire carries CAN bus signals; splicing here triggers dashboard error codes. Use a T-harness instead of cutting factory wires to preserve resale value.
Test all connections with the ignition in ACC position before securing the dashboard trim. A loose ground causes noise or intermittent power loss. Document each wire modification; refer to the vehicle’s repair manual for pin assignments if colors differ from standard codes.
Matching the Right Power Link Adapter for Your Vehicle’s Audio System Upgrade

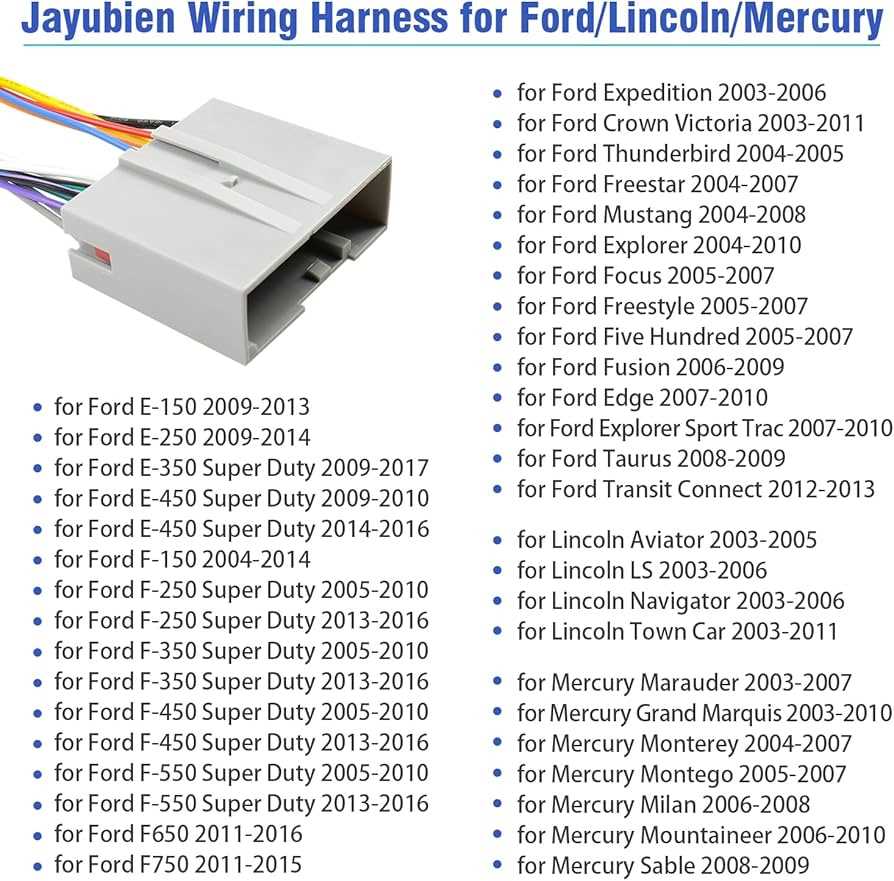

Begin by locating the OEM plug behind the factory radio unit–this connector is typically a 10- or 12-pin rectangular harness with color-coded leads. Verify the pinout using a multimeter: red with yellow stripe delivers constant 12V, solid yellow handles accessory power, black ensures ground, and orange (or orange with white stripe) feeds illumination control. For aftermarket integration, select an adapter harness labeled “Metra 70-1770” or “Scosche FD10RB,” both confirmed compatible with the car’s base wiring architecture without splicing.
Pinout Verification and Adapter Selection
- Red/Yellow: 12V memory retention (fused at 10A).
- Yellow: Switched 12V (keys in ACC/ON).
- Black: Direct chassis ground.
- Orange: Dimmer signal (varies with dash lights).
- Brown: Mute wire (connects to parking brake for safety features).
- Blue/White: Amplifier turn-on (if factory amp present).
Reject harnesses with fewer than 8 wires–these often omit critical feeds like amp triggers or parking brake detection, leading to malfunctions in steering wheel controls or hands-free modules.
If the stereo interface lacks RCA outputs but includes a factory amplifier (common in sedan trims with premium sound), purchase an additional “line output converter” (LOC) such as the “PAC SNI-35” to extract preamp-level signals. Install the LOC by tapping into the rear speaker wires (gray/violet for right rear, green/white for left rear) and adjusting gain to -12dB to avoid distortion. For vehicles with SYNC or MyFord Touch, retain the factory wiring block’s CAN bus connections–these are not present in generic adapters and require a specialized harness like “Metra AX-FD10.'”
Step-by-Step Wire Color Code Guide for the OEM Audio System
Locate the 12-pin harness connector at the rear of the factory radio unit–this is your starting point. The yellow wire delivers constant 12V power, critical for memory retention. Confirm continuity with a multimeter before proceeding; deviations often indicate corroded terminals.
Black with a white stripe acts as the ground lead. Strip 5mm of insulation, crimp a ring terminal, and secure it to the chassis near the mounting bracket. Ensure zero paint or rust interferes–poor grounding causes static or intermittent cutouts.
Light blue (sometimes labeled LT BLU) carries the amplified turn-on signal for the amplifier. Route this directly to the aftermarket head unit’s remote lead if upgrading. Misconnection here results in no sound despite power being present.
Front Speaker Connections
Identify speakers by impedance: 2-ohm front door tweeters versus 4-ohm main drivers. Gray (positive) and gray-black (negative) feed the driver’s side front speaker. Match polarity strictly; reversed wires diminish bass response.
White (positive) and white-black (negative) service the passenger side. Use solder splices instead of butt connectors for these; vibrations from door panels degrade cheap connections over time. Test each speaker individually with a 1kHz tone at 10W to verify clarity.
Rear Channel and Miscellaneous
Green (positive) and green-black (negative) wires correspond to the left rear speaker. Route these through the kick panel grommets to avoid pinching–rubber grommet reinforcement prevents shorts.
The purple and purple-black duo handles the right rear output. If integrating a subwoofer, splice these into a line-level converter; improper adapters introduce noise. Always fuse within 18 inches of the battery for protection against fires.
Locating and Connecting Power Leads for Head Unit Installation
Begin by identifying the permanent live lead–typically a thick yellow wire in the harness behind the dashboard. This conductor supplies continuous voltage to maintain memory settings, clock, and preset stations. Use a multimeter set to DC voltage: probe the candidate wire while the ignition is off; it should read 12V relative to chassis ground. If uncertain, trace the cable to the fuse box where it connects to a non-switched fuse–often labeled “MEMORY” or “KEEP ALIVE.”
Next, find the ignition-controlled supply, usually a thinner red wire. This lead energizes only when the key is turned past accessory. Test by probing candidates during ignition cycles: voltage should drop to zero when the key is off. In some variants, a separate orange or pink wire serves this role; consult the vehicle-specific fuse diagram to cross-reference color codes with fuse slot assignments. Connecting this improperly drains the battery or prevents unit startup.
Secure a solid chassis ground, typically a black or brown wire ending in a ring terminal attached to bare metal. Scrape paint or corrosion from attachment points to ensure minimal resistance. Verify with the multimeter: zero volts between the ground lead and battery negative confirms a low-impedance path. Loose grounds introduce noise and erratic head unit behavior.
| Lead Type | Common Color | Test Condition | Expected Reading |
|---|---|---|---|
| Constant Power | Yellow | Ignition OFF | 12V |
| Switched Power | Red | Ignition ON | 12V |
| Ground | Black | Any | 0V |
Trim insulation only as needed–excessive bare wire invites short circuits. Crimp connectors with the proper gauge crimper, then solder each joint for durability. Wrap joints individually with electrical tape or heat-shrink tubing to prevent adjacent leads from contacting. Route cables away from sharp edges and moving parts within the dash cavity.
Before finalizing connections, insert the fuse for the constant power circuit–typically a 10A fuse–into the inline holder. Omitting this risks overheating the wiring harness if a fault develops. Double-check all polarity-sensitive connectors: reversing illuminations or antenna trigger leads can damage onboard components.
Temporarily reconnect the battery and test each function: radio, Bluetooth pairing, and USB charging. Listen for distortion or static, which often indicates poor grounding. Address any anomalies by re-inspecting connectors and retesting grounds.
Once verified, secure the harness with zip ties to existing loom, ensuring no slack pulls on the new joints. Reassemble dash panels, aligning clips carefully to avoid pinching cables. Verify illumination dimming and automatic antenna extension if equipped–these subtleties confirm correct accessory lead connections.
