Begin by locating the harness behind the entertainment unit–typically a 16-pin connector labeled CIG (constant power), ACC (ignition-switched power), and GND (ground) on pins 6, 4, and 5 respectively. Verify these with a multimeter before proceeding; incorrect polarization risks damaging the amplifier or head unit permanently. The factory harness includes color-coded leads: yellow (BATT), red (ACC), black (ground), and blue/white (antenna trigger). Cross-reference these with aftermarket documentation if integrating a third-party device–misalignment here causes intermittent functionality or total failure.
Access the back of the console by removing the trim panel below the climate controls–use a plastic pry tool to avoid scratching adjacent surfaces. The speaker outputs reside on a separate 14-pin connector: front-left (gray/violet), front-right (gray), rear-left (green/black), and rear-right (green). Impedance mismatches often occur when substituting stock components; ensure replacement speakers maintain a 4-ohm rating to prevent overheating the head unit’s internal amp. For amplified systems, the blue/white wire (remote turn-on) must connect to the new unit’s corresponding lead–failing this disables the external amplifier entirely.
For alternative power sources (e.g., capacitor-backed setups), tap into the yellow (BATT) line via a 20-amp inline fuse; direct battery connections without protection risk fire under short-circuit conditions. The illumination wire (brown/white) dims the display in sync with dashboard lights–retaining this preserves OEM lighting behavior. If integrating USB or auxiliary inputs, wire the USB+ and USB- leads directly to the head unit’s port, avoiding splices that degrade signal quality over time. Test all connections with the ignition in both on and off states–power inconsistencies often reveal themselves only during specific operating modes.
Electrical Guide for the 2007-2009 Compact SUV Audio System

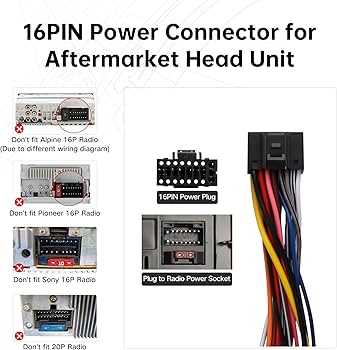

Start by locating the harness behind the factory sound unit. The primary connector (16-pin, gray) follows this pinout:
- Pins 1-4 (yellow/red stripe to solid yellow): Constant 12V feed for memory and backup functions.
- Pins 5-6 (red/white stripe to solid red): Switched power, active when ignition is in ACC or ON.
- Pins 7-8 (black): Ground return path; confirm solid chassis connection.
- Pins 9-10 (blue/white stripe to solid blue): Remote antenna control, +12V output triggers aftermarket amplifiers or powered antennas.
- Pins 11-14 (various speaker wires): Front left (+ brown, – brown/white), front right (+ green, – green/black).
- Pins 15-16 (various speaker wires): Rear left (+ pink, – pink/black), rear right (+ blue/black stripe, – blue/yellow stripe).
Verify each lead with a multimeter before connecting; expected 11-14 ohms impedance across speaker wires.
Adapter Plug Identification

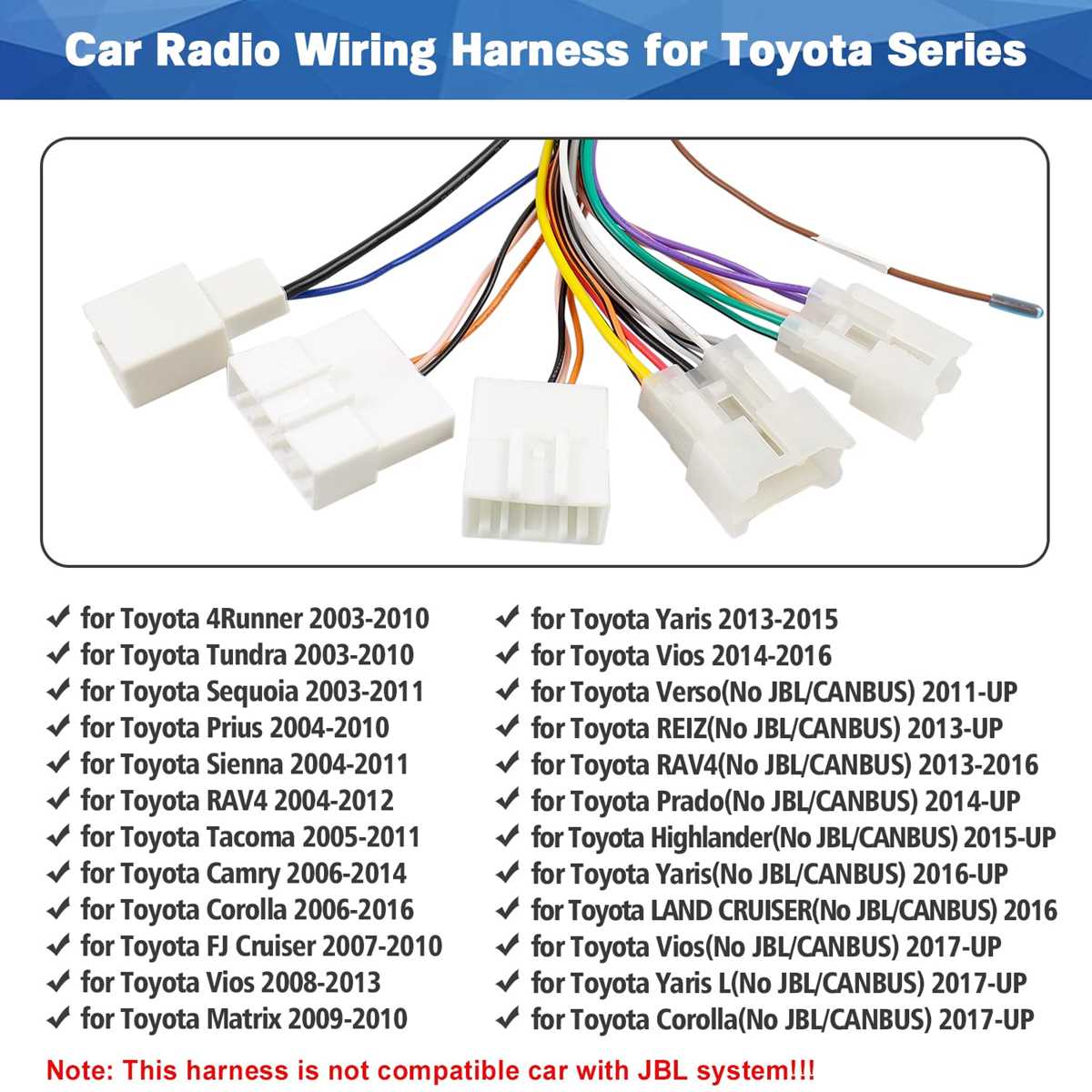

Aftermarket integration kits typically include a Metra 70-8112 or Axxess AX-TOY16. Match color codes exactly:
- Yellow → Yellow/red stripe (constant +B).
- Red → Red/white stripe (switched ACC).
- Black → Chassis ground.
- Blue/white → Solid blue (remote turn-on).
- Speaker leads follow factory pairing; no polarity swaps permitted.
Avoid tapping directly into wires–use crimp connectors or solder joints sealed with adhesive-lined shrink tubing.
The secondary harness (8-pin, black) near the climate control module carries illumination and steering wheel controls:
- Pin A: Orange (dimmer +).
- Pin B: Orange/black (dimmer ground/illumination return).
- Pins C-E: Variable resistance signals for volume/track buttons–consult PAC SWI-RC or iDatalink Maestro RR for proper interfacing.
Steering wheel adapters require firmware updates; download from manufacturer’s site before installation.
For navigation or backup camera retrofits, splice into the purple/white stripe (+) and purple (−) wires in the rear tail light harness. Camera activation connects to the reverse light circuit–use a relay if the unit lacks dedicated camera input.
Testing Procedures
After assembly:
- Check constant +B voltage (12.6V with battery disconnected, 13.8-14.4V with engine running).
- Measure switched power–should drop below 0.5V when ignition is OFF.
- Ground connections: zero ohms between harness black wires and chassis ground point near glove box.
- Speaker outputs: play a 1 kHz sine wave at half volume–each channel should read 2-4V RMS across its terminals.
Failure modes often trace to poor crimps; re-examine all joints if static or intermittent audio occurs.
Data buses (CAN-H white/green, CAN-L white/brown) reside in the gray connector but must not be disturbed unless adding OEM-equivalent satellite radio. If coding errors appear (U1401, U0155), disconnect the battery for 10 minutes to reset modules.
Retain the factory antenna amplifier located behind the glovebox–remove only the head unit mounting sleeve, not the coaxial cable. Amplifier input/output impedance is 50 ohms; aftermarket antennas must match this spec to prevent signal degradation.
Finally, secure all harnesses with plastic ties along existing factory routing paths. Avoid sharp edges near the HVAC ducts–chafing here shorts circuits most frequently. Test audio at multiple volume levels before reassembling dash trim.
Finding the Audio System Harness Plugs for Immediate Connection
Begin by removing the center trim panel below the climate controls. Use a trim removal tool to carefully pry the panel loose–it’s secured by plastic clips and won’t require excessive force. Once detached, locate the factory harness connectors tucked behind the lower dashboard section; they’re typically bundled with colored cables matching standard aftermarket stereo guidelines (yellow for power, red for accessory, black for ground, etc.).
Two primary plugs will be visible: a 12-pin rectangular connector for primary functions and a smaller 4-pin plug for amplifier control or illumination. The larger plug often includes faded labeling–check for thin printed numbers (e.g., “C” for constant, “A” for accessory) to identify each terminal without relying on memory. If labels are missing, use a multimeter set to DC voltage: probe each wire while turning the ignition on to confirm power delivery.
Trace the harness back to its origin point–usually routed alongside the transmission tunnel near the driver’s footwell. Here, you’ll find additional splice connectors if the vehicle was factory-equipped with satellite navigation or premium sound. Avoid cutting these wires; instead, use T-taps or crimp connectors to preserve factory functionality. For vehicles with steering-wheel controls, a separate 6-pin plug may be present–it’s often white and positioned behind the left kick panel.
If the connectors are hidden behind a sub-panel, remove the driver’s-side knee bolster by unscrewing two 10mm bolts and disconnecting the hood release cable. The harness will be immediately visible, secured with zip ties or fabric tape. Release it gently–some models integrate anti-theft clips that require a flathead screwdriver to depress a tab before separation. Note the wire gauge if splicing: primary power lines should be 18-20 AWG, while speaker outputs are thinner (20-22 AWG).
For direct access without dashboard removal, follow the lower harness upward from the fuse box to where it disappears behind the glovebox area. A flashlight will reveal the connectors, but expect tight quarters–use a 90-degree pick to guide stubborn plugs apart. Some variants include an antenna lead (blue/white stripe) bundled with the main harness; others route it separately along the passenger-side A-pillar. Always test continuity between the head unit and these plugs before finalizing any upgrades.
Color-Coded Wire Identification for Power, Ground, and Speaker Outputs
Begin by locating the yellow wire (B+)–this is the constant 12V power supply, always live regardless of ignition status. Verify its voltage with a multimeter before connecting to avoid damaging downstream components. The red wire (ACC) delivers power only when the ignition is in the “accessory” or “on” position; confirm it cycles correctly to prevent parasitic drain. For ground, identify the black wire (GND) and ensure it terminates to a clean, bare-metal chassis point–sand away paint or corrosion if necessary to maintain a solid connection.
Speaker outputs follow a standardized pattern: front left positive (+) is typically white, front left negative (-) white/black; front right positive (+) gray, front right negative (-) gray/black. Rear channels use green for positive (+) and green/black for negative (-) on the left, and purple (+) with purple/black (-) on the right. Cross-reference these with the harness plug pins–mismatches can cause phase cancellation or blown fuses. Use a test tone generator to confirm polarity before finalizing connections; reversed polarity distorts audio and risks damaging tweeters.
Common Wire Functions and Voltage Specifications
| Wire Color | Function | Expected Voltage | Connection Notes |
|---|---|---|---|
| Yellow | Constant 12V | 12V (always live) | Fuse-protected; use 10A fuse if not present |
| Red | Switched 12V (ACC) | 12V (ignition-dependent) | Test with ignition on/off to confirm functionality |
| Black | Ground (GND) | 0V | Direct chassis connection; scrape paint for bare metal |
| Blue/White | Antenna trigger | 12V (pulsed) | Connects to powered antenna or amplifier remote turn-on |
| Pink | Illumination (dimmer) | 0-12V (adjusts with dash lights) | Verify dimming behavior matches factory gauges |
For amplifier integration, the blue/white wire (antenna/remote turn-on) provides a 12V pulse when the system activates–route this directly to the amp’s remote input, not through relays unless managing high-current setups. Pink wires often control dimming; sync them with existing dash lighting to avoid mismatched brightness levels. If installing aftermarket units, use T-taps or solder splices for yellow/red/ground–avoid Scotch locks, which degrade over time and cause intermittent failures.
