To diagnose electrical faults, prioritize the main fuse box schematic located under the dashboard on the driver’s side. Pinpoint connections labeled F-10 (ignition relay) and F-15 (ECU power)–these are critical for starter and fuel system integrity. Deviations here often mimic battery or alternator failure, so verify continuity first with a multimeter set to 200 ohms.
For rear lamp assemblies, consult the tail light circuit on sheet 14 of the official schematics. Look for the W/B wire (white with black stripe) feeding the left brake light–corrosion at this joint causes intermittent signal loss. Clean terminals with 400-grit sandpaper or replace connectors entirely if pitting exceeds 0.5mm. Avoid splicing; use factory crimps rated for 15A.
Ground points G-3 (near the rear hatch) and G-8 (driver-side front fender) demand regular inspection. A resistance above 0.2 ohms here triggers false error codes in the OBD-II system, particularly for oxygen sensors. Secure grounds with M8 bolts torqued to 18 Nm–over-tightening distorts the mounting surface, increasing resistance. Replace the factory grounding strap if frayed or oxidized.
Troubleshooting the AWD system starts with the transfer case wiring harness. Focus on the Y/L (yellow/light blue) wire linking the traction control module to the transmission range sensor. Voltage should read 12V when the shift lever is in Drive–any drop below 10V indicates a short or failing relay (R-4). Test with the engine off to isolate battery/harness issues from alternator-related noise.

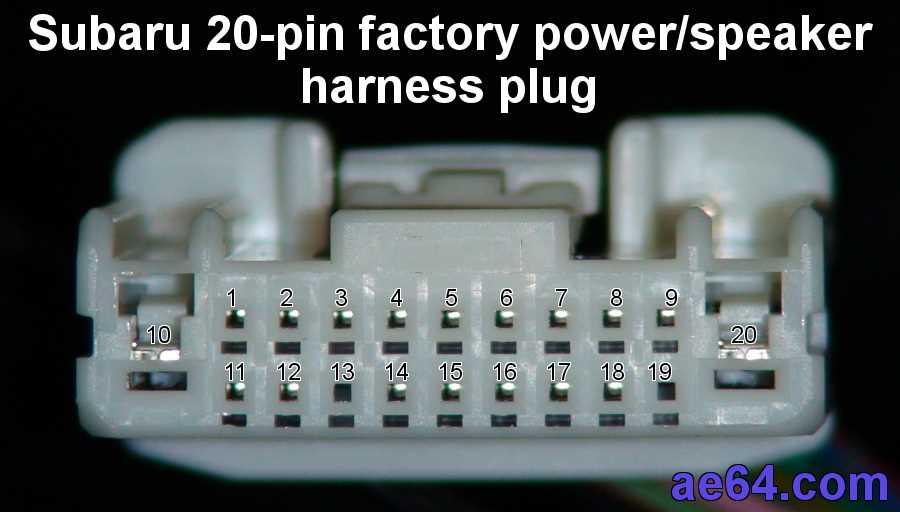

Integrate a relay bypass for high-draw accessories like aftermarket audio systems. Cut the B/Y (black/yellow) wire at the radio harness and insert a 40A relay between the ignition circuit and the accessory. Mount the relay within 30cm of the fuse box to minimize voltage drop–exceeding this distance risks overheating the wire gauge (standard is 16 AWG).
Electrical Schematics for the 2007-2009 Legacy Variant
Locate fuse panel layout under the dashboard on the driver’s side–refer to the owner’s manual for precise numbering. Fuses #12 (10A) and #15 (15A) protect the instrument cluster and rear defogger circuits, respectively. Interruption here often triggers false warning lights; verify continuity with a multimeter before replacing a fuse.
Find the powertrain control module connectors beneath the glove compartment, secured by a single 10mm bolt. Disconnect the battery negative terminal prior to probing. Connector B13 (black, 32-pin) carries sensor ground signals; pins B13-11 and B13-18 handle throttle position data. Use terminal T-pins for back-probing to avoid damaging the harness.
| Connector | Pin | Function | Voltage (Key ON) |
|---|---|---|---|
| B13 (Black) | 1 | Battery + | 12.6V |
| B13 | 5 | MAP sensor signal | 0.5–4.5V |
| C39 (Green) | 10 | Fuel level sender | 0.3–3.7V |
| C39 | 14 | Rear O₂ heater | Pulsing 12V |
The headlight switch loom converges behind the left kick panel; tapping into this area requires removing three Torx T20 screws. Yellow/red striped wires (#14 AWG) feed high-beam circuits–use solder and heat-shrink instead of crimp connectors for long-term reliability. Resistance readings should not exceed 0.5 ohms per connection.
Access the rear combination light assembly by prying the interior trim panel near the hatch hinge. Ground points G102 and G201 (bare metal under the rear deck) handle tail lamp circuits–clean oxidation with a wire brush and apply dielectric grease after reconnection to prevent future corrosion. If trailer wiring is installed, inspect the blue wire (#18 AWG) at the tow harness plug for chafing against the exhaust heat shield.
Tracking Down Primary Electrical Link Points in the Legacy Variant
Begin beneath the driver-side dashboard panel by removing three 10mm bolts securing the lower trim. The central harness junction emerges directly behind, identifiable by a dense cluster of twenty-plus colored leads bundled in a black corrugated sleeve. This cluster routes toward the firewall grommet–trace it carefully, as chafing against the pedal assembly is common.
Behind the glovebox, locate the secondary distribution node by disconnecting the cabin air filter housing. Two 8mm screws hold a white plastic cover shielding a rectangular connector plate. Orange, purple, and striped wires indicate critical circuits–probe each terminal with a multimeter before handling to confirm live voltage.
- Fusebox connections: Peel back the carpet near the passenger footwell to expose an inline splice block. Labels on the underside of the fuse cover list allocations; match these to wire gauges (14 AWG for low-draw, 12 AWG for high-amperage).
- ECU integration: The engine control module connector sits atop the strut tower–release its 14-pin latch by prying upward with a flat tool. Avoid pulling wires; instead, slide the harness straight back to prevent terminal spread.
Under-Hood Access Points
Raise the hood to find the main relay box adjacent to the battery. Two bolts secure its metal bracket; remove them to reveal relay slots marked “ABS,” “IGN,” and “FUEL.” Each relay controls a distinct cable run–label them before removal. Below, the transmission harness splits into three branches; the center branch feeds the 4WD system sensors.
The alternator harness terminates in a cylindrical plug containing three thick leads (red, black, blue). Disconnecting requires pressing a tab while rotating counterclockwise. Inspect the mating surface for corrosion–clean with emery paper if resistance exceeds 0.5 ohms.
- Trace the ground strap from the negative battery terminal to its chassis bolt near the windshield cowl. Loosen the 12mm nut to separate; scrape off rust before reassembly for stable continuity.
- For rear harness access, fold down the rear seats to expose the carpet seam. Cut through the adhesive strip to reveal a yellow oval grommet–pierce it to follow the tail light loom toward the liftgate latch.
Verify all disconnects by checking for stored trouble codes post-reassembly. A scanning tool should clear any false “open circuit” flag triggered during inspection.
Identifying Fusible Links and Fuse Box Layout for Electrical Troubleshooting
Locate the primary fuse panel beneath the dashboard on the driver’s side–a rectangular black cover marked with symbols. Remove the cover by pressing the release tabs on either side to reveal the layout. The upper section contains mini fuses, while the lower half houses larger relays and fusible links. Use the diagram printed on the cover’s underside or the vehicle’s service manual to cross-reference each slot; fusible links are typically labeled “FL” followed by a number (e.g., FL1, FL2) and protect high-amperage circuits like the alternator, starter, and main power distribution.
Key Fusible Links and Their Circuits
- FL1 (30A): Ignition switch input, feeds the fuse box and ECM. Failure here disables engine start and dashboard lights.
- FL2 (80A): Alternator output, safeguards the charging system. A blown link causes battery drain and no-charge warnings.
- FL3 (50A): Headlight and fog light circuits. Issues result in partial or complete lighting failure.
- FL4 (40A): A/C compressor and cooling fan motors. Check this if fans run continuously or fail to activate.
Test fusible links with a multimeter set to continuity mode. Probe both ends–no continuity indicates a blown link requiring replacement. Use only OEM-specified amperage links; generic substitutes can melt wiring harnesses. Replace links by disconnecting the battery, unbolting the terminal block, and securing the new link with crimp connectors or solder.
Fuse Box Layout and Common Fuse Assignments
- Slot 1 (10A): Backup lights, reverse gear sensor.
- Slot 5 (15A): Radio, instrument cluster illumination.
- Slot 8 (20A): Power windows, sunroof.
- Slot 12 (30A): Heated seats.
- Slot 15 (10A): Engine control module (ECM), fuel injectors.
For intermittent issues, wiggle each fuse while monitoring symptoms–cracked housings or corroded terminals often cause sporadic failures. Label each fuse with its circuit using a fine-tip marker for future reference. Keep spare fuses (5A, 10A, 15A, 20A) in the glovebox to avoid delayed repairs.
Mapping the ECM Connector Layout and Signal Routing
Begin by locating the 64-pin black connector on the powertrain control unit, typically mounted beneath the dashboard on the driver’s side. Pins 1–16 handle sensor inputs: A1 (IAT) receives resistance values from the intake air temperature sensor on a 5V reference circuit, while B1 (ECT) monitors coolant temperature via a negative temperature coefficient thermistor. Grounds for these sensors cluster at pins 5–8, where shared low-side returns create a common reference–verify continuity here first if sensor readings deviate erratically. Data streams from the crank (pin 28) and cam (pin 34) position sensors use hall-effect switches; expect 0–5V square waves at ~25% duty cycle during idle. For actuator outputs, pin 45 drives the fuel pump relay coil with a 12V pull-in at key-on; spike suppression diodes sit adjacent to prevent voltage transients from damaging driver transistors.
Voltage Drop Testing Across Critical Circuits
Probe pin 62 (VSS) while rotating a front wheel at 30 mph–output should pulse between 0.5–4.5V with frequency scaling linearly to vehicle speed. Injector circuits (pins 55–58) require resistance checks: disconnect harness plugs first, then meter between injector terminals–readings must stay below 16Ω; anything higher indicates internal shorting or corroded harness splices. ECM power feeds converge at pin 17 (ignition switched 12V) and pin 18 (constant battery voltage); use a multimeter set to DC millivolts to catch voltage drops across fuse holder contacts–even a 150mV drop can prevent proper initialization. Data links occupy pins 30 (CAN-H) and 32 (CAN-L); scope these while cycling the ignition to confirm clean 2.5V differential signals free of noise spikes. If grounding issues occur, attach a separate 10 AWG jumper directly from ECM chassis ground (pin 1) to the battery negative terminal; resistance must not exceed 50mΩ.
