Begin by obtaining the official factory service manual, which contains the most accurate circuit layouts for vehicles released in this period. Third-party repair databases often introduce errors during transcription, omitting critical splice points or mislabeling color codes–rely only on verified OEM documentation. If accessing the original paperwork isn’t feasible, cross-reference schematics from identical model year derivatives, as wiring harness configurations remained nearly identical across regional variants, with minor exceptions in emissions-related systems.
Prioritize power distribution diagrams first when diagnosing electrical faults. The main fuse box layout for this generation sedan consolidates nearly all high-amperage circuits–examine relay positions and terminal designations before disassembling trim panels. Ground locations, particularly at the rear of the engine bay and near the passenger kick panel, frequently corrode; a visual inspection of these connection points can resolve intermittent failures without requiring full circuit tracing.
For rapid troubleshooting, isolate sections of the schematic based on symptom presentation. Non-functional window regulators often stem from a single broken wire in the door hinge harness–identify the specific circuit path between the body control module and the affected door’s switch panel. Similarly, malfunctioning dashboard indicators (such as the ABS or check engine lights) typically involve minimal wiring: focus on the instrument cluster plug-in connector and its associated wiring harness segment, which rarely exceeds 12 wires.
Avoid universal wiring diagrams targeting unrelated vehicle platforms. Even models sharing chassis components may feature entirely different harness routing or connector pinouts. Instead, obtain schematics specific to the 2.4L or 3.3L engine configurations, as the differences in ignition systems and sensor placements alter the electrical workflow significantly. When necessary, use a multimeter to confirm continuity at key junction points listed in the manual, comparing readings against factory-specified resistance values for connectors and wiring runs.

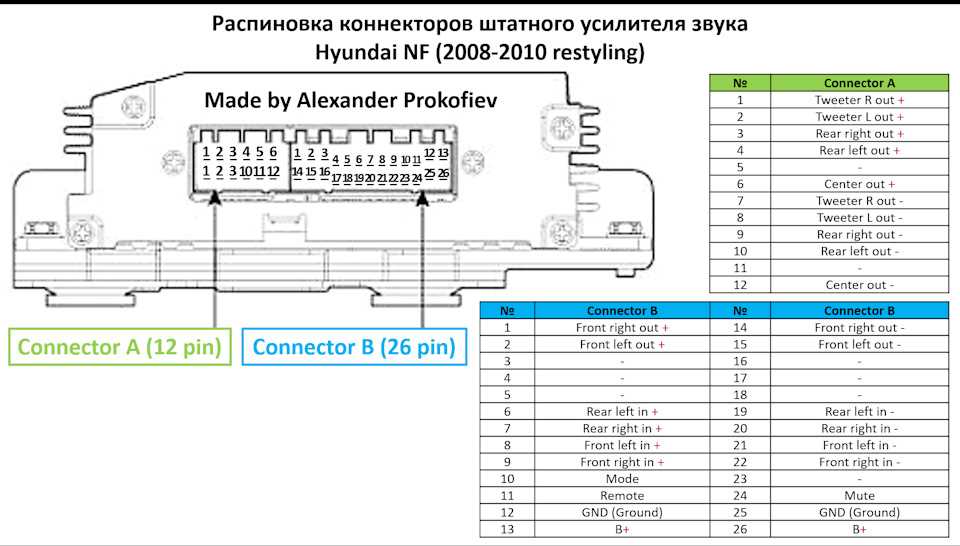

Electrical Schematics for the 2008 Model Sedan
Begin by locating fuse box B-02 beneath the instrument panel near the driver’s left knee–this central hub connects to modules for the powertrain, ABS, and climate control. Pin 18 (white/green stripe) carries 12V from the ignition switch, while pin 3 (black) grounds the ECM. Use a multimeter set to 20VDC; probe these terminals before diagnosing parasitic draws or sensor malfunctions to rule out primary circuit failures.
- DLC port (under dash, right side) exposes CAN bus lines: pin 6 (CAN-H) and 14 (CAN-L). Backprobe these with oscilloscope probes–expected waveform should show 2.5V baseline with 1V peak-to-peak pulses at 500 kbps.
- Headlight dimmer switch feeds pink (high beam) and green/black (low beam) wires to the IPM via 2.0 mm² cables. Resistance between bulb socket and chassis should read 0.2-0.5Ω; deviations indicate corroded grounds.
- BCM outputs door-lock signals: orange/white (unlock) and orange/black (lock) wires terminate in the actuator with 300 mA pulses. Verify signal integrity by monitoring voltage drop–anything above 0.1V suggests connector oxidation.
Replace damaged wires with tinned copper AWG 18 for circuits under 10A, AWG 14 for 10-15A loads–crimp terminals must meet SAE J163 specifications. For intermittent faults, apply dielectric grease to harness connectors; focus on engine bay junctions exposed to temperature cycles (thermostat housing, alternator). Keep splices at least 150 mm from moving components to prevent chafing.
Finding Ground Points in the Vehicle Electrical Schematic
Start by identifying the main fuse box layout, usually marked near the driver’s side dashboard or under the hood. Ground wires are typically black or green with a yellow stripe, clustered around labeled terminal points like “GND1,” “G10,” or “B-” on the schematics. Trace these lines backward from components like the ECU, headlights, or audio system–each ground serves as a return path for multiple circuits.
Check the engine bay schematic for chassis grounds connected to the vehicle’s frame. These are often bolted to the firewall, strut tower, or transmission housing, visible as thick cables terminating in ring connectors. The manual will list their exact locations using reference codes like “GND-ECU” or “ENG-GND,” matching them to physical bolts in the bay.
Use a multimeter to verify ground integrity if the diagram shows inconsistencies. Set the meter to continuity mode, probe the ground terminal, and touch the other lead to the component’s negative wire. A reading near zero ohms confirms a solid connection; higher resistance indicates corrosion or a loose bolt, requiring cleaning or reattachment.
For interior components, focus on the instrument cluster, infotainment, and door modules. Grounds here often terminate under the dashboard or behind kick panels, labeled “I-GND” or “A-GND” on the electrical flow charts. Follow the thin black wires from these modules back to their common grounding point, typically a screw-mounted stud on the chassis.
Document each ground location once verified, noting its reference code and nearby landmarks (e.g., “GND2 – behind glove box, left of A-pillar”). This speeds up future troubleshooting, as ground faults often mimic short circuits or module failures, leading to unnecessary part replacements.
Step-by-Step Guide to Identifying Fuse Box Connections Using the Schematic
Locate the fuse panel layout in the electrical reference manual first. Match the numbered slots on the diagram against the physical fuse box cover–each slot corresponds to a labeled circuit, often grouped by function (e.g., lighting, ignition, HVAC). Use a multimeter set to continuity mode to verify connections: probe the fuse terminals while the key is off to avoid false readings. If the meter beeps, the circuit is active; no signal indicates an open or disconnected wire. Cross-reference the color-coding on the schematic–red typically denotes power, black is ground, and yellow or blue may indicate switched or sensor inputs.
Tracing Wires Beyond the Fuse Box
Follow the lines from the fuse box to the next connection point using the schematic’s legend. Detach the under-dash or side-panel trim with a trim removal tool to expose wiring harnesses, but avoid forcing clips to prevent breakage. Label each harness plug with masking tape and a marker–note the pin numbers and wire colors from the diagram. For example, a fuse labeled “A/C Clutch” should lead to a blue-and-white wire at pin 8 on connector C202; if the wire isn’t present, check for corrosion or a severed connection at junction J101. Always document each step with photos before disassembly to ensure reassembly accuracy.
Locating Exact Sensor Conductor Shade Codes for This Midsize Sedan
Direct access to the vehicle’s official electrical schematics remains the most reliable source. These can be obtained through the manufacturer’s authorized service portal by entering the model’s build sheet details or VIN. Dealer technicians often reference “HMA Electrical Troubleshooting Manual”, where sensor circuits are indexed under section EC-12 for powertrain components and EC-21 for chassis-related sensors, with precise conductor colors noted in millimeter-scale callouts. Substitute sources include third-party repair databases like Mitchell1 or AllDataDIY, which compile OEM data but may omit minor variations–verify against door-jamb stickers listing trim-specific wiring codes (e.g., BLK/WHT for ground circuits, YEL/RED for MAP sensor feeds).
Alternative Documentation Sources
- Factory Service Bulletins (TSBs): Some sensor circuit updates–particularly for camshaft or oxygen sensors–are documented here with revised conductor layouts. Search by TSB number 09-90-012 or 08-90-003 for post-production fixes.
- Aftermarket Harness Guides: American Autowire and Painless Performance publish loom-specific color charts, though these prioritize common circuits; cross-reference with the fuel injection or ABS sections.
- Owner Forums: Threads tagged “ECU pinout” or “PCM connector colors” on Sonataown.net or XDA Developers often include user-uploaded dissections of connectors like the 16-pin MAF or 54-pin ECM, though accuracy varies–look for posts with timestamped images of cut loom ends.
For immediate identification without schematics, use a digital multimeter on continuity mode with the ignition off. Probe the sensor’s harness-side connector pins while referencing the component’s resistance specs (e.g., 1.0-1.5Ω for CMP sensor circuits, 2.5-4.5Ω for TPMS transmitters) to isolate live circuits. Color-coding conventions follow a standardized pattern:
Black (BLK): Ground reference.Yellow (YEL): 5V reference or signal return.Green (GRN): Low-speed CAN bus (pin A on OBD-II).White (WHT): Secondary ignition feeds.
Variations like ORG/BLK (stripe) denote subsidiary circuits–common in knock sensor and fuel rail pressure sensor harnesses. Avoid relying on aftermarket repair manuals like Chilton or Haynes; while they outline general layouts, sensor-specific color deviations are frequently omitted.
Diagnosing Faulty Window Circuit Problems Using Electrical Schematics
Inspect the door control module connector first. Remove the panel to access terminals–verify pins 1 (B+), 3 (ground), and 5 (window motor control) for corrosion or bent contacts. Use a multimeter to test continuity; expected values should be near 0 ohms between ground and the module’s chassis reference. If resistance exceeds 1 ohm, clean contacts with electrical cleaner and fine sandpaper.
Trace the main power feed from the fuse box to the switch assembly. Locate fuse F34 (30A) in the under-dash panel–if blown, replace and check for short circuits downstream. Follow the red/black wire from the fuse to the switch; probe voltage at connector C341 while actuating the switch. Voltage should drop from 12.6V to 0V during operation; inconsistent readings indicate a failed switch or broken conductor.
| Component | Connector Pin | Expected Voltage (Key On) | Expected Resistance |
|---|---|---|---|
| Window Motor | 1 (B+), 2 (Ground) | 12.6V / 0V | < 0.5 ohms |
| Control Switch | 3 (Signal), 5 (Ground) | 5V reference | < 1 ohm |
| Door Module | 8 (Batt +), 6 (Motor) | Fluctuating 0-12V | N/A |
Check the motor windings for excessive resistance. Disconnect the two-pin plug from the regulator assembly; measure between terminals–values above 3.5 ohms suggest internal wear. Swap motors side-to-side if readings differ; persistent asymmetry confirms component failure. Replace motor if resistance stays outside spec even after cleaning connections.
Examine the auto-down relay when the one-touch feature malfunctions. Remove the switch and inspect the small PCB-mounted relay; look for burnt traces or swollen capacitors. Jump relay terminals 85 and 86 with a 12V source–if the window operates, the relay is defective. Solder a new 10A SPST relay if original is unobtainable.
Probe the LIN bus wire if multiple windows act erratically. The light green/black wire carries serial data between modules–use an oscilloscope to verify a 14V square wave at 19.2 kbps. Absence of signal indicates a failed body control module; reflash or replace unit if corruption is suspected. Corrosion at connector C345 often disrupts communication–clean terminals with DeoxIT.
Verify the ground circuit integrity by testing continuity from the motor housing to the chassis. Poor grounds cause intermittent operation; follow the black wire from the door switch to the nearest chassis point (usually near the hinge). Sand the mounting surface and apply dielectric grease after securing the bolt to prevent future oxidation.
Isolate parasitic draws draining the battery overnight. Disconnect the battery and connect an ammeter in series with the negative cable. Current draw should drop below 50mA within 30 seconds; values above 100mA suggest a stuck relay or faulty module. Narrow down suspects by pulling fuses one-by-one until the excessive draw disappears.
