Locate the main harness connector beneath the driver-side dashboard near the fuse panel–pinout labels follow the standard GM LS-series configuration but double-check positions 3 (low beam) and 5 (high beam) against your truck’s service manual. Wire gauge varies: 16 AWG for signal circuits, 14 AWG for power feeds; deviations risk overheating splices under prolonged load.
Connect multimeter probes to the dark green/yellow ground wire (terminal 9 on the female plug) and measure voltage drop while activating both beams–readings above 0.3V indicate corroded bolt connections at the chassis bonding point (typically G101 on the left frame rail). Replace factory crimps with heat-shrink butt splices rated 167°F/75°C minimum for humidity resistance.
Label each wire with Mil-Spec shrink tubing (color-coded per SAE J567 specs) before routing through the firewall grommet–avoid sharp edges on the driver’s side slam panel where the harness exits the cabin. The passing lamp circuit (light blue/orange stripe) shares a 15A fuse with the horn; if both fail simultaneously, inspect the underhood relay center for water intrusion.
Test bulb sockets with a non-contact voltage pen, focusing on the brass tab at the 6 o’clock position–oxidation here mimics intermittent failures. For LED retrofits, bypass the DRL module entirely: splice white/yellow (DRL input) and dark blue (low-beam output) together with a 5A fuse in-line to prevent flicker under PWM voltage.
Verify the turn signal interrupt relay (located in the central junction block) by probing terminal 85 for +12V during bulb-out tests–the absence of voltage confirms relay fault, replacing it restores proper flash rates without resetting the ECU.

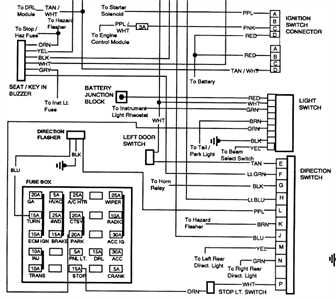

Electrical Schematic for Front Illumination on 2008-Model Pickup Trucks
Begin by locating the main harness connector behind the left-side assembly–it’s a 12-way grey plug marked “C1.” Pin 5 carries low-beam power (12V via a dark blue wire with a white stripe), while pin 3 feeds high-beam current through an orange conductor. Disconnect the battery before probing to avoid shorting the BCM or flipping DTCs B2578/B2579.
Trace the orange wire back to the underhood fuse box; fuse 36 (25A) protects the entire high-beam circuit. If both bulbs fail, check this fuse and the adjacent relay (K38)–swap it with the horn relay (identical part #15804193) to isolate a faulty unit. Ground wires, black with a white stripe, terminate at G101 beneath the driver-side kick panel.
For composite LED upgrades, splice a 680 Ω resistor inline with the high-beam orange wire to prevent CAN bus errors (modules expect halogen load). Secure connections with solder and heat-shrink tubing–avoid crimp connectors above 0.8 mm² gauge. Voltage drop across the circuit should not exceed 0.3V at 13.2V system charge.
If the multifunction switch clicks but beams don’t light, inspect the yellow-with-black-stripe wire at pin 7 of C1; corrosion here mimics switch failure. Clean contacts with DeoxIT D5, then reapply dielectric grease. For fog lights, the light green wire at pin 1 of C2 feeds through a separate 15A fuse (F27) routed via the S3200 relay–test continuity with a 1 kHz tone generator.
Finding the Front Lamp Circuit Connection Points
Begin by removing the plastic shroud behind the front fascia to expose the electrical assembly. For the driver side, trace the main harness from the bulb socket upward–it terminates in a rectangular plug with four slots, secured by a single clip near the fender panel.
- Passenger-side connector mirrors the driver layout but sits behind a secondary support brace requiring a 10mm socket to loosen.
- Low-beam connections use black housing; high-beam connectors are gray with an extra ground wire.
- Fog lamp interfaces lie below the primary harness and feature two smaller plugs, one white and one orange.
Follow the harness downward past the radiator support; each plug locks with a twist-release mechanism–press the tab inward while turning counterclockwise. Avoid forcing connectors, as cracked casings can misalign terminals and trigger controller faults.
Inspect the rear connections where the harness enters the under-hood fuse box–mark each detached plug with tape to prevent mix-ups during reassembly. Driver-side feeds run directly into the relay bank; passenger lines loop through the condenser mounting bracket first.
The Daytime Running Lamp module, a compact white box behind the passenger-side headlamp, contains an additional inline connector often overlooked during diagnostics. Unplugging it requires releasing the clip first, then sliding the connector straight out to avoid bending the pins.
Step-by-Step Guide to Identifying Connector Pinouts in the Front Light Assembly

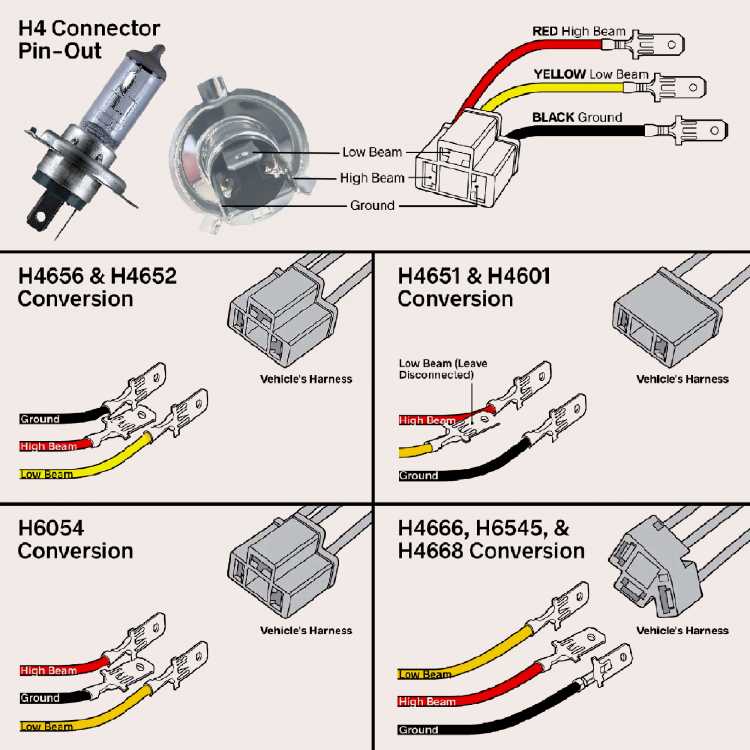

Locate the primary harness plug behind the lamp housing–usually a 6-pin rectangular connector. Pin 1 delivers low-beam power via a dark green wire with white tracer; pin 2 grounds through black; pin 3 carries high-beam feed on a light blue conductor. Verify each strand against the chart below while probing with a multimeter set to 12V DC:
| Connector Cavity | Wire Color Code | Circuit Function | Expected Voltage (Key ON) |
|---|---|---|---|
| 1 | Dk Green / White stripe | Low-beam positive | 12.0–14.2V |
| 2 | Black (no stripe) | Ground return | 0.0–0.1V |
| 3 | Light Blue | High-beam positive | 12.0–14.2V (high-beam engaged) |
| 4 | Gray | Park/turn signal input | Pulsing 0–12V when activated |
| 5 | Yellow / Black stripe | Daytime running lamp lead | 6.0–8.0V (reduced intensity) |
| 6 | Brown | Side marker output | 12.0–14.2V when parking lights ON |
After confirming pin assignments, trace each wire back to the fuse block–low-beam typically routes through Fuse 31 (10A), high-beam through Fuse 32 (20A), both linked to the Underhood Bussed Electrical Center. Peel back a 1/2-inch of insulation from any suspect conductor, then crimp a 16–14 AWG female spade terminal for temporary testing. If voltage readings deviate, inspect the relay (high-beam: Relay 11; low-beam: Relay 12) for burnt contacts or corroded sockets.
How to Verify Illumination Circuit Power and Integrity
Disconnect the lamp assembly connector and set a multimeter to DC voltage mode (20V range). Probe the positive terminal (typically marked with a yellow or light blue stripe) against the vehicle’s chassis ground while the lighting switch is engaged. A healthy circuit should register 12-14V; readings below 10V indicate excessive resistance or a failing power source. Repeat the test at the fuse block–if voltage is normal there but drops at the harness, inspect each connector junction for corrosion or frayed strands.
Switch the multimeter to continuity mode and ensure the circuit is de-energized. Touch one lead to the bulb socket’s ground contact and the other to the chassis; a clear tone confirms a solid return path. Next, test each filament terminal–brief beeps verify intact conductors, while silence reveals breaks or high-resistance faults. For low-beam circuits, trace the harness along the front frame rail, checking behind splash shields for pinched wires, especially near suspension mounts.
Inspect relay contacts by removing the module and applying 12V directly to the coil terminals (85 and 86) while monitoring voltage at output (87). If output remains low, replace the relay; if voltage appears but lamps don’t illuminate, strip back 5mm of insulation at three random harness points and probe the copper–oxidized strands will show as dull brown, while clean copper confirms proper current flow. Always re-seal splices with adhesive-lined heat shrink to prevent moisture ingress.
Troubleshooting Electrical Problems in Pickup Illumination Systems
Start by inspecting the fuse box under the dashboard on the driver’s side–locate slot 24 for the left beam and slot 25 for the right. A blown fuse often mimics a dead lamp, yet replacements must match the 15-amp rating. If the new fuse fails immediately, probe the circuit for a short using a multimeter set to continuity mode; a reading below 0.5 ohms between the fuse terminal and ground signals a fault in the harness.
Dim or flickering front lamps frequently trace back to corroded connections at the bulb sockets. Remove the assembly to access the three-pin connector–clean each terminal with a wire brush and apply dielectric grease before reassembling. For high-beam filaments that glow faintly, check the relay in the under-hood fuse block; swap it with the horn relay (position 5) to verify if the issue persists, confirming a failed relay if symptoms shift.
- Ground points behind the front bumper (G102, G103) oxidize over time, causing intermittent operation. Scrape corrosion from the stud and chassis contact, then secure with a star washer to ensure reliable conduction.
- Parasitic drain occurs when fog lamp circuits backfeed into the main system. Disconnect the DRL module (located behind the left headlamp) and measure current draw; values above 50 mA indicate internal failure.
- Aftermarket harnesses often splice into factory wires incorrectly, leading to voltage drop. Use a voltmeter to verify 12.6V at the bulb socket with the engine running; readings below 11.8V require tracing upstream to the alternator’s output terminal.

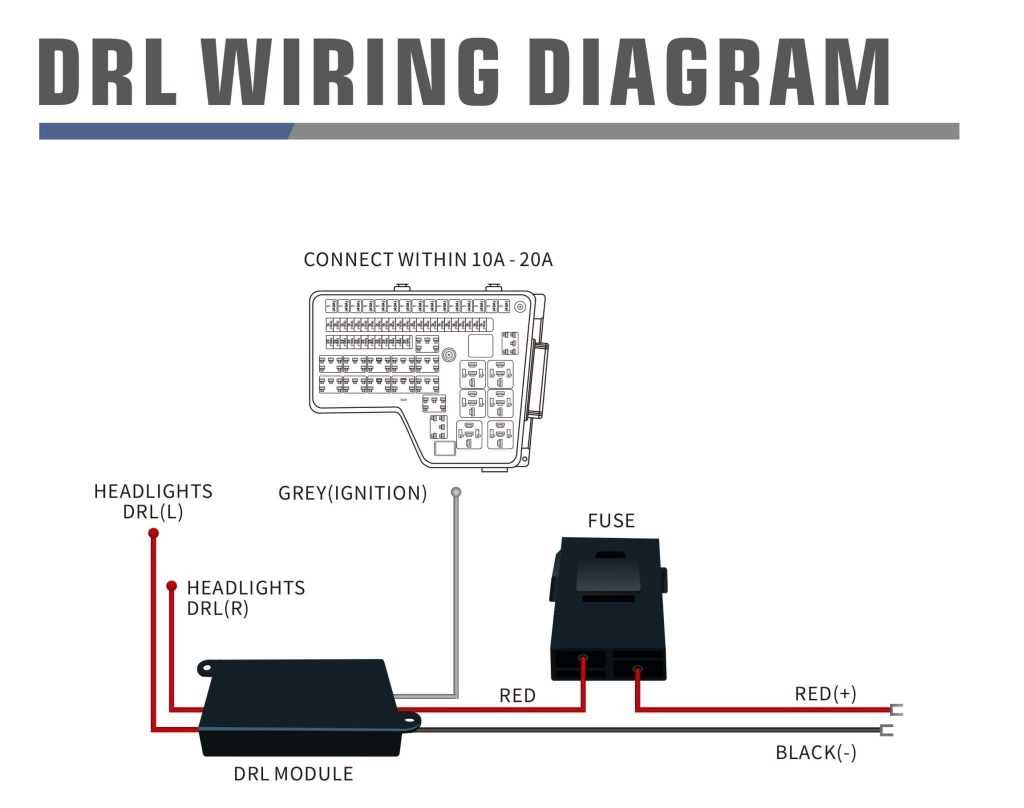

Daytime running light modules fail silently, triggering no dashboard warnings. The symptom–a single lamp illuminating when the switch is off–confirms a stuck relay inside the module. Bypass the module by jumping the brown (power) and dark blue (output) wires at the 10-pin connector, restoring manual control via the stalk switch. Replace the module if bypassing doesn’t resolve the issue.
Water intrusion into lamp assemblies rots the pigtail wires, especially on vehicles driven in coastal areas. Cut back the damaged section and crimp new 18-gauge wire with solder-seal connectors, ensuring the repair matches the factory twist pattern to prevent future moisture wicking. Seal the repair with adhesive-lined heat shrink tubing before reinstalling the bulb.
