Begin by locating the factory harness connector behind the dashboard’s lower panel–typically secured with two Torx T-15 screws in most late-model variants. Disconnect the battery’s negative terminal before proceeding to avoid short-circuiting sensitive modules or triggering fault codes. The primary power lead, a thick yellow wire (12 AWG or larger), must be fused within 18 inches of the battery using a 20-amp inline fuse to prevent fire hazards.
The OEM speaker outputs follow a consistent color scheme: front left (light blue/red stripe for positive, gray/red stripe for negative), front right (green/violet stripe, gray/violet stripe), rear left (brown/yellow stripe, tan/yellow stripe), and rear right (purple/black stripe, tan/black stripe). Verify impedance with a multimeter (4 ohms ± 0.5) before connecting aftermarket amplifiers or crossovers; mismatches cause distortion or thermal shutdowns. Ground wires (black) should terminate to unpainted metal chassis points, never daisy-chained, to eliminate noise.
For vehicles with CAN bus or SYNC systems, bypassing the factory integration requires a resistor pack (100 ohms, 1/4-watt) between the data lines (orange/white and light-green) to prevent “no communication” errors. Retain the factory antenna’s coaxial connection to maintain AM/FM reception quality; aftermarket adapters often degrade signal strength. If installing a navigation unit, ensure the GPS module’s purple/white wire is routed away from RF interference sources like ignition coils or alternator leads.
Test each connection with the vehicle running at 1,500 RPM before finalizing trim panels. Listen for balanced audio output and monitor the head unit’s display for error codes. Replace any damaged wire insulation with heat-shrink tubing (minimum 3:1 shrink ratio) to prevent corrosion from moisture ingress–a common failure point in high-mileage installations.
Electrical Layout for Your Vehicle’s Entertainment System
Locate the 12-pin connector behind the dashboard unit–pins 4, 5, and 6 deliver constant 12V power (red), ignition-switched 12V (yellow), and ground (black) respectively. Pin 2 carries left front speaker output (+), while pin 10 handles the right front (-); swap these polarities only if audio phasing issues arise. Factory subwoofer connections run through pins 8 (positive) and 7 (negative), requiring 4-gauge oxygen-free wiring for aftermarket amplifier upgrades.
Speaker and Amp Integration
Verify impedance ratings–stock speakers typically tolerate 4 ohms, but aftermarket coaxial units often demand 2 ohms for peak wattage delivery. Splice the harness 色码: orange/light blue (illumination), gray/red (dimmer), and violet/yellow (antenna trigger) directly into the replacement head unit’s ISO plug to preserve steering wheel controls and automatic antenna retraction. Avoid twisting wires; crimp connectors with heat shrink tubing to prevent oxidation.
For vehicles equipped with SYNC, the CAN bus wires (pins 12 and 13) must remain untouched–tapping into these disrupts voice command functionality and climate control display sync. If static persists, route RCA cables at least 12 inches from power wires, using a ground loop isolator rated for 200mV noise suppression or higher.
Finding the Right Electrical Connector for Your 2008 Ford Variant
Start by identifying the exact trim and optional packages of your vehicle. The audio system connector differs between base models and those equipped with premium sound, navigation, or SYNC interfaces. Check the glove compartment or door jamb sticker for the RPO (Regular Production Option) codes–look for U2 (premium audio) or U3 (navigation-ready setup). These codes pinpoint the correct harness variant without guesswork.
Remove the center console trim panel to access the back of the head unit. The connector will be either an 8-pin or 12-pin plug, depending on whether the system includes steering wheel controls or external amplifiers. Base trims typically use an 8-pin configuration, while higher-end trims integrate a 12-pin plug with additional channels for rear speakers and subwoofer output.
Verify the wire colors against a reliable schematic. Standard configurations include: yellow (constant 12V), red (switched 12V), black (ground), orange with stripe (illumination), and gray/blue (amplifier turn-on). If your harness includes a purple/white wire, it indicates a factory subwoofer output–confirm this with a multimeter by probing for 1–4 volts at idle.
Aftermarket Compatibility

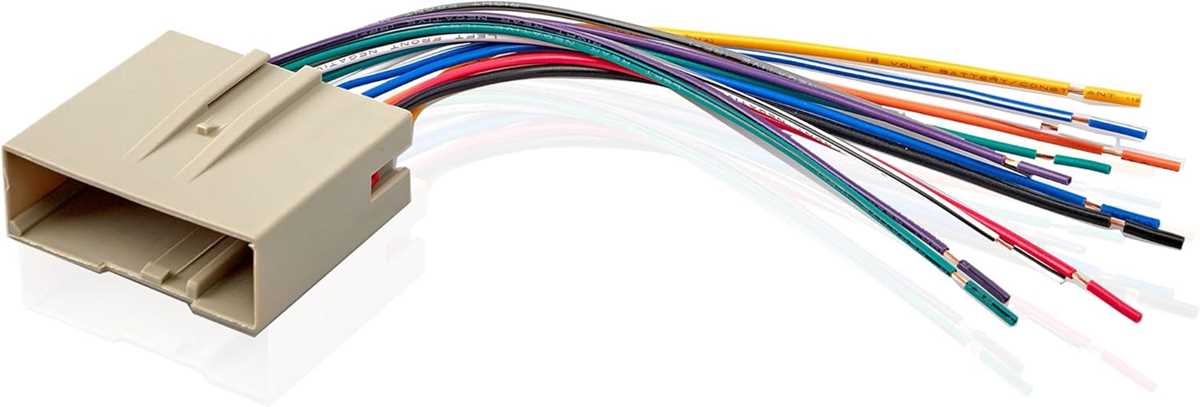

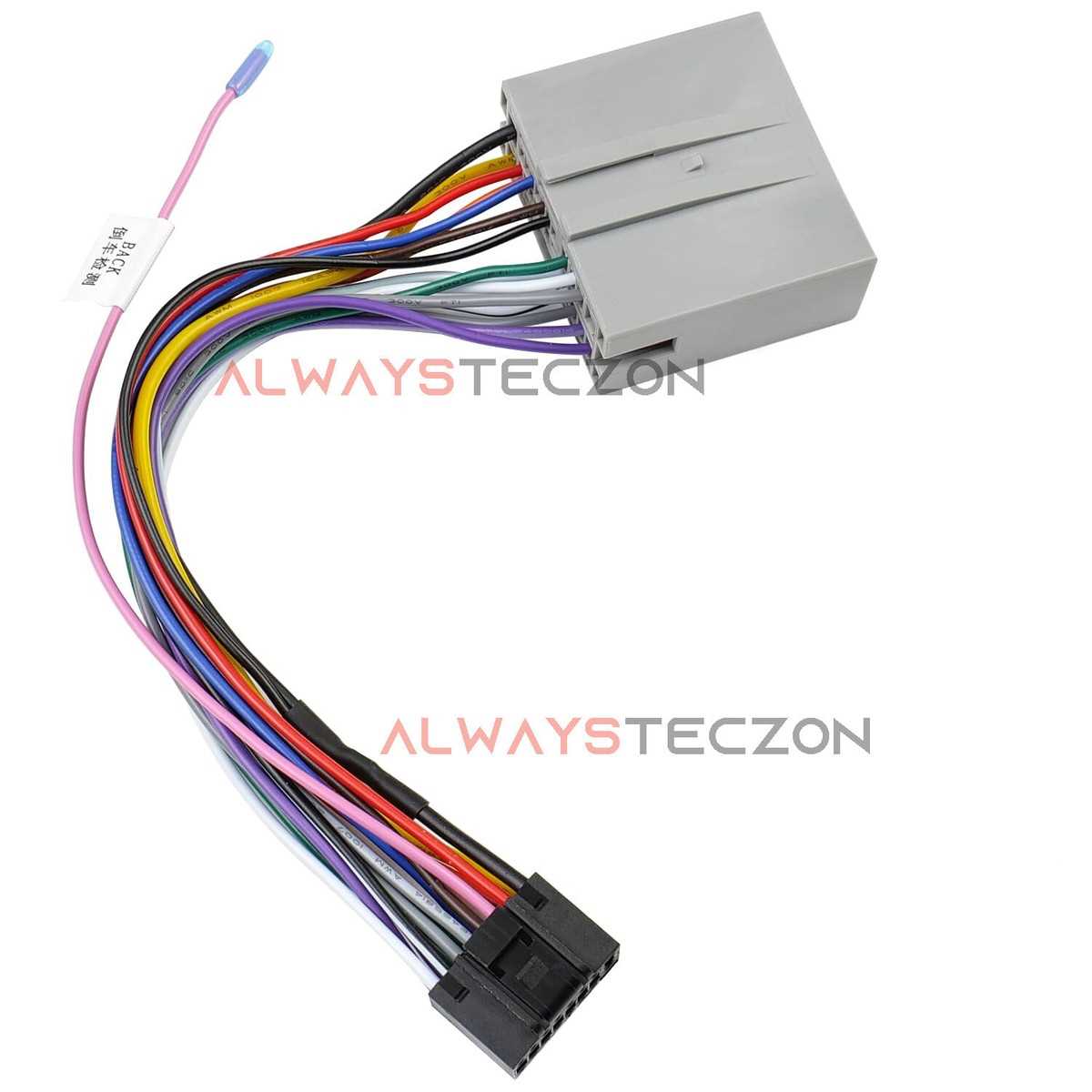

If retrofitting an aftermarket unit, match the harness adapter pinout to the original system. Metra (70-5520) and Scosche (FVWS02B) offer direct-fit adapters for most variants, but avoid universal harnesses–they often omit critical connections like CAN bus data or amplifier triggers. For models with factory amplified sound (RPO U2), use Metra’s Axxess ASWC-1 for steering wheel control retention.
For vehicles with navigation (U3), the harness includes a separate 16-pin GPS/communication plug. This connector carries satellite data, microphone input, and speed sensor signals. Aftermarket adapters like the Scosche FDMPSVL retain these functions, but ensure the GPS antenna is properly routed to avoid signal loss. Test the backup camera (if equipped) by engaging reverse–voltage should read 6V on the pink wire.
Label each wire before cutting or splicing. Use crimp connectors instead of solder for longevity, and secure connections with heat-shrink tubing. If the harness lacks a specific wire (e.g., media mute), splicing into the climate control module’s gray/white wire may be necessary. Always disconnect the battery’s negative terminal before starting work to prevent short circuits or module resets.
Step-by-Step Color Codes for Vehicle Audio System Speaker Connections
Locate the harness behind the factory stereo unit in the dashboard. The front left speaker wires use light blue (positive) and light blue/black (negative) traces. For the front right speaker, identify white (positive) paired with white/black (negative). Rear speakers follow the same logic: pink (positive) with pink/black (negative) for the left, and purple (positive) with purple/black (negative) for the right. Verify each connection with a multimeter set to 200 ohms–touch probes to both wires; a reading confirms correct pairing.
Critical Wiring Notes
- Avoid splicing directly into these wires–use crimp connectors or solder junctions wrapped in heat-shrink tubing.
- Purple wires may alternate functions across trim levels; cross-check with vehicle service manuals if resistance reads >4 ohms.
- Power feeds include yellow (constant) and red (switched); ground connects to black wire.
- Aftermarket amplifiers tap into orange (illumination) and gray (dimmer) for compatibility with factory lighting controls.
Locating Power and Ground Connections in Your Vehicle’s Audio Unit
Start by locating the harness connector at the back of the head unit–it typically has 12 to 24 pins arranged in two rows. Use a multimeter set to DC voltage (20V range) to probe the wires while the ignition is turned to the accessory position. The constant power wire will show 12 volts regardless of ignition state, while the accessory wire will only register voltage when the key is in the “on” or “accessory” position.
- Constant (battery) lead: Yellow or orange wire, often thicker than others, supplying direct current from the battery.
- Accessory lead: Red wire, enabling power only when the vehicle is operational.
- Ground: Black wire, sometimes with a white stripe, connected directly to the chassis or a dedicated grounding point.
Check the vehicle’s service manual for color variations–manufacturers occasionally deviate from standard schemes. If documentation isn’t available, trace each wire to its origin: constant power runs directly from the battery (with a fuse), accessory power connects through the fuse box, and ground attaches to a metal bolt or unpainted surface near the unit.
When testing, ensure the multimeter’s negative probe touches a clean, bare metal surface–paint or corrosion will skew readings. If voltage fluctuates or drops below 12 volts, inspect the fuse, connectors for oxidation, and wire integrity for nicks or frays. A stable 12-volt reading confirms a proper connection.
For aftermarket installations, avoid splicing directly into factory wires–use a harness adapter matching the OEM pin configuration. Adapters eliminate guesswork and prevent damage to the vehicle’s electrical system. Verify compatibility with the specific trim level, as base models may lack features like amplified signals or steering wheel controls, altering pin assignments.
- Disconnect the negative battery terminal before handling any wires to prevent short circuits.
- Label each wire with masking tape as you identify it–mislabeling risks damaging components.
- Reconnect the battery only after confirming all connections, then retest with the multimeter.
If the unit powers on but displays erratic behavior (e.g., intermittent shutdowns), suspect a faulty ground. Re-route the ground wire to a different chassis point, ensuring no rust or paint interferes. For persistent issues, remove the center console or dashboard trim to access the factory grounding bolt–often located behind the glovebox or under the driver’s side kick panel.
Integrating a Third-Party Head Unit with Original Vehicle Harness Connections
Begin by locating the OEM connector behind the dashboard fascia. The primary harness for this model uses a 24-pin plug, split into two rows of 12. Pin assignments vary slightly between trim levels, but the main power, ground, and speaker outputs remain consistent. Use a multimeter to verify voltage on pin 1 (constant 12V), pin 2 (switched 12V), and pin 3 (ground) before proceeding.
Remove the factory harness adapter if present, as aftermarket stereos typically include their own. Connect the new unit’s wiring harness to the vehicle’s plug using a crimp tool or solder–avoid twist-and-tape methods, as they degrade over time. Match colors precisely: yellow to yellow (battery), red to red (ignition), black to chassis ground. For speaker wires, follow the vehicle’s original polarity–white (front left +), white-black (front left -), gray (front right +), gray-black (front right -).
| Vehicle Pin | Function | Aftermarket Wire Color | Test Voltage (Key On) |
|---|---|---|---|
| 1 | Constant Power | Yellow | 12V |
| 2 | Switched Power | Red | 12V |
| 3 | Chassis Ground | Black | 0V |
| 9 | Illumination | Orange | Variable |
If the installation includes steering wheel controls, retain the factory interface module. Most aftermarket stereos require an additional adapter, such as a PAC RP5-CH11 or Metra ASWC-1. Connect the adapter to the main harness before attaching it to the new unit–failure to do so will disable button functionality. Verify operation by pressing each button while monitoring resistance with a multimeter; values should differ for each command.
For vehicles equipped with SYNC or voice control, disconnect the factory microphone and park assist sensors during installation. These systems often share the same data bus as the audio unit, and incorrect connections can trigger error codes. Reconnect them only after confirming the new stereo powers on without faults. If the amplifier remains active, retain the original wiring for the amp turn-on lead (typically blue-white) to prevent audio distortion.
Route wires away from moving parts and sharp edges. Secure them with zip ties to prevent rattling or short circuits. Test all functions–AM/FM, auxiliary inputs, Bluetooth–before reassembling the dash. If static or interference occurs, relocate the antenna cable or add a noise filter to the power leads. Ground loops are a common issue; ensure the ground wire connects directly to bare metal, not painted or coated surfaces.
Some models include a factory security feature requiring a reset after power loss. If the display shows “CODE,” consult the owner’s manual for the bypass procedure. Aftermarket stereos rarely require this, but if the unit prompts for a code, a quick online search for the serial number will yield default values. Avoid entering random sequences, as too many attempts can lock the system permanently.
Troubleshooting Common Issues
No power? Double-check fuses–both the vehicle’s and the stereo’s. A blown fuse is the most frequent cause of failure. Speaker imbalance or distortion usually indicates reversed polarity or a short. Use a test tone generator to isolate the problem. If the new unit displays “NO AUDIO,” verify the factory amplifier is active; some configurations mute the output without proper signaling.
Final Adjustments
Recalibrate the equalizer settings after installation. Factory presets are optimized for OEM components, and aftermarket speakers may require attenuation to prevent clipping. Recheck all connections if the stereo powers down unexpectedly–this often suggests a loose wire or inadequate ground. Once stable, reinstall the dash trim and test drive to ensure all features function under real-world conditions.
