Locate the primary power distribution box under the hood–marked with fuse ratings and relay positions–to trace circuits without guesswork. Identify connector C100 (near the battery) and C200 (instrument panel) as critical nodes; corrosion here disrupts signal flow to the dashboard and ignition system. Use a digital multimeter set to 20V DC to verify voltage at pin 30 (red/light blue) of connector C100–expected reading is 12.6V with the key off, dropping marginally under load.
For audio system repairs, focus on the amplifier’s wiring harness behind the rear seat. Pins 1–4 carry left/right speaker signals; check for continuity between the head unit and amplifier before replacing components. The fuel pump circuit runs through the inertia switch–located behind the right kick panel–verify its reset button isn’t tripped before probing pin 87 of relay R30 (fuel pump relay).
Avoid splicing into the ABS module’s harness (connector C304) unless necessary; improper connections here trigger false trouble codes. For blower motor diagnostics, measure resistance across the resistor pack terminals–P0 (black/yellow) to P3 (red/black) should show decreasing resistance as speed increases. The turn signal switch’s common failure point is pin 1 (gray/white), often causing intermittent operation–clean or replace the connector if corrosion is visible.
Download the factory schematic from FordTechService (document ID: 08CV-WSM) to cross-reference wire colors and pinouts against aftermarket diagrams–third-party sources frequently mislabel ground circuits (black wires with colored stripes). Test all grounds at G100 (under driver’s side dash) and G200 (near the trunk) for voltage drop exceeding 0.2V.
Ford Panther Electrical Layout: Hands-On Troubleshooting
Locate fuse block under the instrument panel to the right of the steering column. Use a multimeter set to 200 Ω continuity mode to test the 30A radio fuse (slot 10). If reading exceeds 0.5 Ω, replace the fuse–corrosion on fuse clips causes intermittent audio dropouts even when voltage measures 12.6 V at the harness connector. Disconnect battery negative before probing the harness side; shorts between pins 1 (yellow/black, constant 12 V) and 8 (brown/light blue, ground) will trip the fuel pump relay, mimicking no-start conditions.
Harness Pinout Reference
| Connector | Pin | Wire Color | Function | Voltage (KOEO) |
|---|---|---|---|---|
| C201 | 3 | Dark Green/White | PCM Relay Control | 12.2-14.5 V |
| C201 | 9 | Violet/White | Vehicle Speed Signal | 0-5 V (PWM) |
| C202 | 16 | Light Blue/Red | Fuel Injector 2 | 12.0 V (pulsed) |
| C203 | 11 | Gray/Red | Throttle Position Sensor | 0.5-4.5 V (linear) |
Clean ground G103 behind the right kick panel with 400-grit sandpaper before reattaching the 10-mm bolt; poor grounding here skews mass air flow readings, triggering P0102 codes. For headlight circuits, bypass the multifunction switch connector and jumper pins 1 (headlamp low beam) to 4 (fused ignition) with a 15 A blade fuse–if beams illuminate, replace the switch; if not, trace the affected wire (tan or light blue) back to the SJB.
Finding the Fusebox and Electrical Routing in Your Full-Size Sedan
Begin under the dashboard on the driver’s side–pull back the lower trim panel secured by a single 7mm bolt and two plastic clips. The primary fuse panel sits just above the brake pedal, behind a rectangular cover marked “Fuse Block.” Remove the cover by pressing inward on the top edge until it disengages from its hinge.
Inside, two rows of blade-style fuses control nearly every major circuit: headlamps, ignition, HVAC, and powertrain modules. The top row–fuses 1–20–handles high-current systems; numbers above 20 on the lower row manage interior electronics. Labeling is printed directly on the lid; cross-reference suspected circuits before pulling any fuse to avoid resetting onboard computers.
For power distribution beyond the main block, trace the thick red cable exiting the battery positive terminal. Follow it straight to the under-hood junction box–located near the driver-side strut tower–where three 10AWG leads split: one feeds the alternator, another serves the starter solenoid, and the third delivers constant 12V to downstream modules. Terminal connections use brass nuts; loosen them with a 10mm socket while supporting the ring terminal to prevent twisting the wire strands.
Tracing Secondary Harnesses
Behind the rear seat cushion, tilt the backrest forward to expose a rectangular access panel held by four T-20 Torx screws. Removing it reveals the body ground bus and the secondary distribution center–four relays handle fuel pump, anti-lock braking, and rear defrost. Each relay socket contains pin assignments silkscreened on the plastic housing: 85 (coil ground), 86 (coil power), 87 (load out), 30 (constant battery). Swap suspect relays with known-good units to isolate intermittent faults without meter testing.
Under the vehicle, the main chassis harness runs parallel to the frame rail, shielded inside a corrugated plastic loom. Look for inline connector C101–approximately 18 inches behind the rear axle–where branches split to power tail lamps, trailer wiring, and rear fog lights. Use a non-contact voltage probe to confirm continuity; damaged loom sections require splicing with heat-shrink butt connectors to restore waterproof integrity.
When diagnosing dash cluster faults, remove the instrument surround–two screws beneath the lower dash lip and five hidden clips along the top edge. Disconnect the 16-pin rectangular plug labeled “IC” (instrument cluster) by sliding the red locking tab left and pulling straight. Pin layout:
– Pins 1–5: Stepper motor (fuel, temp, tach, speedo)
– Pins 6–8: CAN bus communication
– Pins 10–12: Illumination dimming
Back-probing these pins with a multimeter while cycling ignition keys verifies signal integrity before condemning the cluster itself.
Beneath the center console, two relays–one for the air suspension compressor, another for the heated rear window–are tucked against the floor pan. Their spade connectors frequently corrode; clean with electrical contact cleaner and protective grease to revive silent operation. Always disconnect battery ground before servicing any high-amperage component to prevent short circuits.
Ground Points and Final Troubleshooting
The most overlooked element sits beneath the passenger-side carpet: ground G302–a bare copper stud receiving returns from the ECM, transmission control module, and ABS computers. Corrosion here mimics sensor failures; scrape the stud clean and tighten with an 8mm box-end wrench to eliminate false DTCs related to “low voltage reference.”
Tracing Ignition System Conductors and Terminal Mappings for the Ford Sedan

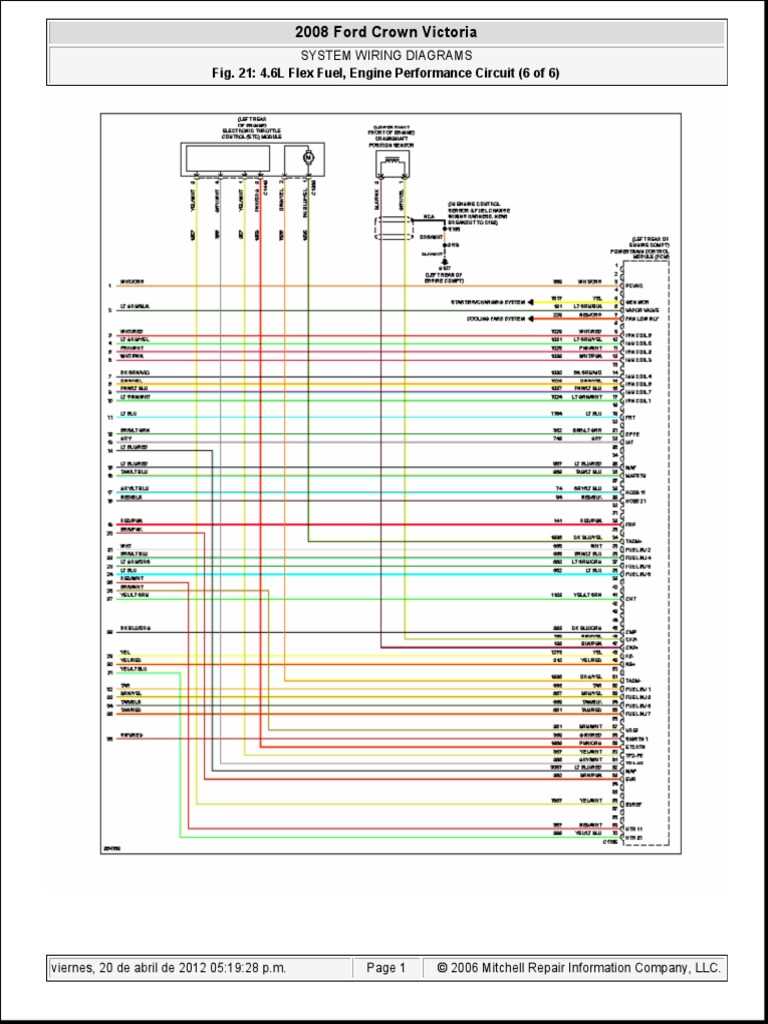

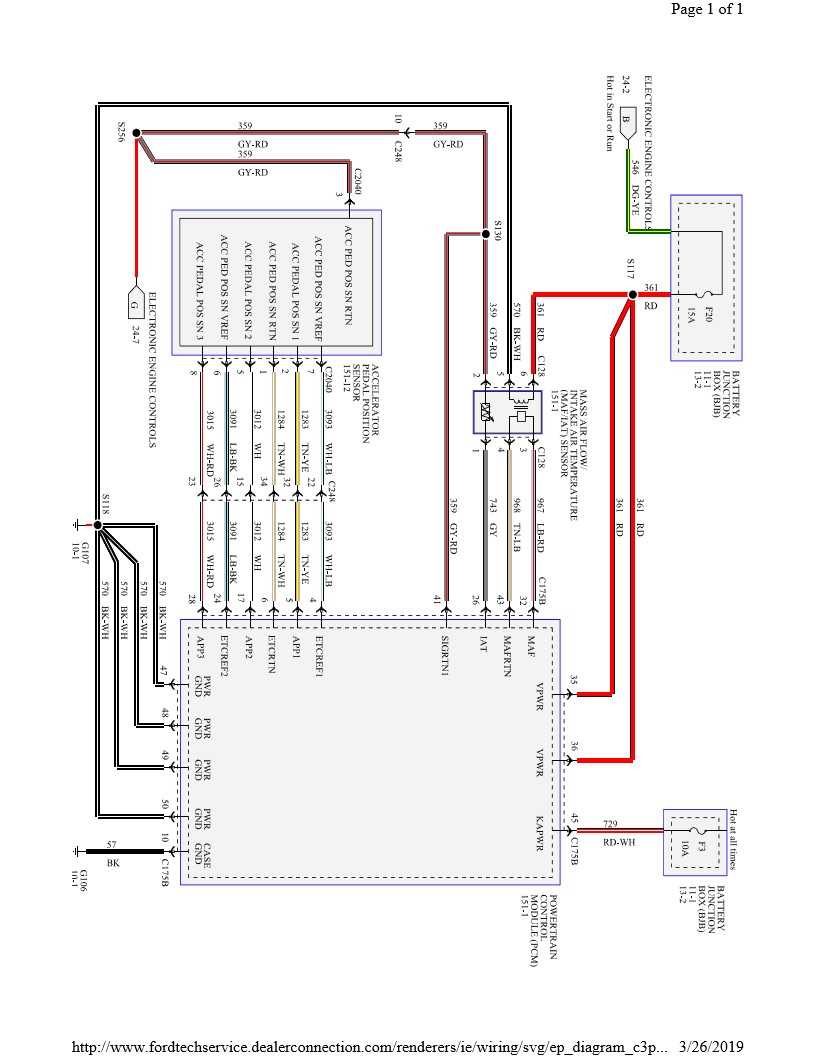

Begin with the powertrain control module (PCM) connector C175b–locate pin 94 (dark green/yellow stripe) as the primary ignition feed. Trace this conductor to the ignition coil pack, verifying continuity with a multimeter set to ohms (resistance should read under 2Ω). If readings exceed this threshold, inspect for chafing near the cowl panel reinforcement or corrosion at the T-connector near the brake booster. Disconnect the battery ground cable before probing to avoid shorts.
Critical Terminal Pinouts
- PCM C175b:
- Pin 94: Ignition coil power (dark green/yellow)
- Pin 51: Ignition sense (light blue/red)
- Pin 7: Coil ground (black/white)
- Ignition Coil Pack:
- Pin B: Power from PCM (matches PCM C175b pin 94)
- Pin A: Ground (matches PCM pin 7)
- Pins C-F: Individual cylinder triggers (white/orange, white/blue, white/gray, white/red)
- Inertia Fuel Shutoff (IFS): Pin 1 (violet/orange) must show 12V key-on; zero volts indicates a tripped switch.
Use a backprobing tool to test voltage at the coil pack connector without damaging terminals. Key-on voltage at pin B should match battery voltage (12.6V+). If voltage drops below 12V, check the fusible link near the underhood junction box (fuse J-case 40A). For intermittent misfires, focus on the white/orange trigger wire (cylinder 1)–vibration-induced opens often occur where the harness routes under the intake manifold.
Tracing Illumination System Harness Colors and Routing for Front and Rear Lamps
Locate the main lighting harness bundle under the dashboard near the steering column–specifically, the gray 20-pin connector labeled “LCM” (Lighting Control Module). Pin 12 delivers a dark green/violet stripe wire that feeds low-beam power forward to the left headlamp socket via a splice at G201 (near the radiator support). High-beam current splits from pin 14’s light blue/orange stripe at the same connector, following a separate trunk behind the left front fender liner until it reaches connector C135; there, it merges with the right side light blue/black stripe circuit.
Inspect the tail lamp circuits starting at the rear junction box (RJB) mounted above the spare tire well. Terminal 18 carries a brown/pink stripe lead that exits the RJB, loops downward behind the left taillight housing, and terminates at the left rear lamp’s bulb socket for brake and running illumination. The right lamp shares circuitry through terminal 19’s brown/white stripe path–trace both lines back to a common splice inside the trunk hinge pillar, marked T402, before they enter the RJB.
Ground pathways demand attention: headlamps rely on chassis grounding at G102 (driver’s side strut tower), while tail lamps connect to G303 (beneath the left quarter panel trim). Corrosion at these points often mimics bulb failure; verify continuity with a multimeter set to ohms, probing between the socket shell and bare chassis metal–readings should not exceed 0.2 ohms.
Connector Pinouts for Rapid Isolation
Headlamp sockets (C135): Left low-beam = dark green/violet stripe; right low-beam = dark green/white stripe. High-beam circuits switch polarity–identify pins 3 (light blue/orange) and 10 (light blue/black) on the same connector. Tail lamp sockets (C201): Running/brake filaments = brown/pink or brown/white stripe; turn signal filaments = gray/red or gray/light blue stripe.
Avoid splicing into the high-beam harness for auxiliary lighting–load limits on the light blue/orange wire are 12A continuous. Instead, tap the dark green/white low-beam line at G201 for accessories, inserting a relay to isolate additional draw. Use 16-gauge wire for extensions, matching existing color codes to prevent misdiagnosis later.
Label every splice with heat-shrink tubing marked in permanent ink–record the source circuit and destination component. This step eliminates guesswork during future bulb replacements or aftermarket upgrades. If upgrading lamps, confirm the module’s compatibility; some aftermarket LED assemblies trigger false “bulb out” warnings if resistor packs aren’t added parallel to the new lamps.
For intermittent issues, backprobe the LCM connector with a test light while cycling headlights–illumination at pins 12 or 14 without lamp function suggests a break between the splice and socket. Segment the trunk: disconnect bulb sockets, then test for voltage at the harness side of connector C201 (rear lamps); absence directs troubleshooting toward the RJB or ground point G303.
