Start troubleshooting with the main engine control module (ECM) harness–trace pinouts X1-5 (gray) and X1-6 (black/white) for ignition feed circuits. Verify fuse #46 (20A) in the under-dash panel delivers a consistent 12.5V±0.2V across both leads under load. If voltage drops below 11.8V, inspect the alternator B+ cable (10 AWG, red) for frayed insulation near the starter solenoid terminal.
For fuel injector diagnostics, focus on injector 1 (dark blue/white) and injector 2 (light blue/white). Test resistance–spec ranges 11.8–12.2 ohms at 20°C. Deviations indicate faulty windings or corroded connectors at terminal 50 (PCM). Clean contacts with electrical contact cleaner (CRC 05103), then apply dielectric grease to prevent future oxidation.
If the torque converter clutch (TCC) fails to engage, probe PCM pin C2-11 (light green/black). A signal below 10.5V under 2,000 RPM suggests a short in the brake switch circuit–test continuity between switch terminals A and B (spec: 0-1 ohm). Replace the switch if readings exceed 1.5 ohms.
For cooling fan operation, measure voltage at fan relay coil (black/yellow). Inoperative fans often stem from relay #39 (maxi-fuse box, underhood)–swap with a known-good relay (e.g., A/C relay #27) to isolate faults. Check ground G103 (right frame rail) for rust buildup; scrape clean until bare metal is visible.
When tackling oxygen sensor circuits, prioritize the upstream (pre-cat) sensor (gray, 4-wire). Probe heated element resistance (spec: 8–40 ohms at 20°C). If readings exceed 50 ohms, replace the sensor–no cleaning or adjustments correct internal degradation. For downstream sensors, ignore unless P0420 codes persist after catalytic converter validation.

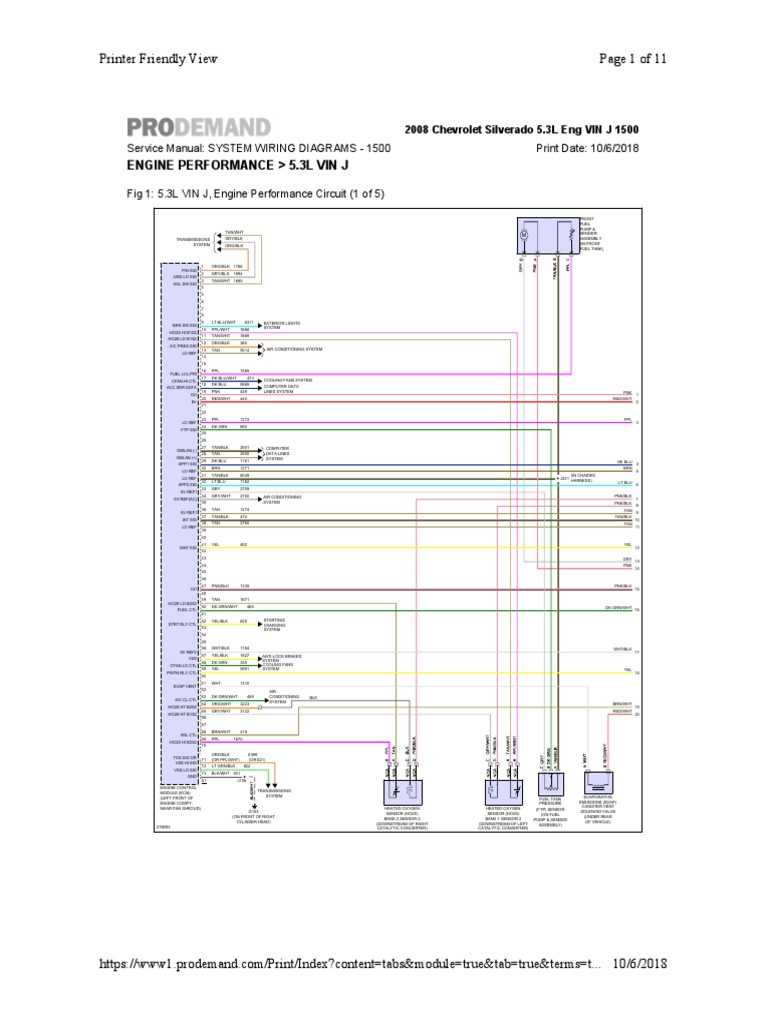

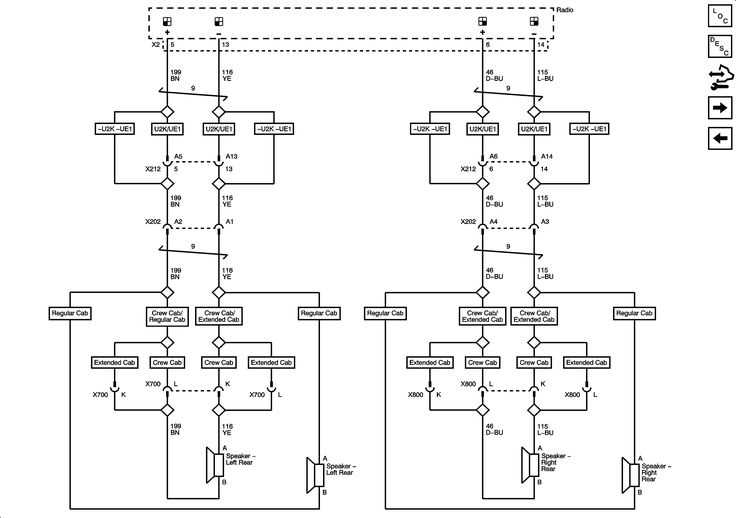

Electrical Schematic for Vortec 5.3L V8 Powerplant

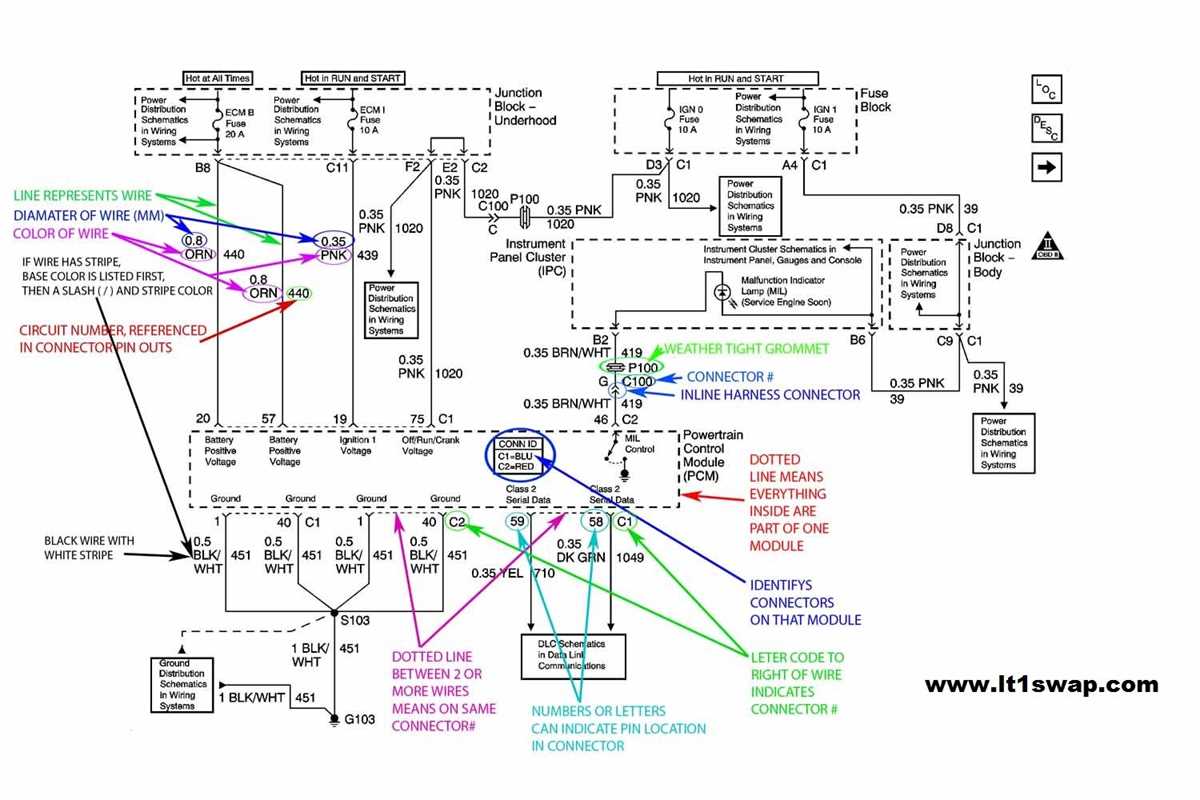

Locate the C100 connector–typically near the underhood fuse box–to trace the primary ignition feed. Pin A12 carries +12V from the ignition switch, while B10 grounds the PCM and fuel injectors. Verify continuity with a multimeter: resistance should not exceed 0.5 ohms between the injector harness and chassis ground.
For the throttle position sensor (TPS), focus on wires YEL (signal), GRY (5V reference), and BLK (ground) at the C2 connector. A faulty TPS reading often stems from a short in the YEL wire; backprobe at pin C2-2 with the key ON–voltage should sweep smoothly between 0.5V–4.5V as the pedal moves.
Oxygen sensors pre-cat (Bank 1 Sensor 1) rely on LT GRN/WH (heater) and TAN (signal) wires spliced into the harness near the exhaust manifold. Replace cracked insulation–common on these models–using tinned copper braid rated for 150°C. The MIL will throw P0135 if heater resistance (measured at pins 40–41 on the ECM) deviates from 8–14 ohms.
Locating Critical Electrical System Elements Under the Hood

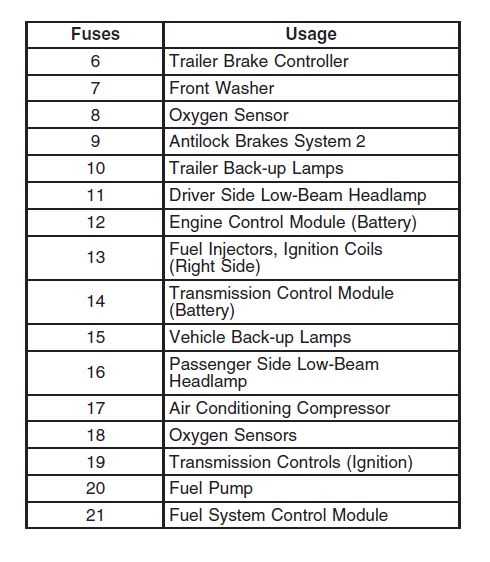

Begin inspection at the fuse block on the driver’s side near the firewall. Remove the cover to expose relays and mini fuses–each marked with amperage values (10A, 15A, 20A) and numeric identifiers (e.g., “CIG” for cigar lighter). Match these labels to the vehicle’s service manual to pinpoint circuits controlling fuel injectors, ignition coils, and sensors. Use a multimeter set to continuity mode to verify connections between the fuse block and harness plugs; resistance should read below 0.5 ohms for active circuits.
Primary Connector Groups
Focus on three main connector clusters:
- PCM (Powertrain Control Module): Located adjacent to the battery tray, this 120-pin connector splits into two halves–gray (inputs) and black (outputs). Probe pins C1-24 (gray) and C2-58 (black) for power distribution to the MAF sensor and throttle body, respectively. Voltage at ignition-on should measure 5V for sensor feeds and 12V for actuator outputs.
- Ignition Coil Pack: Four individual connectors (cylinders 1-4) terminate near the valve cover. Each coil’s trigger wire (typically tan/black stripe) leads back to the PCM; misfires often trace to corroded pins here. Scrape corrosion with a fiberglass brush and apply dielectric grease to prevent recurrence.
- Alternator Plug: A dual-pin connector (batterside) with yellow (B+) and brown (L-terminal) wires. The B+ wire must register battery voltage at all times; L-terminal should toggle between 0V (engine off) and 14.2V (running). Failed charging systems frequently stem from fractured B+ cables behind the alternator housing.
Trace the ground distribution strap attached to the upper intake manifold. This single braided cable consolidates grounds from the PCM, fuel pump, and transmission module. Loose or oxidized connections here cause intermittent stalls–clean mating surfaces with emery cloth and torque bolts to 18 ft-lbs. For heavy-duty variants, note the additional ground strap near the starter solenoid; verify continuity to the chassis with a megohmmeter.
Isolate the intake air temperature (IAT) sensor harness, a slim two-wire pigtail (yellow/black and gray) routed along the intake tube. Disconnect the sensor and test resistance: 100Ω at 21°C, dropping to 50Ω at 80°C. Deviations indicate sensor failure or shorts in the wires near the radiator support, where abrasion from vibration is common. Secure vulnerable sections with spiral wrap or loom tape to prevent chafing.
Diagnostic Connector Pinout
Access the OBD-II port beneath the dashboard but reference its rear wiring for under-hood diagnostics:
- Pin 6 (CAN Hi): Green/white wire linking to the PCM–voltage swings between 2.4V and 3.5V.
- Pin 14 (CAN Lo): Green/black–2.1V to 3.2V, mirroring Pin 6’s signal.
- Pin 16 (Battery Power): Red/white–constant 12V, fused at 10A (fuse #19).
For non-CAN protocols (Mode $01), probe Pin 7 (ISO 9141 K-line) with a logic probe; activity should pulse during ECU wake-up. Absence of signal suggests a severed circuit in the dash harness, often near the brake pedal bracket due to pinched cables during assembly.
Step-by-Step Guide to Locating the ECM Connections
Begin by raising the vehicle’s hood and securing it with the prop rod. The powertrain control module (PCM) on this pickup is typically mounted on the driver’s side, near the firewall, enclosed in a black plastic housing. Clear any debris or obstructions around the area–road grime or snow buildup can obscure critical connectors. Use a flashlight to inspect the rear of the module; the main harness plug is a large, rectangular 120-pin connector with a single locking tab.
Identifying Key Wires
- Disconnect the negative terminal of the battery before handling any electrical components to prevent short circuits or accidental deployment of airbags.
- Locate the two primary connectors: the C1 (blue) and C2 (red) plugs, each with distinct pin layouts. C1 manages sensor inputs like throttle position and manifold pressure, while C2 handles fuel injectors and ignition coils.
- Trace the wires from the PCM to their termination points–ground wires (black/white stripe) terminate near the intake manifold, while power feeds (pink or red) link to the underhood fuse block.
- Check for corrosion on the pins using a multimeter; resistance should read below 0.5 ohms. Replace the connector if readings exceed this threshold.
Reassembly requires precise alignment of the locking tab–listen for a distinct click to confirm full engagement. Reconnect the battery and use an OBD-II scanner to verify no pending trouble codes before starting the vehicle. If the engine stalls or misfires, re-examine the C2 connector for loose fuel injector pins, a common failure point in high-mileage trucks.
Troubleshooting Electrical Problems in GM 1500 Pickups with Vortec V8s
Start by inspecting the ignition coil connectors on the 4.8L and 5.3L powerplants for corroded terminals. These often appear as a white or greenish powder near the pins, causing intermittent misfires. Use a multimeter set to 200 ohms to verify resistance between the coil tower and the primary wire; readings above 1.5 ohms indicate internal degradation requiring replacement. Avoid cleaning corroded connectors–replace the entire pigtail harness segment instead, as cleaning rarely restores reliable conductivity.
The crankshaft position sensor circuit on these V8s frequently fails due to chafed wiring near the harmonic balancer. Look for damage where the harness bends at a 90-degree angle behind the starter–this spot is prone to insulation breakdown. Probe the sensor’s signal wire (typically yellow) with an oscilloscope while cranking; a proper waveform should show clean square waves at 5-6 volts. If the signal is erratic or absent, trace the wiring back to the PCM, checking for continuity at each splice, particularly at connector C1 near the firewall.
Fuel injector harnesses on the 5.3L variant often develop shorts due to engine heat cycling. Focus on the rear-most injectors (cylinders 5-8), where the harness curls around the intake manifold. Disconnect each injector and measure resistance between the injector terminals–readings below 11 ohms suggest a failing coil. Also, probe the driver wire (usually dark blue) for voltage drops while cranking; anything below 11.5 volts at the injector indicates excessive resistance in the circuit, likely from a frayed wire or loose connection at the underhood fuse block.
Ground Distribution Failures
The most overlooked issue involves weak engine block grounds, particularly the G103 strap connecting the transmission bellhousing to the chassis. Remove the bolt and clean the mating surfaces with a wire brush, then apply dielectric grease before reinstalling with star washers for proper torque retention. Check the G101 ground near the battery tray–corrosion here mimics battery drain symptoms. Use a load tester to verify less than 0.1-volt drop between the negative battery post and the engine block while the starter engages; higher readings confirm compromised ground paths.
Accessory power circuits, such as the BCM-controlled relay outputs, commonly suffer from melted connectors at the under-dash fuse panel. The pink wire feeding the ignition switch often overheats due to undersized terminals. Replace the entire panel if heat discoloration is visible on the plastic housing–partial repairs rarely last. For parasitic drain concerns, pull fuses one by one with the key off, monitoring current draw with an ammeter; typical values should drop below 50 milliamps within 30 minutes of shutdown, with spikes no higher than 300 milliamps during computer initialization.
Throttle position sensor circuits may trigger false limp-mode codes due to worn potentiometers. Rather than replacing the sensor outright, backprobe the signal wire (often orange) at the TPS connector and observe voltage while manually actuating the throttle; a smooth sweep from 0.5 to 4.5 volts with no dropouts confirms sensor integrity. If irregularities appear, check the reference voltage wire (typically gray) for a steady 5 volts at the PCM connector–fluctuations here suggest internal ECM damage.
Oxygen sensor heaters frequently fail on vehicles with over 100,000 miles, especially the downstream (post-cat) sensors. Measure resistance across the heater element terminals–readings between 3 and 30 ohms are acceptable, while open circuits indicate internal failure. For Bank 1 Sensor 1 (passenger side), focus on the harness segment running alongside the valve cover; this area is prone to oil-soaked insulation breakdown. After replacement, monitor live data streams for consistent switching between 0.1 and 0.9 volts during closed-loop operation–persistent flatlining suggests unresolved circuit issues.
Transmission wiring, particularly the pressure control solenoid circuits, suffers from heat exposure near the valve body. Probe the pink and yellow wires at the transmission connector while monitoring line pressure with a scan tool–pressure fluctuations in response to solenoidal activation should be smooth. If erratic, follow the harness along the transmission case to the internal splice, a known failure point. For stubborn P0740 codes, backprobe the torque converter clutch wiring at the PCM and verify PWM signals with an oscilloscope–missing pulses confirm either solenoid failure or wiring shorts to ground.
