Start with the factory harness–pinout colors differ between premium and base trims. Locate the gray 12-pin connector behind the dash panel on the driver’s side; splice into the pink (left front +), dark blue (left front –), dark green (right front +), and light green (right front –) wires for instant front-channel integration. Skip the yellow/black and tan/black leads–those carry switched 12V and illumination signals, not audio.
For rear channels, track the harness bundle beneath the rear seat or cargo panel. The brown and brown/white wires handle left-rear outputs; orange and orange/black power the right side. Cut and crimp these before the amplifier relay if factory power delivery feels weak–directly wire 18-gauge oxygen-free copper to prevent signal loss over 3 meters.
Twist each speaker pair (positive/negative) together every 10 cm to reject RF interference–common when aftermarket head units lack balanced differential circuitry. Ground the new amp chassis to the unpainted driver-side kick panel bolt, not the trunk lid or tailgate, to avoid turn-on thumps caused by loose body grounds. Always confirm impedance (4-6 ohms typical) before powering up; bridging mismatched loads (
Test continuity with a 9V battery before finalizing connections–listen for crisp treble clicks from tweeters and solid midbass thumps from woofers. If the right-rear channel cuts out intermittently, probe the orange/black wire path for nicks near the fuel pump module grommet; splice a double-length segment here to restore 100% signal reliability.
Factory Audio System Connection Guide for GM Compact Sedan
Begin by locating the radio harness behind the head unit in the center dashboard stack. The vehicle’s audio interface uses an 18-pin rectangular connector with distinct pin assignments that must be matched precisely to aftermarket stereos. Misalignment risks signal loss or amplifier damage.
Identify the front and rear channel outputs using a multimeter set to DC voltage. Factory harness pins 1 (left front +), 2 (left front –), 3 (right front +), and 4 (right front –) deliver 2.8 volts peak-to-peak to door-mounted 6.5-inch midrange drivers. Pins 13 (left rear +) and 14 (left rear –) feed 6×9-inch rear deck units, while pins 15 and 16 handle the right channels.
Transfer these values to a structured reference to avoid confusion during upgrades:
| Component | Positive Pin | Negative Pin | Impedance | Peak Power |
|---|---|---|---|---|
| Front Left Midrange | 1 | 2 | 4Ω | 25W RMS |
| Front Right Midrange | 3 | 4 | 4Ω | 25W RMS |
| Rear Left Woofer | 13 | 14 | 6Ω | 15W RMS |
| Rear Right Woofer | 15 | 16 | 6Ω | 15W RMS |
Before disconnecting factory harnesses, disconnect the negative battery terminal for 10 minutes to reset the Bose amplifier module found under the driver’s seat. Failure to do so may trigger fault codes, disabling premium audio features.
Aftermarket adapters labeled GMOS-01 or PAC RP4-GM11 simplify integration by converting factory Bose signals to standard RCA. If these are unavailable, solder connections directly to pins, ensuring each wire is insulated with heat-shrink tubing rated for automotive temperatures.
When routing new cables, avoid the steering column wiring loom and climate control ducts. Use existing grommets behind the glove box or under the center console for rear speaker wires to prevent interference with HVAC vents or footwell lighting modules.
Test each channel with a 1 kHz sine wave at half volume before final installation. Distorted output indicates reversed polarity or a short–swap positive and negative leads if necessary. Document changes for future reference.
Amplifier Bypass Procedure
To eliminate factory signal processing, tap into the harness before the amplifier. Locate the gray 4-pin connector near the fuse box (fuse #32, 10A). Splice into pins 2 (+) and 4 (–) for front channels, and pins 1 (+) and 3 (–) for rear. This approach delivers cleaner signal but reduces volume by 50%–install an external amp if more power is needed.
Finding Factory Audio System Connector Points in Your Vehicle
Begin by removing the door panels using a trim removal tool. The main electrical harness for the sound system is attached to the back of the door’s inner frame, near the latch assembly. Disconnect the electrical connector before fully removing the panel to avoid damaging wires.
The front driver-side panel conceals a secondary harness behind the lower dashboard trim, adjacent to the kick panel. This connector typically measures 6 inches in length and has a gray or black cover with labeled pins. If labels are absent, use a multimeter to identify positive and negative leads by checking for 4-8 ohm resistance.
- Rear door connectors are accessed by removing the side trim near the rear passenger seat. The harness is secured with a single 10mm bolt and routes through the door hinge area.
- The trunk harness, if equipped with a subwoofer, is located behind the left-side interior panel, beneath the carpet. Look for a 2-pin connector with thicker gauge wiring.
- Dashboard connectors are embedded behind the stereo unit. Remove the center console trim with a flathead screwdriver to reveal a 12-pin plug for the factory amplifier, if installed.

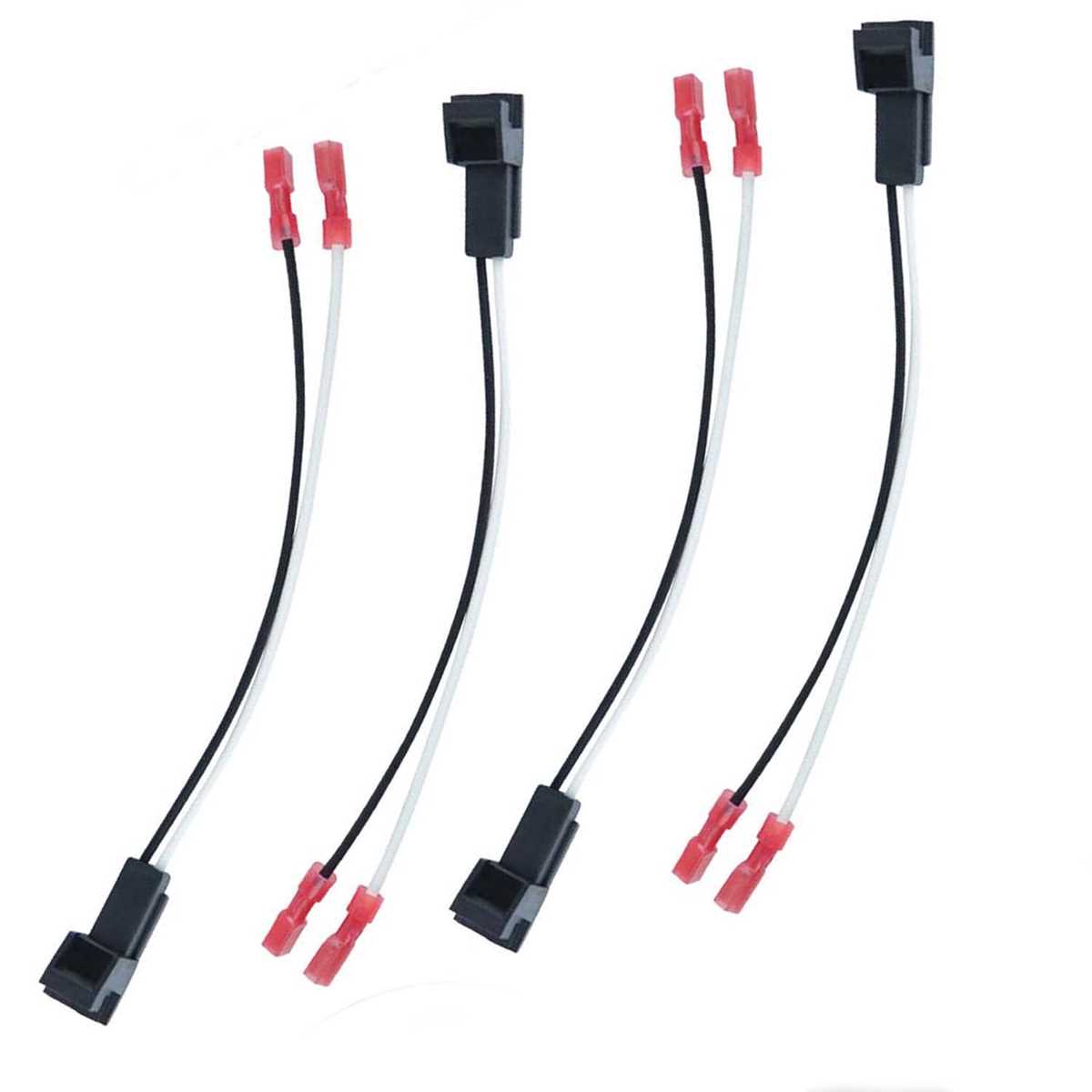

Use a wiring pigtail adapter for non-destructive testing–these adapters match the vehicle’s OEM pin configuration (typically Metra 70-2003). If bypassing the factory harness, note that the rear coaxial leads use a twisted pair design to reduce interference, while front tweeters rely on separate, thinner gauge wires.
Check for hidden connector blocks under the rear seat. Some models include a splice junction for rear fill speakers, accessed by lifting the seat cushion and removing a plastic cover. The junction may be tucked behind foam insulation.
Verifying Connections
Inspect every connector for corrosion, especially in humid climates. Clean oxidized terminals with electrical contact cleaner and a small wire brush. Reapply dielectric grease before reconnecting to prevent future oxidation.
- Test each lead with a 9V battery and speaker–positive leads will cause the speaker cone to push outward, while negative leads pull inward.
- Confirm continuity with a multimeter; doors should register ~2-4 ohms, while dash tweeters may show higher resistance due to crossovers.
- Label each connector with masking tape to avoid miswiring during installation.
For vehicles with an optional premium sound package, an amplifier is located under the front passenger seat. The harness includes a 16-pin connector with power, ground, and signal outputs. Disconnect the battery before servicing this area to prevent short circuits.
Front and Rear Audio System Connector Color Standards
Begin by locating the 12-pin connector on the vehicle’s harness for door-mounted units. The left front channel typically uses solid tan (positive) and tan/black stripe (negative). Verify polarity at the terminal–incorrect connections cause phase cancellation, reducing midrange clarity. For right-side units, match solid gray with gray/black stripe, ensuring resistance does not exceed 4 ohms.
Rear Channel Pin Assignments
Factory rear assembly harnesses split into two 6-pin connectors. Terminal A (upper) carries left rear outputs: solid light blue (hot) paired with light blue/black (return). Terminal B (lower) handles right rear: solid dark green for signal, dark green/black for ground. Cross-reference terminal numbers with a multimeter–voltages should read ~12V on active leads during playback.
Shielded cables may appear in premium trims. If present, these bundle all return lines into a single braided wire. Isolate it from signal wires during installation–induced noise degrades high-frequency response. For non-shielded setups, route signal wires at least 6 inches from power cables to prevent interference.
Aftermarket adapters often transpose these standards. Check documentation for pin swaps–some kits label tan as “F” and gray as “R,” but color codes remain consistent with GM’s C1/C2 harness spec. If modifying, splice into existing harness rather than cutting factory connectors to preserve resale integrity.
Door seals can trap moisture near terminals. Apply dielectric grease to exposed pins before reattaching connectors. For subwoofer installations, tap the rear channels–left/right signals merge into a purple/black harness near the trunk’s fuse box, not the speaker wiring.
Test each lead before finalizing connections. A 1kHz sine wave at 50% volume should produce balanced output across all channels. If imbalance occurs, recheck for shorted ground wires–common in door hinge areas where wiring bends repeatedly.
Step-by-Step Guide to Diagnosing Audio Circuit Integrity with a Multimeter
Set the multimeter to continuity mode (usually marked with a sound wave symbol). This setting detects whether a path exists between two points and emits a beep if resistance is below a certain threshold, typically under 10 ohms.
- Disconnect the head unit and amplifier from the vehicle’s electrical system to prevent false readings or short circuits.
- Remove the door panels, dashboard trim, or any obstructing components to access the circuit connectors. Use a trim removal tool to avoid damaging clips.
Locate the connector pins corresponding to the front left (FL), front right (FR), rear left (RL), and rear right (RR) outputs. These are often labeled on the harness side or in the vehicle’s repair manual. For most models, the standard pinout includes:
- FL: Positive (+) – green/black stripe; Negative (–) – solid green
- FR: Positive (+) – gray/black stripe; Negative (–) – solid gray
- RL: Positive (+) – purple/black stripe; Negative (–) – solid purple
- RR: Positive (+) – tan/black stripe; Negative (–) – solid tan
Attach the multimeter probes to the positive and negative terminals of the first channel while still disconnected from the load. A valid reading should show continuity with a beep and resistance close to zero ohms. If resistance exceeds 5 ohms or no beep occurs, inspect the harness for frayed wires, corrosion, or broken strands.
Repeat the test with the speaker connected. Measure impedance by switching the multimeter to ohms (Ω) mode, 200Ω range. A healthy 4-ohm load should read between 3.8Ω and 4.2Ω. Values significantly below 3.5Ω indicate a partial short; readings above 5Ω suggest a damaged voice coil or disconnected cable.
For vehicles with crossovers or premium systems, test each component individually. Midrange and tweeter circuits may show higher impedance (e.g., 6–8Ω) due to added internal components. Verify these values against the manufacturer’s specifications.
If a channel fails the test, isolate the issue by testing segments of the harness. Start at the amplifier connector, then move toward the speaker. Use alligator clips to connect the multimeter probes to stripped wire ends if necessary. Replace or repair any damaged sections with 18-gauge oxygen-free copper wire and heat-shrink tubing to ensure durability.
