For accurate speaker and harness integration, begin by tracing the orange wire (constant 12V) from the factory power source to the receiver’s red input. This ensures uninterrupted memory retention when the ignition is off. Locate the yellow (switched 12V) lead–typically routed through the ignition harness–then verify continuity with a multimeter before splicing. Incorrect pairing risks draining the battery within 48 hours.
Ground wires (black or brown) must terminate at a bare chassis point, preferably near the original mounting bracket. Sand paint down to bare metal to prevent resistance issues. If factory amplification is present, the blue/white (remote turn-on) wire triggers external devices when the audio system activates–connect this directly, not through a fuse tap, to avoid signal lag.
Factory navigation units often include a CAN bus interface (pink/green stripe). Bypass this for aftermarket installs unless software-compatible modules are available. For steering wheel controls, use an OBD-II plugin adapter or hardwire through the data port–manual resistors or CAN bus emulators introduce latency. Double-check polarity on all speaker wires before final crimp connections; reversed polarity distorts midrange frequencies.

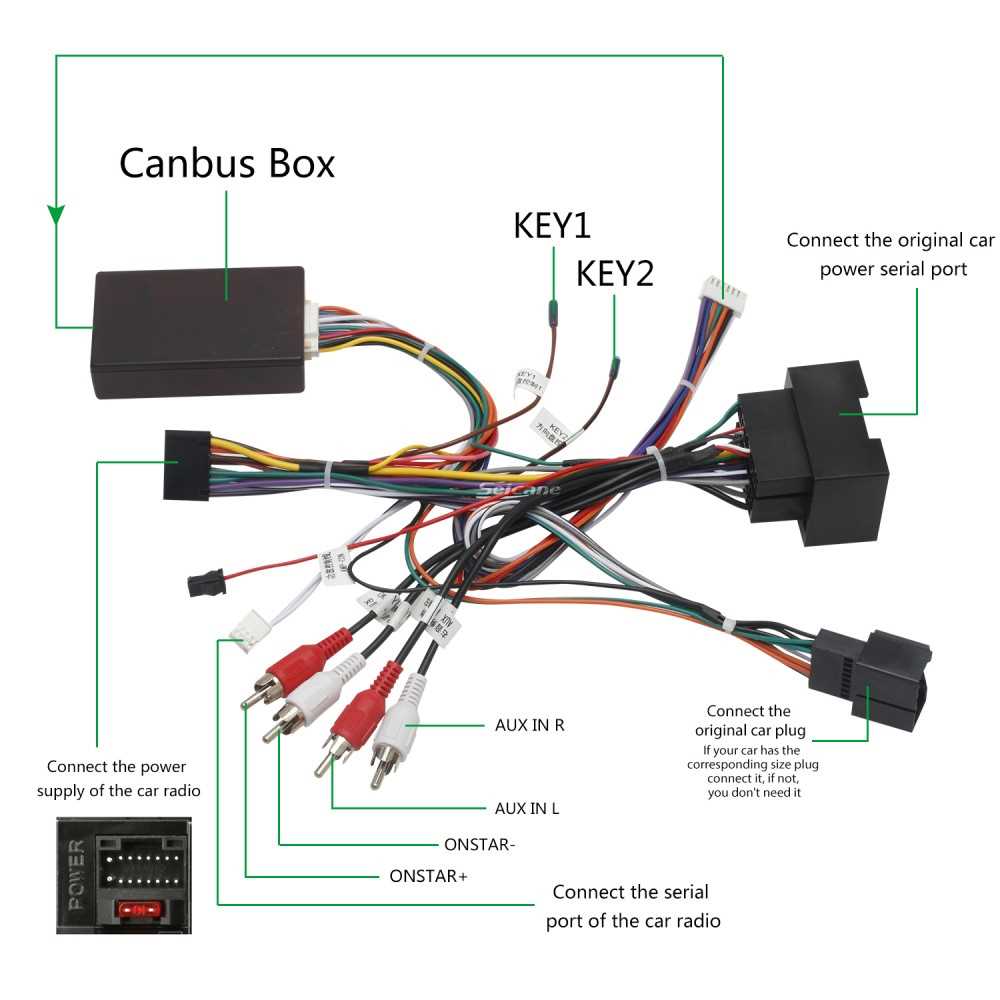

Aftermarket harness adapters labeled Metra 70-1761 or Axxess ASWC-1 simplify integration but verify compatibility with the vehicle’s BCM (Body Control Module). Retain the factory antenna amplifier–disabling it reduces signal strength by 30%. Finalize with dielectric grease on all connectors to prevent corrosion, particularly in high-moisture environments.
Electrical Schematic Guide for Premium Sedan Infotainment System
Locate the fuse box beneath the dashboard on the driver’s side to begin tracing power connections. Pin 17 on the 24-pin harness delivers constant 12V, verified with a multimeter reading between 11.8V and 14.2V. Failure here often stems from a blown 20A fuse–check label F5 before probing further.
Ground points cluster near the center console; G402 and G403 serve as primary anchors for audio components. Clean corrosion from these points using 1000-grit sandpaper, then secure with star washers to prevent signal interference. Loose grounds manifest as static or intermittent cutouts.
Color-Coded Wire Functions
Pink wires (B+) carry ignition-switched voltage–test at accessory mode to confirm activation. Orange stripes signify dimmer inputs, reducing voltage by 50% when headlights engage. Yellow leads supply memory power, retaining presets during key-off cycles. Cross-reference these with factory service manual page 8-24 for exact tolerances.
Speaker outputs utilize twisted pairs: purple (left rear +), purple/black (left rear –), gray (right front +), gray/black (right front –). Impedance mismatch from aftermarket units often causes distortion–measure each channel at 2–8 ohms.
Data links follow CAN protocol on tan/dark green wires. Use a diagnostic scan tool with GM Class 2 support (e.g., Tech2) to monitor serial communication errors if the display remains unresponsive. Baud rate defaults to 33.3 kbit/s–deviations indicate wiring faults.
Modification Precautions
Splice connectors rated for 22–18 AWG when installing amplifiers. Crimp joints with heat-shrink tubing to seal moisture; solder risks melting factory insulation. Avoid tapping power directly from the battery terminal–draw from harness connector C1 (blue/white stripe) to maintain circuit protection.
Dash disassembly requires removal of the climate control panel first–pry gently at the lower edge with a trim tool. Retain screws in labeled bags; reinstallation order matters for proper fascia alignment. Temporary audio disconnection triggers “No CD” errors–clear codes via the infotainment menu after reassembly.
Verify all connections with a continuity tester before reassembly. Probe each pin on the harness side while stimulating component sockets–open circuits require back-probing the module itself. Dust caps on unused harness ports prevent shorts–store them in a ziplock bag for future diagnostics.
Finding the Audio System Harness Interface in Your Luxury Sedan
Start by lowering the driver-side dashboard panel beneath the steering column. The factory-installed sound unit connector sits behind this trim, secured to the metal support bracket with a single 10mm bolt. Disconnect the negative battery terminal first to prevent short circuits – residual power in the vehicle’s electrical network can persist for up to 30 minutes. Use a trim removal tool or flathead screwdriver wrapped in electrical tape to pry off the panel; forceful wedging risks cracking the plastic clips.
The harness interface, a 24-pin grey connector, is clipped into a mounting bracket adjacent to the climate control module. Labels on the wiring loom identify each pinout: solid orange denotes constant 12V power, pink with black stripe carries switched ignition, while purple and white wires feed the left and right front door speakers. Gentle tugging may not release the connector; press the retaining tab on the side to disengage it. Avoid yanking wires – Audi/VW-derived platforms use thin-gauge aluminum strands prone to breakage.
Behind the glove compartment, a secondary harness joins the amplifier to the head unit. Remove the passenger-side lower dash panel by unscrewing two 7mm bolts, then locate the 16-pin rectangular plug. This connection handles rear speaker outputs, subwoofer control, and antenna power. If upgrading to an aftermarket system, bypass the amplifier entirely – splicing directly into the main harness behind the unit reduces signal interference. Note that the factory harness uses fiber-optic MOST Bus for audio streaming, requiring an adapter or impedance matching for non-OEM installations.
For vehicles equipped with navigation, an additional 8-pin connector routes video signals to the central display. This harness, tucked behind the center stack’s upper trim, requires removing the ashtray and climate control knobs first. Depress the locking tabs on both sides of the connector to release it; pulling too hard without disengaging the clips can damage the pins. Ground wires (black with grey stripe) terminate at the firewall’s mounting stud near the brake master cylinder – ensure clean, corrosion-free contact when reinstalling.
Verify each connection by probing with a multimeter before reassembly. Expected voltages: 12.54V (constant power), 0V (ground), 0.5-3V (speaker wire ohms at rest). If values deviate, inspect fuse F30 (15A) and F51 (30A) in the under-hood junction box, as well as the 160A main fuse near the battery. Loose factory crimps often cause intermittent failures – use solder and heat-shrink tubing for repairs. Reattach dashboard panels in reverse order, ensuring all clips snap fully into place to prevent rattles.
Factory Stereo Harness Wire Colors for Sedan Audio Upgrades
Connect the head unit’s yellow power lead directly to the twelve-pin connector marked C1 on the back of the OEM stereo cage; the solid yellow wire carries constant battery voltage and must be fused within 15 cm of the chassis harness splice to avoid fire risk.
Locate the solid light-green wire at connector C2, pin 7–this is the left-front positive speaker feed. Pair it with its companion solid brown (pin 8) return; observe the 0.5 mm² gauge difference compared to rear channels to maintain factory fade balance.
Aftermarket harnesses often mislabel the dimmer input; the true instrument illumination control is the solid gray conductor inside C2 at position 4. Splice it with a 1 kΩ resistor in series if retaining dashboard luminance sync with the new receiver.
Ground interference from shared chassis points is common: run a dedicated earth cable from the install bracket’s bare M6 bolt to the uncoated floorpan under the driver’s seat, using star-washer torque of 18-22 Nm to prevent oxidation gaps.
Front right audio is transmitted via a striped orange wire (pin 9) and returned through solid dark blue (pin 10); preserve the twisted pair geometry during routing to prevent phase cancellation above 12 kHz in high-bitrate audio files.
The pink conductor inside C2 at pin 2 delivers switched ignition voltage–route it through an inline thermal fuse rated 7.5 A, bypassing the factory timed accessory relay if later models exhibit premature shutdown during power transitions.
Rear channel wiring reverses the convention: striped violet (pin 5) is the positive signal, returned via solid light blue (pin 6); verify polarity with a 100 Hz tone sweep before securing the deck’s 17 mm retaining screws to prevent infrasonic rattles.
OEM Bluetooth microphone and USB retainer circuits remain factory-matched on the teal and striped yellow wires at C1 pins 12 and 11 respectively–contact pin verification under 3.3 VDC must show
Step-by-Step Guide to Accessing the Audio System Cables Behind the Front Panel
Disconnect the vehicle’s negative battery terminal first. Use a 10mm wrench to loosen the clamp, then set the cable aside on a clean surface–avoid letting it touch metal. This prevents short circuits during work.
Remove the center trim panel by prying carefully along its edges. Start at the bottom near the gear selector, working upward with a plastic trim tool. Gently pull outward to release the clips–don’t force them, as they snap easily. Store the panel face-down to protect the finish.
Locate the climate control unit behind the trim. It’s secured with four screws: two at the top and two at the bottom. Use a Torx T20 driver to remove them. Slide the unit forward slightly, then unplug the electrical connector at the back by pressing the release tab.

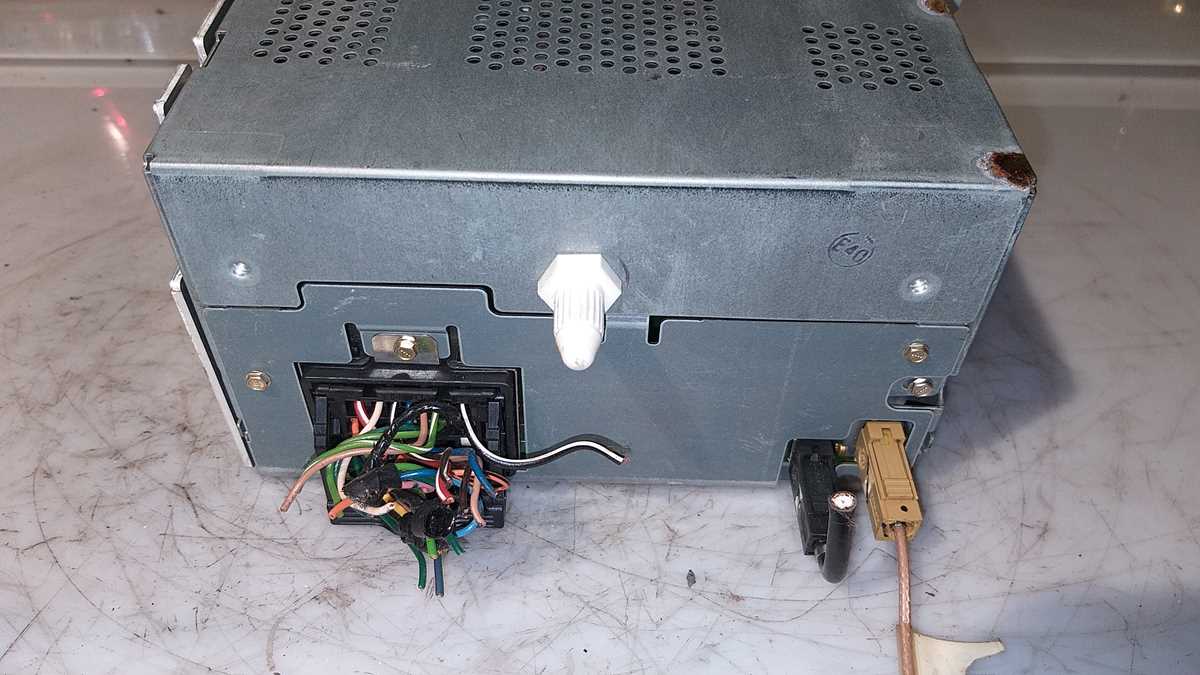

The audio head unit sits directly beneath. It’s held by a metal bracket with two screws on either side. Remove these with a 7mm socket, then tilt the unit outward. Two connectors attach to the rear–one power harness, one antenna lead. Squeeze the locking tabs to release them.
Once freed, pull the unit forward to expose the wiring harness. Label each wire bundle with masking tape to avoid confusion during reinstallation. Key connectors include:
- The main power feed (yellow, 12V constant)
- Switched power (red, 12V ignition)
- Ground (black, chassis)
- Speaker outputs (gray, white, green, purple pairs)
Trace cables to the firewall if additional modifications are needed. The factory harness routes through a grommet behind the glovebox–cut it carefully with wire strippers if splicing is required. Use heat-shrink tubing or crimp connectors to ensure secure, corrosion-resistant joints.
Reinstall components in reverse order. Reconnect all harnesses firmly, ensuring clicks confirm proper seating. Test the system before reassembling the trim–power on, check each function (tuner, media inputs, volume controls). If static or no sound occurs, re-check ground connections and speaker wires for shorts.
