Installing a new head unit requires precise connections to maintain functionality. The factory harness adapter for this model uses a 16-pin ISO connector, divided into power, speaker, and accessory lines. Begin by matching red (constant 12V) and yellow (switched 12V) wires–reversing these will drain the battery. The black ground wire must terminate within 18 inches of the chassis; avoid daisy-chaining. Speaker outputs follow a standardized color code: white/gray (front left), green/purple (front right), blue (rear left), and violet (rear right), with striped variants indicating negative polarity.
Anticipate two critical deviations from generic wiring templates. First, the antenna trigger (blue/white) actively sends a 12V signal only when the head unit powers on–manual bridging to a constant source risks amplifier burnout. Second, the illumination wire (orange) interfaces with the vehicle’s dimmer, reducing backlight intensity in sync with dashboard controls. Skipping this connection defaults the display to full brightness, creating glare at night.
Verify connections with a multimeter before finalizing. Probe between each speaker wire and ground–expect ~4 ohms resistance for proper circuitry. For amplified systems, ensure the remote turn-on (blue) wire connects solely to aftermarket amplifiers; tapping this to factory speakers may overload the 7.5A fuse. If retaining the stock clock spring, bypass the steering wheel control interface by isolating the pink/light green wires; accidental grounding triggers erroneous Bluetooth pairing prompts.

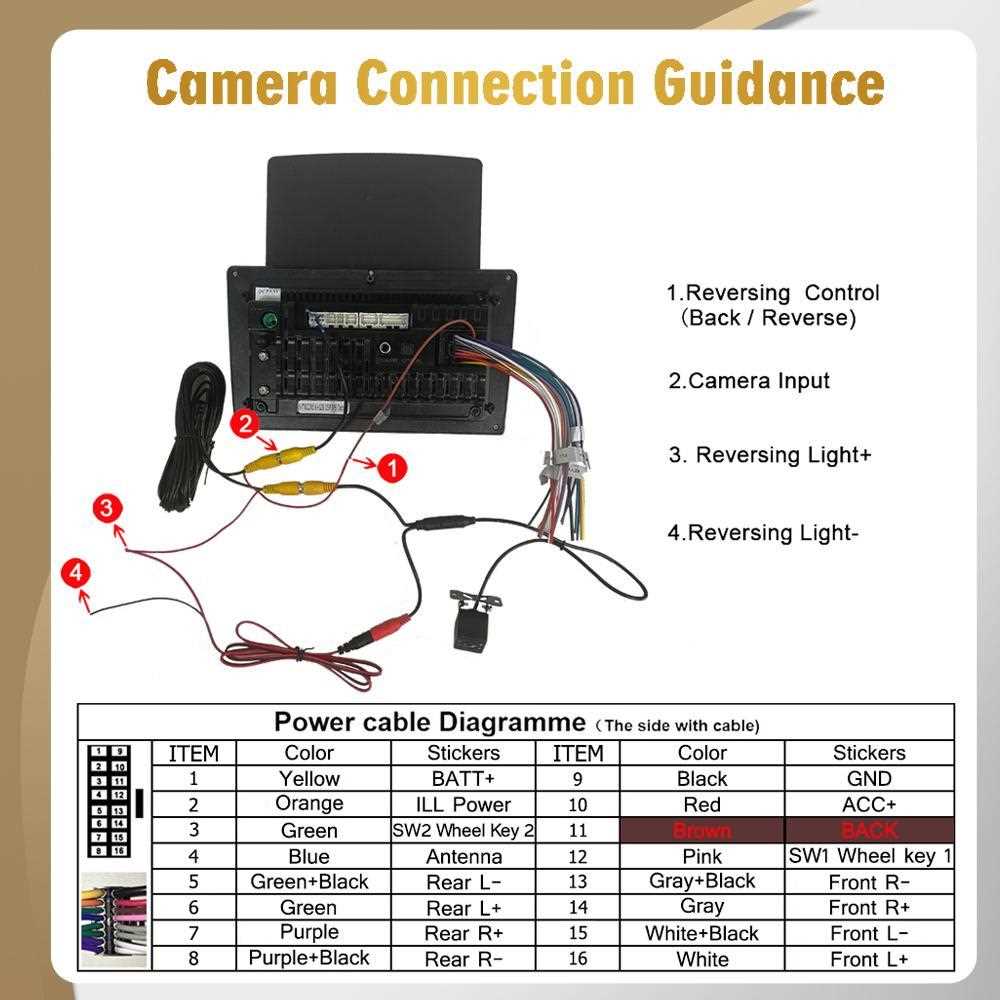

Common pitfalls include mistaking the pink (parking brake sensor) wire for a speaker lead–connecting audio output here triggers safety interlocks, disabling video playback. Similarly, the brown (vehicle speed signal) wire carries a 5V pulse train critical for speed-sensitive volume adjustments; splicing into it disrupts OEM navigation systems. For rear-view camera integration, route the purple/white wire directly to the head unit’s reverse signal input–intermediary adaptors induce latency.
Understanding the Factory Audio System Connections in Your Compact Sedan

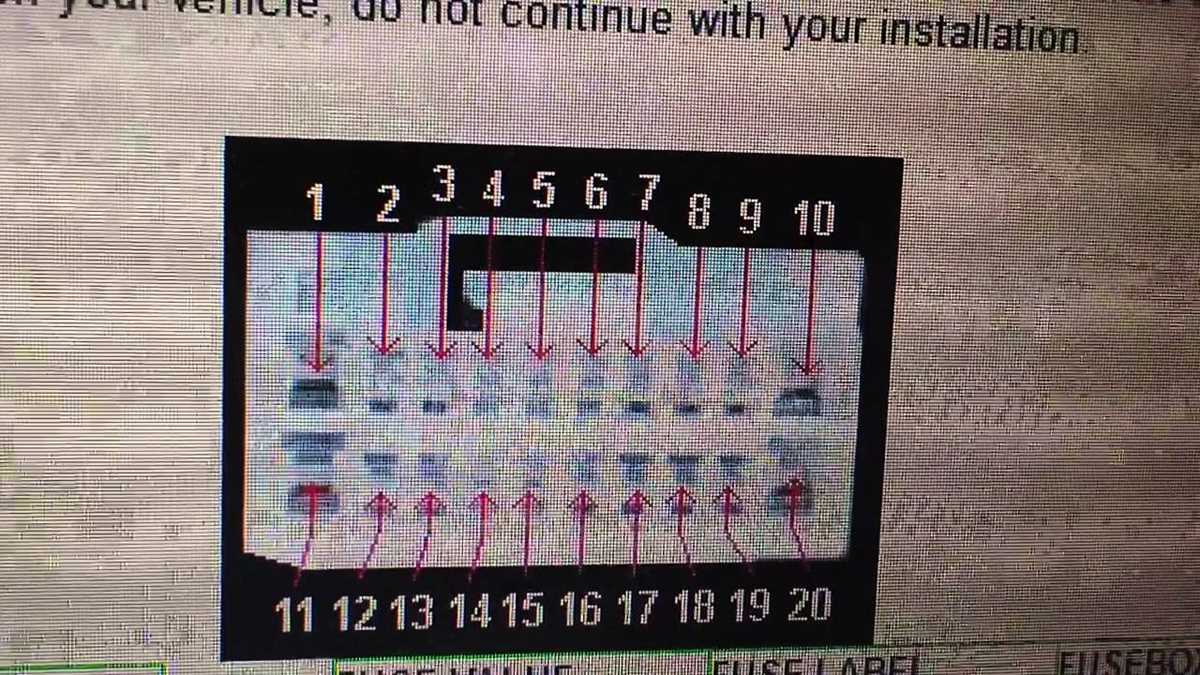

Locate the main harness behind the dashboard on the driver’s side–it’s a 20-pin connector labeled METRA 70-8112 or equivalent. The power wires are yellow (constant 12V), red (switched 12V), and black (ground). Tap these directly to avoid voltage drop that causes silent starts in aftermarket units. Factory harnesses often bundle illumination wires (light green) and antenna triggers (blue/white stripe); omit these if your new head unit doesn’t support automatic power antennas.

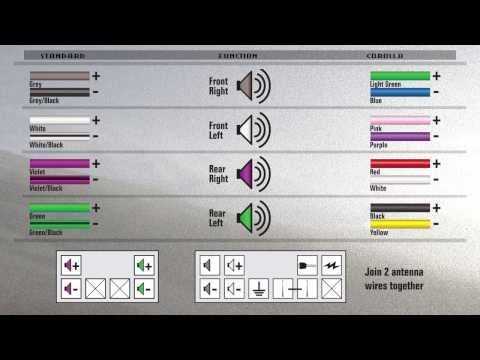

Speaker outputs follow a standardized color code but verify with a multimeter–positive leads carry 4-6 ohms resistance, negatives read 0 ohms to chassis. Front left pairs are gray/light gray, front right white/white-black, rear left green/green-black, and rear right purple/purple-black. Swap any mismatched wires immediately; incorrect polarity distorts mid-bass frequencies beyond repair in stock-sized door speakers.
Amplifier turn-on leads (usually blue) require direct splicing into the aftermarket harness–never rely on the OEM connector’s residual current. Test with a 12V bulb before final crimping; insufficient current draw prevents subwoofers from initial engagement. Retain the factory security interface (beige wire on some trims) only if integrating with Toyota’s immobilizer; disabling it causes no issues for standalone installs.
Reuse the climate control harness adapter (part #82290-02010) for seamless dashboard reassembly. Misaligned tabs crack the plastic surround–apply electrical tape to the edges during disassembly. If retaining the stock display, the teal wire carries VSS data; bypass it unless your new unit supports vehicle speed-compensated volume.
For models with rear entertainment, the pink wire feeds the RCA-level signal–bridge it to a line-out converter if adding an external amplifier. Factory navigation units output 2V preamp voltage; aftermarket decks often push 4V–attenuate with a 5k-ohm resistor to prevent clipping in passive crossovers.
Ground the system within 18 inches of the head unit location using a 10-gauge wire attached to unpainted chassis metal. Scrape the surface to bare metal and use star washers; poor grounding introduces alternator whine at idle. Route wires away from heater cores and ECU harnesses to prevent electrical interference.
Check fuse ratings–constant power wires draw 10A, switched 7.5A. Replace blown fuses with automotive-grade ceramic, not glass. If adding a capacitor, mount it under the driver’s seat with 4-gauge power cables; the factory harness lacks sufficient current capacity for high-wattage systems.
Verify connections with a 9V battery test light before powering on. Unplug the negative terminal first during diagnostics. Reassemble the dash in reverse order, pressing clips firmly–loose panels rattle at highway speeds.
Finding the OEM Audio System Plug in a 2007 Model Sedans
Remove the center trim panel beneath the climate controls by gently prying with a plastic trim tool–start at the bottom left corner and work upward. The harness is tucked behind this panel on the right side, secured by a single 10-mm bolt; once removed, the plug’s 16-pin rectangular connector becomes visible, typically black or gray with a latch facing downward for release.
Check for a secondary eight-pin harness if the vehicle includes steering wheel audio controls–this smaller plug sits adjacent to the main connector and carries adhesive identification tags labeled “SW” or “AUX.”
Decoding Harness Wire Colors for Third-Party Audio Upgrades
Begin by securing a multimeter to verify factory harness assignments–manufacturer labels often deviate from industry standards. Probe each strand with the ignition off, then in accessory mode, to isolate constant power, switched power, and illumination circuits.

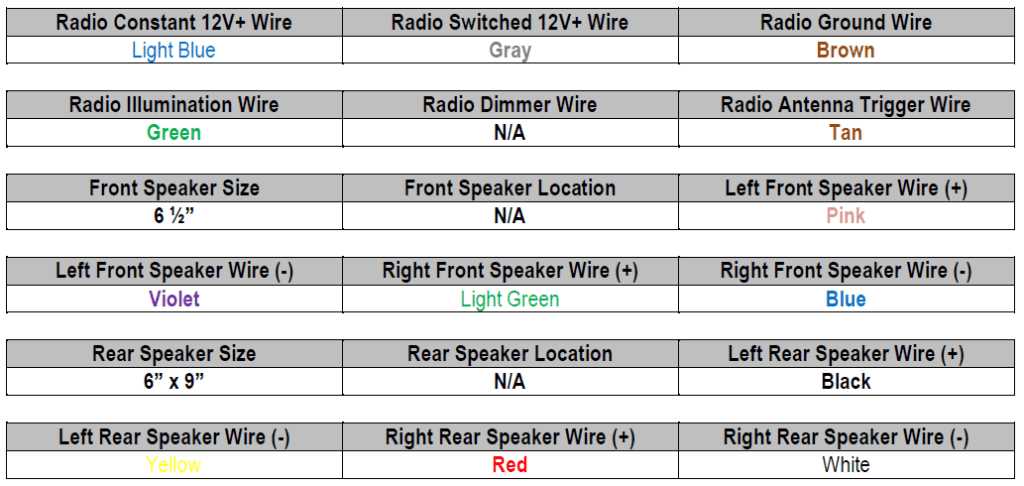

Standard color schemes typically follow this structure:
| Function | Primary Color | Secondary Trace | Voltage (Key On) |
|---|---|---|---|
| Battery feed | Yellow | None or red | 12V constant |
| Ignition input | Red | White or black | 12V switched |
| Ground | Black | None or brown | 0V |
| Speaker outputs (front) | Gray/White | Violet/Green | 4-8Ω AC signal |
| Dimmer/Illumination | Orange | White | 0-12V variable |
| Mute | Blue | None or white | 12V pulse |
| Amplifier remote | Blue | White stripe | 12V switched |
Strip 3-4mm of insulation from each conductor, then twist strands clockwise before crimping or soldering. Use heat-shrink tubing rated for 60-105°C to insulate joints–electrical tape degrades within 18 months under dashboard thermal cycling.
For vehicles with factory amplification, locate the pink/black antenna trigger lead; connecting it directly to aftermarket units may trigger automatic shutdown warnings. Instead, splice it to a 12V fuse tap rated at 10-15A to maintain compatibility with OEM theft-deterrent protocols.
Troubleshooting Common Pitfalls
If the new head unit powers off immediately after startup, revisit ground connections–ensure the chassis point is bare metal, free of paint or corrosion, and tightened to at least 8 Nm torque. For persistent popping or whining in speakers, install a noise filter capacitor (2,200-4,700μF) inline with the battery feed wire, keeping leads under 30cm to minimize inductance.
Certain models integrate steering wheel controls via a dedicated gray/red 5-wire bus; retain this plug by sourcing an interface module (e.g., ASWC-1) rather than splicing–direct connections risk ECU faults.
Verify speaker polarity by connecting a 9V battery briefly to each pair: cones should push outward–reverse connections reduce bass response by up to 30%. For subwoofer outputs, bridge the aftermarket harness’s gray and green leads to the factory purple/green strands to maintain phase alignment.
After finalizing connections, wrap all exposed joints in foil tape before securing the harness–this shields against RF interference from engine control modules typicallly emitting 800-1,200kHz harmonics.
Step-by-Step Guide to Connecting Power Leads (Constant, Chassis, and Switch-Controlled)
Begin by locating the vehicle’s fuse box–typically beneath the dashboard or adjacent to the driver’s side kick panel. Use a multimeter set to DC voltage (20V range) to identify a constant 12V terminal; probe potential wires while the ignition is off, avoiding those that lose voltage when the key is turned. For a stable ground, select a bare metal surface within 18 inches of the audio unit’s mounting location–clean the contact point with a wire brush to remove oxidation, then secure the lead with a ring terminal bolted directly to the chassis.
To connect the switch-controlled (accessory) lead:
- Trace the vehicle’s harness to locate a wire energized only when the ignition is in ACC or ON positions–common colors include red with a yellow stripe or solid blue (verify with a test light).
- Strip ¼ inch of insulation from both the harness wire and the audio power cable; join them using a crimp connector (butt splice) or solder for durability, then insulate the connection with heat-shrink tubing.
- Avoid tapping into the vehicle’s cigarette lighter circuit–it may not provide consistent current during cranking.
Critical Safety Checks
- After securing all connections, reconnect the vehicle’s negative battery terminal. Momentarily power the system; if the display illuminates, toggle the ignition to confirm the unit cuts off when the key is removed.
- Recheck ground integrity if experiencing static or dimming display–loose connections can mimic amplifier failure.
- For vehicles with factory security systems, ensure the constant 12V lead is not tied to an alarm-controlled circuit to prevent accidental draining of the battery.
