Begin by locating the aftermarket head unit harness and the OEM connector behind the dashboard. Match the color-coded wires from the radio kit to the vehicle’s factory wiring adapter–this prevents errors during installation. The power lead (yellow) connects to the constant 12V source, while the accessory wire (red) links to the ignition-switched circuit. Ground (black) must attach to bare metal; ensures stability.
Identify the speaker outputs: front left (+, -), front right (+, -), rear left (+, -), and rear right (+, -). Strip 1/4-inch of insulation from each wire, twist tightly, and secure with crimp connectors or solder for durability. Use electrical tape or heat shrink tubing to insulate connections. Crossed wires cause phasing issues–verify polarity before finalizing.
Test the amplifier remote turn-on (blue/white stripe, if present) by connecting it to the radio’s remote output. Without this, the amp won’t power on. For steering wheel controls, use a resistor-based adapter or CAN bus module–direct splicing damages the vehicle’s computer. Check fuse ratings: 10A–15A for the radio, 20A–30A for amplifiers.
Bypass the factory anti-theft system by entering the default security code (usually 0000 or 1234) if the display flashes “CODE.” Common issues include no sound (check fuses, ground, or loose connections) or intermittent volume (inspect speaker wires for shorts). Use a multimeter to confirm 12V at power inputs–drops below 11V indicate weak battery or poor grounding.
Car Audio System Connection Guide for 2007 Model Sedan

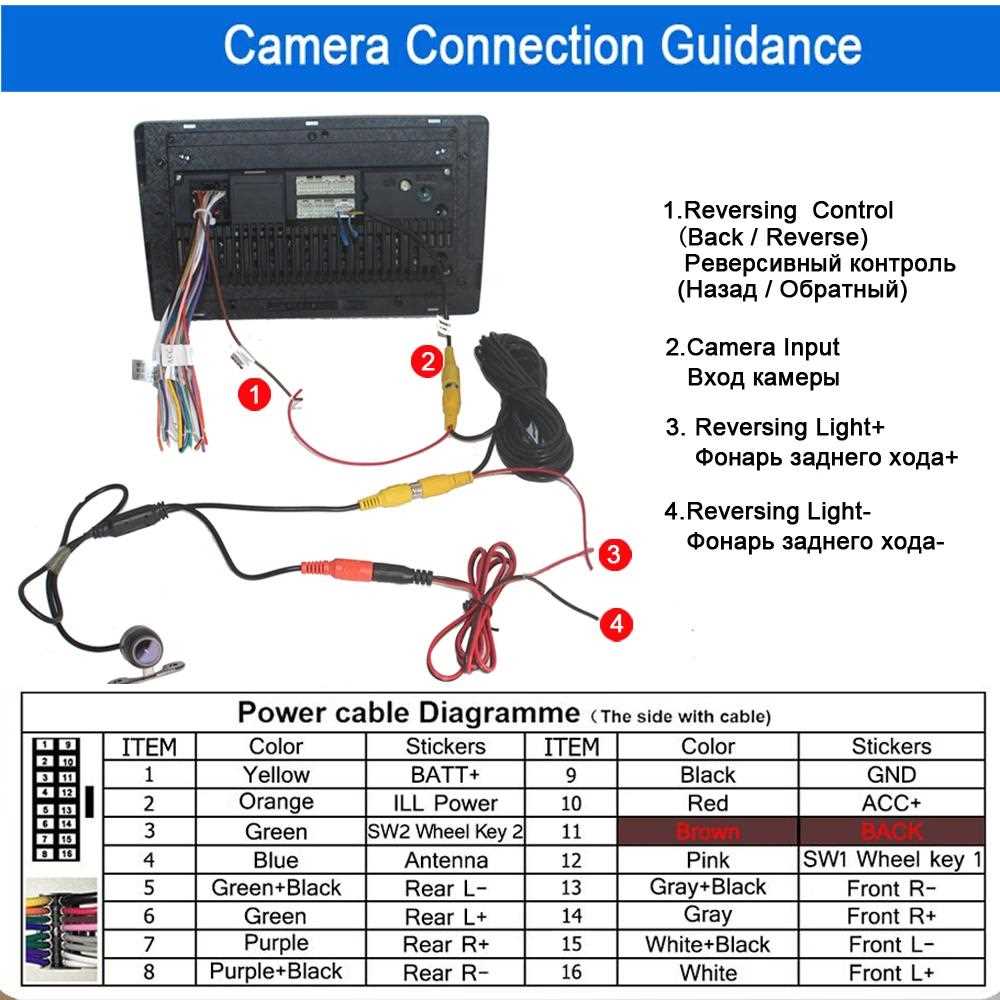

Locate the factory harness behind the head unit’s mounting bracket–it’s a 16-pin connector with wires grouped by color and function. Match these to the aftermarket radio’s wiring chart using a multimeter if labels are missing:
- Yellow: 12V constant power (battery line)
- Red: Ignition-switched 12V (accessory line)
- Black: Ground (chassis connection)
- Blue/White: Amplifier remote turn-on
- Orange/White: Dimmer control
- Gray/Black: Front right speaker (+)
- Gray: Front right speaker (-)
- White/Black: Front left speaker (+)
- White: Front left speaker (-)
- Green/Black: Rear right speaker (+)
- Green: Rear right speaker (-)
- Purple/Black: Rear left speaker (+)
- Purple: Rear left speaker (-)
Strip and twist corresponding wires from the new unit, securing them with solder or crimp connectors to prevent signal loss. Use heat shrink tubing for insulation–electrical tape degrades over time. If the factory system includes steering wheel controls, retain the gray 8-pin connector for an adapter module; bypassing it will disable button functionality.
Test connections before reassembling the dashboard. Turn the key to ACC and verify:
- Radio powers on without flickering
- All speakers produce clear sound (no distortion or static)
- Volume adjusts evenly across channels
- Illumination dims with headlights
- Steering wheel controls respond if applicable
For persistent issues, check fuse #17 (10A) in the junction box–it supplies power to the audio system. If the head unit resets after shutdown, the yellow and red wires may be reversed or the ground connection insufficient. Tighten the black wire to bare metal, avoiding painted surfaces, for a stable reference point.

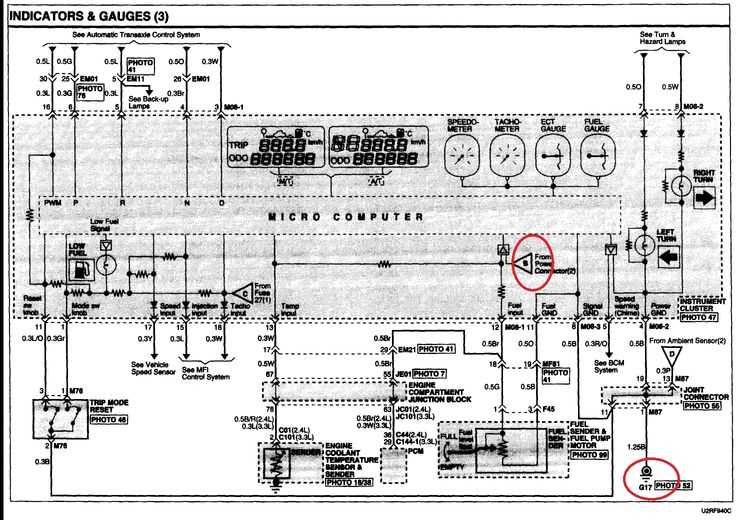

Finding the Original Head Unit Harness Connections

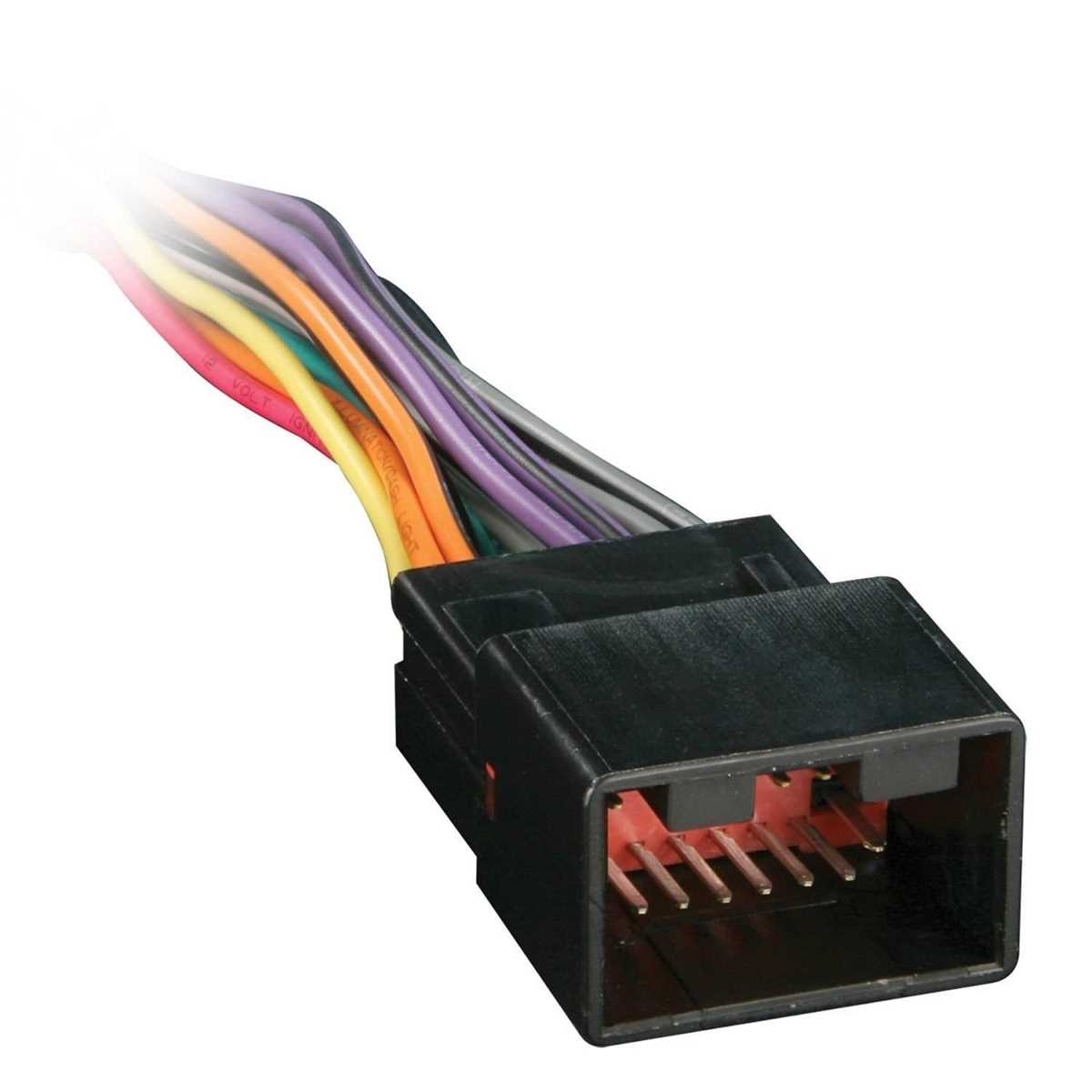

Start by removing the center dash trim panel–it typically snaps off with minimal force. Use a non-marring tool to pry along the bottom edge near the climate controls, then lift upward to release the clips. Behind the factory radio, you’ll find a 16-pin rectangular plug (often white or gray) and a smaller 8-pin accessory connector; both must be disconnected before pulling the unit out. Label each connector with masking tape to avoid mixing up power, ground, and speaker leads during reinstallation.
The main harness carries all critical signals: constant 12V (yellow), switched power (red), ground (black), front left (+) (green/white), front right (+) (gray/white), rear left (+) (tan/white), and rear right (+) (purple/white). Verify each wire’s function with a multimeter before splicing–never assume colors match aftermarket diagrams. The smaller 8-pin plug usually handles steering wheel controls and illumination; its wires are thinner and colored brown, pink, or light blue.
If the connectors are tucked deep, slide the head unit halfway out–enough to access the plugs but not fully, to prevent stretching wires. Check for hidden screws securing the unit from below; some models use two 10mm bolts accessible only after dropping the lower dash panel. Work under good lighting, as pinched or damaged cables can cause intermittent signal loss or blown fuses.
Wire Color Standards and Signal Roles in Mid-2000s Sedan Audio Harnesses
Locate the 12V constant power lead immediately–it’s always the yellow wire, thicker gauge than others, terminating at the fuse block under the dash. Verify with a multimeter: 12.2–13.8V DC at all times, even with ignition off. If voltage drops below 12V, trace upstream to the battery or main relay; corrosion on the positive terminal often causes phantom power loss.
Speaker outputs follow inverse polarity pairs:
- Front Left (+): Light green (tweeter +), Dark green (woofer +)
- Front Left (-): Light green/black stripe (tweeter -), Dark green/black stripe (woofer -)
- Front Right (+): Gray (tweeter +), Gray/red stripe (woofer +)
- Front Right (-): Gray/black stripe (tweeter -), Gray/blue stripe (woofer -)
- Rear Left (+): White
- Rear Left (-): White/black stripe
- Rear Right (+): Purple
- Rear Right (-): Purple/black stripe
Cross-check resistance between each (+) and (-) pair–expect 4Ω (±0.5Ω) per speaker. If reading exceeds 8Ω, suspect open circuit in the voice coil or harness break near door hinges.
Ground connection is black, typically daisy-chained to multiple harness legs; consolidate to a single point–factory chassis bolt behind the center console or under driver’s seat. Scrape paint at attachment point to bare metal; use star washer and dielectric grease to prevent oxidation. Poor grounding manifests as alternator whine or intermittent signal cutout at high volumes.
Illumination control uses orange (full intensity) and orange/white stripe (dimmable); confirm both toggle when headlights activate. Antenna motor power is pink, drawing ~5A during deployment–ensure relay contacts are clean; pitting caused by low-grade wiring kits often stalls the mast. For aftermarket units requiring data bus integration, tap the blue/white stripe CAN line near the OBD-II port–resistance is critical; maintain
How to Connect Third-Party Audio Cables to Original Vehicle Connections

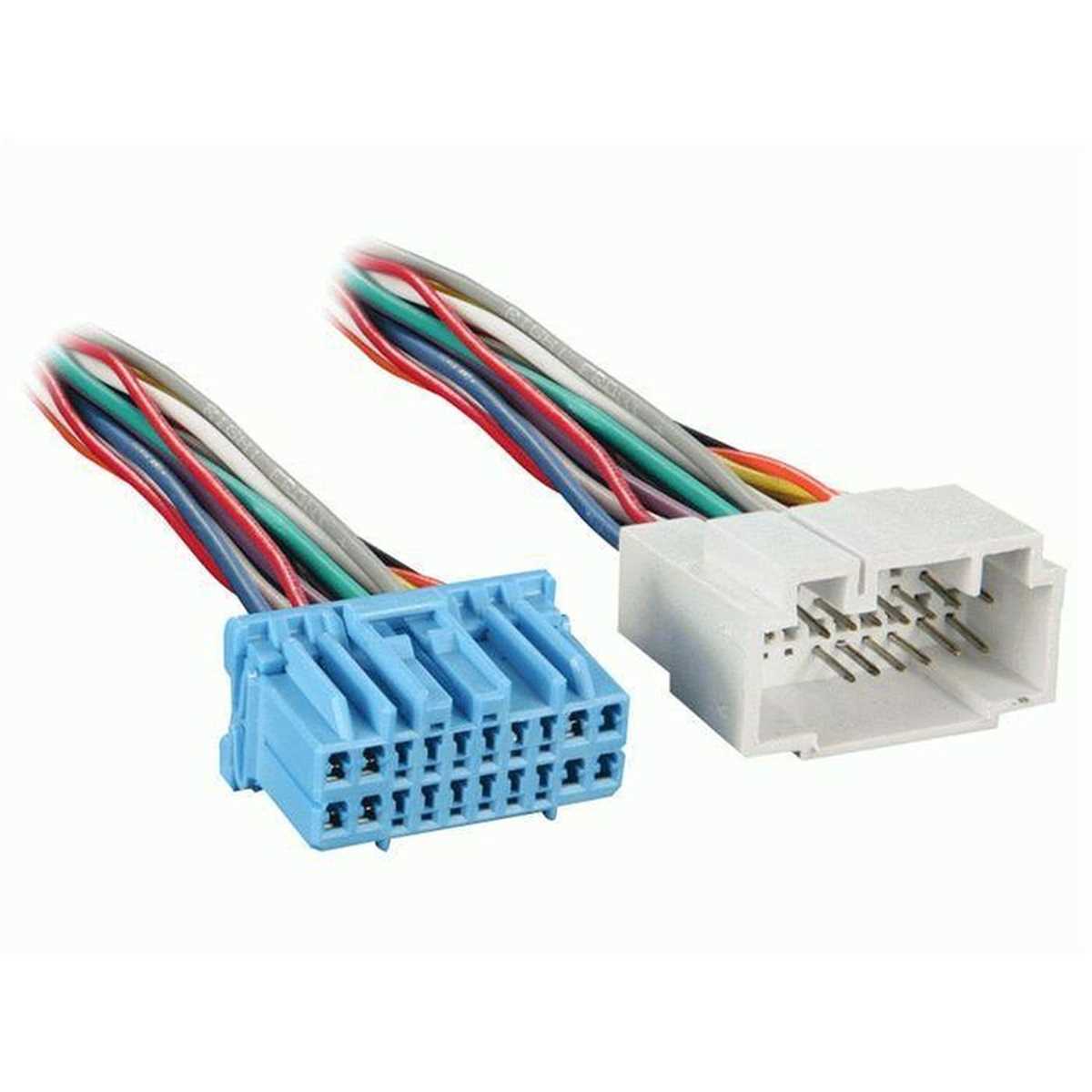

Locate the factory plug behind the dashboard panel–it’s typically a 10–12-pin connector with color-coded leads. Match each aftermarket wire to its OEM counterpart using a vehicle-specific pinout chart: constant 12V (yellow), ignition-switched 12V (red), ground (black), front left/right speaker positives (gray and white), speaker negatives (gray/black and white/black), and illumination (orange or brown).
Strip 5–7mm of insulation from each aftermarket lead using precision wire strippers, avoiding cuts into the copper strands. Twist the exposed strands clockwise to prevent fraying, then slide a 3–4mm piece of heat-shrink tubing onto the wire before joining–this prevents accidental shorts and simplifies future repairs.
Soldering vs. Crimping: Which Method Lasts Longer?
Solder joints create a molecular bond that resists vibration and corrosion, ideal for vehicles exposed to temperature swings. Use rosin-core solder (60/40 or 63/37) and a controlled-temperature iron (350–400°C) to avoid overheating the connection. Apply heat to the wire first, then touch solder to the heated strands until it flows smoothly–never drip solder onto the iron.
Crimping is faster but requires exact tooling: a ratcheting crimper with a 22–18AWG jaw ensures proper compression without cutting the copper. Use tin-plated butt connectors for speaker wires (to prevent oxidation) and insulated female spade terminals for power leads. After crimping, tug each joint firmly–if it pulls apart, redo it immediately.
For vehicles with CAN bus systems, avoid splicing into the data wires (purple, purple/white, or pink). Instead, use a bypass module or T-harness adapter designed for newer models. If splicing is unavoidable, wrap each joint in self-fusing silicone tape after heat-shrinking–this adds a second moisture barrier and dampens vibrations.
Test every connection with a multimeter before reassembling the dash. Set the meter to DC volts and probe the constant power wire–it should read 12–14V regardless of ignition state. Check the ground by touching the probe between the chassis and the black wire (0Ω indicates a solid connection). For speakers, switch to resistance mode (Ω) and confirm 4–8Ω per channel.
Common Head Unit Installation Problems and Fixes
Check the fuse for the aftermarket audio system before assuming wiring failures. Many dashboard integrations fail due to a blown 10A fuse located in the vehicle’s interior fuse box (slot #12 in most trim variants). Replace it with an identical fuse rating; higher amperage risks damaging the amplifier circuit. If the fuse blows again immediately, inspect the harness adapter for pinched wires near the steering column or kick panel.
Verify constant 12V and switched accessory power at the harness connector pins. Use a multimeter set to DC voltage; probe the yellow wire (battery) and red wire (ignition) against chassis ground. Readings below 11.8V indicate a weak battery, corroded terminal, or parasitic draw. Trace the wiring loom to the factory wiring block behind the glove compartment–oxidized connectors here are a frequent culprit. Clean contacts with electrical cleaner and re-seat the plugs.
Symptom-Based Troubleshooting Guide
| Symptom | Likely Cause | Solution |
|---|---|---|
| No power, display dead | Fuse blown, ground fault | Replace fuse, sand chassis grounding point near console |
| Intermittent audio | Loose antenna cable | Secure coaxial connector at head unit, check FM amplifier module |
| Distorted sound | Incorrect speaker impedance | Match 4-ohm factory speakers with aftermarket 4-ohm units |
| Steering controls inoperative | Missing resistor network | Solder 2.2k-ohm resistor between data wire and ground |
Ground loops create a persistent 60Hz hum audible through all speakers. Locate the main ground wire (black, typically bolted to the transmission tunnel) and remove paint or rust beneath the ring terminal using a wire brush. Tighten the bolt to 12-15 Nm torque. If the noise persists, add a ground loop isolator inline between the head unit’s RCA outputs and amplifier inputs–avoid cheap units; select a 1000mA transformer-based model.
