Locate the main harness behind the factory stereo unit–it contains twelve color-coded wires with standardized functions. The yellow (constant power), red (accessory power), and black (ground) form the core circuit. Verify these with a multimeter before connecting aftermarket equipment; incorrect pairing risks fuses or module damage. The blue/white (amp turn-on) wire activates external amplifiers, requiring a 200mA load capacity to function properly.
Speaker outputs follow a left/right, front/rear configuration: gray and gray/black (front right), white and white/black (front left), violet and violet/black (rear right), green and green/black (rear left). Polarity reversal during installation can degrade audio quality or trigger anti-theft systems. Use crimp connectors rated for 18-gauge wire; soldering may void warranty coverage on certain trim levels.
The orange/white (illumination) dims dashboard displays synchronously with headlights, though some models omit this wire in base trim packages. For vehicles equipped with steering wheel controls, the brown (data bus) wire interfaces with the CAN system–adapter modules like Metra ASWC-1 or PAC RP4-CH11 decode these signals for aftermarket stereos. Always disconnect the negative battery terminal before handling connections to prevent shorts.
Refer to the vehicle service manual section 4A-40 for exact pin layouts if OEM components are retained. Third-party head units often require a mounting kit (e.g., Metra 99-8204) and wiring harness (e.g., Metra 70-1003) to align with existing brackets and power requirements. Avoid twisting exposed wires; secure them with loom tubing to prevent vibration-induced failures.
Electrical Connection Guide for Your 2007 Sedan Audio System
Locate the harness behind the factory stereo–color codes follow an industry-standard pattern. The 12-pin plug includes:
- Yellow – Constant 12V (battery)
- Red – Switched 12V (ignition)
- Black – Ground
- Blue/white stripe – Power antenna/amp turn-on
- Orange – Illumination
- Green – Rear speakers (+)
- Green/black stripe – Rear speakers (–)
- White – Front left (+)
- White/black stripe – Front left (–)
- Gray – Front right (+)
- Gray/black stripe – Front right (–)
Verify voltages with a multimeter before connecting; reverse polarity risks damaging aftermarket units.
For OEM harness adapters (Metra 70-1002 or Scosche HY02B), confirm compatibility with ISO or mini-fit connectors. Some aftermarket stereos require a 10A fuse on the yellow wire to prevent battery drain. Use crimp connectors with heat-shrink tubing instead of solder for field repairs–faster and equally reliable under vibration.
Speaker wire gauge in this model is 18–20 AWG; upsizing to 16 AWG improves clarity in high-power setups by reducing resistance. Test all speaker outputs with a 1 kHz sine wave at 50% volume; distortion suggests incorrect phase pairing or shorted wires. Keep harness lengths to a maximum of 18 inches to avoid signal attenuation.
Matching the OEM Audio Connector for Your Vehicle’s Sound System
Start with the harness labeled Metra 70-1001 or Scosche HY01B. Both are designed to interface directly with the original 12-pin connector behind the dash, ensuring no modification to the existing power feed or speaker leads. Verify the harness pinout matches the factory layout: A (illumination), B (constant +12V), C (switched +12V), D-F (front/rear speakers), G (ground), J (antenna trigger), and K/L (CAN bus if equipped). Deviations in labels often signal compatibility issues.
If the vehicle includes steering wheel controls, confirm the harness includes an additional two-pin connector (commonly purple and gray) for the resistive signal protocol. Brands like Axxess ASWC-1 integrate seamlessly with these leads, translating button presses into universal signals for aftermarket head units. Absence of this connector typically demands a bypass module or separate wire extension.
| Connector Pin | Wire Color | Function |
|---|---|---|
| B | Yellow | Constant power |
| C | Red | Switched power |
| G | Black | Chassis ground |
| D | Light gray/black stripe | Front left speaker (+) |
| E | Dark gray/black stripe | Front right speaker (+) |
| F | Green/black stripe | Rear left speaker (+) |
| – | Purple/black stripe | Rear right speaker (+) |
For vehicles with amplified systems, locate the factory amplifier near the passenger kick panel and trace the RCA-like connectors (usually four-pin) leading to the door speakers. Aftermarket harnesses like Pac C2R-HY11 include these connectors pre-terminated, preserving fade/balance settings. Failure to reuse these leads often results in mismatched impedance and distorted audio.
Step-by-Step Guide to Safely Extracting the Factory Audio System
Disconnect the battery terminal before touching any internal connectors. Use a 10mm socket wrench to loosen the negative cable clamp–this prevents short circuits during the process.
Locate the trim panel surrounding the unit. Start at the bottom edge near the climate controls. Insert a plastic pry tool between the panel and the dashboard, applying gentle upward pressure to release the clips. Work methodically along the perimeter to avoid cracking the plastic.
The central fascia is secured by four screws–two at the top corners and two recessed near the bottom. Remove these using a #2 Phillips screwdriver. Store screws in a magnetic tray to prevent loss.

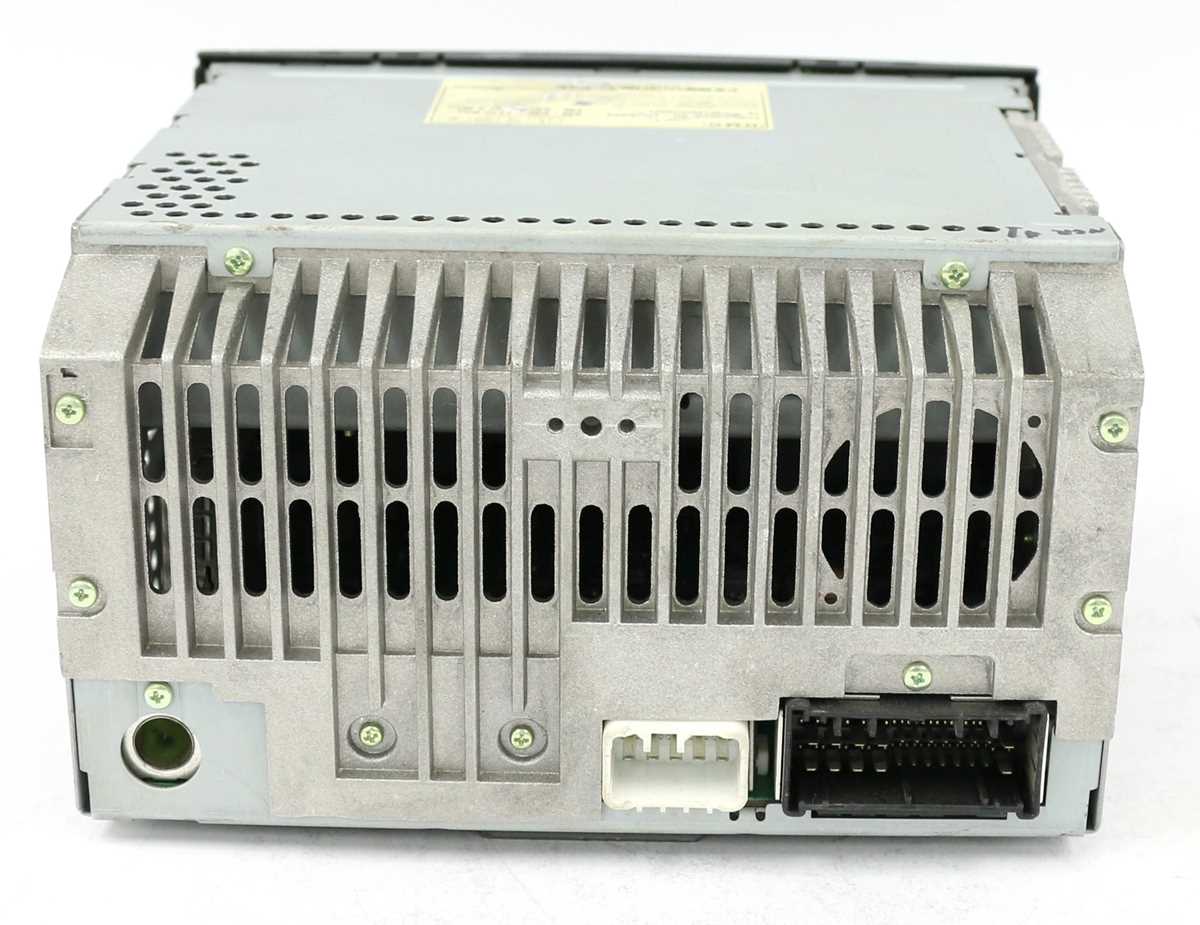

Once the screws are removed, pull the unit forward carefully. It will still be connected by harnesses at the rear. Identify the main power connector and antenna lead before attempting to detach them. Pinch the release tabs on the connectors while wiggling them free–never yank them straight out.
- Power connector: White or gray plug with multiple pins.
- Antenna lead: Thin coaxial cable with a threaded metal collar.
- Speaker harnesses: Color-coded wires in pairs (front/rear, left/right).
For stubborn plugs, apply a small flathead screwdriver to the release tab while pulling. If corrosion is present, use dielectric grease on the reconnection points later to ensure signal integrity.
Slide the removal keys (or bent paperclips) into the designated slots on either side of the unit. These release the internal locking mechanisms–press firmly and pull outward simultaneously. If the keys don’t engage, the unit may be held by additional clips; check for hidden latches near the bottom edge.
After extraction, bundle loose cables with zip ties to prevent tangling. Label each harness immediately with masking tape and a marker (e.g., “FRONT RIGHT SPEAKER”) to simplify reinstallation. Store the original unit in a padded box to avoid dust or moisture damage.
- Recheck all harness connections before reattaching the negative battery cable.
- Turn on the ignition and verify power to the new system before securing it fully.
- Test all audio outputs, including balance, fade, and volume adjustments.
Color-Coded Wire Connections for Aftermarket Stereo Installation
Identify the yellow wire as the primary power source for the head unit’s memory function–this must connect directly to the vehicle’s battery via a fuse no more than 10 amps. Failure to route this separately from the ignition-switched red wire will drain the battery when the car is off. Solder or use a crimp connector rated for at least 20 AWG to ensure a stable connection under vibration and temperature fluctuations.
Match the speaker outputs using the standard industry color scheme: white (front left positive), white/black (front left negative), gray (front right positive), gray/black (front right negative), green (rear left positive), green/black (rear left negative), purple (rear right positive), and purple/black (rear right negative). Verify impedance with a multimeter–factory systems typically use 4-ohm speakers, while aftermarket units may support 2-ohm loads. Reversing polarity during installation will invert the audio phase, diminishing bass response and stereo imaging.
Grounding and Antenna Connections
Secure the black ground wire to a bare metal chassis point within 18 inches of the stereo’s mounting location, sanding any paint or corrosion to expose pure metal. A poor ground causes alternator whine, distorted audio, or intermittent shutdowns. For antenna input, the blue/white remote turn-on wire activates power antennas or amplifiers–connect this to the aftermarket harness’s corresponding wire, not the factory accessory wire, to avoid system conflicts.
Test all connections with the ignition in both on and off positions before finalizing the dashboard assembly. Use a circuit tester to confirm 12V at the yellow wire with the key off, and at the red wire only when the ignition is on. If the stereo powers down unexpectedly, check for voltage drops across the ground or fused power lines–symptoms often mimic speaker wiring errors but originate from unstable current delivery.
Finding and Attaching Aerial and Audio Output Leads in Schematics
Start by identifying the coaxial input, typically marked with a small antenna icon or labeled ANT. On most aftermarket harnesses, this connector uses a single-pin terminal with a hex nut securing the cable; verify the thread matches the factory mast assembly before threading. If the original connector is absent, strip 8–10 mm of outer insulation, twist the braided shield into a single conductor, and solder it to the chassis ground pad–avoid relying on press-fit connections for this high-current return path.
Speaker feeds are grouped in pairs: front left (+/-), front right (+/-), rear left (+/-), and rear right (+/-), often color-coded white/orange, gray/green, yellow/blue, and purple/brown respectively. Trace each wire back to the original equipment connector, noting the pinout sequence–some vehicles swap polarity on the rear channels. Test continuity with a multimeter set to 200 Ω; resistance should read below 4 Ω for each coil. If resistance exceeds 8 Ω, inspect for corrosion at splice points under the dashboard or behind door kick panels.
Verifying Connections Without Powering On
Never energize the system before confirming all leads. Use a non-contact voltage tester to check for stray current on the +12 V accessory wire–any reading indicates a faulty relay or short to ground. For speaker wires, probe each terminal with the meter set to AC millivolts; a faint hum confirms correct pairing, while silence suggests swapped or broken circuitry. If interference persists after installation, route new cables at least 10 cm away from power feeds and engine control modules to reduce EMI.
