To upgrade or troubleshoot the sound system in your H3 SUV, start by locating the fuse box under the dashboard on the driver’s side. Remove the lower knee panel to expose the factory harness–black, white, and violet wires connect directly to the amplifier. If the speakers produce no sound, check the violet lead for continuity; a broken circuit here disables all rear outputs. Replace the 15-amp fuse if the system powers on but fails to initialize.

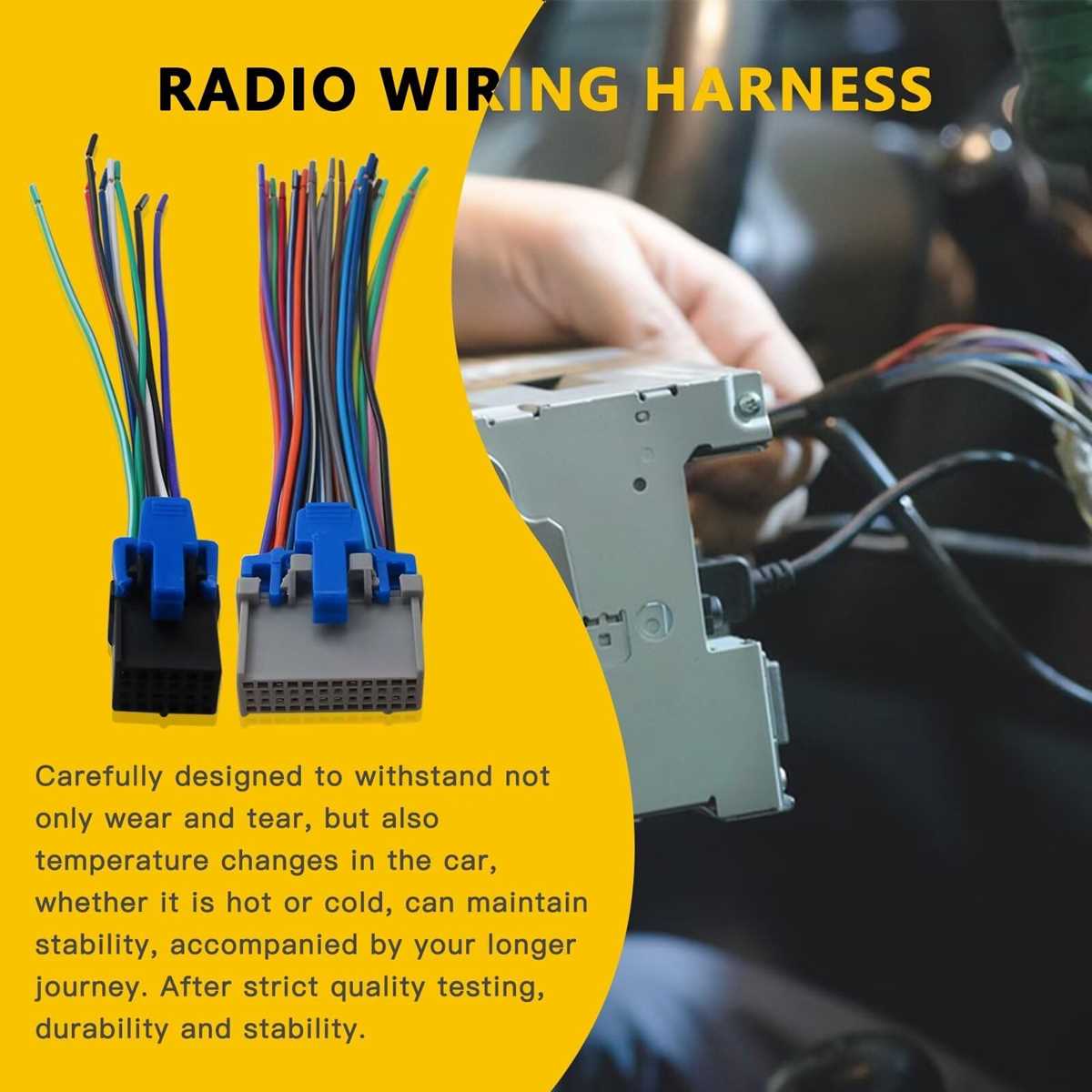

For aftermarket installations, use a T-harness adapter (Metra 70-2003 or equivalent) to bridge the OEM connector with the new unit. Match the colored wires precisely:
Yellow (constant 12V),
Red (switched 12V),
Black (ground), and
Gray/white (illumination).
Double-check polarity on the speaker wires–reversing them weakens bass and distorts midrange. Solder all connections and insulate with heat-shrink tubing to prevent shorts.
If static persists, reroute the antenna cable away from the power cables. The OEM antenna amplifier draws power from a dedicated pink wire–ensure it’s not pinched or corroded. For steering wheel controls, purchase an ASWC-1 adapter and connect it to the factory data bus (light blue/white wire). Test each function before reassembling the trim panels.
Below the center console, two gray plugs (C1 and C2) link the main harness to the vehicle’s CAN bus. Tampering with these without a scan tool risks triggering error codes. If the display shows “No Signal,” verify the orange wire’s voltage–it should read 4.8V at idle. Low voltage indicates a faulty dimmer circuit or bad ground.
Electrical Connection Guide for the 2007 H3 Audio System
Locate the 16-pin harness connector behind the factory sound unit–it’s typically secured with a single Torx T20 screw. Pin 1 (yellow) carries constant 12V power from the battery, while pin 4 (red) supplies switched ignition voltage; verify both with a multimeter before attaching aftermarket adapters. Ground wire (pin 5, black) must terminate directly to chassis metal, preferably near the mounting bracket, using a star washer to prevent corrosion.
Speaker outputs follow a uniform color code: front left (+) pale blue/white, (-) dark blue/white; front right (+) gray/black, (-) gray; rear left (+) brown/tan, (-) brown/white; rear right (+) green/black, (-) green/white. Strip only 8 mm of insulation and crimp with 22-18 gauge butted connectors–avoid soldering near plastic dash components to prevent warping from heat.
Anticipate a purple accessory wire (pin 9) providing illumination control–connect this to the dimmer circuit if upgrading to LED displays. The purple/white wire (pin 10) triggers reverse signal; splice it to the backup light feed to enable automatic mute during parking sensor activation. Double-check all splices with heat-shrink tubing or liquid electrical tape rated for 150°C.
Factory OnStar (pins 7/13, orange/white) shares microphone input–if removing OnStar, cap these leads individually to prevent audio loop feedback. Pink wire (pin 14) links to the data bus; disconnecting it may trigger instrument cluster error codes–use a 120Ω resistor across the cut ends to maintain network stability.
For amplified setups, run 8-gauge power cable directly to the battery positive terminal, incorporating an ANL fuse holder within 8 inches of the terminal. Route the cable along existing wiring loom troughs, securing every 12 inches with zip ties to avoid chafing against the HVAC ducts. Ensure RCA cables cross power wires at 90 degrees to minimize noise induction.
How to Pinpoint the Exact Audio System Connector for Your H3 Vehicle
Locate the factory audio interface behind the dashboard center stack by removing the trim panel–usually secured by plastic clips. The primary connector for the OE sound module on this model is a 12-pin rectangular harness with a distinct yellow locking tab. Match the pin layout against the replacement unit’s documentation; pins 1 and 2 deliver constant 12V power, while pins 3 and 4 handle ground. Pins 5 through 8 manage speaker outputs–front right, front left, rear right, and rear left in descending order. Verify continuity with a multimeter before attaching any aftermarket adapter to avoid damaging the vehicle’s electrical system.
For models equipped with an amplified setup, an additional 8-pin sub-connector (black with a blue stripe) supplies the amplifier’s signal feed. This connector is typically nestled beneath the primary harness and lacks labeling–trace the wires back to the amplifier housing near the rear cargo area if uncertain. Replace corroded or frayed connectors using GM pigtail part #12101831 to maintain OEM integrity.
Step-by-Step Guide to Identifying Key Electrical Connections in Schematics
Begin by isolating the harness connector pinout in the vehicle’s electrical layout. Locate the primary feed–the red or orange cable–typically marked with a voltage rating (e.g., “12V” or “B+”). This line will be thicker than others, often bundled with a fuse link directly from the battery or ignition switch. Cross-reference the schematic’s color codes with the physical harness; discrepancies may indicate aftermarket modifications or errors in documentation.
- Trace the ground path next: a black, brown, or green wire ending at a chassis bolt or dedicated grounding block. Label these points on the schematic with a highlighter.
- Check for auxiliary power feeds (e.g., memory keep-alive, illumination). These are thinner, lighter-colored wires (e.g., pink, yellow) and connect to switched circuits.
- Verify continuity with a multimeter–set to ohms–to confirm no unintended breaks or corrosion at connectors.
For relay-controlled circuits, identify the coil and load sides. The coil side (usually 85/86 pins) draws minimal current and triggers the relay, while the load side (30/87) carries full system amperage. Match these to the schematic’s relay symbols, noting the pin numbering convention (e.g., ISO vs. Bosch). If the layout lacks clear labels, use a wiring loom diagram from the manufacturer’s service manual as a secondary reference.
Color-Coded Harness Guide for Vehicle Stereo Upgrades
Connect the yellow constant power lead to the vehicle’s battery line–typically fused at 10A–using a relay for high-current aftermarket systems to prevent parasitic drain. Verify this circuit maintains voltage even when the ignition is off, as it powers memory functions like presets and clock settings.
The red accessory wire must splice into the ignition-switched 12V source, found behind the dashboard’s fuse panel or at the original head unit’s plug. Trace this line with a multimeter (ignition in “ACC” position) to confirm consistent voltage; inconsistent readings indicate a faulty fuse or corroded connector requiring replacement.
Ground the black cable directly to the chassis–preferably to a bare metal point within 12 inches of the stereo’s location–using a #8 or larger ring terminal. Avoid daisy-chaining grounds; a single dedicated path prevents hum and interference. Sand paint at the attachment point for optimal conductivity.
Match speaker wires by polarity: gray (front right positive), gray/black (front right negative), white (front left positive), white/black (front left negative), purple (rear right positive), purple/black (rear right negative), green (rear left positive), and green/black (rear left negative). Use a wiring harness adapter to preserve factory integration and simplify future upgrades.
For vehicles with premium audio systems, locate the orange illumination wire (instrument panel dimmer) and the orange/white (optional) amplifier trigger. The former adjusts display brightness with dash lights; the latter activates external amplifiers if equipped. Test these with a 12V test light before finalizing connections.
Install inline fuses (15A–20A) near the battery on all power leads, including remote turn-on (blue or blue/white) wires for amplifiers or antenna motors. Route wires away from moving parts, sharp edges, and heat sources (e.g., exhaust manifolds), securing them with zip ties every 6–8 inches. Validate all connections with a load test before reassembling the dashboard.
Diagnosing Frequent Electrical Problems in the H3’s Sound System
Check the fuse for the audio unit first–locate panel B under the driver-side dash, where fuse 32 (15A) controls power delivery to the head unit. If blown, replace it with an identical rating; persistent failures indicate a short in the harness, often near the rear amplifier or at the antenna base. Probe the yellow (+12V constant) and red (+12V switched) wires at the harness connector: voltages below 11.8V suggest parasitic drain or corroded terminals, particularly at the battery junction box.
Inspect the speaker terminals for oxidation–GMC’s factory wiring uses thin-gauge copper prone to green corrosion at connection points. Strip affected sections back 5mm and re-solder using 60/40 rosin-core solder; avoid twist-and-tape repairs. Verify ground integrity by measuring resistance between the chassis ground (black wire, pin 16) and the negative battery post–readings above 0.5 ohms require cleaning the ground eyelet with a wire brush and applying dielectric grease. For intermittent sound, shake-test the harness behind the glovebox; frayed wires near the climate control module often disrupt the data bus.
Symptom-Specific Checks
| Issue | Root Cause | Test/Fix |
|---|---|---|
| No power to head unit | Blown fuse 32 or faulty ignition relay | Replace fuse; test relay by swapping with fuse 31 |
| Distorted audio | Shorted speaker wire or failed amp | Isolate amp by bridging head unit outputs to speakers; if clear, replace amp |
| CD player eject failure | Frozen motor or ribbon cable damage | Disassemble unit; clean motor rails with isopropyl alcohol; check cable continuity |
| Blue screen/no display | Failed backlight inverter or loose LVDS cable | Re-seat cable; test backlight voltage at pin 3 (should be 5V) |
For navigation errors, verify the GPS antenna connection at the roof–loose coax causes “lost signal” warnings. If the backup camera feed flickers, probe the purple/white wire at the rear harness; voltages fluctuating under 9V point to a failing camera module or water intrusion at the tailgate connector. Always disconnect the negative battery terminal before probing circuits to prevent ECM resets.
