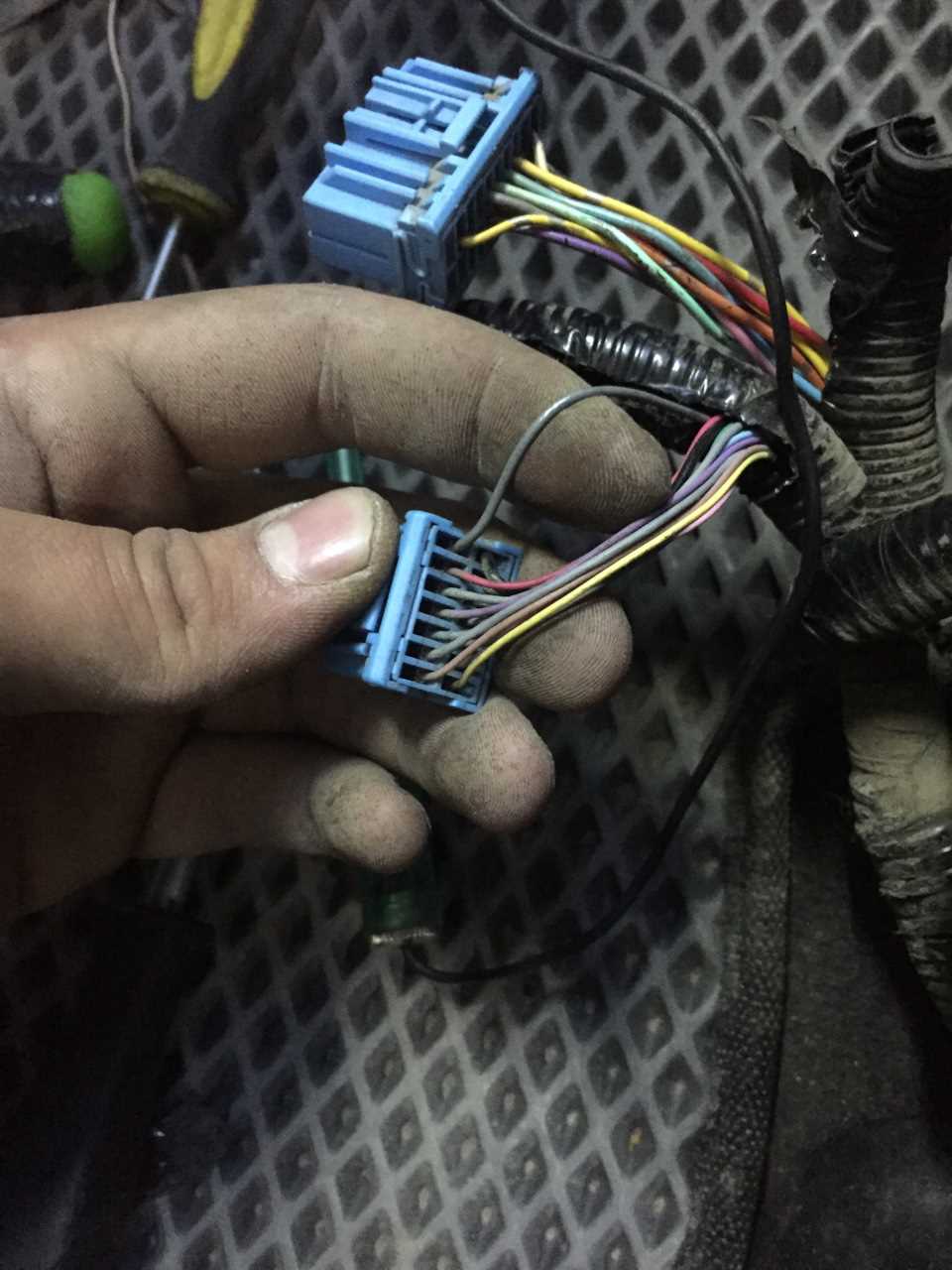

Begin by locating pinout references for the under-dash fuse block–specifically terminals labeled C1, C2, and C3. These connectors control critical systems like the diagnostic module, anti-theft interface, and instrument cluster backlighting. Cross-reference each wire color with the official service manual’s circuit identifier tables to avoid misrouting. A common failure point involves the pink/black strip wire feeding the rear defroster relay; verify continuity with a multimeter before reassembly.
For the sliding door circuits, focus on the blue/white and yellow/black leads terminating at the left and right door modules. These often corrode at the rubber grommet entry points–inspect insulation integrity and apply dielectric grease during reconnection. The fuel pump control wire (solid green) runs through the main harness near the driver’s kick panel; test for voltage drop under load if intermittent stalling occurs.

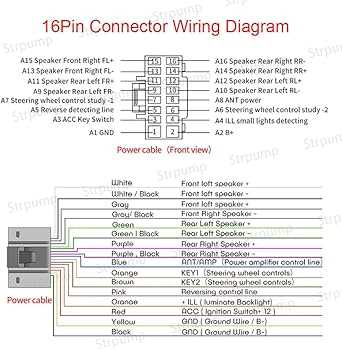

Trace the power window regulators through the door jamb harness, prioritizing the red/black (battery feed) and white/blue (ground) pairs. Ensure the childproof switch bypasses the main relay as per factory specifications–errors here trigger non-functioning windows on specific doors. For audio system repairs, note the purple/yellow wire linking the head unit to the amplifier; interference on this line causes static even when volume is muted.
Electrical Schematic for the 2006-2008 Family Van: Hands-On Reference
Locate the main fuse box under the dashboard on the driver’s side–it contains 41 fuses and 11 relays arranged in three rows. Pin 1 of connector C101 (white, 24-pin) delivers constant 12 V from fuse #19; chase this wire back to the alternator B+ terminal to verify charging circuit integrity.
Trace the orange/black wire from the rear wiper motor (G501) forward to splice S104; this splice branches into three paths–one feeds the wiper switch, another the intermittent relay, and the third terminates at the touch-up sensor behind the third-row seat. Measure resistance at the sensor: 0 Ω indicates a short, 1-3 kΩ confirms sensor integrity.
| Component | Wire color | Cavity | Expected voltage (KOEO) |
|---|---|---|---|
| Powertrain control module (PCM) | Black/red | A20 | 4.8–5.2 V reference |
| Fuel pump relay coil | Yellow/black | C3 | 10–14 V when ignition ON |
| Blower motor resistor | Pink | 7 | Battery voltage across terminals |
| Ambient temperature sensor | Blue/white | B12 | 0.5–4.5 V varying with temp |
Cut the yellow/blue wire at the passenger sliding-door lock actuator and strip 5 mm; solder a jumper wire between the actuator side and ground–momentary door lock engagement confirms actuator function before further troubleshooting.
Use a non-contact infrared thermometer on the auxiliary battery lead–temperature above 60 °C indicates poor lug contact; clean both lug surfaces with 320-grit sandpaper, apply dielectric grease, and torque to 12 N·m.
Quick Cross-Reference for Relay Positions
Identify relays by shape and position: cube relays occupy slots R1-R5 (fog lights, starter, A/C clutch), micro relays R6-R11 (horn, power sliding doors). Label each removed relay with its slot number using masking tape before bench-testing with a 9 V battery and multimeter.
Finding the Power Distribution Panel and Cable Cluster Hookups
Begin by removing the driver-side lower dashboard cover. Two 10mm bolts secure the panel–one near the hood release lever, the other adjacent to the steering column. Pull the trim straight out to avoid snapping retaining clips; there are six along the bottom edge. Behind this cover, the primary fuse block sits vertically, with labeled slots for circuits ranging from 5A (interior lights) to 40A (cooling fan). Mark each connection point with masking tape if disassembling–the relay positions vary between trim levels.

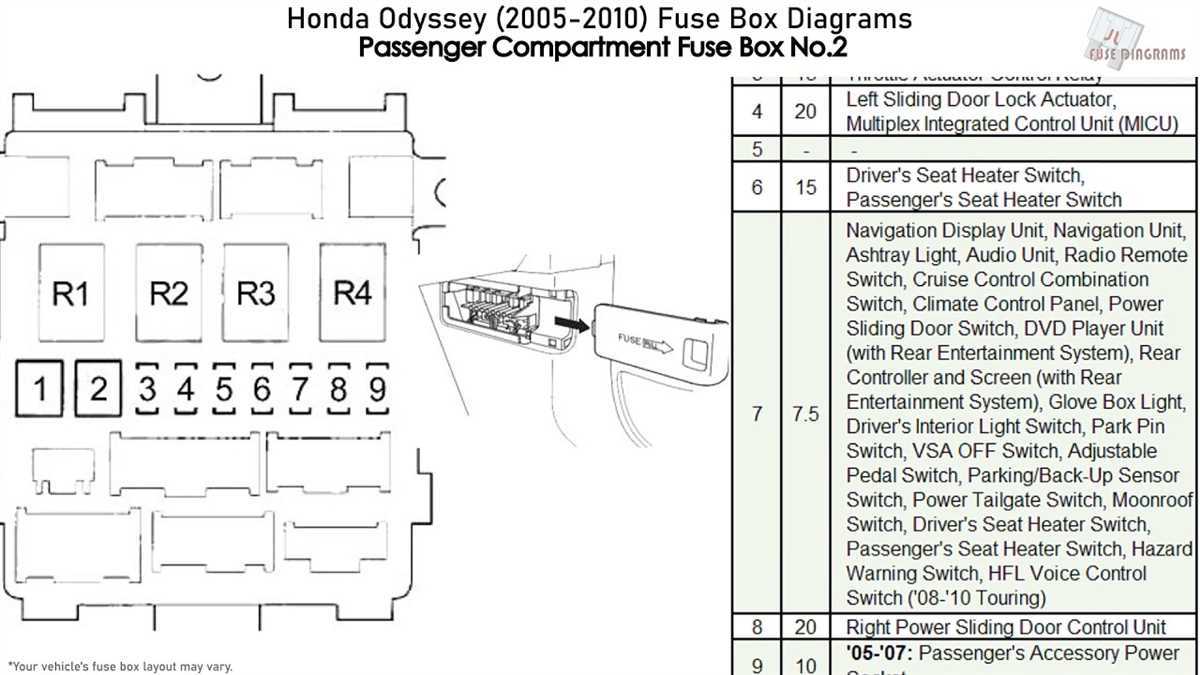

Locate the auxiliary junction box beneath the passenger kick panel. Unlike the main panel, this secondary unit houses thicker cables–8-gauge red leads for the alternator output and 10-gauge yellow wires feeding the rear climate control. Use a circuit tester with a 12V load setting to verify live circuits before probing; false positives occur if the ignition isn’t in ACC. The box’s lid snaps off after pressing two tabs inward–no tools required.
Tracing Engine Bay Connections
The under-hood power hub connects to three major looms: the 12-pin ECM harness (black/green stripe), the 6-pin ABS module bundle (white/red), and the 4-pin condenser fan relay (purple). Each bundle is wrapped in corrugated conduit but splits into individual wires 15cm from the firewall grommet. Probe the grommet’s interior edge for chafing–common failure points here disrupt sensor signals. Replace the grommet if brittle; silicone-based dielectric grease prevents future wear.
Follow the oxygen sensor cables (two pairs, brown/black stripe) to their termination at the upstream catalytic converter flange. These run alongside the exhaust but avoid contact by routing through a metal channel on the frame rail. If readings indicate sensor faults, check for shorts at the harness’s mid-point where it bends over the rear axle–insulation often frays from road debris impact. Splice repairs require heat-shrink tubing with adhesive lining to seal against moisture.

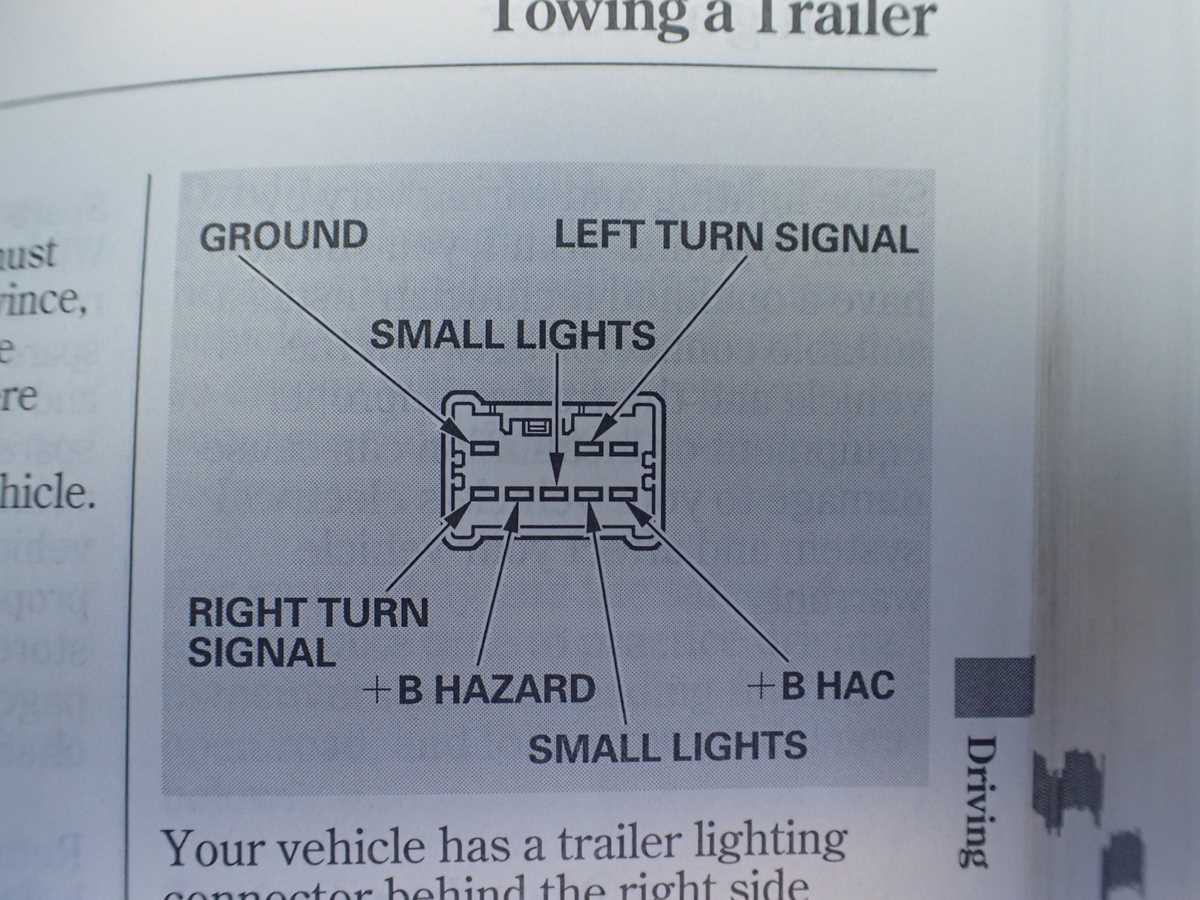

The rear cargo area’s access panel hides the trailer light module–remove two T20 Torx screws to reveal it. This module cross-links with the tailgate’s power latch (grey 16-pin connector) and the third-row seat motor (dark blue 4-pin). Outlets here use 18-gauge wiring; fusible links (transparent casing) protect the circuits from surge damage. Test continuity before reassembly–if the seat motor stalls, the issue often lies in the module’s internal relays rather than the harness itself.
Identifying Common Power Distribution Paths in the Schematic
Trace the thick red lines–these carry fused battery voltage from the under-hood box to critical modules. Locate the 80A main fuse near the positive terminal, then follow its output to the junction labeled “B+1,” which feeds the ignition switch, IPDM, and BCM. Disconnect the negative terminal before probing, as these paths often remain hot even with the key off.
Key Branches to Examine
- Ignition-switched circuits: Thin yellow wires branching from terminal 4 of the ignition switch supply power to the ECM, fuel pump relay, and instrument cluster. Back-probe terminal 5 with a multimeter set to 12V DC to confirm activation during “ON” position.
- Accessory circuits: Purple/white stripes originate at terminal 7 of the ignition switch and terminate at the audio unit, power windows, and interior lights. Measure a 3–5 ohm resistance drop across the window motor connectors under load.
- Ground distribution: Black wires cluster at chassis points G101 (left strut tower) and G401 (rear hatch). Clean corrosion from these terminals; voltage drop exceeding 0.2V indicates poor continuity.
Use a toner probe to follow hidden harness runs behind the dashboard panels–common failure points include chafed insulation near the steering column and pinch points where harnesses exit the cabin. Label each branch with tape during disassembly to prevent cross-feeding sensitive ECUs during reassembly.
Tracing Electrical Paths for Key Vehicle Systems
Identify the target circuit by locating the fuse box under the left side dashboard–component power distribution centers here. For lighting systems, lift the inner fender liner to access headlamp connectors (pins 1-4: low beam; 5-8: high beam; shielding braid grounds via chassis bolt near strut tower). Use a multimeter set to 200Ω continuity mode, probing connector-backside terminals while observing schematic pin assignments. Front park lamps share a brown/white striped feed from fuse 18, branching at the junction block behind the glove compartment–verify here if multiple lights fail. Dome illumination circuits run through the roof harness; disconnect the A-pillar trim clip to expose the sky-blue/pink wire feeding overhead switches.
Sensor and Control Module Diagnostics
Oxygen sensors (upstream) connect via a 4-pin gray connector near the firewall, pairing black (signal) and white (ground) wires to the powertrain controller–backprobing at the ECU harness (pin 27: HO2SB1, pin 42: sensor return) confirms signal integrity. Throttle position signals (brown/light-blue stripe) run directly to the ECM at pin 29; sweep the pedal while monitoring voltage (0.5-4.5V range). Wheel speed inputs split from the ABS module, routed through twisted-pair cables (green/black and green/white) to the VSA unit–chafing risks at the rear subframe where harness enters the trailing arm. For CAN bus nodes, attach an oscilloscope to pins 6 (CAN-H) and 14 (CAN-L) at the OBD-II port, checking for 2.5V idle and 1V-3.5V transitions at 500kbps.
Interpreting Color Markings and Circuit Symbols in Electrical Blueprints
Begin by identifying the standard color codes used for primary conductors: black for constant power (B+), red for switched ignition feed, yellow for battery feed, and white or light blue for ground paths. Variations exist–orange with a stripe often denotes supplemental restraint system circuits, while green may indicate sensor inputs. Verify these against the legend in the manual, as mismatches can lead to tracing errors in routes under the dashboard or behind the fuse panel.
Symbols in schematics follow industry conventions but require close inspection. A rectangle with a diagonal line through it signifies a fuse, while a circle with an “X” marks a splice point. Relays appear as open rectangles with numbered pins–match these to the pinout table to avoid misrouting signals. Pay attention to dashed lines; they represent shielded cables, typically for low-voltage sensor circuits, and require careful handling to prevent interference.
Trace circuits methodically by following color transitions. A wire may shift from solid purple to purple with a white stripe at a junction–this denotes a branch before connecting to components like injectors or solenoids. Always cross-reference the harness layout, as a single misidentified branch can disrupt multiple systems. Use a multimeter to confirm continuity at key junctions, especially where colors merge or split behind the instrument cluster.
Non-standard markings, such as double stripes or alphanumeric labels (e.g., “G401”), indicate chassis or body grounds. These are critical for system stability and must be cleaned and secured during repairs. For modules, note the pin numbering system–odd numbers (e.g., 1, 3, 5) typically carry signals, while even numbers (e.g., 2, 4, 6) are grounds or power returns. Skipping this step risks damaging control units during testing.
When encountering abbreviations like “A/F” (air/fuel) or “VSS” (vehicle speed sensor), refer to the component location guide. These are often linked to distinct colored pairs (e.g., pink and black for oxygen sensors) and terminate at the engine control module. Avoid assumptions–verify each connection with a probe, as corroded terminals or incorrect replacements (e.g., solid wire instead of twisted pairs) can cause intermittent faults.
