Locate the main fuse box under the dashboard on the driver’s side–it houses color-coded leads for critical modules. The primary bundle runs from the ECU to the ignition switch, split into black (ground), yellow/red (constant power), and white/blue (accessory feed). Cross-reference these with the vehicle’s repair manual, p. 7-14, where wiring sequences are mapped by pin numbers. Avoid guessing wire paths; misrouting can trip error codes P0500 (VSS circuit) or P0335 (CKP sensor).
For the rear harness, focus on the tailgate section if equipped with powered lift. Green/white supplies the latch motor, while light green/black carries the lock signal. Probe connections with a multimeter set to 20V DC–readings below 11.5V under load indicate corroded terminals or frayed insulation. Replace damaged segments with automotive-grade wire (18 AWG for signal, 12 AWG for power) and seal splices with adhesive-lined heat shrink.
Check the under-hood bundle for the alternator and A/C compressor. Yellow/black feeds the charge circuit; a voltage drop below 13.8V at idle signals a failing connection. Use a wiring diagram from the manufacturer’s service portal–third-party schematics often omit critical splice points. Label every connector before unplugging to prevent reverse-polarity errors.
For aftermarket installations (e.g., fog lights, remote start), tap into the fuse #17 (10A) for consistent 12V output. Avoid splicing into the airbag module wires–these are coated with a distinct yellow sheath and improper handling can disable safety systems. Test all modifications with the engine off, then verify no dash warnings appear after ignition cycles.
Locating Electrical System Schematics for Your Vehicle Model
Download the official service manual from Honda’s technical resources portal using your VIN for precise connector pinouts–section 8 (Electrical) contains color-coded circuits for the sedan’s fuse block, ECU, and sensor interfaces. Verify wire gauge (e.g., 0.5 mm² for signal lines vs. 2.0 mm² for power feeds) before splicing repairs, as mismatch causes voltage drop or overheating. Use a multimeter to confirm continuity on terminals A6 (yellow/black) and B12 (blue/white) for the IMA system, common failure points in high-mileage units.
Modular connectors labeled C301 (instrument cluster) and C551 (under-dash fuse panel) require DeoxIT treatment if corrosion is present–remove the connector housing gently with a trim tool to avoid breaking retaining clips, which are prone to brittle failure after repeated exposures to heat cycles. Replace damaged wires with TESA 51030 harness tape instead of electrical tape for long-term insulation; solder and shrink tubing (marine-grade adhesive-lined) are mandatory for splices near the exhaust manifold or wheel wells.
For aftermarket upgrades like LED conversions, refer to pin D23 (green/yellow) for turn signal feeds–interrupting this circuit without a load resistor triggers the BCM’s bulb-out detection code (DTC P0562). Pre-assembled harness adapters from brands like Metra or Scosche include matching relays for fog light retrofits; bypassing these can overload the factory switchgear, leading to melted traces on the PCB.

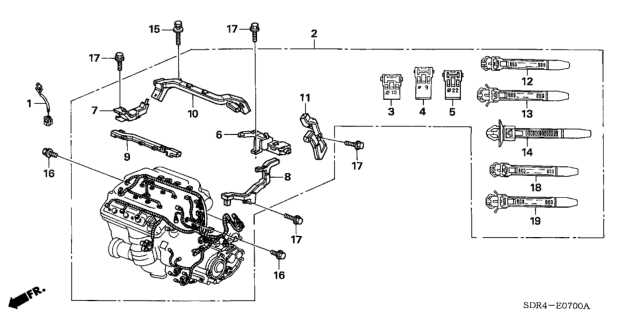

Finding the Primary Under-Hood Cable Assembly in Your Vehicle
Begin by opening the hood and securing it with the prop rod–this model’s central electrical bundle runs along the firewall’s driver-side edge. Look for a thick, black or dark gray conduit wrapping multiple wires in a protective outer sheath. This main grouping is typically secured with plastic clips or zip ties at three key points: near the battery tray, alongside the fuse box, and just above the transmission housing.
The first attachment point is directly behind the battery, where the bundle splits–a smaller branch diverts to the alternator and starter, while the primary section continues toward the bulkhead. Trace the conduit upward; it should curve along the inner fender before entering the cabin through a rubber grommet. If the bundle appears loose or frayed, inspect the zip ties–original equipment uses 4-inch white nylon ties spaced roughly 8–10 inches apart.
Key Visual Landmarks
Identify the power distribution box on the passenger side of the engine bay–this is where the main bundle interfaces with multiple relays and high-current cables. The bundle’s path avoids the exhaust manifold, routing instead between the intake manifold and the brake master cylinder. A secondary cluster branches off near the strut tower, feeding sensors and injectors, but the primary line remains intact until reaching the firewall grommet at coordinate (LHD models) 12 inches from the steering column mount.
To access hidden sections, remove the air intake duct and the plastic engine cover–underneath, the bundle is clipped to the valve cover near the oil fill tube. Check for corrosion or rodent damage; original insulation is smooth with no cracks. If splicing is required, match the wire gauge: 12 AWG for battery circuits, 16 AWG for sensors. Always disconnect the negative terminal before handling live connectors.
For verification, use a continuity tester between the bundle’s termination point at the firewall and individual components–ground faults often indicate chafed insulation where the conduit passes through metal openings. The factory harness uses color-coded wires: yellow/black for ignition, green/white for fuel pump control, and blue/red for ECM signals. Cross-reference any deviations with the vehicle’s technical schematics before modifying connections.
If replacement parts are needed, specify the engine code (K24 or J30 for this chassis) to ensure compatibility–aftermarket suppliers categorize bundles by sub-model differences like transmission type and trim level. Secure the new assembly with adhesive-lined heat shrink tubing at splice points, and route it identically to the original to prevent interference with moving components or heat sources.
Decoding Fuse Box Wire Colors and Terminal Layouts
Locate the under-dash fuse panel first–driver’s side, left of the steering column–where primary electrical circuits terminate. Ground wires (black with yellow stripe) connect directly to chassis points marked G101 or G201; verify continuity with a multimeter before troubleshooting further.
For power distribution, four key relays sit in the upper section:
- Mickey Mouse relay (#1): pink (+) input, brown/white output to starter signal branch.
- IG1 relay (#2): orange/black coil trigger, red/black switched output to ignition-controlled devices.
- ECU-PCM relay (#3): green/black coil, white/blue constant +12V after ignition-on state.
- Headlight relay (#4): red/blue coil input, light green/black driving lamp circuit output.
Pin assignments cluster in three groups:
- C1: 20-pin black connector. Pin #1 (blue) feeds horn; #5 (yellow/black) powers audio unit memory; #11-12 (yellow/red twins) split to cabin fan resistor pack.
- C2: 16-pin brown connector. #8 (red/white) hot at all times; #3 (purple/black) A/C clutch; #16 (green/red) MIL lamp.
- C3: 12-pin gray block. Pin #10 (white/yellow) rear defrost; #6 (black/yellow stripe) always grounded; #4 (red/green) door lock actuator +V.
Cross-reference colors against known-good schematics: solid colors carry +V or ground; striped wires designate switches, sensors, or conditional signals. Replace any terminal showing corrosion–green on copper–or squared-off crimp edges. Always disconnect battery ground (-) before probing live circuits.
Step-by-Step Guide to Tracing the Instrument Cluster Circuit Layout
Locate the vehicle’s fuse box under the driver’s side dashboard to identify the primary power feed for the gauges. Use a multimeter set to 12V DC to probe the red/white (R/W) wire at fuse #22–this supplies constant voltage to the cluster. If the reading fluctuates below 11V, inspect the alternator output or battery terminals for corrosion. Disconnect the battery’s negative terminal before handling any connections to prevent short circuits.
- Remove the lower dashboard trim panel by unfastening three 8mm bolts and two plastic clips near the steering column. Use a trim removal tool to avoid breaking tabs.
- Detach the cluster’s 24-pin connector by pressing the release tab and pulling firmly–avoid twisting to prevent bending pins.
- Trace each wire by color code: yellow/green (Y/G) for tachometer, blue/yellow (B/Y) for speed sensor, and white/blue (W/B) for fuel level. Cross-reference with a pinout guide to confirm signal paths.
- Check for brittle insulation on wires routed near the HVAC vents–replace damaged sections with heat-shrink tubing.
- Reinstall the connector by aligning the guide notch on the male side before securing it. Test all gauges before reassembling the trim.
Identifying Electrical Bundle Failures and Repair Strategies for a Mid-2000s Sedan
Check the main fuse block under the dashboard first–corrosion on terminal 30 often mimics sensor faults in the engine bay. Use a multimeter set to 200 ohms; readings above 0.5Ω between the ground post and connector shell indicate internal oxidation. Replace the entire bundle section if resistance fluctuates or exceeds 1.2Ω, as partial splices rarely restore full conductivity.
| Symptom | Likely Fault Location | Verification Method | Cost-Effective Fix |
|---|---|---|---|
| Intermittent instrument cluster flicker | White/red bundle behind glove box | Back-probe pin B12 while wiggling bundle | Heat-shrink splice with silver-based solder |
| Randomly dropping engine speed signal | Sub-bundle near ECU C105 | Freeze spray on suspected section while monitoring RPM via OBD-II | Trim 15cm beyond visible damage, use crimp connectors with dielectric grease |
| Power door locks delay | Gray 10-pin connector under driver’s seat | Submerge connector in warm vinegar for 10 minutes, rinse with distilled water | Apply contact cleaner, then NiMH conductive paste before reassembly |
Tape-wrapped junctions near the intake manifold typically fail first due to constant thermal cycling. Peel back 3M Super 33+ tape to access the splice; tin each copper strand individually with rosin-core solder before wrapping fresh Kapton tape tight enough to prevent airflow ingress yet loose enough to deter chafing–torque-induced shorts begin where tape edges curl.
