Install a 7-way round connector using factory harness extensions to maintain signal integrity. The central brake controller wire runs directly from the port beneath the dashboard to the rear bumper; avoid splicing into side marker feeds, as this disrupts voltage consistency under load. Verify pin assignments before securing connections–ground error on terminal 4 triggers false ABS alerts.
Use 12-gauge wire for brake and turn circuits; anything thinner risks overheating during prolonged trailer surge. Heat-shrink butt connectors seal splices better than crimp caps, especially for circuits exposed to road spray. Apply dielectric grease to the plug housing to prevent corrosion–even a 0.5mm oxidation layer triples resistance, leading to intermittent failures.

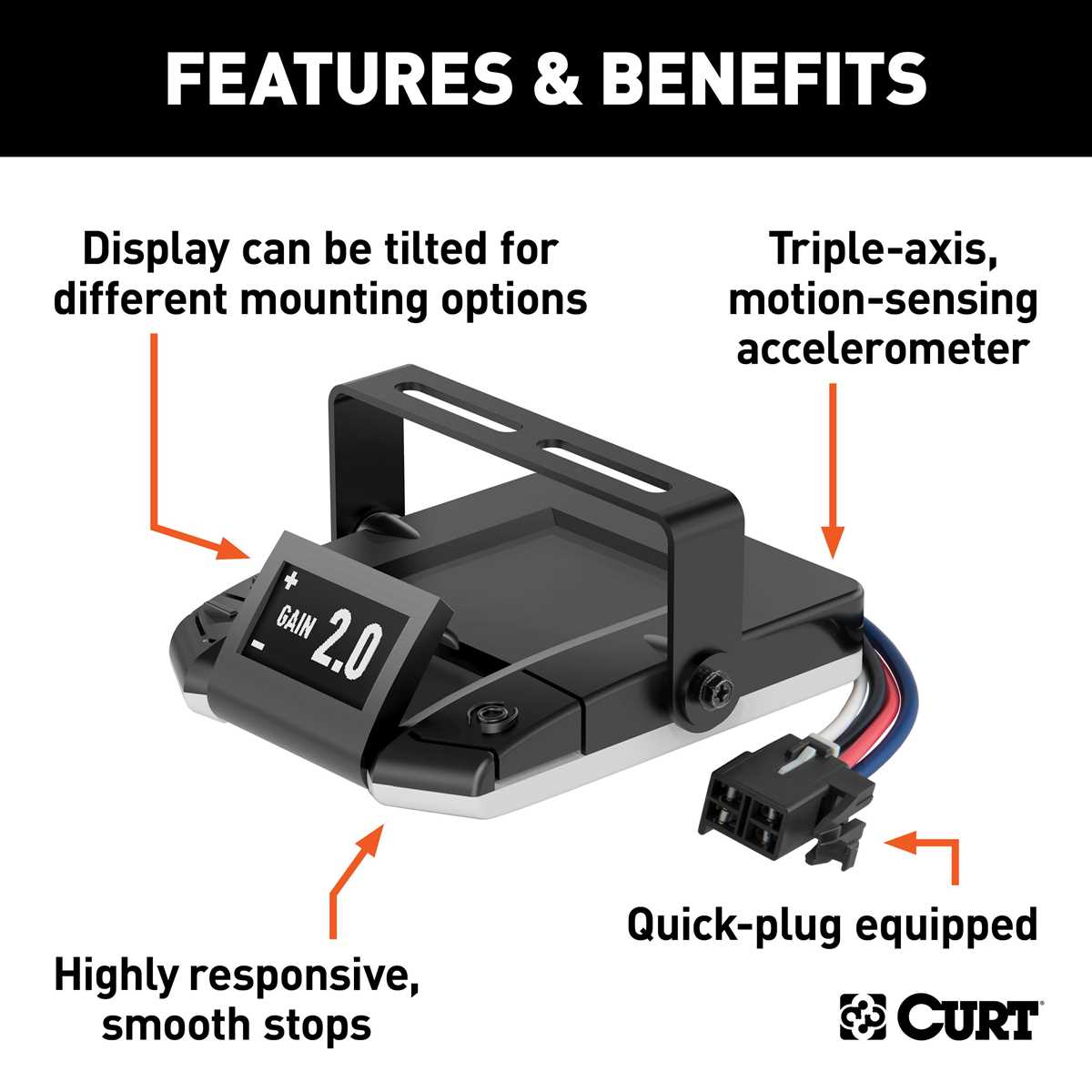

For aftermarket brake controllers, tap the blue auxiliary wire at the fuse block’s 15-amp slot; direct battery attachment introduces voltage spikes. Program trailer gain settings in 10% increments–start at 60% for 5,000 lb setups, then test on a 3% grade to eliminate brake lock-up chatter. Replace the original relay if the trailer battery charge circuit fluctuates below 12.8V unloaded.
Inspect the underbody harness every 8,000 miles; rodents target wiring loom sections adjacent to fuel lines. Isolate circuits with loom tape rather than electrical tape–its adhesive attracts grime, accelerating insulation failure. When troubleshooting flickering marker lights, prioritize the ground strap; a corroded frame bolt can mimic bulb failure.
Connecting the Electrical System for Your Heavy-Duty Pickup Towing Setup
Locate the factory-installed connector beneath the rear bumper, typically a 7-pin round socket. Verify pin assignments using a multimeter: pin one (yellow) carries left turn/brake, pin four (green) right turn/brake, and pin three (white) provides a clean ground. Confirm voltage readings of 12V across these terminals with the ignition on; deviations suggest corroded wiring or a faulty relay.
For auxiliary lighting, splice into the existing harness using T-tap connectors instead of soldering–this preserves factory coatings and allows future modifications. Route new wires through the frame rail grommet to prevent chafing, securing them every 18 inches with nylon zip ties. Avoid wrapping wires around sharp edges; use spiral wrap for added protection in high-abrasion zones like trailer hitch pivots.
Primary Color Codes and Circuit Functions
The following table outlines standard wire colors and their roles:
- Dark Green: Reverse lights (12V when gear selector is in “R”)
- Brown: Tail/running lamps (always powered when headlights are on)
- Red: Battery feed (+12V constant, fused at 30A)
- Blue: Electric brake controller output (voltage varies based on controller settings)
Bypass the factory brake controller if installing an aftermarket unit by tapping into the blue wire at the under-dash fuse block. Use a 20-gauge pigtail for connections to prevent signal degradation over long cable runs. Test brake output voltage at the trailer plug–ideal range is 8-12V under maximum load.
For vehicles equipped with a blind spot monitoring system, disable the rear sensors temporarily when towing. The trailer’s presence may trigger false alerts; consult the owner’s manual for the specific deactivation procedure, usually accessible via the infotainment touchscreen under “Driver Assist” settings.
Troubleshooting Common Issues
Flickering lights often stem from insufficient ground contact. Remove the factory ground bolt behind the rear bumper, clean the mounting surface to bare metal with a wire brush, and apply dielectric grease before reinstalling. For intermittent connections, spray electrical cleaner into the 7-pin socket and rotate the connector several times to clear corrosion buildup.
If the trailer’s brake lights activate erratically, check the diode pack behind the tail light assembly. Replace failed diodes individually–standard 1N4007 components work for most setups. Avoid using crimp connectors on diode leads; solder and heat-shrink each joint for reliability. For persistent voltage drops, upgrade the factory wiring to 10-gauge silicone-jacketed cables, especially for circuits exceeding 20 amps (e.g., battery charge lines).
Finding the Tow Vehicle Electrical Plug on Your Pickup

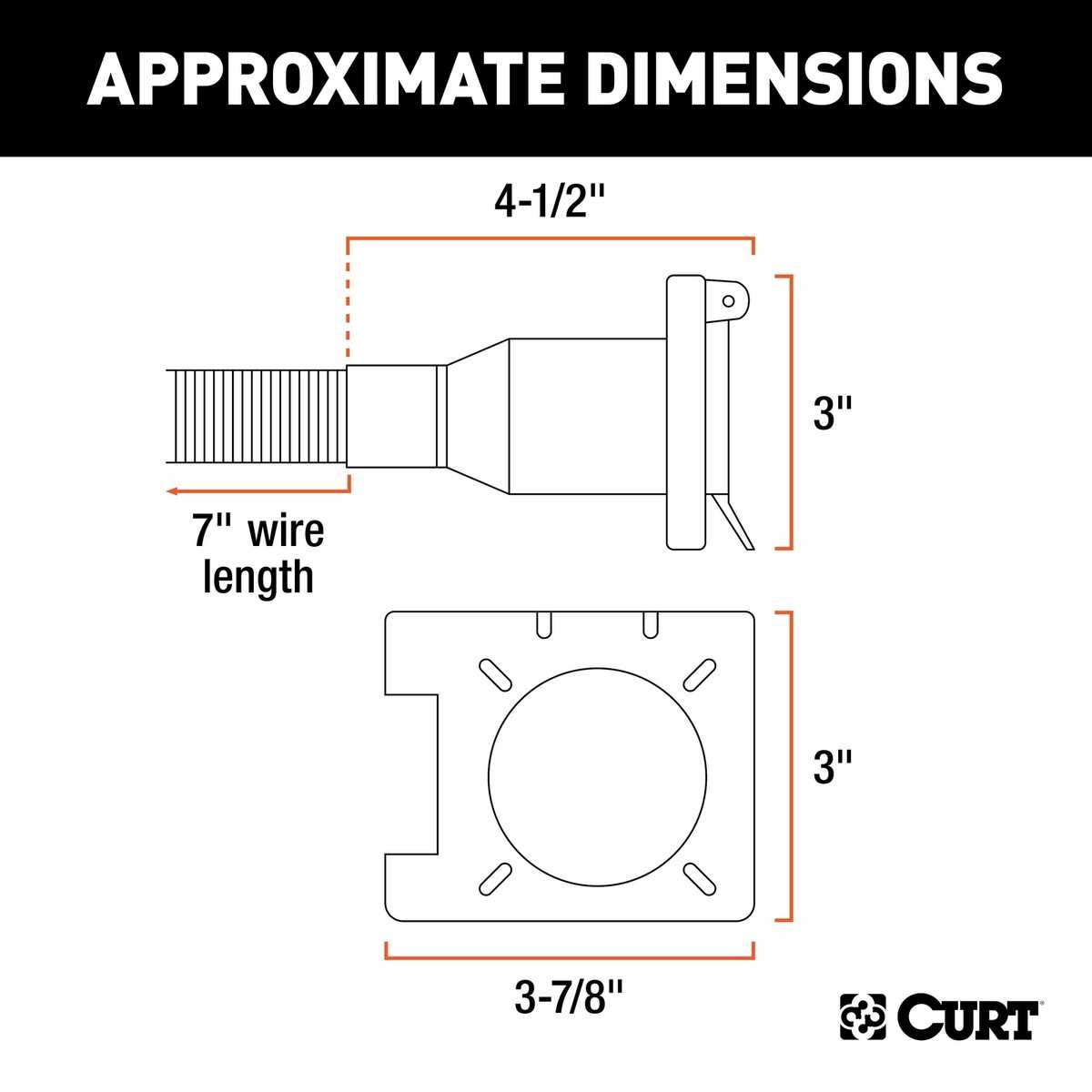

Check behind the rear bumper on the driver’s side for a seven-pin female socket mounted on a stamped steel bracket. The bracket is bolted directly to the frame rail approximately 12 inches forward of the step bumper. Look for a gray or black dust cap labeled “SAE J560” on the plug; if missing, shine a torch to verify the pins are intact.
On some crew cab models the connector sits slightly lower–measure 6 inches above the exhaust pipe flange and probe the rubber grommet in the body panel. Release the retaining clip by pressing its center tab, then rotate the plug downward to expose the contacts. Avoid common pitfalls: corroded pins, misrouted factory tape, or aftermarket brake controllers spliced upstream–disconnect the battery before probing.
Step-by-Step Connector Color Reference for Pickup Truck Towing Harness
Locate the 7-pin connector behind the rear bumper–it’s recessed near the license plate frame. Use a multimeter to identify live circuits: the brown wire (right turn/brake) should register ~12V when activating the right signal, while the yellow (left turn/brake) mirrors this function on the opposite side. Verify ground integrity by probing the white wire–it must show continuity to chassis; corroded terminals here cause sporadic failures.
- Green: Electric brake output (apply voltage to test solenoid engagement).
- Blue: 12V auxiliary power (hot at key-on, max 40A fuse required).
- Red: Reverse lights (activates only when shifting into R).
Tape stray conductors with 3M Super 33+ vinyl; never twist copper exposed over ¼”. Secure connections using a heat-shrink butt splice kit rated for 16-14 AWG–crimping alone risks oxidation. Cross-reference pinouts with OEM service manual section 8D-23 for atypical builds (e.g., factory-installed gooseneck prep packages).
Integrating a 4-Way Connector with Your Pickup’s Electrical Setup
Begin by locating the factory tow harness behind the rear bumper–it’s a rectangular black connector with four male spades inside. If your vehicle lacks this harness, splice into the tail light circuit using color-coded wires: brown (running lights), yellow (left turn/brake), green (right turn/brake), and white (ground). Use a multimeter to confirm voltages: 12V on brown when headlights are on, 12V pulsed on yellow/green during signals, and 0V on white. Avoid tapping into the reverse light wire unless adding a fifth function.
Secure connections with solder and heat-shrink tubing, or use crimp connectors rated for outdoor use. Route wires through a grommet in the truck’s frame to prevent chafing, then bundle them with zip ties every 12 inches. Test each function before finalizing: activate hazards, brake lights, and running lights separately to ensure no cross-talk or voltage drop (below 11.8V indicates a weak ground or corroded splice).
| Wire Color | Function | Pin Location (4-Way Plug) | Testing Method |
|---|---|---|---|
| Brown | Running lights | Top center | Measure 12V with headlights on |
| Yellow | Left turn/brake | Left side | Check for 12V pulse during signal |
| Green | Right turn/brake | Right side | Same as yellow, opposite side |
| White | Ground | Bottom center | Continuity to chassis |
For vehicles with integrated brake controllers, verify the controller’s power wire (typically blue) isn’t mistakenly connected to the 4-way plug–this wire should feed directly to the heavier 7-way connector. If adding auxiliary lighting, fuse all accessory circuits at 10A and mount the fuse holder within 7 inches of the battery.
Resolving Frequent Lighting Problems with Connection Schematics
Begin by isolating the ground connection–corrosion at the frame-mounted bolt is a primary cause of flickering or dead circuits. Remove the attachment, clean the surface with a wire brush, and apply dielectric grease before re-securing. Verify continuity from the connector’s pin C (brown wire) back to the vehicle’s chassis using a multimeter; readings above 0.5 ohms indicate resistance requiring correction.
Verifying Power Delivery Across Circuits
Check the tow plug’s pin A (yellow) for brake lights: ignition on, press the pedal–meter should show 12V. If absent, trace the purple wire to the fuse block behind the driver’s dash (slot 23, 20A). For running lights (pin M, brown), switch on headlamps; failure suggests a broken wire at the rear corner harness or a faulty bulb socket–replace socket if terminals show pitting.
Test left and right turn signals (pins G and H, green/dark blue) individually. A rapid clicking relay or hyper-flash points to a bulb mismatch–ensure correct wattage (25W incandescent) or add a load resistor if using LEDs. If one side works while the other doesn’t, inspect the corresponding colored wire for chafing where it passes through the frame near the spare tire mount.
Examine the four-way connector housing for water ingress; remove the cap and dry with compressed air if moisture is visible. Re-seat the terminals while wiggling wires to catch intermittent breaks. Corroded pins should be scrubbed with a brass brush or replaced–avoid steel wool, which can leave conductive residue.
Diagnosing Controller Module Faults
If all circuits test correctly but lights remain dim, probe the red/black wire at the fuse panel (slot 14) for battery voltage–absence indicates a bad relay (part #15878342). For vehicles equipped with trailer brake output (pin E, blue), ensure the controller module’s ground (black wire, screw-mounted under dash) is secure; loose grounds cause erratic brake light activation.
When the tailgate harness is involved, disconnect the ten-pin connector behind the bumper and inspect for bent pins–straighten with needle-nose pliers. For auxiliary functions (backup lights, pin J, purple), check the reverse switch on the transmission; misaligned sensors often disrupt this circuit without triggering dashboard warnings.
