Locate the C1/C2 harness connectors behind the dashboard’s lower panel–accessible by removing three 7mm screws near the fuse box. Pin assignments follow a consistent color-coded schema: yellow (constant +12V), red (switched +12V), black (ground), and blue/white (amplifier remote turn-on). Verify continuity with a multimeter before reconnecting; resistance above 0.5 ohms indicates corroded terminals requiring replacement.
For aftermarket integration, splice into harness pin 12 (orange/black) for vehicle speed signal–critical for navigation systems relying on wheel-speed sensors. The gray (LF speaker +) and gray/black (LF speaker -) wires terminate at the driver’s door subwoofer; bypass these with 18-gauge copper wire if retrofitting a component setup. Ensure all ground connections solder to unpainted chassis points–common failure point in factory installs.
Refer to service bulletin #07-08-44-006 for revised pinouts in models equipped with OnStar; these units route microphone signals through light blue/white and light blue wires, not the standard pink auxiliary input. Disconnect the battery’s negative terminal for 10+ minutes before probing circuits to prevent airbag module resets. Use dielectric grease on connectors exposed to moisture–particularly in A-pillar mounts.
For diagnostics, set a DMM to DC voltage mode and probe rear cigarette lighter socket; consistent 12.6V confirms a functional fuse (F6UA, 25A). If voltage drops under load, inspect the underhood fusible link–located adjacent to the alternator output stud. Replace with maxi fuse LFT15 rated for 120A if melted insulation is visible.
Audio System Harness Connections for Sierra Denali Models
Locate the twelve-pin connector behind the dashboard center stack to access primary signal feeds. Pin assignments follow this sequence: A (yellow) delivers constant 12V power from the battery, critical for memory retention; B (purple) supplies switched ignition voltage, ensuring the unit activates with the vehicle; C (black) serves as the ground reference, securing stable operation. Verify continuity with a multimeter before proceeding–resistance above 0.5 ohms indicates corrosion requiring immediate cleaning or replacement of the cable.
Speaker outputs occupy pins 4 through 7 on the left channel and 8 through 11 on the right, color-coded in pairs (gray/white for front doors, light green/violet for rears). Match these directly to aftermarket amplifier inputs or factory door actuators, observing polarity–reversed connections will invert audio phase, distorting midrange frequencies. For vehicles equipped with premium sound packages, an additional four-pin auxiliary connector handles subwoofer signals; failure to connect this semi-optional harness results in absent bass output.
Data communication relies on pin 12 (pink), interfacing with the vehicle’s high-speed CAN bus. Disrupting this line may trigger instrument cluster warnings or disable steering wheel controls. If retaining OEM functionality is unnecessary, this pin can be bypassed with a 120-ohm resistor to terminate the network properly. Avoid splicing into this wire unless replacing the entire audio stack with a standalone processor–improper resistance loads will cause intermittent faults detectable only with a scan tool.
For models featuring navigation, a separate sixteen-pin extension harness slides beneath the glovebox. Pins 1-4 (solid orange) carry the display power feed, requiring a fused 15A circuit; overload risks damaging the screen’s backlight inverter. Pins 5-8 (striped gray) transmit touchscreen inputs–these must be shielded during any rewiring to prevent RF interference, which manifests as erratic cursor movements. Always disconnect the negative battery terminal before servicing any harness to prevent short circuits that may corrupt the vehicle’s body control module.
Test every connection with a 10W resistor dummy load before final installation. This confirms no unintended shorts exist while verifying speaker impedance matches the head unit’s minimum 4-ohm requirement. If static persists, trace the antenna lead (typically a coaxial cable terminating in a single-pin bullet connector) for oxidation–cleaning with dielectric grease resolves signal degradation in 90% of cases. Store unused harness segments in electrostatic bags to prevent dust-induced voltage leaks during future upgrades.
Selecting the Precise Connector Assembly for Your Sierra 1500 Vehicle Audio System
Start by locating the original equipment manufacturer (OEM) part number stamped on the back of the factory-installed sound unit or printed on the existing wiring adapter. For the 2006–2008 model years of the Sierra Denali trim, the correct harness is typically Metra 70-2103, while base and SLE models often require Metra 70-2104. Verify the connector shape–Denali units feature an 8-pin square plug, whereas standard models use a 12-pin rectangular configuration. Cross-reference these details with the vehicle’s build sheet, accessible via the glove compartment VIN label.
Check for aftermarket-specific variations if upgrading to a third-party receiver. AC Delco 22813114 fits most factory setups but lacks amplified turn-on leads required for external amplifiers on Bose-equipped cabins. Axxess ASWC-1 integrates steering-wheel controls seamlessly but demands additional splicing for vehicles with OnStar or rear-seat entertainment modules. Avoid universal harnesses labeled “one-size-fits-all,” as they frequently omit critical connections for chimes, data buses, or parking brake sensors.
Inspect the wire gauge and insulation color codes against a trusted schematic–aftermarket kits sometimes reassign pink (memory power) to brown or purple, creating potential voltage drop issues over six feet of run length. For vehicles with dual-zone climate control, prioritize harnesses that preserve the HVAC display functionality, such as Scosche GM04B. If the instrument cluster dims inconsistently post-installation, trace the orange/white dimmer wire, which must remain uninterrupted to avoid dashboard warning lights.
Test for compatibility with the chosen stereo by mock-connecting the harness to the new unit before final installation–some Pioneer and Kenwood receivers misinterpret factory ground-switched circuits as constant power, leading to drained batteries. For models with PassKey theft-deterrent systems, ensure the replacement unit supports the factory key-code protocol or use a bypass module like Code Alarm CAL10. Document the original wiring positions with photos if removing the dash; misrouting the yellow (battery) or red (ignition) wires can trigger false “Service Vehicle Soon” messages.
Finalize the selection by confirming the harness includes a mating plug for the factory antenna–aftermarket adapters like AntennaTech CR-GM3 often fail to deliver adequate signal strength for SiriusXM tuners. If integrating a subwoofer, seek harnesses with dedicated RCA pre-outs or high-level speaker outputs; generic kits frequently lack the 2.5-amp fuse required for amplified setups, risking damage to factory door speakers rated at 20 watts RMS.

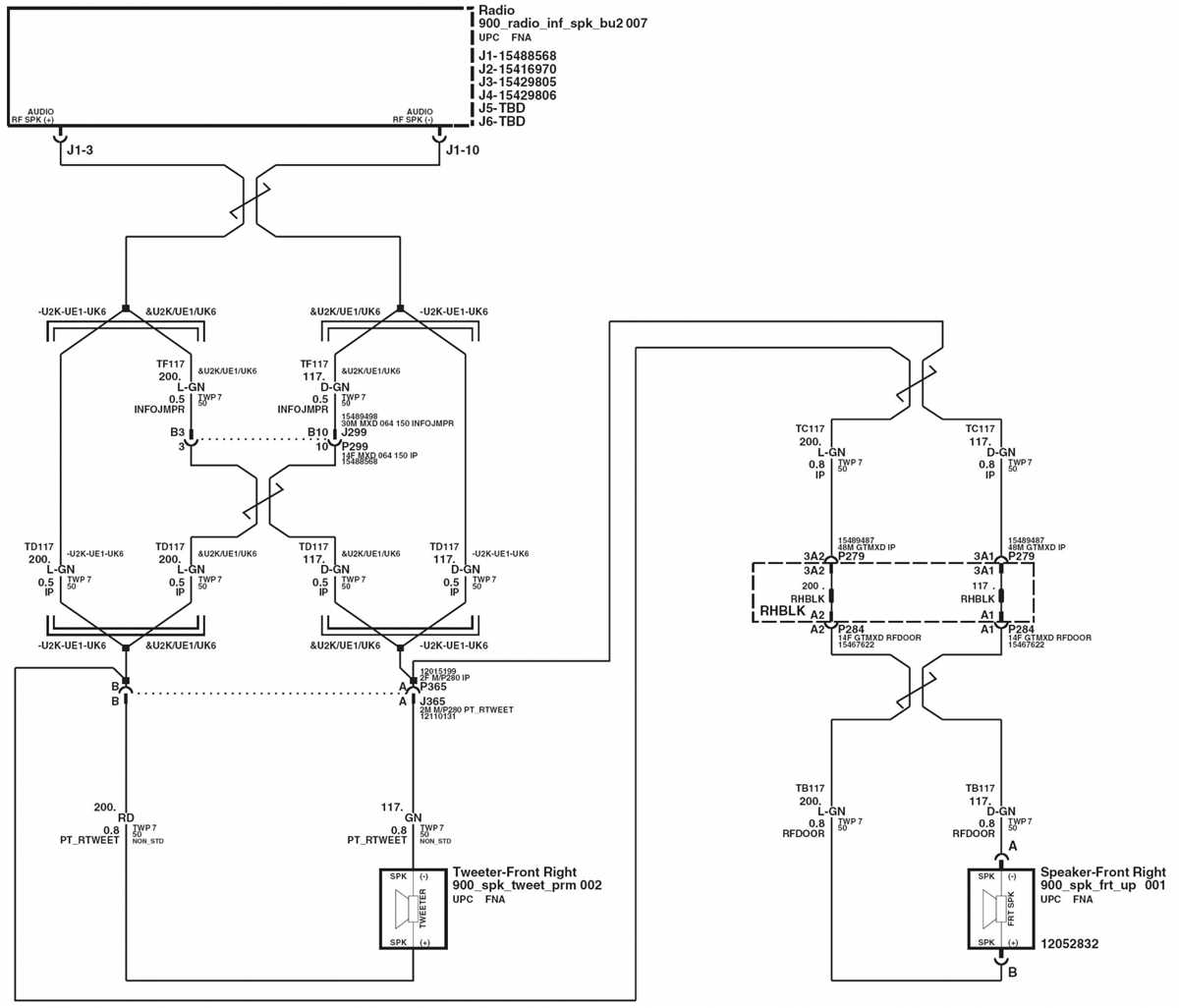

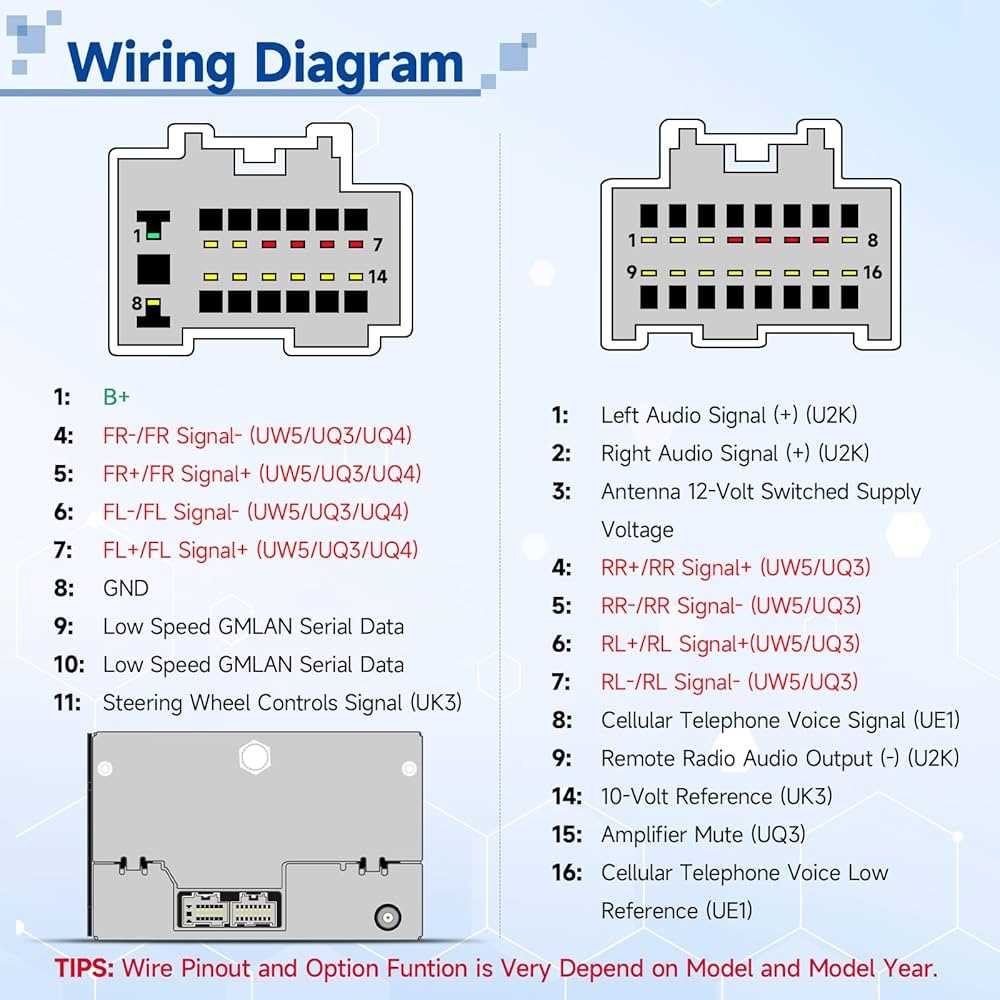

Step-by-Step Guide: Audio System Connector Pinouts and Signal Roles
Start by locating the factory harness at the rear of the unit–typically a 12-pin or 16-pin plug. Verify each lead’s purpose using a multimeter set to DC voltage (20V scale) before connecting aftermarket components. Key color-coded conductors break down as follows:
- Yellow (B+) – Constant Power: Supplies 12V directly from the battery; critical for memory retention. Confirm no voltage drop (below 11.8V) under load to prevent reset issues.
- Red (ACC) – Switched Power: Activates with ignition; measure while cycling keys to ensure consistent 12V. Fuse this line with a 10A blade fuse to protect against shorts.
- Black (Ground) – Chassis Return: Splice to a clean, bare-metal point near the firewall. Scrape paint/coating off mounting surfaces to guarantee
- Orange (Illumination): Dimmer-controlled; connects to headlight switch. Expect 0-12V pulse-width modulation–do not substitute with fixed 12V.
- Gray/Blue Stripe (LF+): Front left speaker positive; pairs with gray wire (LF-) for full-range output. Use 18-gauge wire for aftermarket tweeters to avoid signal loss.
- Dark Green/White Stripe (RF-): Front right speaker negative; avoid shorting to chassis–damages amplifier ICs.
- Brown/Yellow Stripe (RR+): Rear right positive; test with a 1kHz tone at 1W to confirm polarity before final crimp.
- Light Blue/White Stripe (Remote Turn-On): Triggers external amplifiers at 500mA max. Route separately from power cables to minimize noise.
- Purple (Vehicle Speed Sensor): Optional data line; carries 0-5V pulses–connect only if integrating steering-wheel controls or speed-sensitive volume.
For amplifier integration, tap the orange/white stripe (Mute) wire–grounding it momentarily silences the receiver (useful for parking camera overrides). Avoid splicing into the pink (Antenna Trigger) unless using a motorized mast; modern shark-fin antennas rely on digital signals, not 12V power. Always group signal wires (speakers/turn-on) in twisted pairs per RCA channel spacing, separating them from power cables by at least 10cm to prevent alternator whine. Terminate unused pins with heat-shrink tubing to prevent corrosion.
Troubleshooting Shorts and Incorrect Color Matches
- Validate each wire’s continuity with a no-load test: attach a test light to the red and black leads–light should illuminate with key in ACC position.
- Check for melted insulation or exposed copper near connectors–indicative of overheating from reversed polarity.
- If rear speakers produce only bass, verify the tan/light blue stripe (RR-) isn’t shorted to ground; this line carries the subwoofer signal in premium audio variants.
- No illumination? Probe the orange wire with a voltmeter; dimmer issues often stem from a faulty dash light rheostat (~$30 part).
- Static on all channels? Disconnect the purple VSS wire–interference here mimics ground loops. Clean the chassis ground screw with a wire brush before reconnecting.
- For steering-wheel controls, use an adapter harness (Metra ASWC-1) to map the white/black stripe (Data Bus)–manual splicing risks erasing module presets.
