Start by locating the aftermarket installation harness or fabricating one using compatible connectors for the factory interface. The main power lead requires a 10-gauge wire spliced directly to the battery’s positive terminal with an inline fuse rated at 20 amps placed within 18 inches of the connection. Ground the system using a dedicated 8-gauge wire attached to a bare metal chassis point near the unit, ensuring no paint or corrosion interferes with conductivity.
Identify the speaker outputs by tracing the original vehicle’s harness wires: front left (light green/orange stripe), front right (gray/light blue stripe), rear left (brown/yellow stripe), and rear right (purple/green stripe). Use a multimeter set to continuity mode to verify each wire’s function before splicing. The antenna trigger wire (light blue with white stripe) activates the power antenna or amplifier–connect it to a constant 12V source if the vehicle lacks automatic antenna control.
For vehicles equipped with steering wheel controls, retain functionality by integrating a dedicated adapter module. Locate the original wiring harness behind the dashboard’s left panel, where the control signals (yellow/red stripe and white/red stripe) terminate. Match these to the adapter’s corresponding pins, ensuring polarity alignment to prevent signal corruption or damage to the interface module.
Before finalizing connections, test each circuit with the ignition in the “accessory” position. Verify the head unit powers on, audio outputs are distortion-free across all channels, and controls respond as expected. Secure all splices with solder and heat-shrink tubing, then reroute wires away from moving components or heat sources to prevent interference or wear over time.
Audio System Electrical Layout for the 2007 Ford Crossover SUV
Locate the 12-pin connector behind the factory head unit. Pin assignments follow this sequence: A1 (yellow) supplies constant +12V, A4 (red) delivers switched ignition +12V, A8 (black) grounds chassis, A6 (grey/red) carries amplified front-left signal, A7 (grey/light blue) handles front-right output, A12 (grey/brown) feeds rear-left speaker, and A11 (grey/purple) connects to rear-right. Verify each wire with a multimeter set to DC voltage; expect +12V on A1 when ignition is off and +12V on A4 only when key is in ACC or ON position.
Interference suppression requires shielding both speaker leads and RCA jumpers. Twist each pair–grey/red with grey/light blue and grey/brown with grey/purple–tightly every 5 cm to minimize EMI. Ground the shield directly to the chassis point at the rear of the center console, drilling a 3 mm hole if none exists. Use 16-gauge copper wire for shielding pigtails; solder joints rather than crimping reduce resistance. Aftermarket amplifiers should tap into A6–A7 and A11–A12 at the harness, bypassing the low-pass filter built into pin A3 (pink/white).
Retain the factory data bus by splicing pin A2 (orange/light green) into the vehicle network harness. This line supports SYNC and steering-wheel controls. Cut only 5 mm of insulation, expose 2 mm of bare wire, apply rosin flux, and heat-shrink the connection to prevent corrosion. If retrofitting a navigation unit, repurpose pin A9 (dark green/white) as a speed-signal input; confirm a 0–12V pulse train at 8 Hz per km/h using an oscilloscope.
Install inline fuses within 15 cm of the battery: 10A for constant power (yellow), 15A for ignition-switched power (red). Label each fuse holder with wire color and function to avoid future troubleshooting confusion. Route wires along existing loom channels beneath the dashboard, securing every 20 cm with zip ties spaced no wider than the wire bundle diameter. Test integrity before final assembly by powering the system and verifying no voltage drop exceeds 0.2V across any circuit.

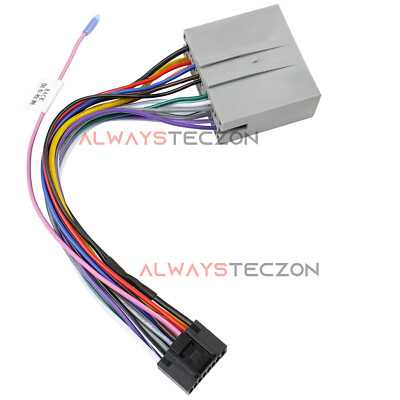

Matching the Right Harness for Your Vehicle’s Audio Integration
Locate the factory color-coded connectors behind the dashboard cluster to avoid mismatched harness installations. Pin configurations for premium sound systems differ from base models–verify the connector shape and pin count before purchasing aftermarket adapters. Standard OEM harnesses include 12-pin or 16-pin plugs with distinct color schemes: yellow/black for constant power, red for switched power, and orange/white for illumination.
Aftermarket interface modules often require splicing into the vehicle’s existing loom; use crimp connectors rated for 18-gauge wire to prevent signal degradation. For models equipped with navigation, ensure the harness retains the data bus connection (typically a purple/white wire) to maintain functionality. Avoid universal harnesses that lack model-specific labels–they frequently omit critical signal wires for amplifiers or steering wheel controls.
Test continuity between the harness and head unit using a multimeter before finalizing connections; resistance should not exceed 0.5 ohms. For vehicles with rear entertainment systems, confirm the presence of an auxiliary harness near the rear seat–it often includes RCA pre-outs for subwoofer integration. Misrouted grounds are a primary cause of audio distortion; always connect them directly to the chassis near the mounting location.
Document each wire’s function during disassembly to simplify reinstallation. Some harnesses include retention clips incompatible with aftermarket units–remove them with a flat-head screwdriver if necessary. For European-spec models, account for CAN bus wiring (green/white and green/orange) to retain dashboard displays and warning chimes.
Decoding OEM Audio System Harness Colors and Terminal Layouts
Begin by locating the 12-pin main connector–typically black–on the back of the original head unit. Match the following color guides to the labeled pins: pin 1 carries purple (right front speaker positive), pin 2 uses purple/yellow stripe (right front negative), pin 3 shows gray (left front positive), and pin 4 delivers gray/yellow stripe (left front negative). Pins 5 and 7 feed constant 12V via yellow and red wires respectively, while pin 6 (black) grounds to chassis. Confirm continuity with a multimeter before proceeding to prevent reversed polarity risks.
For rear channels, identify the 6-pin white connector. Pin A supplies dark green (right rear positive), pin B dark green/orange stripe (right rear negative), pin C light blue (left rear positive), and pin D light blue/orange stripe (left rear negative). Pins E and F merge into a shared orange/white illumination wire and solid orange memory retention lead–isolate these during bench testing to avoid parasitic drain that can flatten the battery overnight.
Amplifier integration requires attention to the gray 4-pin harness. Pin 1 (purple/white) triggers the amplifier, pin 2 (brown/light blue) feeds switched 12V, and pin 3 (black/white) serves as ground. Verify that the factory amplifier module–often mounted beneath the rear cargo floor–receives these signals intact; corrosion at the module’s violet and tan fuse links frequently disrupts bass response.
Auxiliary inputs and steering wheel controls share a slim 8-pin connector. Pins 1-4 carry data bus messages; miswiring here disables volume knobs. Pin 5 pairs red/green for mute, pin 6 blue/yellow carries audio left, pin 7 gray/red delivers right channel, and pin 8 orange/black supplies accessory power. Solder each splice directly–crimp connectors introduce resistance that degrades signal clarity over time.
How to Safely Remove the Dashboard to Access Electronic Control Connections
Disconnect the negative terminal of the vehicle’s 12V battery before touching any interior components to prevent short circuits or airbag deployment. Use a trim removal tool–preferably nylon–to pry off the center console trim panel starting from the bottom edge, working upward to avoid snapping plastic clips; these clips break easily if forced. Locate and remove the two Torx T20 screws securing the climate control module, then gently pull the module outward to expose the harness connectors behind it. Label each connector with masking tape and note its position before unplugging to ensure correct reinstallation later.
| Component | Tools Required | Torque Spec (if applicable) | Clips/Attachments |
|---|---|---|---|
| Center trim panel | Nylon trim tool | N/A | 6 plastic clips (do not reuse if broken) |
| Climate control module | Torx T20 driver | 7-9 Nm | 2 screws + 1 harness lock tab |
| Instrument cluster bezel | Phillips #2 screwdriver | 3-5 Nm | 4 screws + 2 side release tabs |
After removing the climate module, detach the instrument cluster bezel by unscrewing four Phillips #2 fasteners and releasing two side tabs with a flathead screwdriver–do not apply excessive force to the tabs, as they crack under lateral pressure. Slide the cluster assembly forward and disconnect its wiring harness by pressing the release tab before pulling. For models with curtain airbags, avoid placing tools near the A-pillars; these systems retain residual voltage even after battery disconnection. Store all screws and small parts in a magnetic tray to prevent loss during reassembly.
Diagnosing Sound System Electrical Faults in the 2007 Crossover Model
Begin by disconnecting the battery’s negative terminal for 30 seconds to reset the vehicle’s audio control module. Reconnect and verify if the head unit powers on without error codes. Persistent issues point to voltage irregularities or ground faults.
Inspect fuse F73 (15A) in the central junction box–located beneath the left-side dashboard panel–using a multimeter. A blown fuse often mimics amplifier failure, especially when sound cuts out abruptly during bass-heavy tracks. Replace with an identical rating if resistance reads above 0.1 ohms.
Trace the orange/light blue (+12V memory) and black/white (ground) leads from the harness to the rear speaker connectors. Corrosion at terminals appears as white or green oxidation; clean with 220-grit sandpaper and apply dielectric grease to prevent future buildup. Intermittent audio dropouts between 1,200-2,500 Hz typically indicate poor grounding.
Check the antenna amplifier’s coaxial input for continuity using an RF signal tester. Weak reception or static at FM frequencies above 100 MHz suggests a fractured inner conductor–common after off-road use–or a faulty mast assembly. Replace the mast with OEM part #XS4Z-18A804-BA for consistent gain.
Examine the canbus interface behind the climate control unit. Faulty communication between the body control module and audio head results in random volume spikes or uncommanded source switching. Probe pins 18 (CLK) and 24 (DATA) with an oscilloscope; expected waveforms should show 5V square pulses at 100 kHz ±5%.
- For rear-seat entertainment malfunctions, bypass the DVD player’s power relay by directly supplying 12V to the red/yellow lead. If video resumes, clean relay contacts R34 in the trunk fuse box.
- Subwoofer output failures require testing the RCA preamp signals at the amplifier harness. Use a non-polarized capacitor tester on the purple/white (+) and purple/green (-) wires; readings below 0.5V RMS indicate head unit preamp failure.
- Integrated navigation systems may lose GPS lock if the backup battery (CR2032) drops below 2.8V. Access via the glovebox release lever; replace while maintaining satellite alignment to avoid recalibration.
Verify the steering wheel control interface by measuring resistance across the black (common) and grey/red (volume) wires. Values should decrease from 2.2kΩ to 500Ω as controls are pressed; erratic readings confirm a short in the clockspring–replace with updated part #6M5T-14A664-AA.
Advanced Fault Isolation
Use a non-contact thermometer to scan the amplifier’s heat sink during operation. Temperatures above 60°C indicate insufficient cooling or failed output transistors. Remove the trunk side panel to access the internal thermal fuse; reset if tripped, but expect permanent damage if excessive heat discolored circuit board traces.
- Disconnect the satellite radio module and bridge the antenna input with a 75-ohm terminator. No change confirms module failure; otherwise, suspect coaxial cable damage.
- For CD changer errors (code U0100), force a reset by holding the eject and power buttons simultaneously for 10 seconds. If the disc tray fails to initialize, replace the laser assembly (part #CJ5Z-19E305-A).
- Parasitic current draw above 50mA points to a shorted door chime module. Isolate by removing fuses sequentially; draw should drop to 30mA or lower when the faulty circuit is unpowered.
