The engine control harness on this full-size truck connects at pin 5 of the integrated power module (IPM) with a 16-gauge purple wire. That circuit delivers 12 volts from the run/start relay–locate it under the dash, driver’s side, tucked behind the knee bolster. Trace the wire back to the steering column switch; corrosion here mimics a failing solenoid. Scrape connectors clean, apply dielectric grease, and retest before replacing components.
Neutral safety switch wiring uses a yellow/black stripe lead factory-crimped to the transmission range sensor. If the engine cranks but won’t start, probe this wire with a DVOM while cycling the key: 0.5–0.8 ohms in Park/Neutral, infinite resistance in Drive/Reverse. Bypass the switch with a jumper wire for a quick diagnostic; replace the sensor if voltage drops below 11.3 volts.
A common failure point is the ignition feed wire–dark blue with a white tracer–that runs from the cylindrical lock assembly to the powertrain control module (PCM). Inspect the weather-pack connector at the base of the column for melted pins or green oxidation. Use a pin extractor to remove terminals; solder jumpers if corrosion is severe. Always reinstall with new seals to prevent moisture ingress.
Ground reference points cluster near the battery tray: three 10-mm bolts secure the main chassis ground strap. Resistance here should read less than 0.2 ohms. A weak ground causes phantom electrical gremlins–intermittent starter engagement, dim dashboard lights. Scrub mating surfaces to bare metal with a wire brush, torque bolts to 30 ft-lbs, and coat threads with anti-seize compound.
Fuse #17–labeled “Ignition 2” at 20 amps–protects the entire run/start circuit. Pull the fuse block cover under the hood, and use a multimeter to test continuity across the blades: a reading above 1 ohm indicates internal degradation. Swap with a known-good fuse, and monitor for blown recidivism. If the issue persists, probe the downstream orange/black wire at the junction block near the firewall–expect 12 volts when the key is in the “on” position.
Electrical Schematic for Hemi-Powered Full-Size Pickup: Key Connections
Start at the ignition control module connector C2, pin 10 (dark green/orange stripe wire). This feeds the 12V run/crank signal directly from the ignition switch. Verify continuity to ground with a multimeter–resistance should read under 0.5 ohms when the key is in the “on” position.
Check the ECM power relay (TIPM connector C1, pin 30) for a consistent 12V supply during cranking. If voltage drops below 10V, inspect the relay socket for corrosion–clean contacts using 1200-grit sandpaper and dielectric grease. Replace the relay if chatter is audible during testing.
| Wire Color (Harness Side) | Connector Pin | Function | Expected Voltage (Key On) |
|---|---|---|---|
| Dark Blue/Orange | Fused ignition feed | ECM main power | 12.0–13.8V |
| Pink/Black | Crank sensor + | Crankshaft position signal | 0.5–4.5V AC (oscilloscope) |
| Yellow/Light Blue | Fuel pump relay coil | Priming pulse (2s) | Battery voltage (momentary) |
When tackling starter solenoid circuits, isolate the red/light blue wire at the solenoid S-terminal. This wire carries the trigger signal; splice in a 1N4007 diode (cathode toward the solenoid) to prevent voltage spikes damaging the TIPM. Test by cranking–the diode should drop voltage to ~0.7V forward bias.
For intermittent no-start issues, probe the instrument cluster connector C2 (gray/red wire, pin 16) with an oscilloscope. Look for a clean 5V square wave from the PCM during cranking. Absence of signal indicates a faulty 5V reference circuit–check for shorted sensors (MAP, TPS) before condemning the PCM.

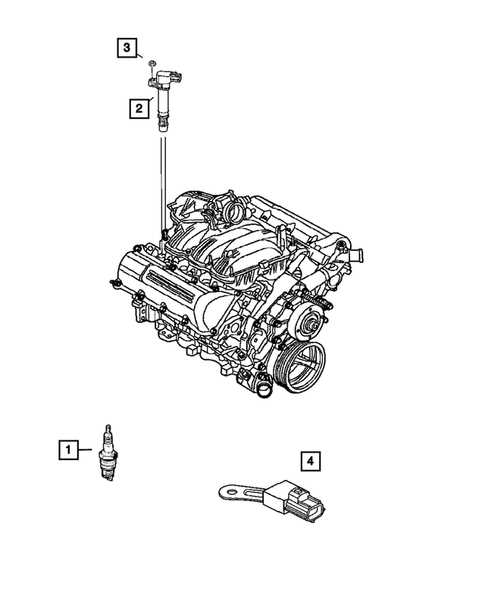

Replace the ignition coil packs if misfires persist after verifying spark plug gaps (0.044″). Disconnect the 3-wire coil harness connector and measure resistance between pins 1-2 (primary coil): 0.5–0.9 ohms at 70°F. Secondary resistance (pin 3 to either pin 1/2) should read 10–15 kΩ. Higher readings indicate internal degradation–replace the entire pack (individual coils cannot be serviced).
If the anti-theft light flashes during cranking, focus on the SKIM module (integrated in the ECM). Use a DRB-III scan tool to compare the programmed key fob ID with the SKIM’s stored value. Relearn keys if codes mismatch–hold the unlock button for 10 seconds while cycling the ignition from “on” to “off” three times.
For alternator charging issues, trace the dark green/white wire from the alternator field terminal (F) back to the PCM connector C1, pin 14. Voltage here should match battery voltage during cranking (minimum 9V). If lower, inspect the 60A fuse (J case, position 3) in the underhood junction block–replace both the fuse and holder if oxidized.
Finding the Electrical Starter Bundle on a Heavy-Duty Pickup
Trace the primary power harness from the engine bay toward the driver-side firewall. Behind the fuse block and adjacent to the brake booster, a dense black conduit emerges–this houses the starter circuit bundle. Slide back the protective sheath to expose three 10-gauge conductors: red, purple, and yellow-striped. The red lead delivers direct battery voltage, the purple triggers the solenoid, and the yellow-striped wire grounds the system when engaged.
Removing the Steering Column Covers
Disconnect the negative battery terminal before proceeding. Use a 7mm socket to unfasten the two lower shroud screws, then pry apart the upper and lower covers with a trim removal tool. The ignition switch bundle converges at the back of the lock cylinder–gray connector with 6 terminals. Label each pin: terminal 30 feeds constant 12V, 15 supplies accessory power, 50 sends crank signal, and 75 cuts power to accessories during starting.
Follow the gray conduit beneath the instrument panel toward the pedal assembly. Near the brake master cylinder, the harness splits–a thinner branch heads toward the transmission range sensor, while the thicker bundle continues rearward to the central electronic module. Locate the splice junction (white tape mark) where the purple solenoid wire merges with a larger orange-striped conductor–this marks the transition from cabin to engine bay routing.
Color-Coded Circuit Paths for HEMI Pickup Starter and Key Switch
Locate the dark green with orange tracer (DG/O) wire from the steering column’s lower connector. This feeds the powertrain control module relay coil; clip it first before stripping to avoid shorting the 12 VDC bus.
Trace the yellow (YL) lead from the starter solenoid back to the transmission range sensor. It carries the crank signal; splice in a 1 A fuse holder at the firewall grommet to prevent back-feeding the transmission control network during bench testing.
- Red with dark blue stripe (RD/DB) – Battery positive; always disconnect the negative terminal before probing.
- Light blue with orange stripe (LB/O) – Run/start input to the integrated power module; tape exposed ends when bypassing the ignition switch.
- Gray with light green stripe (GY/LG) – Ignition coil ground; verify continuity against the intake manifold stud.
Identify the violet with white tracer (VT/WH) at the under-dash fuse box; it routes switched 12 V to the electronic throttle body. Disconnect the throttle body connector before energizing this circuit to avoid code P2110.
- Remove the knee bolster for access.
- Unplug the 40-way PCM connector.
- Pin 23 on the C2 harness side is the VT/WH wire; jumper it to a known good ground to simulate key-on position.
- Reconnect the PCM and observe injector pulse width with a noid light.
Checking Spark Plug Leads for Electrical Flow and Charge
Disconnect the coil pack or distributor connector before testing. Set a multimeter to the 20 kΩ resistance range. Probe each lead’s terminal at both ends–readings above 5 kΩ indicate degradation. If infinite resistance appears, the conductor inside is broken. Replace any leads failing this test immediately to prevent misfires and reduced power.
Measuring Output from the Coil
Reattach the coil harness. Start the engine and switch the multimeter to 20V AC. Back-probe the lead connections at the coil while idling–readings should stabilize between 8V and 12V. A drop below 6V signals coil failure or excessive resistance in the circuit. Check grounding connections and coil primary voltage if readings fluctuate wildly.
For cylinder-specific checks, pull one lead at a time while observing RPM changes. A noticeable drop confirms voltage reaching the plug. If no change occurs, inspect the distributor cap, rotor, or connecter terminals for corrosion. Avoid touching leads during this test–ignition voltage exceeds 25,000V and can cause injury.
Route replacements along the OEM path to prevent interference with moving components. Secure with factory clips–rubber insulator damage from sharp edges or heat sources will degrade performance within 1,000 miles. Confirm all connectors snap fully into place before startup to avoid intermittent voltage loss.
Troubleshooting Electrical Faults in Full-Size Pickup Trucks
Check the starter relay connections first if the engine cranks intermittently or fails to start. Corrosion builds up on the pins of the TIPM (Totally Integrated Power Module) under the hood, often near the battery. Remove the relay labeled “50-amp ASD,” clean the socket with electrical contact cleaner, and reinsert it firmly. If the issue persists, swap it with a known-working relay of the same rating–typically the horn or A/C relays–to isolate the fault. A voltmeter reading below 11.8V at the relay’s control circuit pin (usually 85/86) indicates a broken wire or faulty transmission range sensor.
Flickering Dash Lights and Erratic Gauge Behavior
Inspect the ignition switch’s 12-gauge pink wire running from fuse #13 (cabin) to the switch itself. This wire powers critical modules and loses conductivity due to chafing against the steering column’s tilt mechanism. Strip back the harness at the nearest accessible point, solder a bypass wire, and heat-shrink the connection. For gauge fluctuations, probe the instrument cluster’s C3 connector, pin 8–voltage drops below 5V suggest a failing body control module. Replace the module only after verifying ground integrity at terminal G302, located behind the driver-side kick panel.
Replace the crankshaft position sensor if the engine stalls after reaching operating temperature. The sensor’s three-wire harness (signal, ground, 5V reference) develops micro-fractures near the exhaust manifold. Use a scope to confirm irregular waveforms–less than 1.5V peak-to-peak–or a DVOM to detect intermittent opens. The sensor’s mounting bolt often loosens, allowing excessive vibration; torque it to 8 ft-lbs and reroute the harness away from heat sources. For no-start conditions unrelated to fuel delivery, bypass the security system by grounding the SKIM module’s pin 4 while monitoring for spark at coil #1.
