To ensure proper installation of an aftermarket sound system in this vehicle model, begin by locating the factory harness behind the dashboard on the driver’s side. The primary connector–a 16-pin Metra 70-1002–includes key wires: yellow (constant 12V), red (switched 12V), black (ground), gray (+ speaker), and violet (- speaker). Verify these with a multimeter before splicing; incorrect connections risk amplifier damage or blown fuses.
For hands-free integration, the CH2 wiring harness adapts the factory amplifier to retain steering wheel controls. Cutting into the original harness voids OEM diagnostics–use T-taps instead. The data bus (tan/light blue) carries critical signals for the stock radio display; disrupting this line triggers error codes. If retaining the stock amp, maintain the pink/white wire (amp turn-on); bypassing it requires an external relay.
Subwoofer installations demand a line-output converter if tapping into rear speaker wires. The front door speakers (6.5″ woofers) share a common ground; separating channels ensures proper fade control. Use 18-gauge oxygen-free copper wire for speaker runs–avoid aluminum or CCA (copper-clad aluminum) to prevent signal degradation. Secure all splice points with solder and heat shrink tubing; electrical tape fails over time.
Test each connection before reassembling the dash. A quick power-on check should reveal clean sound across all channels with no distortion or dimming lights. If the vehicle’s security system engages, it may require a pinout reset via the OBD-II port. Keep the original radio’s code card accessible; entering incorrect codes locks the system permanently.
Aftermarket units like Pioneer AVH or Kenwood Excelon often include wiring adapters, but verify compatibility with the factory amplifier’s impedance (4Ω typical). For vehicles with satellite radio wiring (orange lead), connect this to the new head unit to retain subscription services. Always disconnect the battery’s negative terminal before beginning work to avoid short circuits.
Guide to Aftermarket Audio System Connections for the Mid-Size Pickup
Locate the 12-pin harness behind the factory head unit–pins 1 (yellow) and 4 (red) supply constant and switched power respectively, each rated at 15A fuse protection. Pin 5 (black) is the ground lead, terminating at a chassis bolt near the driver-side kick panel; clean the contact surface with 80-grit sandpaper before securing. Speakers wire as follows: front left (+) connects to pin 10 (light blue), front left (-) to pin 11 (light blue/black); rear right (+) to pin 13 (gray), rear right (-) to pin 14 (gray/black). Retain the ISO connector’s retained accessory power (RAP) relay at pin 9 (dark green/white) if integrating steering wheel controls, bypassing it will disable auto-off delay.

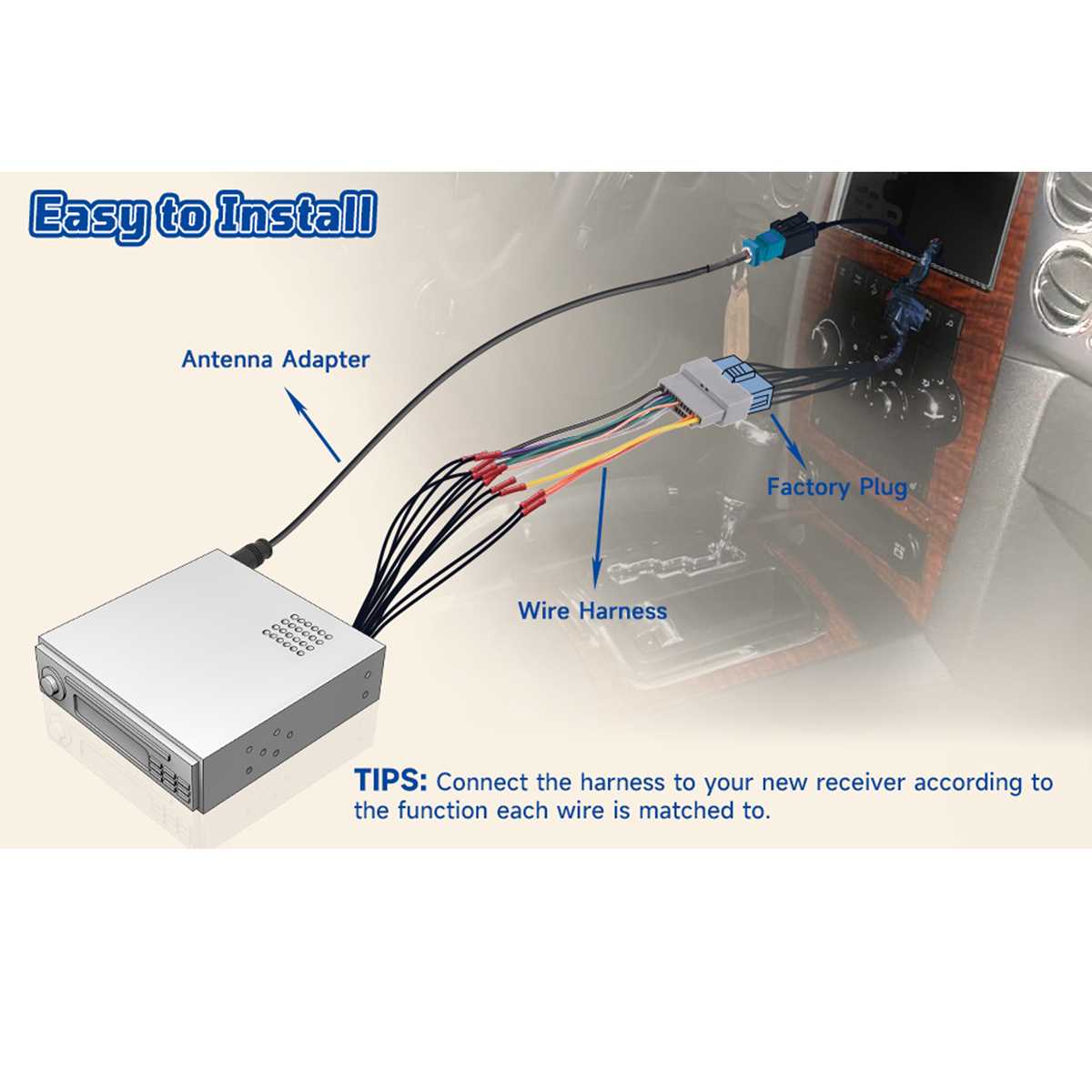

Adapters like Metra 70-1002 or Scosche SU03B simplify integration; match wire gauge–18 AWG for speaker circuits, 16 AWG for power feeds–to prevent voltage drop. For amplifier installs, splice the remote turn-on (pin 7, purple) into the head unit’s blue/white lead, ensuring a 47μF capacitor buffers transient spikes. If static persists, reroute audio cables perpendicular to power wires, maintaining 12-inch separation, and ground the head unit separately from the amplifier.
Finding the OEM Audio System Plug Behind the Dashboard
Begin by lowering the driver-side knee bolster: grasp the plastic panel beneath the steering column and pull firmly downward. It snaps free of two retaining clips at the top. Set it aside–do not disconnect the wiring for the hood release, dimmer switch, or any attached modules.
The factory harness connector for the sound system hides behind the climate control assembly. Remove the two screws securing the lower trim bezel (5.5 mm Torx) positioned below the HVAC vents. Gently pry outward along the edges to release four plastic clips; the whole bezel lifts away, revealing the back of the head unit and its cable bundle.
The OEM plug is a rectangle with 16 or 20 cavities, color-coded as follows. Matching it to an aftermarket adapter requires no guesswork:
| Pin | Wire Color | Function |
|---|---|---|
| 1 | Yellow/Black | Battery constant +12 V |
| 2 | Dark Blue/White | LF speaker + |
| 3 | Gray/Red | RF speaker + |
| 4 | Brown/Orange | Ground |
| 5 | Light Blue | Ignition switched +12 V |
| 6 | Dark Green/White | LR speaker + |
| 7 | Violet/Orange | RR speaker + |
| 8 | Pink/Black | Antenna trigger |
Trace the wires upward from the socket; they emerge from a loomed bundle that also feeds power to the climate actuators. Disconnecting the harness from the head unit requires reaching around the rear of the unit and pressing inward on two side tabs–each tab is paired with a small latch, and releasing both simultaneously frees the plug without damaging the locking mechanism.
If the vehicle retains the factory amplifier (usually behind the passenger-side kick panel), locate its own 14-pin gray connector near the same loomed bundle. Amplifier harness colors differ: constant power is orange, ground is black with an orange tracer, front left output is dark blue/white, and rear left is dark green/white. Always verify continuity with a multimeter before splicing or installing new components.
Reinstallation reverses these steps. Ensure the bezel snaps fully closed to prevent rattles and confirm that all retaining clips re-engage–failed alignment risks misrouting wires or a loose mount to the dash structure.
Pinpointing Cable Hues and Their Roles in Audio Schematics
Start by locating the solid yellow conductor–this carries constant twelve-volt power from the battery, ensuring memory retention for preset stations and settings. Verify its terminal connection to the fuse block, typically fused at fifteen amps, to prevent accidental shorts. If voltage drops below eleven volts, check for corroded fuse contacts or undersized wire gauge, which can cause intermittent failures in the sound unit’s retention capabilities.
The red lead, often mistaken for the yellow, delivers switched power activated by the ignition key. Unlike the yellow, this line cuts power when the vehicle is off, saving battery drain. Trace it back to the ignition harness; if headlights dim when starting, the red may share a circuit with high-load accessories, necessitating a relay upgrade. Confirm its twelve-volt output only when the key is in the “ON” or “ACC” position–any deviation suggests a faulty ignition switch or parasitic draw.
Black cables serve as the ground reference, but not all are equal: the thickest one (usually 10-12 AWG) anchors the main chassis return, while thinner variants connect to speaker negatives or auxiliary grounds. Scrape paint or rust from attachment points–clean, bare metal ensures a solid connection. Weak grounds manifest as distorted audio, weak bass, or erratic display behavior; test continuity with a multimeter between the ground pin and the battery’s negative terminal, aiming for under 0.5 ohms resistance.
Speaker wires follow a consistent pattern: each pair has a base color (white, gray, green, purple) striped with a contrasting tracer. The base color denotes the front/rear position, while the tracer (black, usually) indicates polarity–solid is positive, striped is negative. Reversing these causes phase cancellation, thinning out midrange frequencies. For aftermarket upgrades, match the factory wire gauge (typically 18-16 AWG) to avoid overloading tiny voice coils or creating impedance mismatches.
Diagnosing Anomalies in Color-Coded Circuits
Blue wires often control power antennas or amplifier triggers. If an amp refuses to engage, probe the blue lead for twelve volts when the audio system powers on–absence of voltage means a break in the head unit’s remote turn-on circuit. Factory alarms or remote starts sometimes splice into this line, causing unintended amplifier activation; isolate the circuit with a diode if feedback occurs. For vehicles with automatic antenna retractors, a shorted blue/white stripe may prevent the mast from lowering fully–inspect for frayed insulation near the fender well.
Step-by-Step Guide to Removing the Factory Audio Unit
Disconnect the vehicle’s negative battery terminal first to prevent short circuits or airbag deployment. Use a 10mm socket to loosen the terminal clamp, then slide it free and secure it away from the post. This step eliminates electrical hazards during disassembly.
Pry off the trim panel surrounding the head unit using a plastic trim removal tool. Work from the bottom edges outward, inserting the tool into the seam between the panel and dashboard. Avoid metal tools–they can scratch surfaces. The panel snaps into place with clips, so apply steady pressure to release them without breaking tabs. If resistance is high, check for hidden screws beneath the climate control knobs or vent covers before proceeding.
- Locate and remove the two 7mm bolts securing the head unit’s mounting cage. These are positioned at the top corners behind the trim panel.
- Slide the cage forward slightly to access its rear connectors. Press the release tabs on each wiring harness plug while pulling gently–do not yank wires.
- Disconnect the antenna lead by unscrewing its threaded base counterclockwise. Label all connectors if reinstalling a different system later.
Handling Stubborn Components
If the factory unit is stuck, verify no additional screws are hidden behind the glovebox or under the driver’s side dash panel. Some models have a third bolt near the heater core access cover. Apply WD-40 to seized bolts, letting it penetrate for 10 minutes before attempting removal again.
- Reinstall the mounting cage loosely if keeping the same unit or installing an aftermarket system. This ensures proper alignment for dashboard reassembly.
- Reconnect the battery terminal last, then test all electrical accessories (lights, windows) to confirm no fuses were blown during the process.
- If reinstalling the original unit, verify all connectors click securely before snapping the trim panel back into place. Misaligned clips may require re-seating.
