Begin troubleshooting by locating the fuse box under the dashboard–specifically, fuse #15 (15A) controls the low-beam circuit while fuse #17 (10A) handles high beams. If bulbs remain dark despite intact fuses, shift focus to the bulb socket harness (PN 15168056 for OE replacement). Corrosion at the three-pin connector (female terminals) is a frequent failure point; clean contacts with electrical-grade cleaner or replace the pigtail if resistance exceeds 0.2 ohms.
Trace the main power lead (black/white stripe) from the I/P fuse block to the headlamp relay mounted behind the grille. A failed relay–common after 120K miles–mimics bulb issues; test by swapping with the horn relay (identical part number 15870362). For intermittent faults, inspect the chassis ground (G102) near the driver-side frame rail; loose bolts here create voltage drops that trigger flickering at speeds above 40 mph.

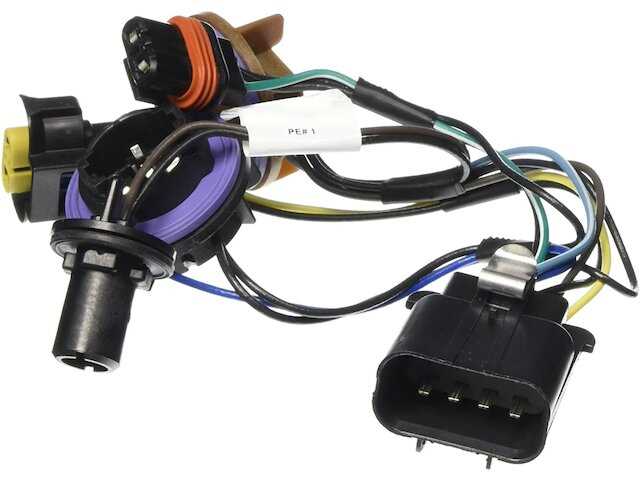

Replace the entire harness (ACDelco 12619406) only if multimeter tests confirm open circuits in the twisted pair wiring (yellow/gray for low beams, light blue/white for high beams). Avoid splices–factory crimps use heat-shrink tubing; improper repairs void DOT reflectivity compliance. For HID retrofit projects, note that the BCM monitors CAN bus signals at pin 12 (C2 connector); bypassing requires a load resistor (50W/10Ω) to prevent hyperflash.
Parking lamp circuit (orange lead) shares the same ground as the headlamp; verify continuity with a test light before disassembling the front fascia. Aftermarket LED upgrades often require a decoder module (anti-flicker capacitor type) to prevent rapid cycling. Keep a spare relay (PN 10484636) in the glovebox–failures occur without warning, typically during cold starts.
Electrical Layout for Front Illumination on a Specific GM SUV Model
Start troubleshooting by locating the fuse panel beneath the dashboard on the driver’s side. Remove cover retaining screws to reveal fuses numbered F5 (left beam, 15A) and F6 (right beam, 15A). Verify continuity with a multimeter; replace any blown fuse with identical amperage rating to prevent electrical overload.
Disconnect the vehicle battery negative terminal before handling wire connectors to eliminate short-circuit risk. Probe the electrical harness near the bulb socket–pins A (ground), B (+12V low beam) and C (+12V high beam)–for correct voltage using a test light while cycling the switch inside the cabin.
Inspect the wiring harness where it exits the front assembly for chafing or insulation damage, common failure points due to constant vibration. Apply liquid electrical tape or heat-shrink tubing to exposed conductors to restore insulation integrity without introducing additional resistance.
Component Pinout Reference
| Connector Pin | Wire Color | Function | Expected Voltage |
|---|---|---|---|
| A | Black | Ground return | 0V |
| B | Brown/White stripe | Low beam supply | 12-14V |
| C | Dark Green/White stripe | High beam supply | 12-14V |
Replace corroded or green-tinted terminals with gold-plated connectors to maintain steady current flow. Crimping tools must secure new connectors without deforming insulation; soldering joints adds long-term durability but ensure flux residue is fully cleaned to prevent future oxidation.
Check the daytime running module mounted adjacent to the radiator support if daytime lights stay illuminated continuously–module failure triggers erratic behavior. Swap with a known-good unit before condemning the entire electrical network.
When reassembling the front housing, ensure the rubber gasket seats flush against the lens to prevent moisture ingress. Apply dielectric grease to bulb contacts to inhibit corrosion and improve conductivity.
Minimum Required Tools
| Tool | Purpose |
|---|---|
| Digital multimeter | Voltage & resistance measurement |
| Crimping tool | Termination of new connectors |
| Non-conductive pick set | Separating brittle harness clips |
| Flashlight with 500+ lumen output | Illuminating tight spaces |
Verify all repairs by operating both beam modes while monitoring for flicker or dimming–flicker indicates loose connections or failing bulb filaments. Repeat voltage checks at the fuse block if inconsistencies persist.
Finding the Illumination System Connector Points Beneath the Engine Bay
Begin by raising the hood and securing it with the prop rod–the primary harness junction for front lamps is mounted on the driver-side inner fender, adjacent to the battery tray. Trace the main loom from the bulbs backward; two distinct connectors emerge: a larger 12-pin plug for high/low beams and a smaller 3-pin socket for daytime running lamps. Each plug is keyed–match the notches before applying force to avoid terminal damage.
Key Connection Landmarks
- Fuse box lid: Remove the cover (10mm bolt) to expose the rear of the under-hood fuse panel–three labeled relays (HDL, DRL, H/LP) correspond to the nearby harness splices.
- Battery negative clamp: Follow the black negative cable to a chassis ground lug–this is a common injection point for corrosion; clean with a wire brush if terminals show white oxidation.
- Coolant reservoir: The harness snakes behind the tank; a gray plastic clip secures it–press the release tab to free the loom for inspection.
Disconnect the negative terminal first–this prevents short circuits if tools contact chassis grounds while probing. Probe female terminals with a multimeter set to 12V DC; steady voltage should register on pins 2 (low beam), 5 (high beam), and 9 (parking lamp) of the primary connector when the stalk lever is cycled. If readings fluctuate, suspect corroded pins–apply dielectric grease after cleaning.
Pin Layout for Main and Brights Illumination Pathways
Locate the central connector behind the lamp assembly–typically an eight-way plug with two distinct rows. The lower row’s second pin from the left delivers ground for the primary lighting circuit, while the fourth pin supplies power during standard operation. For the intense beam function, check the upper row’s third slot, which carries a switched 12V signal when high-output mode engages. Verify each terminal with a multimeter set to DC voltage, ensuring 11–14V presence under ignition.
Color Coding and Terminal Assignment
White-striped wires correspond to the standard output, brown-striped with a white trace handle the high-output feed, and the solid black lead serves as the common return path. If colors deviate or fade, trace the harness toward the vehicle’s fuse panel–primary power originates from fuse 21 (20A), while the upper beam draws from fuse 23 (15A). Misrouting between these circuits often triggers erratic flickering or total dropout.
Swap the connector temporarily with a known-good unit if readings are inconsistent; corrosion in the connector pins frequently mimics wiring faults. Apply dielectric grease sparingly after confirming continuity to prevent future corrosion. Avoid piercing insulation or back-probing live circuits–use designated test points on the backside of the plug housing for safe voltage checks.
For vehicles equipped with automatic light control modules, the third pin in the upper row doubles as a feedback signal to the body control unit; disrupting this line may disable auto-dimming or delay lamp activation. Testing without module emulation can yield false negatives–ensure all related systems (fuse, relay, DRL settings) are functional before concluding a genuine fault.
Step-by-Step Guide to Illumination Circuit Color Codes and Their Roles
Locate the dark green wire with a white stripe–this delivers direct battery current to the front lamp assembly’s low-beam circuit. Verify continuity with a multimeter: probe the connector terminal while the ignition is off; readings should hold steady at 12–14 volts. Any drop below 11 volts indicates corrosion inside the fuse block or a defective relay module.
Trace the light blue wire next; it acts as the trigger for the high-beam selector. This conductor links to the multifunction switch via pin B6–momentary closure here energizes the high-beam coil inside the lamp socket. Prevent cross-feeding by ensuring the adjacent tan wire remains grounded during switch activation; stray voltage here often causes intermittent flickering.
Inspect the yellow and red striped wire–this carries ground return for both beam circuits. Strip ½ inch of insulation at the chassis connection point; corroded strands here degrade beam intensity unevenly. Re-terminate with a crimp-on ring lug and apply dielectric grease to discourage future oxide build-up.
Identify the brown wire: it supplies park lamp voltage only when the lighting control is rotated past the “off” detent. This circuit shares a ground with the turn-signal flasher module, so isolate faults by checking for 7–9 volts at the bulb socket terminal while the parking lamps are engaged. Voltage absence usually signals a blown 10A fuse or a broken trace inside the body control module.
Examine the gray wire with a black stripe–this is the daytime running lamp feed. It sources reduced voltage through a series resistor located behind the left-hand kick panel; confirm 5–7 volts here with the engine running. If readings climb to full battery voltage, suspect a failed DRL relay or a shorted ballast resistor.
Check the white and black striped wire at the lamp connector: it carries battery voltage exclusively when the high beams are selected. Use a test light to verify the signal bleeds off immediately when shifting back to low beams–lag here implicates a fault in the multifunction-switch contacts or a burnt relay socket.
Quick Reference Connector Pinout
Pin 1 – Dark green/white stripe: low-beam supply
Pin 2 – Light blue: high-beam trigger
Pin 3 – Tan: low-beam return
Pin 4 – Yellow/red stripe: common ground
Pin 5 – Brown: park lamp feed
Pin 6 – Gray/black stripe: DRL supply
Pin 8 – White/black stripe: high-beam supply
