The most reliable way to integrate an aftermarket sound system begins with identifying the color-coded connections behind the factory stereo unit. Brown (illumination), pink (+12V switched), and yellow (constant +12V) wires demand correct splicing–failure risks dashboard fuse overload or permanent battery drain. Ground connections, typically black, require direct chassis attachment with a minimum 16-gauge ring terminal to prevent intermittent signal loss. Refer to the vehicle’s central harness connector (C1901) for auxiliary power feeds; splicing into these maintains OEM clock and preset memory functions.
Speaker outputs follow Toyota’s standardized polarity: front doors use light green (positive) and dark blue (negative), while rear doors pair gray (positive) and white (negative). Subwoofer integration requires tapping into the rear panel amplifier, where violet (+) and gray (-) feeds handle low-frequency distribution. Avoid using aftermarket RCA converters on amplified lines–these degrade signal clarity and introduce ground loop interference. Instead, bypass the factory amp entirely or use a high-quality line output converter designed for 4-6V preamp outputs.
Antitheft security features rely on the ignition-sensed purple wire; cutting this disables the factory alarm’s starter interrupt function. For vehicles equipped with navigation, the GPS antenna (solid green wire) must remain connected to retain satellite lock. Fuse ratings for accessory circuits max at 10A–exceeding this trips the junction box relay, disabling power mirrors and rear defrost. Always use a digital multimeter to verify voltages before connecting new components; OEM harness adapters reduce installation time but may require pin adjustments for non-standard head units.
Audio System Electrical Layout for the 2006 Toyota SUV

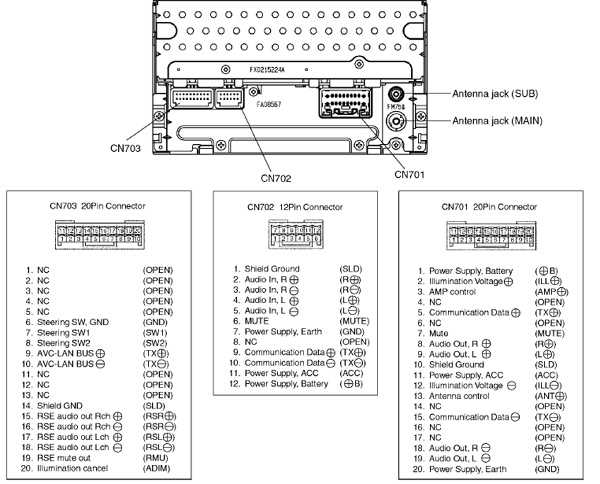

Locate the main harness behind the dashboard cluster near the driver’s side, where the factory sound unit connects to a 20-pin connector. Pin assignments follow this sequence: A1 (illumination), A3 (ground), A4 (constant 12V), A5 (accessory), A6 (antenna trigger), B1 (front left positive), B2 (front left ground), B3 (front right positive), B4 (front right ground). Verify colors–white/black stripe for ignition-fed power, yellow for battery-fed–before splicing any aftermarket components to prevent shorts.
Key Troubleshooting Points
- Check fuse #22 (10A) in the under-dash panel if the head unit powers on but produces no sound–blown circuits often indicate improper speaker polarity.
- Test continuity between B1/B3 and chassis ground if rear channels drop out, as corrosion in the rear door harness is common.
- Replace the 8-pin amplifier connector if bass response weakens suddenly; internal pins corrode after prolonged moisture exposure.
Subwoofer taps emerge from C1/C2 on the 12-pin extension harness–solid brown for positive, brown/black stripe for ground–feeding the factory amplifier beneath the driver’s seat. Match impedance ratings (4-ohm minimum) when upgrading to avoid overheating the compact power module, which lacks heatsinks and vents only through rear slots.
Finding the Audio System Connector in Your Large SUV
Begin by removing the center stack trim panel around the head unit. Use a plastic trim tool to gently pry the edges–start at the bottom near the climate controls and work upward. The clips securing these panels are fragile; applying steady pressure prevents cracking. The connector lies directly behind the factory stereo, hidden beneath the climate control assembly on the driver’s side.

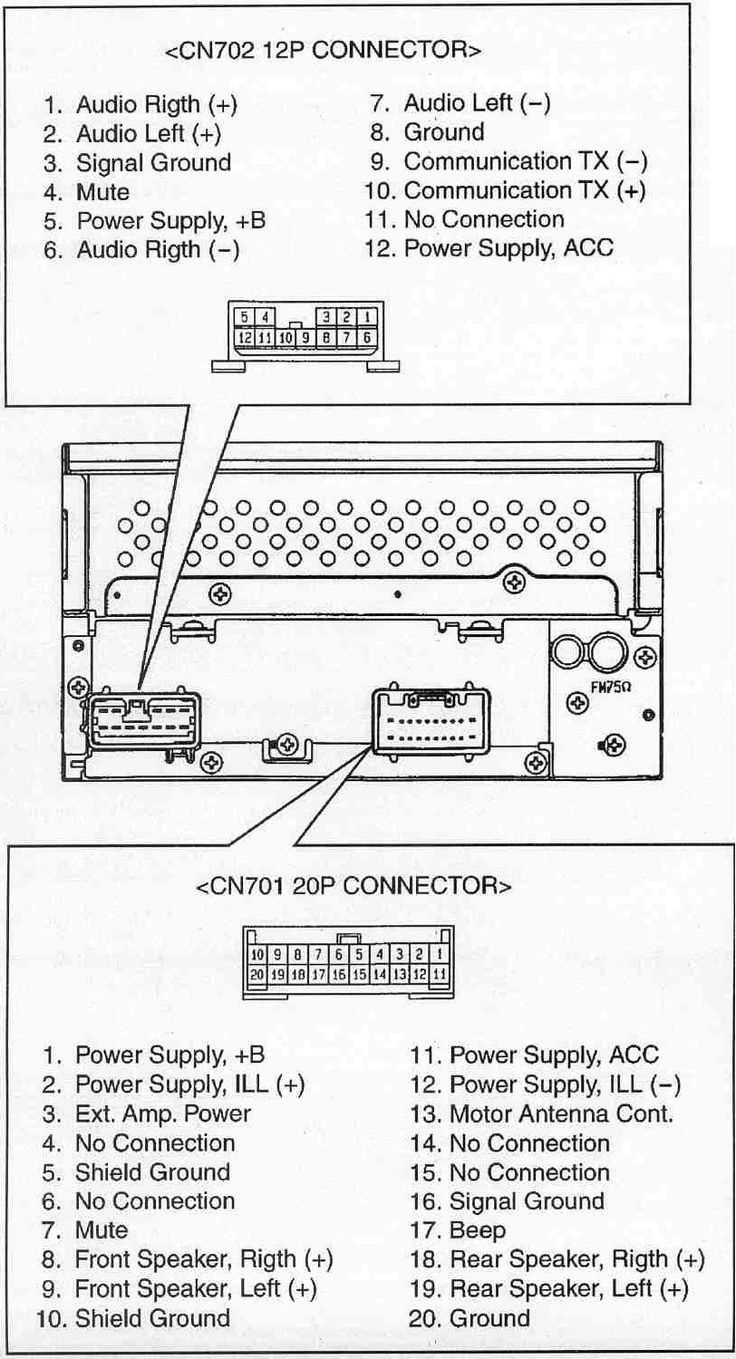

The harness you need connects via a white or gray plastic plug, typically 16-pin on premium models or 8-pin on base trims. Check the upper right corner of the cavity after pulling the stereo–if obstructed, lower the glove box to access the backside of the dash. This often reveals the full wiring cluster without requiring removal of additional panels. Label each wire before disconnecting for easier reassembly.

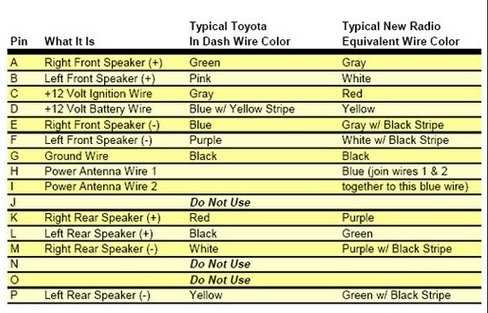

The following table identifies pin functions for standard and luxury trims:
| Pin | Color | Function |
|---|---|---|
| 1 | Yellow/Red | Constant 12V |
| 2 | Black | Ground |
| 4 | Blue/White | Antenna trigger |
| 5-8 | Green, Purple, Gray, White | Front speaker outputs |
| 9-12 | Brown, Pink, Dark Blue, Light Green | Rear speaker outputs |
| 13 | Red | Accessory power |
If the connector shows signs of heat damage or corrosion (common with aftermarket installations), inspect the fuse box under the driver’s side dash. Fuse #18 (10A) often correlates with audio system power; a blown fuse indicates a short requiring trace-back along the yellow/red wire. Probe with a multimeter–voltage should read 12V constant with ignition off.

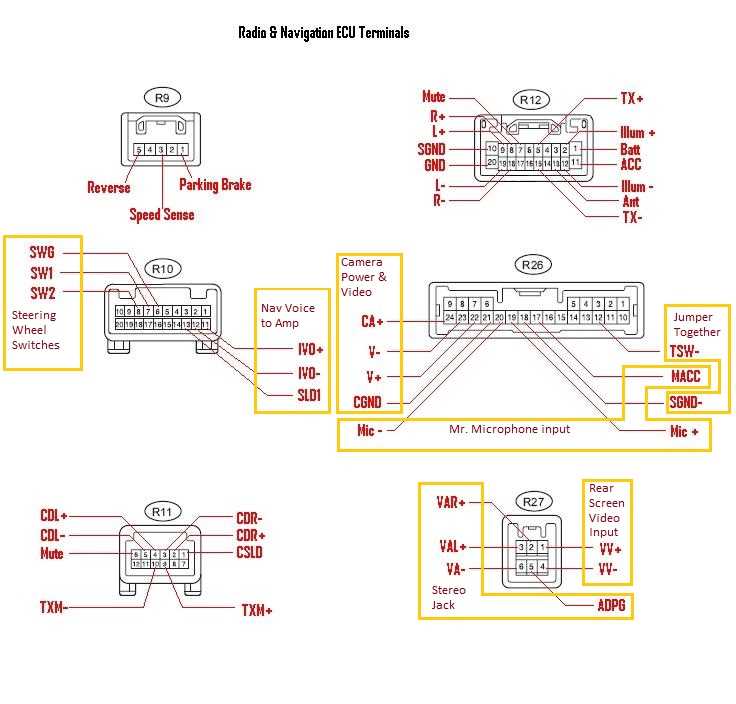

For vehicles equipped with navigation, an additional blue 12-pin connector sits beside the main harness. This smaller plug carries vehicle speed sensor data and illumination controls. Disconnect the battery before handling it to prevent short-circuiting sensitive circuits. Reattach the negative terminal last during reassembly to avoid accidental arcing.
Hidden harnesses may also reside behind the rear seatback or cargo area panels in models with amplified sound systems. Remove the rear quarter trim by unscrewing two Torx T20 bolts near the tailgate; the harness emerges along the seatbelt anchor. Tape all wires securely to prevent rattling, as loose connections can trigger diagnostic trouble codes in on-board computers.
Decoding Vehicle Audio System Connector Hues for Proper Installation
Begin by locating the factory harness behind the head unit–most models use a 14-pin or 24-pin connector. The power lead is typically solid yellow (12V constant) or red (switched 12V); confusion between these two can drain the battery if misaligned. Ground wires are almost always black or brown, but verify with a multimeter–any resistance over 0.5 ohms indicates a poor connection requiring cleaning or retermination.
Key Lead Functions and Color Standards
- Illumination: Light green or gray stripes regulate dash light dimming.
- Speaker outputs: Follow this pairing:
- Front left (+): Gray or tan
- Front left (-): Gray/black stripe
- Front right (+): White or purple
- Front right (-): White/black stripe
- Rear left (+): Green or blue
- Rear left (-): Green/black stripe
- Rear right (+): Violet or pink
- Rear right (-): Violet/black stripe
- Antenna trigger: Pink or light blue activates the motorized mast–connect only after verifying amplifier presence to prevent shorting.
Conflicting color schemes appear in aftermarket adapters; confirm factory harness integrity with a pinout test using diagrams specific to trim levels (SR5 vs. Limited). Mixed hues like gray/red or green/yellow often denote premium amplifier feeds–tapping these incorrectly may mute rear channels or disable fade control.
For vehicles with built-in navigation, seek the purple/white serial data wire–interrupting this signal can corrupt settings or disable hands-free functions. Always isolate unused leads with heat-shrink tubing; exposed copper invites oxidation and phantom voltages that degrade signal quality over time.
- Strip only 5mm of insulation from each lead to minimize interference.
- Use crimp connectors rated for 22-18 AWG–not solder–for vibration resistance.
- Secure harnesses with adhesive-backed clamps every 15cm to prevent rattling against metal.
Step-by-Step Guide to Integrating a New Stereo with OEM Harnesses
Begin by obtaining a universal adapter harness matching the vehicle’s original connector. Confirm the pinout configuration using a multimeter–test for 12V constant (yellow), accessory (red), ground (black), and speaker outputs (typically pairs of gray, white, green, and purple wires). Strip insulation from both the aftermarket unit’s leads and the adapter harness, then twist and solder each corresponding connection. Heat-shrink tubing or electrical tape prevents shorts; wrap each joint individually before bundling.
Verifying Power and Ground Criticals
Connect the 12V constant lead to the vehicle’s battery line to retain preset memory–avoid tapping into fuse circuits, as they often deliver insufficient current. The ground must terminate directly to chassis metal; sand off paint at the attachment point for a low-resistance bond. Incorrect grounding causes buzzing, distortion, or no sound. Test all speaker wires under load–reverse polarity flips acoustic phase, muddying bass output.
For vehicles with amplified systems, locate the amplifier’s remote turn-on wire (usually blue/white). Splice it into the new unit’s dedicated trigger output–failing to do so leaves factory amps dormant, muting rear channels. If retaining steering wheel controls, add an interface module between the harness and main connector; program it according to the manufacturer’s button mapping before finalizing connections.
Finalizing and Security Checks
Secure all connections with loom tape, then route cables away from moving parts, heat sources, and sharp edges. Reattach the dash trim, ensuring clips snap fully into place–half-seated panels vibrate, producing rattles. Power on the unit and test each function: tuner, media inputs, volume balance, and fader. If static persists, recheck ground integrity; if certain channels remain silent, verify the adapter harness’s speaker wire assignments against the vehicle’s schematic.
Once confirmed operational, apply dielectric grease to exposed terminals to prevent corrosion. Store original components safely–if reverting to stock, simply disconnect the adapter harness and reconnect the original plug without splicing. Label each wire during disassembly for future reference.
