Start by isolating the main harness connector beneath the front fender–this is ground zero for troubleshooting power delivery issues. The nine-pin plug (black/red) carries the ignition feed; verify continuity with a multimeter set to 200 ohms. Resistance above 0.5 ohms indicates corrosion at the terminals–clean with contact cleaner, not sandpaper, to avoid damaging the plating. For intermittent faults, focus on the yellow wire (pin 3) linking the ignition switch; it frequently chafes against the frame near the steering post. Secure it with split loom tubing and relocate it 2 inches away from metal edges.
Trace the charging circuit from the stator to the voltage regulator (mounted left of the battery). The white wire (pin A) should read 13.8–14.2V AC at 3,000 RPM; readings below 12V suggest stator failure. Replace the stator if the resistance between any two stator wires falls outside 0.2–0.5 ohms. The regulator’s ground (black wire) must connect directly to the battery negative terminal–bypass the chassis ground to eliminate voltage drop. For headlight flickering, inspect the brown/white wire (low beam); replace the bulb socket if the crimp shows green oxidation.
Access the ECU connections by removing the left side panel. Pin 12 (gray/red) controls the fuel pump relay–jumper it momentarily to test for a clicking sound. If silent, swap the relay. For no-start conditions, probe pin 7 (blue/white) for 5V reference; absence confirms ECU failure. The throttle position sensor (TPS) uses three wires–red (5V), black (ground), and green (signal). Adjust the TPS so the signal reads 0.5–0.9V at idle; misalignment causes erratic fuel delivery. Always reconnect the battery ground last to prevent voltage spikes from damaging sensitive components.
ATV Electrical Schematic: Hands-On Troubleshooting & Repairs
Locate the main fuse block under the left-side panel–it’s marked by a red 20A fuse. Check continuity with a multimeter if the engine cranks but won’t start; a blown fuse interrupts the ignition relay circuit, leaving the starter solenoid silent. Replace the fuse only after confirming no short exists downstream.

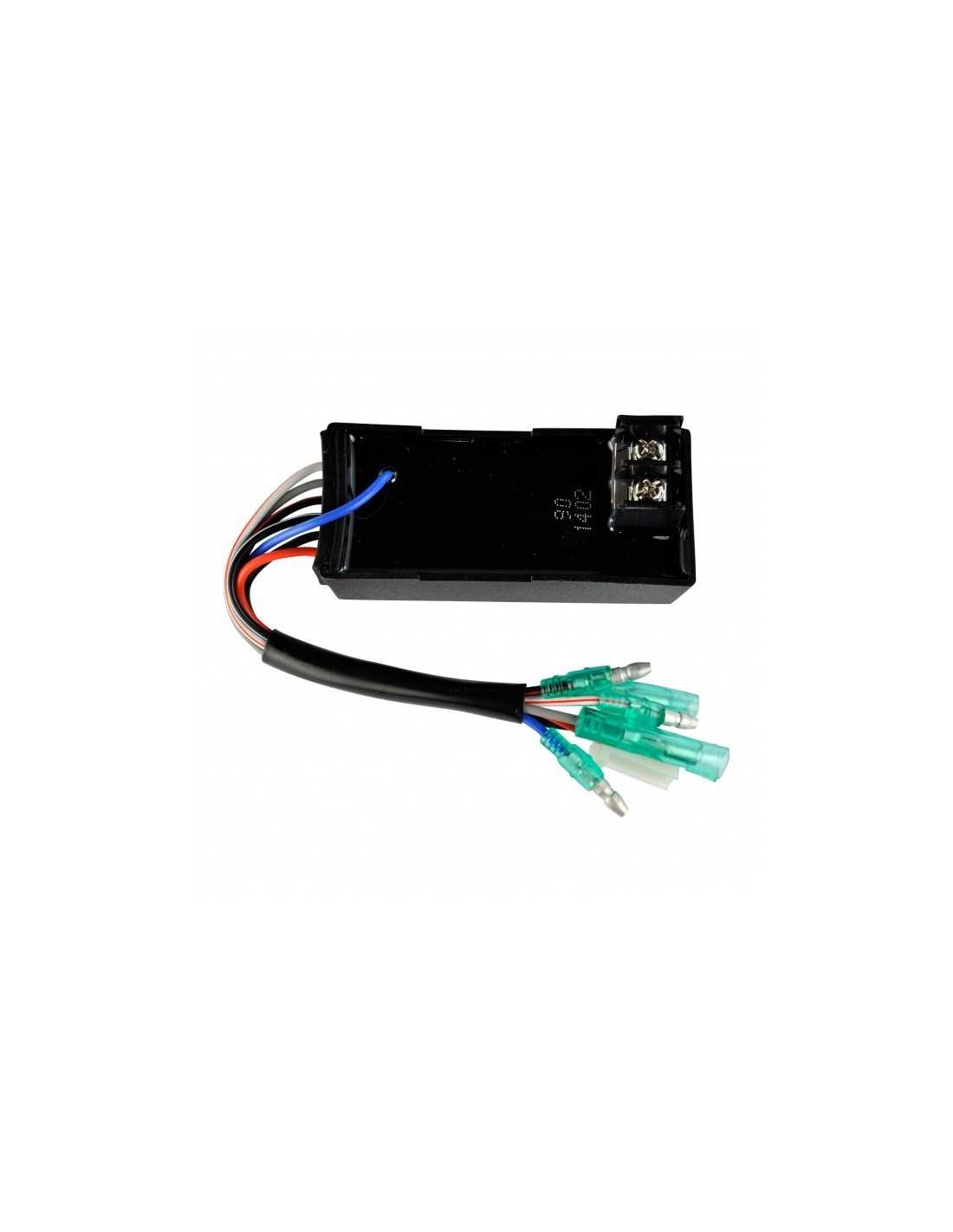

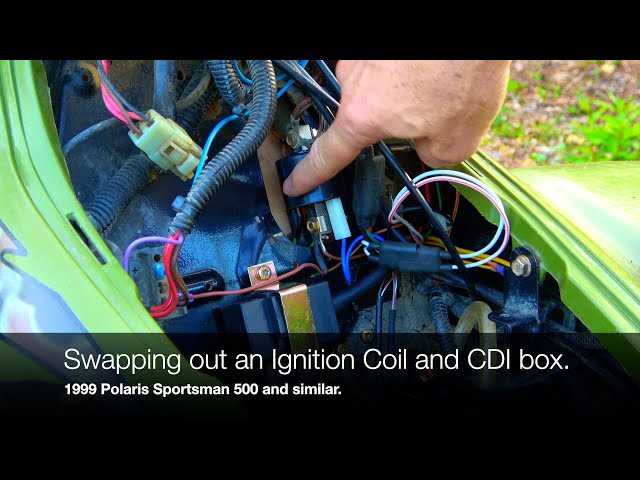

Trace the orange/white wire from the ignition switch to the CDI unit. This 18-gauge conductor carries the trigger signal; corrosion at the bullet connectors near the coil causes intermittent spark loss. Clean terminals with dielectric grease and crimp new connectors if resistance exceeds 0.5 ohms.
Inspect the stator’s yellow wires where they splice into the rectifier. Voltage should measure 18-22V AC at 3,000 RPM with no load. Values outside this range indicate stator failure–rewind or replace if insulation tests show less than 1M ohm to ground.
Use this reference table for key harness junctions:
| Wire Color | Connector Pin | Function | Nominal Voltage |
|---|---|---|---|
| Black | C1-7 | Ground | 0V |
| Red/White | C2-3 | Battery +12V | 12.8V |
| Green/Yellow | C3-5 | Neutral switch | 12V when engaged |
| Blue | C4-2 | Fuel pump | Pulsed 12V |
For lighting circuits, the brown wire feeds the taillight; a 3-ohm resistor inline drops current to 3.2A at 12V. Bypassing this resistor overloads the filament–install the correct value to avoid repeated bulb failure.
Ground straps connect the engine block to the frame at two points–near the battery tray and under the front skid plate. Rust at these connections raises resistance; clean with a wire brush and torque to 12 Nm to prevent electrical gremlins.
When testing the reverse override relay, remove the kickstand switch plug first. A stuck switch sends a false signal, cutting ignition during startup. Jumper terminals 1 and 4 on the relay socket to confirm proper operation–engine should start regardless of gear position.
Finding Key Electrical Link Points on Your ATV
Begin under the front storage compartment, directly behind the handlebar cover. Remove the plastic panel fastened by two 8mm bolts–it conceals the primary multi-pin link cluster. This white 12-way rectangle houses critical feeds to the ignition, lighting circuits, and ECM. Label each branch before disconnecting: markings or tape on wires prevent misrouting later. If corrosion is visible, clean pins with dielectric grease and a small wire brush to ensure solid contact; intermittent voltage drops often trace here.
The secondary harness junction sits beneath the left-side body panel, near the footwell. Access requires removing three 10mm fasteners securing the inner fender. Look for a black circular plug–typically 8 ports–linking the brake light, taillight assembly, and reverse solenoid. Check this connector for melted terminals; heat damage from high-resistance shorts may require replacement. Always test continuity with a multimeter before reassembly: resistance readings above 0.5 ohms indicate degraded leads needing repair.
- Trace the charging circuit link near the battery tray. Locate the 3-way orange connector–two thicker cables route to the stator, the third to the voltage regulator. Use pliers to tighten terminal nuts if vibration-loosening occurs, a common source of no-start conditions.
- Inspect the rear frame beneath the seat for the auxiliary plug. Two separate two-port blocks serve winch and accessory circuits; mismatched plug alignment here disables add-on modules. Route any aftermarket wiring through this link using proper gauge splices rather than solderless connectors prone to water ingress.
For the instrument cluster harness, access the dash by prying the rubber gasket around the speedometer. Four Torx screws hold the display in place; behind it, a thin 6-circuit blue link feeds the fuel gauge, hour meter, and indicator lamps. Replace any brittle wires exhibiting cracked insulation–exposure leads to erroneous readings or total gauge failure. Verify each signal path with a test light: faulty grounds within this plug often trigger false error codes.
Hidden behind the right-side shock tower, a modest 4-pin block connects the engine temperature sensor and oil pressure switch. Reach it by pivoting the plastic skid plate downward–no tools needed. Water intrusion frequently corrodes this plug; applying silicone dielectric compound after cleaning extends service life. Inspect mating surfaces closely: pitted metal contacts create intermittent failures that disrupt EFI operation.
Follow the main cable loom from the steering column downward to where it splits near the radiator shroud. A pair of single-port cylindrical connectors control the fan motor. Confirm power delivery using a voltage probe: 12V should register at both terminals when ignition key activates. Fan failures commonly stem from split seams or broken retaining tabs; ensure snap-fits engage fully to avoid accidental disconnection during vibration.
Step-by-Step Harness Color Codes for Starting and Illumination Systems
Begin with the ignition switch connector: the primary power feed is the red wire (B+) supplying 12V constant voltage. Verify this first–no continuity means a faulty connection upstream. The black wire grounds the circuit; check for corrosion at the frame attachment point.
Trace the orange wire from the ignition switch to the starter solenoid. This carries the start signal when the key is turned–voltage should spike to 12V only during cranking. If absent, inspect the ignition switch contacts or the neutral safety switch on manual transmissions.
Lighting Circuit Breakdown
Headlights run off two circuits: low beam (dark green/white stripe) and high beam (dark green/black stripe). Both originate at the headlight switch; low beam defaults on key-on, while high beam toggles via the blue wire at the handlebar switch. Test each lead with a multimeter–low beam should show 12V with the key on, high beam only when activated.
Turn signals operate on alternating current from the flasher relay. The front left signal uses a light blue/yellow stripe wire, while the right employs light blue/white. Rear signals mirror these colors with an added black stripe for the left and a red stripe for the right. Confirm flasher function by checking for intermittent voltage at the bulb sockets–no blink means a dead relay or broken wire.
Running lights (clear lens) use the gray wire for all positions–front, rear, and license plate. This circuit relies on the headlight switch; measure 12V at each fixture with the lights on. If voltage drops, inspect connectors near the taillight housing, where vibration often frays wire strands.
Brake lights merge two inputs: the rear pedal switch (brown/white stripe) and the front lever switch (brown/yellow stripe). Both should close independently to ground the brown wire, triggering the red running light wire to illuminate. Test each switch by pressing the pedal or lever–no response indicates a broken switch or severed wire inside the harness sheath.
Instrument cluster power comes from the purple wire–this delivers key-on voltage to backlight bulbs and the speedometer. Dimmer function uses the pink wire, reducing voltage via a resistor for night riding. If dash lights flicker, probe the pink and purple wires at the cluster connector–voltage below 10V suggests a failing dimmer module.
For troubleshooting, strip 2mm of insulation at key junctions (ignition coil, handlebar switches) and probe with a multimeter set to DC volts. Record readings; deviations from 12V (ignition) or fluctuating signals (lights) pinpoint faults. Always rewrap splices with adhesive-lined heat shrink tubing–electrical tape fails under vibration and moisture.
