If your factory sound installation lacks auxiliary inputs or Bluetooth, integrate an aftermarket unit using the existing connector layout. The C1 harness (16-pin, black) carries all necessary leads–ground, illumination, battery feed, and speaker outputs–pre-mapped to the vehicle’s pre-existing terminals. Cutting into original cables risks voltage drop or short circuits; instead, procure a compatible interface adapter (Metra 70-1002 or Scosche JP02B) that aligns with the native pinout.
Locate the main harness beneath the driver’s side dash panel, near the fuse box. The constant 12V (yellow) and accessory-powered (red) wires are paired on pins 12 and 14, respectively–crimp connectors to these first to avoid power drain during ignition-off. Speaker leads (+/-) occupy four adjacent pairs: front left/right (pins 1-4), rear left/right (pins 5-8). Verify polarity with a multimeter; mismatched phasing produces weak bass output.
Avoid splicing into the data bus (pin 15, purple), which handles vehicle diagnostics–interference may trigger fault codes. If retaining the amplifier, retain the remote turn-on (blue/white, pin 16) to prevent signal distortion. For vehicles equipped with factory subwoofers, the separate 8-pin harness (C2, gray) supplies dedicated low-frequency outputs–adapters like PAC RP4-CH11 retain this functionality without modification.
Solder all connections and insulate with adhesive-lined heat shrink tubing to prevent corrosion. Route cables away from moving components and high-current wiring (starter, alternator) to minimize noise. Test each channel independently before reassembling trim panels–unexpected silence often traces to a single misaligned terminal.
Guide to Radio Electrical Connections for 2006 Model Compact SUV

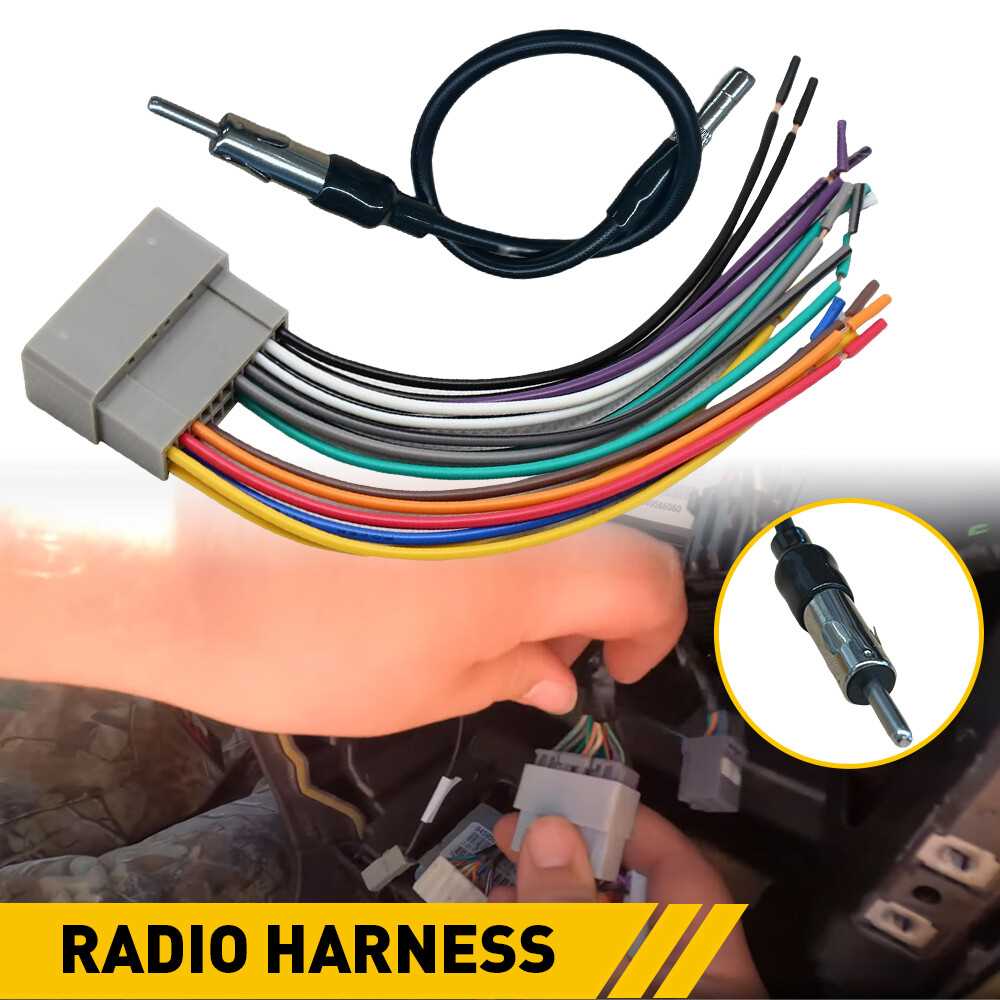

Begin by locating the manufacturer’s harness behind the factory audio unit. Disconnect the negative battery terminal to prevent short circuits while handling connectors. The primary harness includes power, ground, speaker, and antenna leads labeled as follows: constant 12V (yellow), ignition-switched (red), ground (black), and dimmer (orange). Verify each wire’s function with a multimeter before proceeding to avoid damaging the vehicle’s electrical system.
Speaker wires follow a standardized color-coding for front and rear channels. Front left positive is light green with a dark green stripe, while front right positive is gray with a dark gray stripe. Rear speaker positives are brown with a yellow stripe (left) and dark blue with a light blue stripe (right). Negative leads for each channel match the primary color without stripes. Cross-reference these colors with the aftermarket receiver’s manual to ensure proper polarity.
| Wire Function | Base Color | Stripe Color |
|---|---|---|
| Front Left (+) | Light Green | Dark Green |
| Front Right (+) | Gray | Dark Gray |
| Rear Left (+) | Brown | Yellow |
| Rear Right (+) | Dark Blue | Light Blue |
For vehicles equipped with an amplified system, an additional harness connects to the amp remote (light blue with a dark blue stripe). Failure to connect this wire may result in no sound output. If replacing the unit, ensure the new system supports the factory amplifier’s impedance–typically 2 or 4 ohms–to prevent distortion or overheating. Some aftermarket models require a bypass module to maintain steering wheel controls.
Parking brake and reverse signal wires (pink and purple, respectively) may integrate into advanced setups. These connections enable video playback restrictions or backup camera functionality. Test all features before finalizing installation to confirm signal integrity. Poor connections often cause flickering screens or intermittent failures.
Use crimp connectors or solder joints for permanent installations, securing each connection with electrical tape or heat-shrink tubing. Avoid twisting wires together as a primary method–vibration can loosen connections over time. Route harnesses away from sharp edges or moving parts, such as the climate control assembly, to prevent chafing.
If retaining the factory antenna, locate the coax cable (black with a white stripe) behind the dashboard near the fusebox. This cable threads to the vehicle’s roof–ensure no kinks during reinstallation to maintain signal strength. Aftermarket antennas may require an adapter for compatibility with the vehicle’s connector type.
Before reassembling the dashboard, reconnect the battery and power on the new system. Verify all speakers produce sound and adjust fader/balance settings. Check for warning lights on the instrument cluster–illuminated icons may indicate incorrect wiring, such as airbag faults from disrupted harnesses near the radio cavity.
For troubleshooting, refer to the factory service manual’s pinout diagrams or use an online database specific to the model’s trim level. Some variants include auxiliary inputs or satellite radio pre-wiring–identify these by tracing unused connectors back to their source. Always document modifications for future reference or potential warranty claims.
Finding the Original Audio System Cable Connections

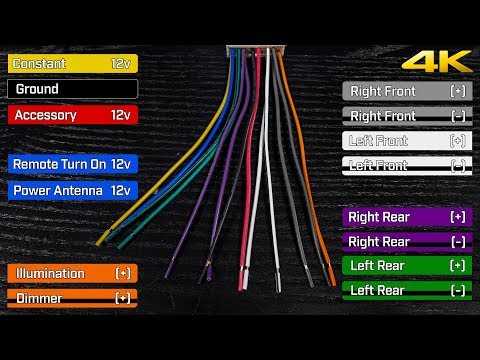

Begin by removing the center dashboard trim panel beneath the climate controls–it snaps off without tools. Behind it, look for a 12-pin rectangular connector with color-coded leads: constant 12V (yellow), switched power (red), ground (black), front left speaker (gray), front right speaker (white), rear left speaker (green), and rear right speaker (purple). Match these to the aftermarket harness adapter by correlating the pin positions rather than wire colors alone, as factory configurations vary.
Trace the harness bundle rearward along the passenger-side firewall kick panel. Two additional harnesses will emerge: a smaller one linking to the vehicle’s power distribution module (typically containing dimmer and antenna triggers) and a larger bundle terminating at the amplifier, if equipped. Cutting or splicing here risks disabling integrated chimes, so probe with a multimeter first–amplifier circuits often carry low-level 4-ohm signals distinguishable from high-impedance door speaker lines.
Verify connections by reconnecting the battery and probing terminals with a test light or audio probe. The ignition-ON state should draw ~10A at the red lead; a dead short suggests miswired ground. For vehicles with steering-wheel controls, locate the separate 6-wire harness behind the driver-side lower dash panel–it uses resistance-based signals (0-5k ohms) for button inputs, requiring a specialized interface module if retaining functionality.
Decoding Harness Color Codes for Audio System Installation
Begin by locating the solid orange lead–this is the constant 12V power source, ensuring memory retention for presets and clock settings when the ignition is off. Connect it directly to the battery positive terminal or an always-hot fuse slot (e.g., radio or accessory fuse) using a 10A fuse within 18 inches of the connection point to prevent voltage drop.
Identify the yellow wire, which serves as the switched 12V input activated by the ignition. This lead powers the head unit during operation and must connect to a fuse tap on the ignition-switched circuit (typically labeled “IGN” or “ACC”). Verify compatibility with a multimeter; 11.5V–12.5V should register when the key is in the “ON” or “ACC” position.
Avoid confusing the black ground wire with dark green or brown, which often carry chassis ground but may not provide sufficient current draw. The ideal ground connection terminates at a bare metal point near the factory harness, sanded clean of paint or corrosion. Secure with a 10–14 AWG ring terminal and a self-tapping screw (size #10–12) into unpainted metal.
Speaker outputs follow a consistent color scheme: light green/black (front left +), light green (front left –), gray/black (front right +), gray (front right –), purple/black (rear left +), purple (rear left –), and dark blue/black (rear right +), dark blue (rear right –). Cross-check polarity with a 9V battery; positive leads will push the speaker cone outward when momentarily connected.
For amplified systems, the solid dark blue wire (remote turn-on) triggers aftermarket amplifiers. Splice this into the head unit’s corresponding lead but add a 300Ω–500Ω resistor inline to prevent popping noises during startup. Ensure all splices are soldered and sealed with adhesive-lined heat shrink to resist vibration and moisture.
Auxiliary inputs or steering wheel controls may use brown, tan, or pink wires–consult the OEM harness pinout for optional circuits. If integrating a navigation interface, the light purple lead often carries the speed sensor signal; tapping this requires a high-impedance buffer to avoid signal degradation.
Disassembling the Factory Audio System: Precision Method
Begin by disconnecting the negative terminal of the vehicle’s battery to prevent electrical shorts or airbag deployment risks. Use a 10mm socket to loosen the clamp, then gently pull the cable free–no need for excessive force. Wait at least 10 minutes before proceeding to ensure residual current dissipates fully.
Locate the release clips on the dashboard trim surrounding the head unit. Slide a trim removal tool or flathead screwdriver into the seam near the vent controls, applying firm but controlled pressure to pop the panel loose. Work clockwise around the unit, detaching the upper panel first, then the lower section. Avoid yanking; the clips are fragile and may snap if mishandled.
Behind the dashboard trim, you’ll find four 7mm bolts securing the factory audio unit. Remove these using a socket wrench, keeping them in a safe place–lost screws complicate reinstallation. Once unbolted, slide the unit forward slowly; it remains connected by a wiring harness and antenna lead. Press the plastic release tabs on the harness plug (usually a green or gray connector) and disengage it with a steady pull. Do not twist or wiggle excessively, as this can damage the pins inside.
If the vehicle is equipped with a stock amplifier or satellite navigation module, additional brackets or wiring may be present. Trace the thick black ground wire (typically bolted to the chassis) and unscrew it using an 8mm socket. For vehicles with integrated climate controls, check for secondary harnesses behind the head unit–disconnect these only after confirming their purpose with a reference diagram.
Store all removed components in reverse order of disassembly. Label cables if multiple harnesses exist, and wrap the antenna lead in a cloth to prevent kinking. Reinstallation requires aligning the unit’s rails with the dash’s guide tracks–fine-tune positioning before securing bolts to avoid misalignment. Test all functions (power, audio balance, steering wheel controls) before reassembling the trim to confirm full operation.
