For immediate troubleshooting, locate the compressor clutch relay in the under-hood fuse box–labeled as fuse position K3 on the schematic. A blown 20A fuse (position J11) or corroded terminal C102 at the firewall connector often causes intermittent cooling failures. Replace the fuse with an identical amperage rating and inspect the relay socket for overheating signs like discoloration.
Trace the blue/white striped wire (circuit C53) from the relay to the low-pressure switch–common failure point after prolonged exposure to moisture. Use a multimeter set to continuity mode to verify the wire’s integrity; readings above 0.5 ohms indicate internal fraying requiring replacement. Avoid bypassing the switch, as it regulates refrigerant flow and prevents compressor damage.
Check the ground connection G103 near the battery tray–loose or oxidized terminals disrupt the entire HVAC system’s circuit. Clean with 120-grit sandpaper and apply dielectric grease before reassembly. For persistent issues, refer to pin A12 on the ECM connector; voltage below 11.5V during compressor engagement suggests alternator output problems.
Refer to schematic segment 9-24 for detailed power distribution–identify the orange/black wire (circuit C17) feeding the condenser fan motor. Intermittent fan operation often stems from a failing motor resistor; test resistances between 20-30 ohms across pins 1-2 for confirmation. Replace only with OEM resistors to maintain proper fan speed calibration.
HVAC Electrical Schematic Reference for Mid-2000s Compact SUV
Locate the climate control module beneath the dashboard on the passenger side. The 16-pin connector (dark brown or charcoal) contains these key pins:
| Pin | Color | Function | Voltage (Key ON) |
|---|---|---|---|
| A1 | Purple/White | Blower high relay coil | 12V intermittent |
| A5 | Tan/Black | Compressor clutch | Battery voltage when engaged |
| A7 | Yellow/Violet | Low-pressure switch | 0V open, 5V closed |
Trace the tan/black wire from pin A5 directly to the pressure cycling switch. This 20-amp circuit must show continuity at the compressor clutch with the system pressurized. If voltage drops below 10.5V at this point, replace the 10A fuse (F41) in the under-hood fusebox.
Inspect the dual-speed electric fan relay (gray housing, 30A rating). The control coil receives 12V from pin C8 of the PCM via a pale blue wire. Ground for the relay is established through a black/white wire connected to chassis ground G105. Verify resistance across the relay coil does not exceed 80Ω.
Identify the low-pressure cutoff switch mounted on the accumulator. The switch opens at 25 psi and closes at 45 psi. A faulty switch will prevent compressor engagement regardless of refrigerant charge. Test for 5V at the connector when the system is evacuated.
Follow the blower motor resistor block leads (pink, pink/black, light blue, dark blue) back to the climate control module. Each resistor segment should measure between 0.8Ω and 1.2Ω individually. Corrosion at the connector (common at the firewall grommet) causes intermittent fan operation.
Check the ambient temperature sensor circuit for a 5V reference voltage at pin B3. The sensor itself is a thermistor; expected resistance values:
| Temperature (°F) | Resistance (kΩ) |
|---|---|
| 32 | 12.5 |
| 77 | 5.0 |
| 122 | 1.8 |
Failure to change resistance proportionally with temperature indicates sensor replacement. Always use dielectric grease when reconnecting sensor wires to prevent moisture ingress.
Finding the Climate Control Bundle in Your Mid-2000s SUV
Begin beneath the dashboard on the driver’s side, directly behind the lower trim panel. The air conditioning harness emerges from the firewall as a thick, sheathed bundle–approximately 1.5 inches in diameter–with three primary subsections: the compressor clutch lead (green/red stripe, 14-gauge), the evaporator sensor pair (tan and violet), and the blower motor feed (black with orange tracer, 16-gauge). Trace these back 18 inches; there the harness splits–one branch continues toward the engine bay, the other curls upward into the center console ductwork.
Key Junctions to Inspect
- Firewall grommet: locate the rubber boot immediately left of the brake pedal assembly–press firmly to feel the cluster of connectors stacked vertically, each secured with T-taps and sealed against moisture ingress.
- HVAC module bracket: mounted between the radio cage and the fuse block, a white nylon clip clamps the harness against vibration; depress the clip’s tab with a flat screwdriver to release.
- Under-hood condenser relay: beside the front grille support, the compressor clutch solenoid shares a joint protector tube with the radiator fan circuit–unwrap 4 inches of loom to expose the crimp splices.
After confirming continuity with a multimeter (clutch lead should show 12.3–13.8 VDC at idle), re-secure branches every 6 inches using spiral wrap–concentrate loops around sharp chassis edges to prevent abrasion from suspension travel. Replace any splice exhibiting greenish oxide or frayed strands longer than 3 millimeters immediately.
AC Compressor Electrical Connections: A Precise Color-Matched Guide
Locate the dual-wire harness connector at the clutch assembly–it’s the only plug attached directly to the compressor housing. The larger terminal carries power; the smaller handles ground signals.
Identify pin terminals by insulation hue:
- Dark green/orange strip – 12V supply from the PCM relay, fused at 30A.
- Light blue/black tracer – Switched ground path, routed through the high-pressure cutout switch.
Trace the dark green/orange lead backward: it originates at the under-hood relay box, terminal 87 (labeled “A/C CLUTCH”). Verify continuity before proceeding–resistance should read
Examine the light blue/black conductor next. It terminates at the refrigerant pressure transducer; voltage here drops to 0V when pressure exceeds 325 psi, disengaging the clutch.
Test both wires with a multimeter:
- Back-probe dark green/orange at the clutch plug; engine off → battery voltage (±0.2V).
- Start engine, engage climate controls → voltage remains; clutch clicks within 2 sec.
- Light blue/black should show 4.8–5.2V key-on; drops to 0V during compressor engagement.
If readings deviate, split the circuit at the firewall bulkhead connector: two white/black wires mark the transition–left pin feeds the dark green/orange, right pin holds the light blue/black return line.
Repair chafed sections with heat-shrink butt splices, matching original gauge (16 AWG for both). Re-seal connector housings with dielectric silicone; twisted pairs must remain separated to prevent cross-talk triggering false pressure trips.
Identifying Fuse and Relay Connections for the AC Circuit
Locate the under-hood fuse box first–it houses critical components for climate control. For this mid-size SUV, the box is typically near the battery, secured by a snap-fit cover. Remove the cover to reveal a labeled layout, but verify each fuse’s position against the owner’s manual since internal revisions occur without notice. The AC circuit usually relies on a 30-amp MAXI fuse (marked as A/C compressor) and a separate 10-amp mini fuse for the blower motor. Use a multimeter set to continuity mode to test each fuse in-place; a reading above 0.5 ohms indicates failure.
Relays act as switches, directing current to the compressor clutch and condenser fan. The AC relay slot is often labeled “A/C Relay” or “Clutch Relay” with a 40-amp rating. Swap it with an identical relay from the fuse box (e.g., horn relay) to test–if the AC engages, replace the faulty relay. For deeper diagnosis, probe relay socket terminals: terminal 85 (control from PCM) should show 12V when ignition is ON, terminal 86 (ground) must read 0V, terminal 30 (battery feed) should register 12V constantly, and terminal 87 (output) must deliver voltage only when the relay clicks.

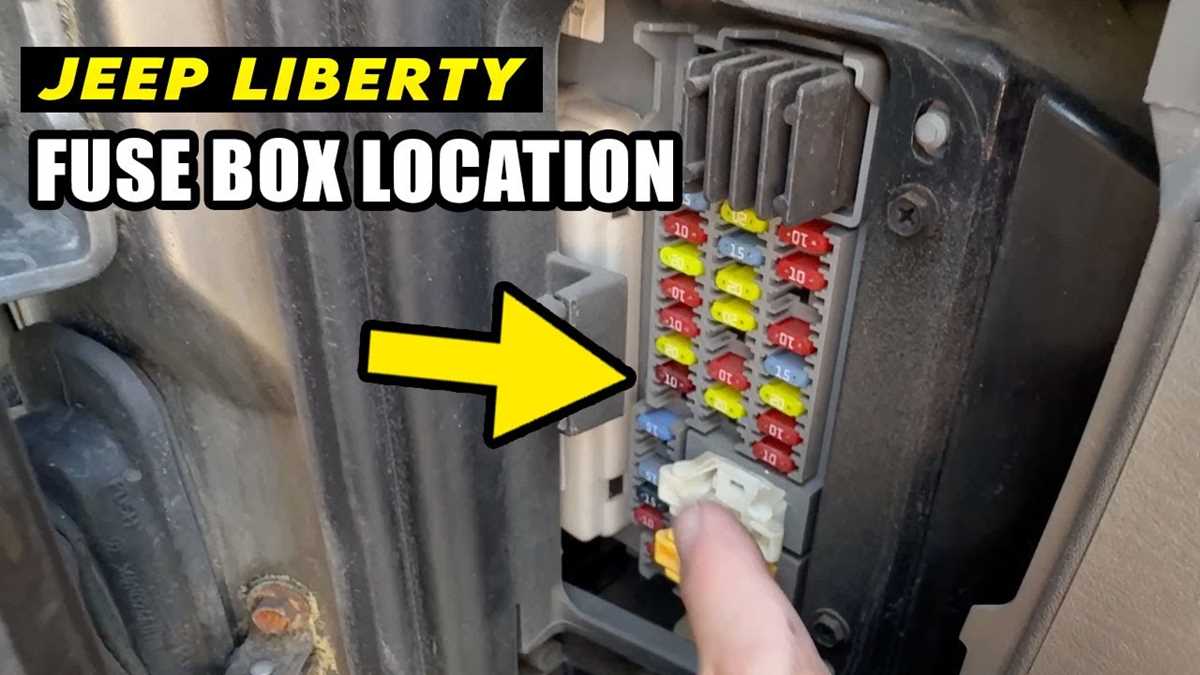

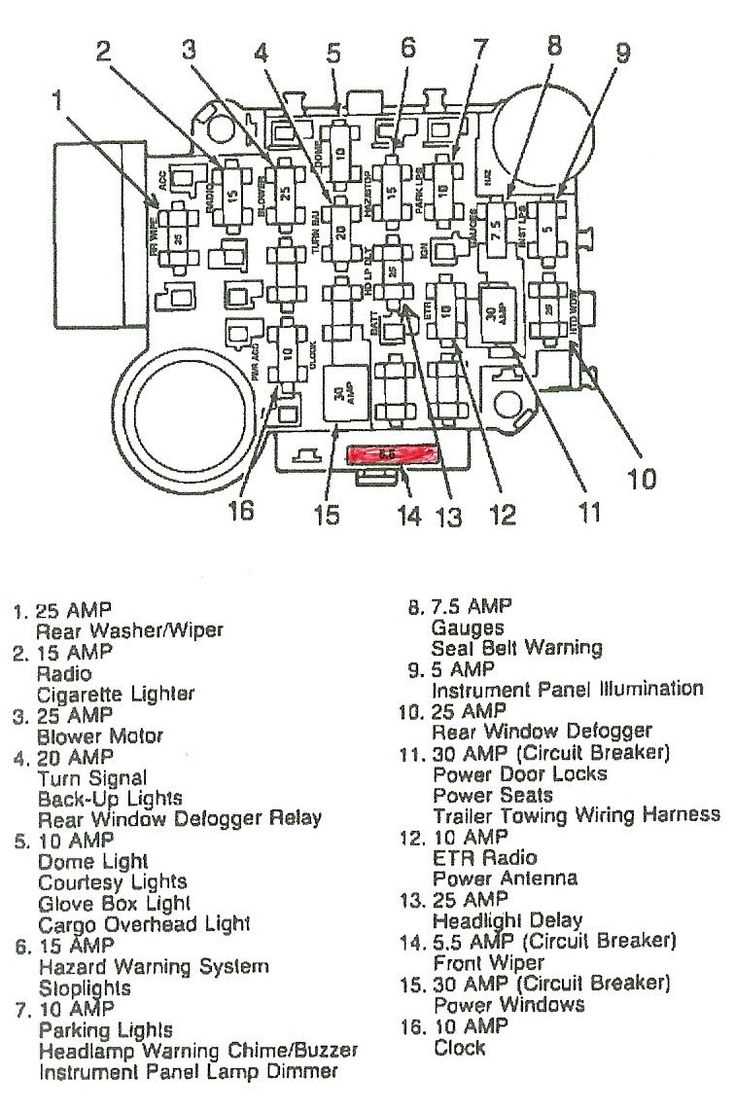

Check the cabin fuse panel behind the glovebox. A 15-amp fuse protects the climate control module, while a 20-amp fuse handles the heater and AC controls. If the blower operates at only one speed, inspect the blower motor resistor–it’s wired in series and prone to overheating. Use a circuit tester to verify voltage at the resistor’s input and output terminals; a drop below 10V suggests internal corrosion or a short.
Trace wiring harnesses for chafing near the firewall or compressor. The AC pressure switch (two-wire connector) interrupts power if refrigerant pressure drops–unplug it and jumper the terminals to bypass temporarily. If the compressor clutch engages, recharge the refrigerant or replace the switch. Always disconnect the battery’s negative terminal before probing live circuits to prevent accidental shorts.
Testing Voltage and Continuity in the AC Pressure Switch Circuit
Set your multimeter to DC voltage (20V range) and probe the switch’s two terminals while the climate control system is activated. A reading between 11.5V and 14.5V confirms the signal wire is energized–any deviation below 10V indicates a break in the circuit or a faulty relay upstream. For ground integrity, switch to continuity mode: a beep at the ground terminal confirms proper chassis bonding, while silence signals corrosion in the wire splice or a disconnected ground.
Probing Resistance and Switch Functionality
Remove the switch connector and measure resistance across its terminals with the system off. A closed-switch reading (0-0.5 ohms) verifies internal contact integrity; infinite resistance means the switch failed open. Reinstall the connector, restart the engine, and monitor voltage drop under load–anything exceeding 0.2V suggests high-resistance corrosion in the harness. If voltage stabilizes but the compressor clutch doesn’t engage, replace the switch directly; bypassing it risks damaging the AC compressor due to pressure threshold mismatches.
