Before modifying your vehicle’s sound installation, locate the orange (constant power), yellow (switched accessory), and black (ground) cables behind the factory harness. These wires follow the ISO DIN standard for General Motors’ mid-size sedans, ensuring compatibility with most aftermarket receivers. Use a multimeter to verify voltage: constant power should read 12V+ at all times, while accessory power drops to 0V when the ignition is off.
For steering wheel control retention, connect the gray (data bus) wire to the pink/black harness adapter–this integrates with GM’s Class-2 communication protocol. Without this link, auxiliary functions like volume adjustment or voice commands won’t transmit to the head unit. Resistors or bypass modules aren’t needed if the adapter matches the sedan’s BCM configuration.
Avoid tapping into the purple (antenna motor) or brown (illumination dimmer) cables unless your upgrade includes a motorized antenna or requires dash light synchronization. Incorrect connections here can trigger warning chimes or erratic gauge behavior. For amplified setups, route the dark green (rear speaker) and light blue (front speaker) wires directly to external crossovers–factory tweeters lack mid-bass output.
Test every connection before securing the dash panel. Flickering displays or intermittent power indicate a loose ground–reattach using a star washer to the chassis near the original mounting point. If the battery drains overnight, check for parasitic draws on the orange wire; aftermarket amplifiers often require a separate relay to prevent overload.
Chevy Sedan Audio System Connection Guide
Locate the 12-pin harness behind the factory head unit. Pin 1 delivers constant 12V power from the battery–verify voltage with a multimeter before connecting aftermarket amplifiers to prevent drain. Pin 3 supplies switched ignition power; use a relay if adding components requiring sustained power during engine-off periods.
Ground connections attach to Pin 2 and Pin 10. The left-front speaker wires reside at Pins 4 (positive) and 5 (negative), while the right-front pair occupies Pins 6 and 7. Ensure polarity matches when splicing into existing cables to avoid phase cancellation, which weakens bass response.
The rear speakers follow Pins 12 and 13 (left channel) and Pins 14 and 15 (right channel). Factory harnesses often include separate leads for subwoofer outputs–check Pins 8 and 9 for low-level signals if retaining OEM bass functionality. Aftermarket decks typically lack this feature; bridging adapters may be necessary.
Wire colors follow GM standards: yellow (constant power), red (ignition), black (ground), gray/black (LF+), gray (LF-), light green/black (RF+), light green (RF-), brown/black (LR+), brown (LR-), dark green/black (RR+), dark green (RR-). Deviations exist in some trims–cross-reference with a test light before finalizing connections.
For vehicles equipped with OnStar or rear-seat entertainment, Pins 16 and 17 carry data lines. Interference from aftermarket installations can disrupt stability control or satellite radio. Insert a noise filter (300–600 ohms) between the head unit and these pins if static occurs.
Amplifier turn-on signals typically run through Pin 3 alongside ignition. High-current setups may require a dedicated relay, triggered by the head unit’s remote wire (blue/white in most aftermarket harnesses), to prevent voltage drop. Measure resistance across speaker wires before connecting–factory systems often run 2–4 ohms; aftermarket gear may demand 6 ohms or higher.
Steering wheel control resistors sit between Pins 18 and 19. Aftermarket interfaces like Metra ASWC-1 or PAC RP5-GM51 decode these signals for third-party decks. Without adapters, controls remain nonfunctional–plan installations accordingly.
Final checks: secure all splices with heat-shrink tubing rated for 80°C minimum, avoid wrapping wires around sharp metal edges, and confirm fuse ratings match component specifications. Improper grounding can induce alternator whine–relocate ground points to unpainted chassis surfaces if noise persists.

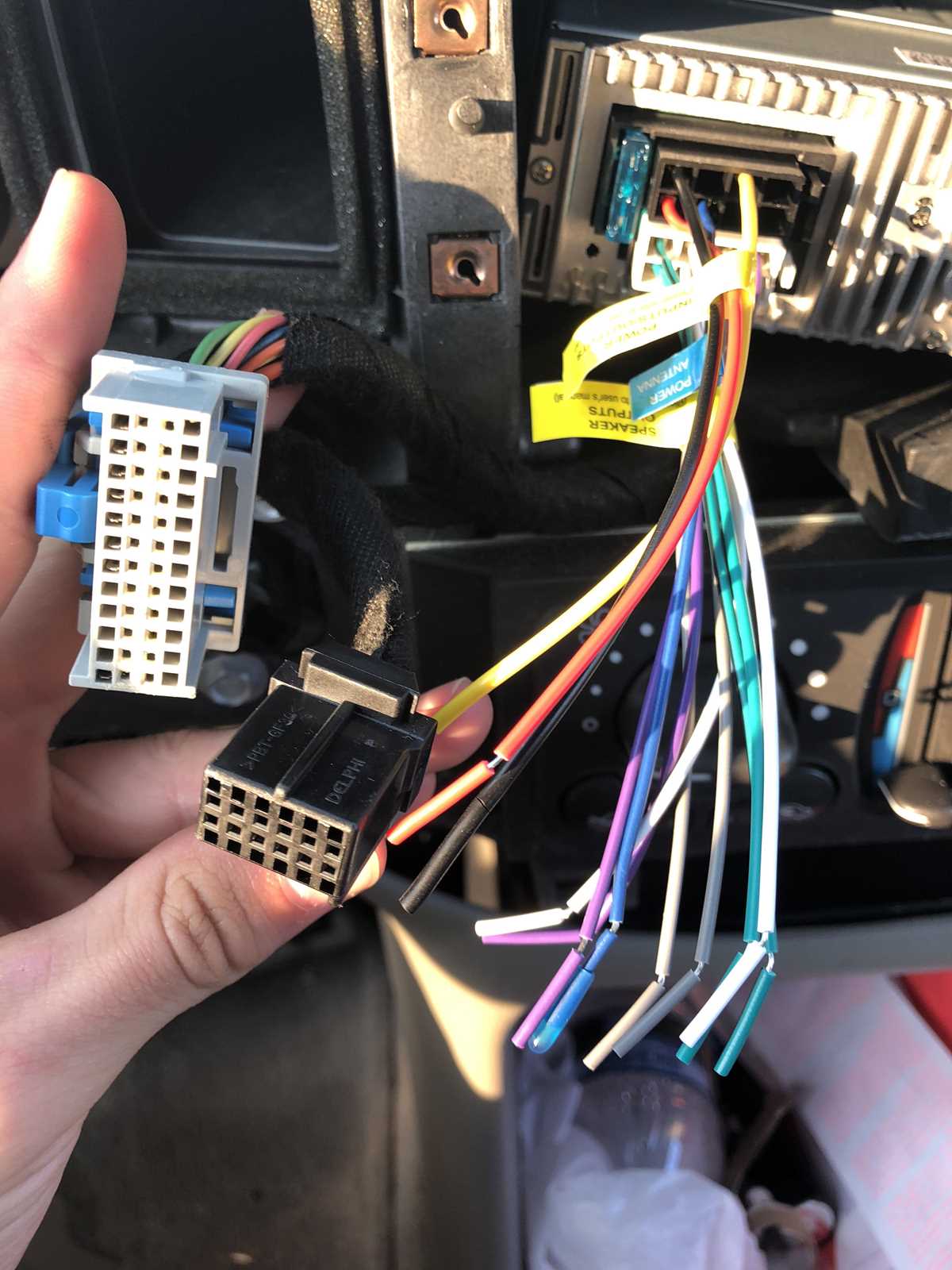

How to Find the OEM Plug Behind the Audio Head Unit
Begin by disconnecting the vehicle’s negative battery terminal to prevent short circuits. Remove the dash trim panel surrounding the central console–it typically snaps off with gentle pressure at the edges, using a plastic pry tool to avoid scratching surfaces. Behind the media receiver, you’ll find a bundle of colored wires terminating in a rectangular connector; this is the primary interface for power, speakers, and vehicle data buses.
Trace the harness upward–the factory plug is often secured with a small clip or held in place by the unit’s mounting brackets. If the connector isn’t immediately visible, check for a secondary access panel or cargo pocket behind the climate controls, as some models route the harness through this area. A flashlight helps confirm wiring colors and pin arrangement before handling.
Use a multimeter to verify voltage on the constant power (yellow, 12V) and accessory (red) wires before disconnecting the plug–incorrect readings suggest fuse or wiring faults upstream. The connector itself is usually a 12–24 pin Molex or Delphi type, with specific slots for amplified systems (if equipped). Label wires if retaining the factory harness for aftermarket integration.
Reassembly requires aligning the connector’s notch with the receiver’s socket–misalignment can damage pins. Press firmly until it clicks, then test audio functions before reinstalling trim pieces. If the harness seems brittle, consider adding dielectric grease to prevent corrosion on older connectors.
Standard Wire Color Identifiers for Chevrolet Sedan Audio Integration
Connect the aftermarket head unit’s constant power lead to the dark green wire in the factory harness–this maintains memory settings without draining the battery. The ignition-switched power (typically required for startup) links to the light blue wire, ensuring the system activates only when the ignition is turned on. Ground the black wire with a ring terminal secured to unpainted chassis metal; inadequate grounding introduces unwanted noise or intermittent operation.
Speaker Lead Breakdown
- Front left positive: gray wire
- Front left negative: gray with black stripe
- Front right positive: light green
- Front right negative: light green with black stripe
- Rear left positive: brown
- Rear left negative: brown with black stripe
- Rear right positive: dark blue
- Rear right negative: dark blue with black stripe
For vehicles equipped with amplified audio systems, locate the orange wire (illumination) and violet wire (battery sense); these signals adjust display brightness and amplifier behavior based on battery voltage fluctuations. Use a digital multimeter to confirm each wire’s function before finalizing connections–a 12V reading on light blue, dark green, or orange wires indicates correct identification. Avoid twisting exposed ends together; instead, solder joints and insulate with heat-shrink tubing to prevent oxidation or short circuits over time.
- Strip no more than 1/4 inch of insulation from each wire.
- Align matching color codes directly–no adapter splicing alters signal integrity.
- Test speaker outputs individually using a 9V battery; a faint click confirms polarity.
- Secure the head unit mounting sleeve before routing power wires to prevent pinched cables.
Step-by-Step Guide to Splicing Aftermarket Headunit Wires
Cut each factory harness lead and aftermarket connection 1/4 inch from insulation–long enough to strip without excess bulk but short enough to prevent interference. Use wire strippers calibrated for 18-20 AWG (gauge varies by signal type; verify with a multimeter). Avoid generic blades; they fray copper strands, increasing resistance. Match colors precisely–constant 12V (yellow), switched 12V (red), ground (black), and speaker leads (left/right pairs)–but cross-check against manufacturer documentation, as some brands deviate.
Twist exposed copper strands clockwise before crimping. Apply butt connectors for power/ground wires (use gold-plated for corrosion resistance) and solder-seal for speaker outputs to eliminate distortion. Heat shrink tubing (minimum 3:1 ratio) must overlap insulation by 1/8 inch on both ends–activate with a heat gun at 300°F, moving in circles to prevent overheating. For signal wires (e.g., mute, parking brake), use non-insulated crimp connectors and wrap with electrical tape in a spiral pattern, ensuring no gaps.
| Wire Type | Connector | Termination Method | Torque/Crimp Force |
|---|---|---|---|
| Battery (+12V) | Butt (16-18 AWG) | Crimp + solder | 20-25 lb-in |
| Ground | Ring (14-16 AWG) | Crimp + heat shrink | 30-35 lb-in |
| Speaker (±) | Solder-seal | Solder only | N/A (heat until flux bubbles) |
Test continuity before final assembly: disconnect the vehicle battery, attach the aftermarket harness, and probe connections with a digital multimeter (DC 20V range). Probe yellow (+12V constant)–should read 12.6V with ignition off; red (+12V switched) should drop to 0V. Speaker wires must show 4-8 ohms resistance (verify against amp specs). If readings err, inspect crimps for “cold joints” (dull, grainy appearance) and resolder with rosin-core flux. Secure harnesses with zip ties every 3 inches, routing away from moving parts and hot surfaces (e.g., exhaust manifold).
For antenna connections, splice the factory coaxial lead directly–do not strip the shielding. Use a coaxial crimp tool (RG-58 type) to attach a male connector, ensuring the center conductor protrudes 1/16 inch beyond the die. Tape joints with aluminum foil followed by PVC tape to block RF interference. If installing an amplified antenna, verify the blue “remote turn-on” wire (typically solid blue) is mated to the aftermarket amp trigger (check for 12V pulse during radio power-up). Failures here cause weak reception or erratic tuning.
