Locate the climate control harness at the rear of the dashboard center stack–pinout labels correspond to the auxiliary fuse box near the passenger footwell. The A/C relay (part #39794-SDA-A01) triggers the compressor clutch (pin 2 on the 2-pin connector) via a 10A fuse; verify continuity on the light blue/black wire before assuming relay failure. If the clutch disengages intermittently, inspect the pressure switch (mounted on the accumulator) for corrosion–clean contacts with dielectric grease rated to 600V.
For cabin blower motor diagnostics, trace the dark green/red wire from the fan resistor block to the HVAC control module. A stalled motor often indicates a failed resistor–test resistance across each stage (labels F-L-H on the housing) against factory specs (0.5Ω–3.2Ω range). If readings exceed tolerance, replace the entire module (OEM #79770-SDA-A01) rather than individual resistors to avoid voltage imbalance.
Check the condenser fan circuit by probing the gray/red wire at the under-hood fuse box–voltage should match battery output when the A/C is engaged. If absent, examine the engine coolant temperature (ECT) sensor input; a skewed reading (below 0.5V at 90°C) can prevent fan activation. Substitute the sensor temporarily with a fixed 2.5kΩ resistor to isolate faults.
When troubleshooting the evaporator temperature sensor, note its dual-function design: it cuts power to the compressor at 0°C via a dedicated blue/white wire. False triggers often stem from a cracked sensor housing–inspect for moisture ingress at the firewall bulkhead where the harness passes into the cabin. Seal with polyamide adhesive (3M Scotch-Weld EC-2216) to prevent short circuits on adjacent circuits.
Electrical Schematic for Auto Climate Control System
Locate the pressure switch behind the glovebox on the passenger side; it connects via a two-wire connector (gray/black and black) to the compressor clutch relay. Cut insulation 12 cm from the connector, strip 8 mm of wire, and crimp a 18–22 AWG butt splice for repairs. Verify continuity between pin 2 (gray/black) and ground–reading should drop below 0.5 ohms when AC is engaged.
Key Circuit Junctions

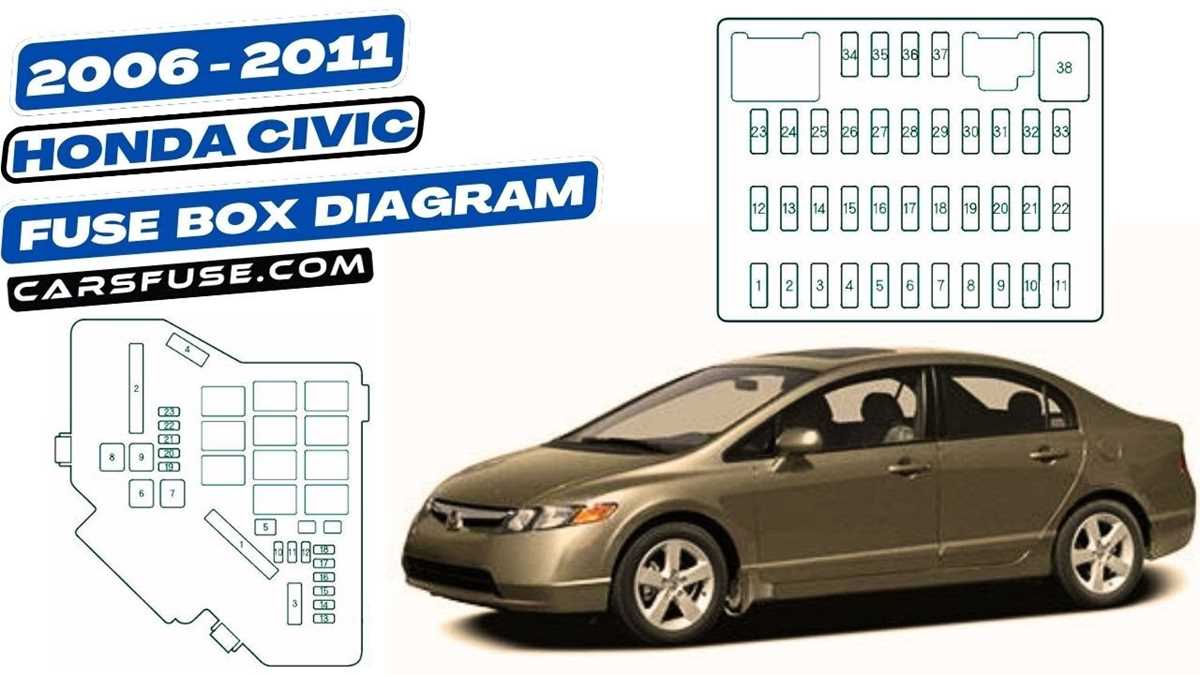

Three critical junctures: the under-dash fuse box (fuse #22, 7.5A), the engine bay relay tray (relay #A11), and the firewall bulkhead grommet where cables transition to the evaporator unit. Label each wire with heat-shrink tubing before disconnecting–color codes match factory service manual section 21-50, table 3. Probe the bulkhead connection with a multimeter: pin 3 (light blue/red) carries 12V when blower is set to max speed.
If compressor cycles erratically, bypass the pressure switch temporarily: jumper the gray/black wire to ground at the relay socket (pin 87A). If clutch engages steadily, replace the switch–cost $18–$24 (OEM part #38820-SDA-A01). For intermittent fan operation, inspect the blower resistor (mounted on HVAC housing); corrosion often starts at the yellow/black wire terminal, requiring soldering a new connector pin.
Identifying Key Components in the AC Electrical System

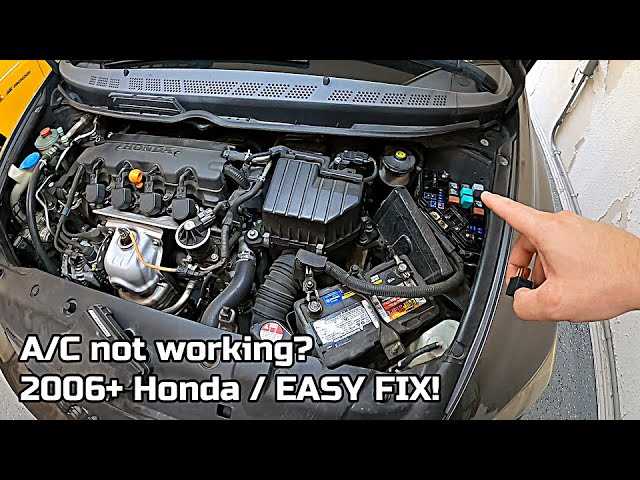

Locate the compressor clutch relay first–it’s typically mounted in the under-hood fuse box labeled “A/C CLUTCH” or numbered for reference. Verify its functionality by swapping it with an identical relay (e.g., horn or fan relay) to rule out failure. A clicking sound when the AC engages confirms proper operation; absence suggests a faulty relay or wiring fault.
Inspect the pressure switches (low and high) positioned near the accumulator or receiver-drier. The low-pressure switch (usually 30-40 PSI cutoff) halts compressor operation if refrigerant levels drop too far. Test resistance with a multimeter: 0 ohms indicates closure (normal), while infinite resistance means the switch is open (faulty). High-pressure switches (often tripping at 400+ PSI) protect against overcharge–check continuity similarly.
Thermal Expansion Valve and Sensor Checks
Trace the thermal expansion valve (TXV) beneath the dashboard near the evaporator. If the system cycles excessively or blows warm air inconsistently, the TXV may be stuck. Use an infrared thermometer to compare inlet/outlet temperatures–listen for a hissing sound indicating proper orifice function. For sensor-based systems, probe the evaporator temp sensor: 2-3k ohms at 32°F (0°C) is typical; deviations suggest replacement.
Examine the condenser fan motor relay and resistor pack, often overlooked but critical for heat dissipation. Remove the relay and test coil resistance (should be ~50-120 ohms). For the resistor, measure between terminals while varying blower speeds–broken or melted components disrupt airflow calibration. Replace any corroded connectors promptly; even minor resistance spikes cause overheating.
Ground and Power Feed Validation
Verify ground connections at the compressor clutch (usually bolted to the engine block) and ECM/PCM. Scrape paint off contact points and tighten to 8-10 ft-lbs. For power feeds, back-probe the compressor clutch wire (typically 10-12 AWG) at the harness connector with the ignition on–12V should appear when AC is activated. Absent voltage traces to blown fuses (e.g., #26 10A in junction box) or wiring chafes, particularly near the firewall grommet.
Step-by-Step Guide to Locating the AC Compressor Wiring Harness
Start beneath the hood near the cooling system’s front section. Identify the compressor unit, typically positioned to the left of the engine block, adjacent to the serpentine belt pulley. Trace the primary harness bundle extending from the compressor’s rear–a black or dark-colored conduit with a two-prong connector and a protective rubber grommet. Detach the engine cover if obstructing access, securing it safely to avoid damage to clips. Use a flashlight to inspect the wiring path; it routes downward behind the alternator before curving toward the firewall, where it splices into the main engine loom.
- Disconnect the battery’s negative terminal first–prevents short circuits.
- Locate the compressor clutch wire (thinner gauge, single-strand) branching off the main harness; it terminates at a small cylindrical relay near the condenser fan.
- Follow the thicker power feed wires (red/black or yellow) from the compressor to the fuse box, noting splice points marked by electrical tape or heat shrink.
- Check for corrosion at connectors–clean with contact cleaner if resistance exceeds 0.5 ohms.
- Verify harness routing avoids sharp edges (e.g., exhaust manifold, A/C lines) to prevent chafing.
How to Test the Climate Control Pressure Switch with a Multimeter
Locate the pressure switch near the refrigerant lines–typically mounted on the accumulator or condenser. Disconnect the electrical connector by pressing the release tab and pulling it apart without forcing it.
Set the multimeter to continuity mode or the lowest ohms setting (200Ω range). Touch the probes together to confirm the meter reads near zero–indicating proper function.
Attach the probes to the switch’s terminals. A functional switch should show open circuit (OL or infinite resistance) when refrigerant pressure is below the activation threshold–usually 25–30 psi. If the meter beeps or shows low resistance, the switch is faulty and stuck closed.
To verify under pressure, reconnect the refrigerant lines and start the engine. Turn the climate control system to maximum cooling and set the blower to high. Use a refrigerant gauge to confirm pressure rises above 30 psi.
Reconnect the multimeter probes to the switch terminals. At operational pressure, the switch should close the circuit, displaying near-zero ohms or continuity. If it remains open, the switch is defective.
Check the wiring harness for corrosion or damage. Probe the connector’s pins with the multimeter to ensure 12V reference voltage is present when the system is active. No voltage suggests a broken wire or blown fuse–trace the circuit back to the relay or control module.
For high-pressure switches, repeat the test but monitor for circuit opening at pressures exceeding 300 psi. A switch failing to open under extreme pressure risks compressor damage and must be replaced immediately.
If all tests pass but the system still malfunctions, inspect the clutch relay and temperature sensors. A multimeter can verify relay coil resistance (50–120Ω) and sensor output (0.5V–4.5V depending on temperature).
Identifying the Fan Relay Path in Electrical Schematics
Locate the cooling fan relay in the under-hood fuse box by referencing the relay numbering system printed on the box cover. On most models, this relay is labeled FAN CONTROL or FAN RELAY and occupies position 3 or 4. Use a multimeter set to continuity mode to verify relay pins prior to testing circuits–pin 30 should connect directly to the battery feed, pin 87 to the cooling fan motor, pin 85 to ground, and pin 86 to the engine control module output signal.
Trace the red/black wire from pin 30 of the relay through the main harness toward the battery. This conductor delivers constant voltage and should measure 12V at all times when the ignition is off. If voltage is absent, inspect the 60A fuse labeled MAIN in the under-dash fuse panel, as this provides power to the entire cooling fan circuit. If the fuse is intact, check for continuity in the wire between the fuse box and relay pin 30, focusing on common chafing points near the strut tower and firewall grommet.
Follow the green/black wire from pin 86 of the relay to the engine control module. This wire carries the activation signal for the fan relay. Probe the wire with the multimeter while the engine reaches operating temperature–voltage should spike from 0V to 12V when the thermo switch engages. If no voltage change occurs, test the thermo switch by back-probing its connector with the engine warm; a functional switch will show continuity between its two terminals when closed.
| Relay Pin | Wire Color | Destination | Expected Voltage |
|---|---|---|---|
| 30 | Red/Black | Battery via MAIN fuse | 12V constant |
| 85 | Black | Chassis ground | 0V |
| 86 | Green/Black | ECM output | 0V → 12V (fan on) |
| 87 | Yellow/Black | Cooling fan motor | 12V when relay energized |
Examine the yellow/black wire from pin 87 to the cooling fan motor connector. With the relay manually activated (jumper pins 30 and 87), the fan should spin at full speed. If it doesn’t, check for voltage at the motor connector–if present, the motor is faulty; if absent, inspect the entire length of the yellow/black wire for breaks, especially within the front bumper area where wiring is vulnerable to road debris damage.
Verify the ground path by probing the black wire from pin 85 of the relay to the chassis ground point. Clean the ground connection if resistance exceeds 0.5 ohms; corrosion or loose mounting bolts are common culprits. A poor ground prevents the relay from energizing even with a valid ECM signal on pin 86.
Check the dash-mounted fan switch in manual operation mode. The gray/black wire from this switch feeds the engine control module and overrides automatic fan control when engaged. If manual operation fails, test switch continuity with the multimeter and inspect the wire for shorts to ground, which would falsely signal the ECM that the switch is always on, keeping the fan running continuously.
Observe the voltage drop across pin 30 to pin 87 during relay activation. Anything above 0.2V indicates excessive resistance in the circuit–clean all relay socket terminals with contact cleaner and verify tight connections within the fuse box connector. High resistance at this junction reduces fan speed and can overheat the relay over time.
Alternate Fan Circuit Testing Methods
For rapid diagnosis, use a test light instead of a multimeter when checking pin 86 for the activation signal. Clip the test light ground to the battery negative post, then probe pin 86–the light should illuminate brightly when the ECM commands fan operation. A dim or flickering light suggests a weak signal or partial failure within the ECM driver circuit. In such cases, inspect the ECM power and ground feeds, as erratic behavior often stems from unstable reference signals rather than ECM failure.
