For proper integration of supplementary lighting systems on pulled equipment, locate the pin 5 (blue) wire on the vehicle’s seven-way connector. This circuit handles electric deceleration activation and must carry a dedicated 12V output from the tow vehicle’s controller. Verify fuse protection–typically a 20A blade fuse–is installed between the brake output relay and the connector to prevent overload during high-current surges.
Trace the factory harness from the rear junction box to the underbody frame rail. The wiring loom splits near the spare tire; follow the branch leading to the auxiliary stop lamp module. Connect the blue wire here using a solder-and-shrink splice or a heat-crush terminal rated for 40A–never twist-and-tape. Ground the system at the chassis with a M8 x 25mm bolt, cleaned to bare metal, using a star washer to ensure low impedance.
Test continuity with a multimeter set to ohms before powering up. Probe between the blue conductor and ground; resistance should read less than 0.5 ohms. Activate the manual override switch–the LED on the trailer-side junction box should illuminate within 200ms. If delays occur, check for voltage drop across joints; anything above 0.4V indicates poor splicing or corrosion.
Color codes follow the SAE J560 standard: green (right turn/stop), yellow (left turn/stop), brown (tail/marker lamps), white (ground), and blue as described. Redundant circuits require a separate 10-gauge wire for continuous 12V supply–never tap into the ignition-switched circuit, as this risks draining the battery during long-term parking.
Guide to Towing System Electrical Connections for Pickup Models
Start by locating the factory-installed harness behind the rear bumper–the gray seven-pin connector is standard on vehicles equipped for load hauling. Verify the pins: terminal one supplies 12V auxiliary power, terminals two and five handle left and right turn signals with integrated stop illumination, terminal four grounds the system, terminal six manages electric braking activation, and terminal seven delivers reverse light control if applicable.
Use tinned copper wire (minimum 12 AWG) for all extensions–aluminum corrodes under road salt exposure within six months. Crimp connectors require dielectric grease application before assembly to prevent moisture ingress; soldering provides a more durable joint but demands a high-wattage iron (60W+) to prevent cold joints.

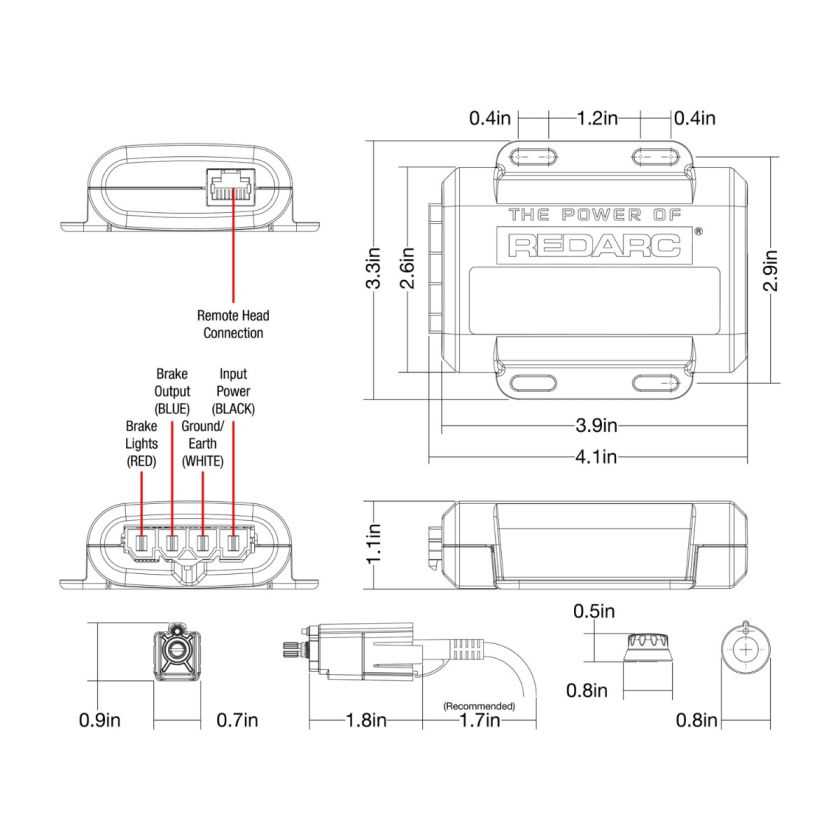

Electric actuators demand a dedicated circuit–integrate a proportional controller (e.g., Tekonsha P3) between the truck’s harness and the load’s electrical interface. Mount the unit within 18 inches of the battery to avoid voltage drop; secure wiring with adhesive-lined heat shrink to resist vibration-induced chafing against the frame rails.
Test each circuit independently: apply a load resistor (6Ω, 50W) to brake output to simulate actuator draw and verify controller response without attaching the load. Use a multimeter set to 20V DC scale–readings below 11.8V indicate undersized wire gauge or loose connections requiring correction before towing operations.

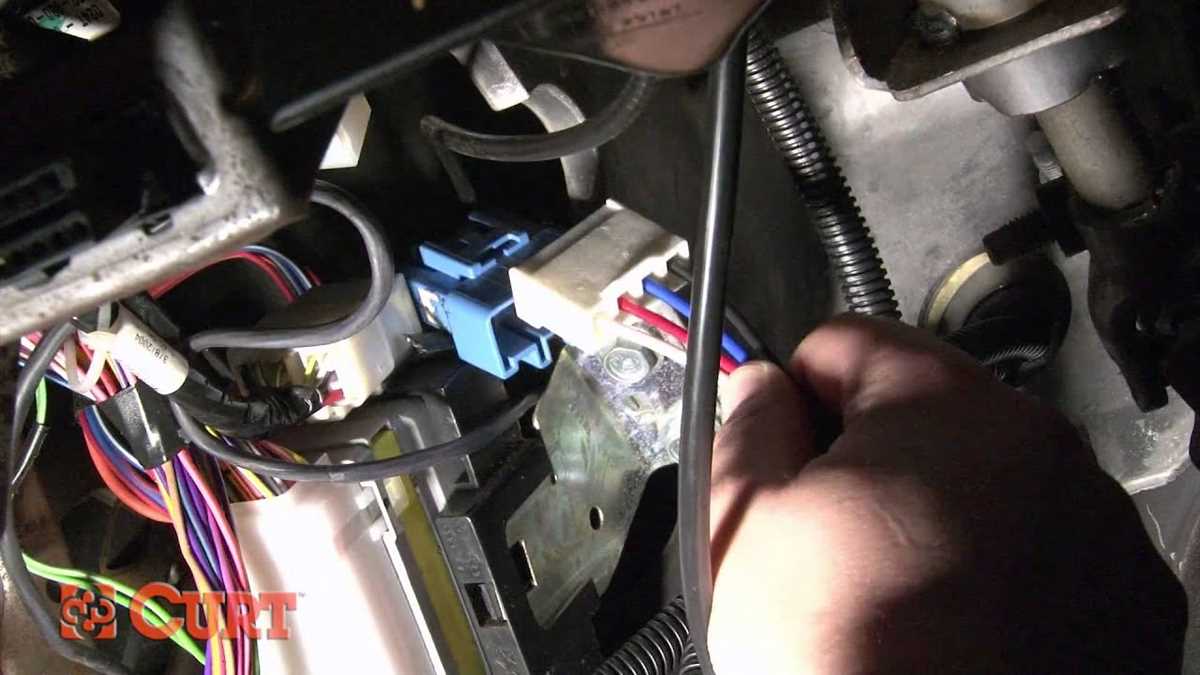

Avoid splicing into the tail lamp harness for stop or turn signals–this practice overloads factory circuits, leading to premature bulb failure. Instead, tap directly into the vehicle’s relay center using add-a-fuse adapters rated for 20A, available under the dashboard near the driver’s knee panel.
Grounding at a single chassis point prevents voltage fluctuations: scrape paint from the frame, apply anti-corrosion compound, and secure with a stainless-steel bolt through a star washer. Double-check continuity between the ground location and the controller’s negative terminal–resistance exceeding 0.1Ω indicates a faulty connection.
For loads exceeding 3,500 lbs, install a breakaway switch with a dedicated 12V sealed battery–position it centrally on the drawbar within reach of both safety chains. Route the breakaway cable through a conduit to prevent snagging on debris; the switch must activate within 0.5 seconds of disengagement to comply with DOT regulations.
Document all modifications with photographs and voltage measurements–this record simplifies troubleshooting and proves compliance during inspections. Label each wire at both ends using heat-shrink tubing printed with circuit identifiers, ensuring clarity for future maintenance.
Pinpointing the Right Electrical Plug for Your Heavy-Duty Pickup
Locate the OEM plug behind the rear bumper driver-side panel–it’s a seven-pin round socket distinguishable by a faint yellow ring molded into the plastic base. This connector matches the powertrain’s integrated controller directly; substitute wiring adapters introduce latency, especially under 65 mph towing loads. Confirm compatibility by checking the part number stamped on the back–valid codes include 55019013AA or 68028804AB.
Distinguishing Factory from Aftermarket Plugs
Aftermarket harnesses often use thinner 16-gauge wire instead of the OEM’s 14-gauge, causing voltage drop under 12.6V threshold when auxiliary lights activate. Inspect the latch mechanism–factory units feature a stainless steel clip, while third-party variants tend to use brittle plastic. Test continuity between pin 6 (battery feed) and chassis ground; resistance should not exceed 0.2 ohms with the ignition off.

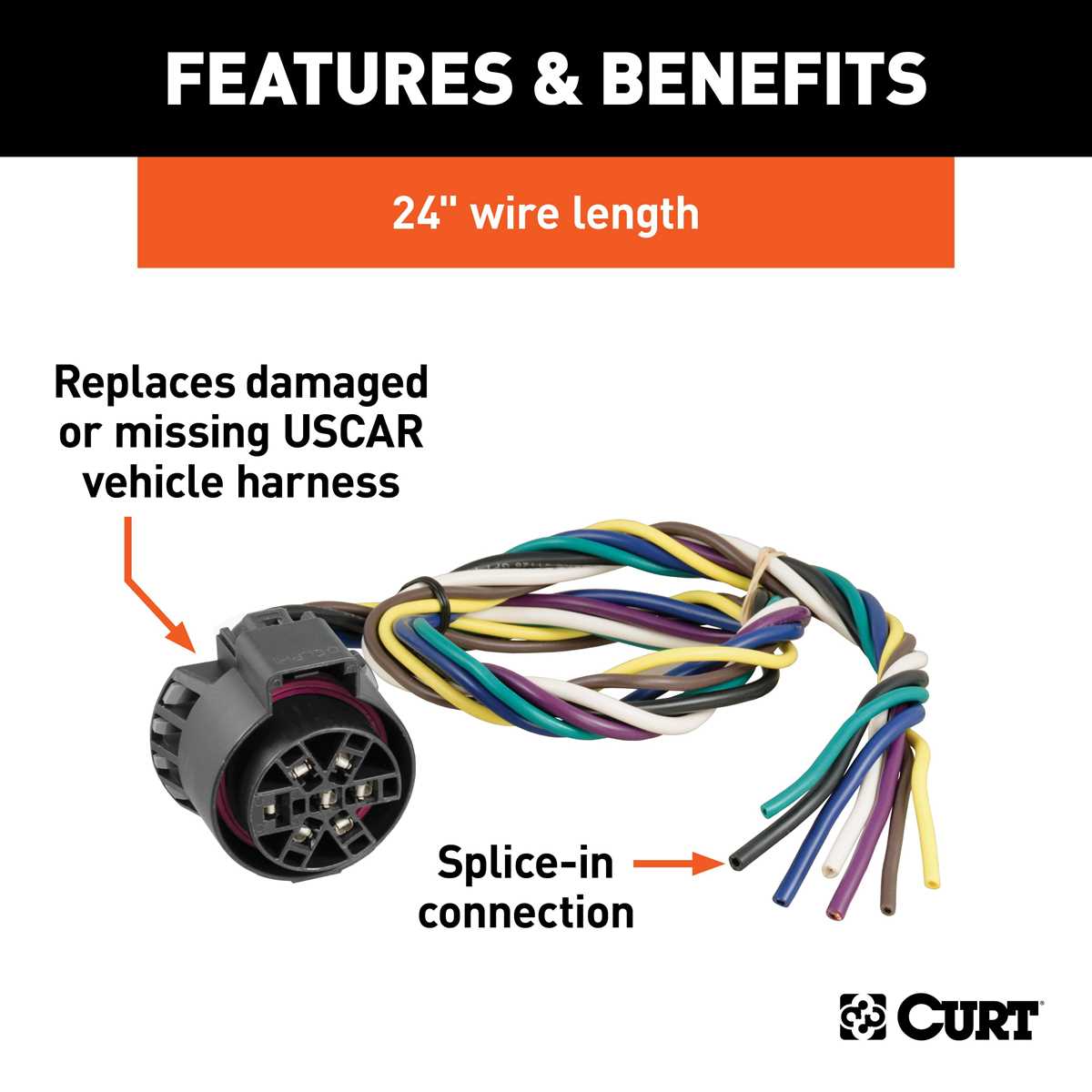

If the plug shows corroded terminals, replace the entire harness rather than splicing–DaimlerChrysler dealers stock the exact assembly under PN 05138661AA, which includes weatherproof seals absent in generic alternatives. Avoid modular adapters that combine separate circuits; they overload the 30A fuse designated for the controller module during regenerative braking events.
Step-by-Step Guide to Linking Towing System Conductors to the Vehicle’s 7-Pin Connector
Locate the truck’s factory harness behind the rear bumper or inside the frame rail–common pinouts for a 7-pin setup include:
| Cavity | Function | Wire Color (Standard) | Voltage (Key On) |
|---|---|---|---|
| 1 | Ground | White | 0V |
| 2 | Left Turn/Stop | Yellow | 12V |
| 3 | Right Turn/Stop | Green | 12V |
| 4 | Electric Actuators | Blue | 12V (via brake controller) |
| 5 | Tail/Marker Lamps | Brown | 12V |
| 6 | Backup Lamps | Red | 12V |
| 7 | Auxiliary Power | Black | 12V (fused) |

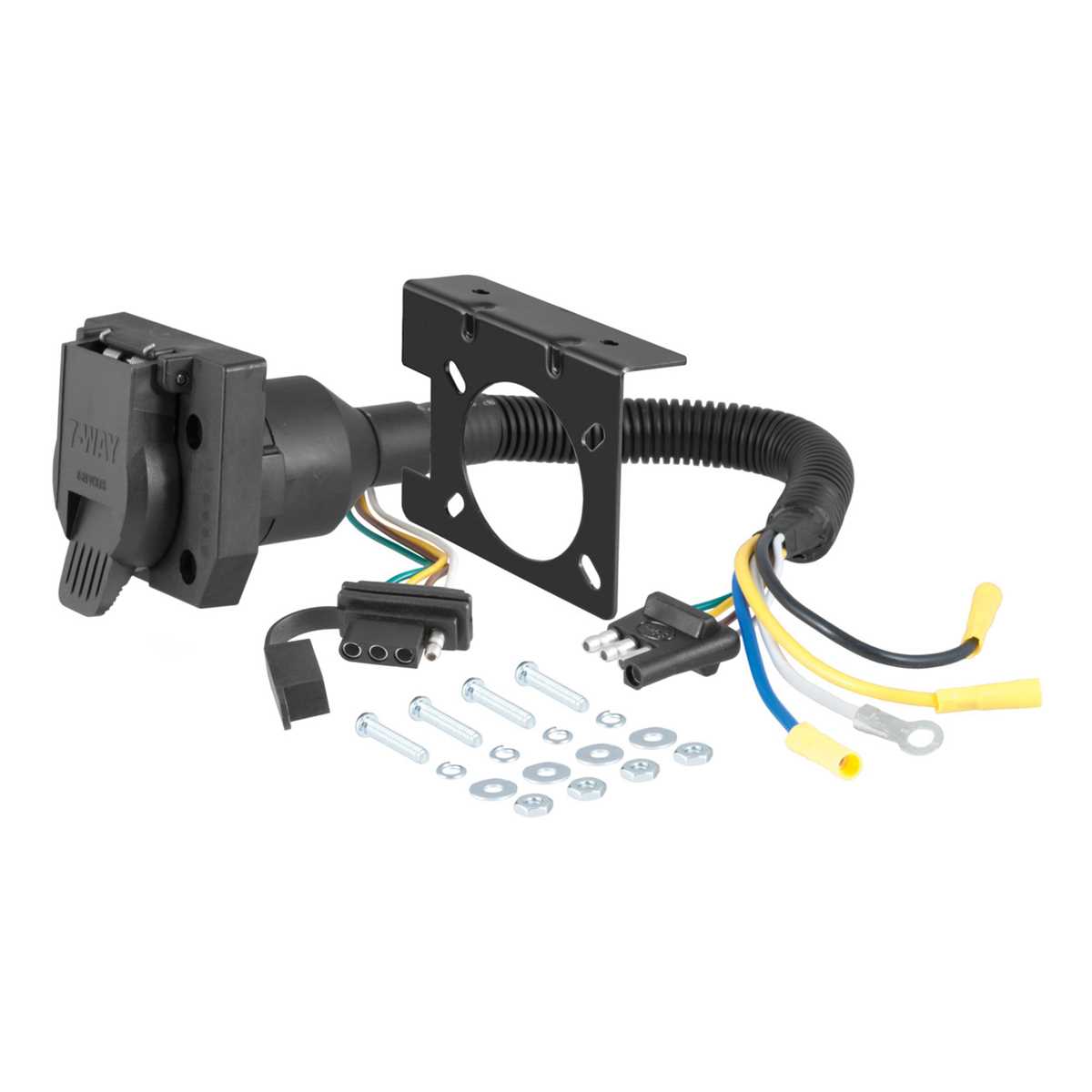

Strip ¼ inch of insulation from each cable on the towing assembly harness, twist strands tightly, and insert into the corresponding pin cavity. Crimp each connection with a butt splice rated for 20 AWG or thicker, then heat-shrink tubing over the joint. Secure the 7-pin connector to the vehicle’s mount using the locking tab–test each circuit with a multimeter before hitching the load to confirm 12V output on keyed functions and proper ground path integrity.
Critical Inspection Points Before Road Testing
Verify brake controller output voltage under simulated load–minimum 10.5V at the blue lead when the pedal is depressed. Check for erratic readings on the brown circuit; voltage drops exceeding 0.3V between the plug and lamp indicate corroded ground points or undersized return paths. Route excess cabling away from moving suspension components using nylon ties spaced every 12 inches–avoid sharp edges on frame rails to prevent chafing.
Standard Wire Hues and Roles in Heavy-Duty Towing Electrical Hookups
Attach the white conductor to the ground terminal–its primary function–using a crimp connector rated for 14 AWG or thicker, secured with a torque of 12–15 in-lbs. This wire often shares ground with the tow vehicle’s chassis, but verify resistance below 0.5 ohms before proceeding.
Core Signal Leads and Their Applications
The brown line carries the marker light voltage, typically 12V when the running lights are active. Splice it directly to the corresponding auxiliary lighting circuit, avoiding daisy-chaining to prevent voltage drop; use a 10A fuse within 7 inches of the connection point.
For the yellow conductor, route it through the left-side clearance lights and tail lamp cluster. Test continuity with a multimeter–expect 1–3 ohms resistance over a 16-foot harness. If values exceed this range, inspect for corroded terminals or frayed insulation.
The green wire delivers right-side illumination commands. Pair it with a relay if integrating aftermarket LEDs to maintain compliance with DOT intensity standards (75–200 candela). Avoid connecting it to the stop lamp circuit, as this risks false braking signals.
Blue harness strands control electric stopping actuators. Terminate this at a proportional controller with a 30A fuse; set initial gain to 4.0 for axles under 3,500 lbs, then adjust in 0.5 increments based on road test feedback to eliminate reel-in lag.
Red leads supply continuous current from the tow package battery. Isolate it with a 40A circuit breaker when linking winch systems or auxiliary power modules. Measure voltage at the plug–12.6–13.2V indicates proper charge state; readings below 12.3V mandate load testing.
Auxiliary Circuits and Diagnostic Protocols
Purple wires, if present, handle reverse light activation. Route them through a two-pin connector, ensuring polarity matches the camper’s rear cluster. Use dielectric grease on contacts exposed to moisture to prevent oxidation.
Gray or light blue strands in some configurations manage hydraulic surge actuator triggers. Pair these with a 15A fuse and pressure switch calibrated to 150 psi. Verify operation by monitoring hydraulic pump amperage–spikes above 18A suggest an obstruction or incorrect orifice size.
