For owners seeking to repair or replace the stock audio head unit in their vehicle, start by obtaining a multimeter and a wiring pinout specific to the model’s trim level. The color-coded harness behind the dashboard varies between base, SLT, and limited editions–consult the service manual for exact pin assignments before disconnecting anything. Red wires typically deliver constant 12V power, yellow handles accessory voltage, and black grounds the system; mix-ups here can fry the receiver or fuse circuits.

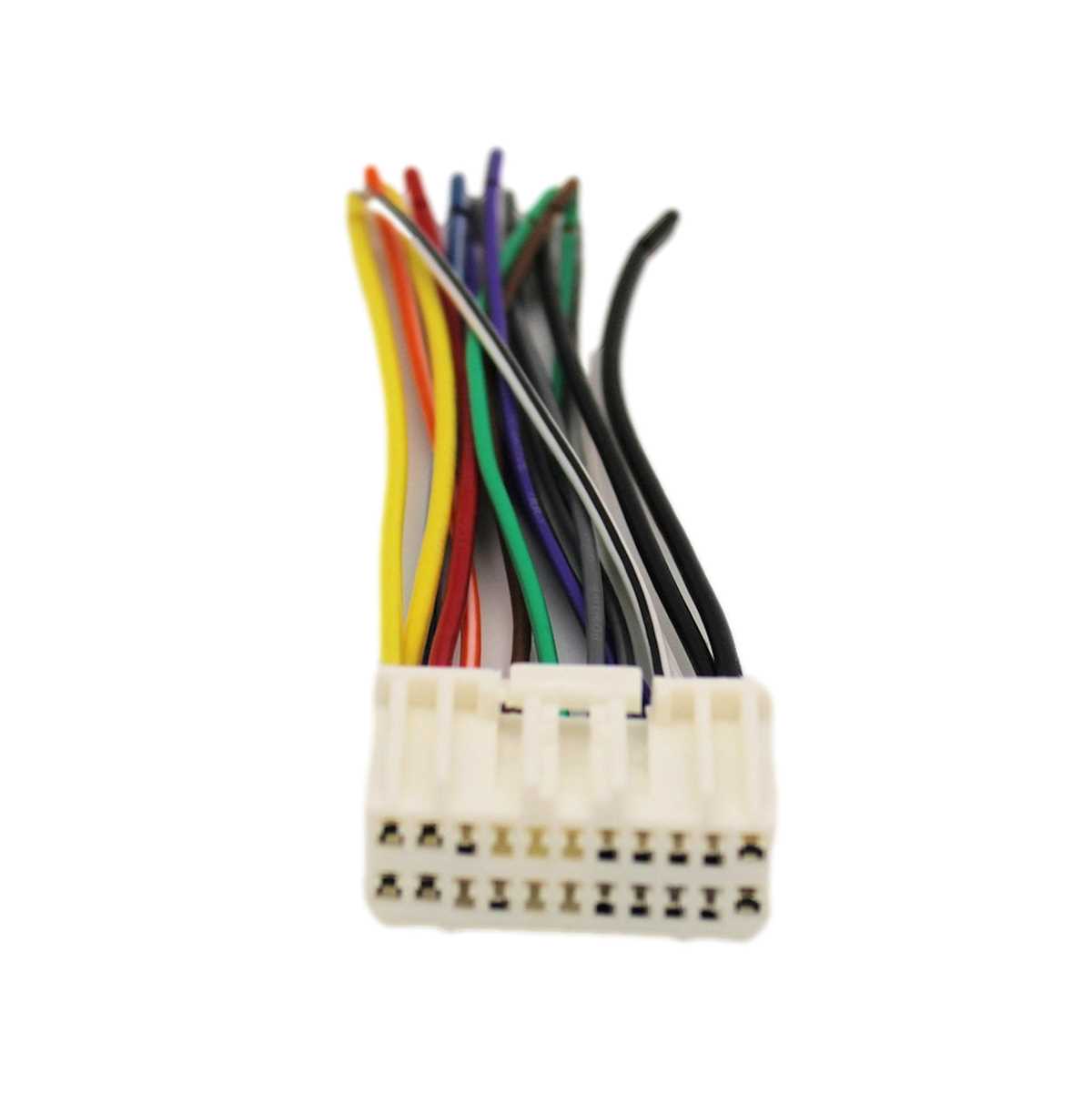

Locate the primary harness connector–usually a 12-pin white plastic block–behind the climate controls. Probe each terminal with the multimeter set to DC voltage while the key is in the “ACC” position; expected readings should match 12V, 5V, or 0V depending on the pin’s function. If a wire shows no voltage, trace it back to the fuse panel using the vehicle’s electrical schematic–common culprits include blown fuses (check positions 15, 23, and 32 in the under-dash box) or corroded splice joints near the firewall.
Aftermarket adapters simplify installation but introduce risk if the pin mapping is generic rather than model-specific. Verify that the adapter’s wiring matches the OEM harness by cross-referencing wire gauges and insulation colors–mismatches can cause speaker burnouts or erratic Bluetooth behavior. For vehicles with amplified audio, bypass the factory amp only if replacing it with a direct-wired amp of equal impedance (4–8 ohms); improper bridging can damage door speakers or subwoofer outputs.
Test all connections with the ignition on but the engine off before final reassembly. Confirm that illumination wires (orange/white) dim correctly with the dash lights, and antenna control (blue/white striped) extends the motorized rod. If static or no sound persists, check for poor ground connections–sand the chassis metal under the mounting bracket and secure with a star washer to prevent intermittent failures.
Backup the settings in the head unit’s EEPROM before disconnecting the battery–loss of presets or theft-deterrent calibration can occur. Use a 10A fused jumper wire to maintain memory if working with the battery disconnected for extended periods. For integrated navigation systems, ensure the GPS antenna (small square module on the dashboard) remains connected; disconnecting it can void calibration data.
Wiring Guide for Original Stereo System in Mid-2000s SUV Models
Locate the 12-pin connector behind the head unit–it splits into two separate plugs. Pin 1 (yellow) supplies constant 12V from the battery, requiring no ignition switch. Pair it with pin 4 (black) for ground to prevent parasitic drain. Verify voltage with a multimeter before connecting aftermarket amplifiers or subwoofers; incorrect polarity risks frying internal circuits.
Signal wires follow this sequence: front left (gray, pin 7), front right (light blue, pin 6), rear left (violet, pin 8), and rear right (green, pin 11). These carry low-level output–directly solder or crimp bullet connectors to avoid signal loss. If installing a DSP, bridge the ground wire (pin 10, brown) to the chassis only; shared grounds cause alternator whine.
Harness Adapter Shortcuts
Metra 70-1002 or Scosche SU03B adapters simplify integration. Match the wiring colors precisely–aftermarket diagrams often invert orange and pink for illumination and antenna triggers. For retained accessory power (RAP), splice the yellow wire (pin 1) to the vehicle’s ignition wire (pink, pin 2) via a 10A fuse to maintain memory settings during engine crank.
Factory amplifiers hide behind the rear seat–disconnect the 22-pin plug before tapping rear speaker wires. The rear subwoofer output (pin 12, dark blue) delivers 20W RMS; preserve the factory bass management by feeding it into a line-level converter if bypassing the built-in amp. Avoid cutting wires–use T-taps or solder seal connectors for reversible modifications.
Antennas require a 12V trigger (pin 5, pink/orange). If swapping to a powered antenna, run a separate 18-gauge wire from the fuse box to prevent voltage drop. Test continuity between the antenna lead and the head unit’s coaxial port–resistance should read below 1Ω. For satellite pre-wiring, the unused data bus wires (pins 3 and 9) must remain disconnected to prevent module conflicts.
Pinpointing the Accurate Harness Color Codes for Your SUV’s Audio System
Locate the harness connector behind the dashboard assembly–look for a 12-pin rectangular plug (typically gray or black) attached to the stock receiver. The critical wires follow this standardized color scheme for North American models:
- Constant 12V+: Yellow (labeled B+)–verify with a multimeter (12V reading with ignition off).
- Switched 12V+: Red (ignition-controlled)–should drop to 0V when the key is removed.
- Ground: Black (clean, direct chassis connection)–resistance should read <0.5 ohms.
- Front Left Speaker (+): Light blue/white stripe–pair with its negative counterpart (light blue/orange stripe).
- Front Right Speaker (+): Gray/white stripe–paired with gray/dark blue stripe (-).
- Rear Left Speaker (+): Brown/light green stripe–match with brown/yellow stripe (-).
- Rear Right Speaker (+): Green/red stripe–combine with green/black stripe (-).
- Illumination: Orange (dims with headlights)–test with a 12V bulb to confirm dimming function.
- Antenna Trigger: Pink or violet–activates power antenna (12V when tuner is on).
- Amplified Audio Output (if equipped): Dark blue/white–requires high-power connection to external amp.
Cross-reference these colors with a meter before splicing–manufacturing variations exist between base and premium trims. For amplified systems, the dark blue/white lead demands a relay if integrating aftermarket EQs to prevent amplifier overload. Security systems (if installed) may repurpose the pink or violet wires for alarm modules; disconnect the battery before probing to avoid false triggers.
Step-by-Step Guide to Accessing the Original Audio System Connector Behind the Instrument Panel
Disconnect the negative terminal of the vehicle’s battery to prevent short circuits before starting. The connector is typically hidden behind the center stack, requiring removal of the trim panels first. Use a trim removal tool to gently pry off the lower dashboard cover beneath the climate controls–apply even pressure to avoid cracking the plastic clips.
Once the lower panel is removed, locate the secondary trim piece surrounding the HVAC vents. It snaps into place with metal clips at the top and plastic tabs along the sides. Slide the tool along the edges to release each tab, then lift the panel upward to detach it fully. This exposes the back of the audio head unit and the bundled harness.
Key Connection Points to Identify
- The main harness will have a rectangular plug with 12–24 pins, often color-coded or labeled with tiny engravings.
- Look for a smaller auxiliary plug (4–8 pins) for amplifier integration, typically black or dark gray.
- Power wires are red (constant) and yellow (switched), while grounds are black with a slight ring terminal.
- Speaker outputs include solid and striped wires (e.g., gray/gray-black for front right).
If the harness is not immediately visible, trace the wires from the rear of the head unit downward. They route through a bundled sheath secured by zip ties or fabric tape–cut these carefully with diagonal pliers. For vehicles with premium sound systems, an additional harness may feed rear-mounted components; follow the wires toward the rear cargo area if needed.
Reassemble in reverse order, ensuring all trim clips snap securely to avoid rattles. Reconnect the battery last, then test each function (power, speakers, illumination) before fully securing the panels. If resistance is felt during reinstallation, stop and check for misaligned clips–forced insertion risks panel damage.
Troubleshooting Hidden Wiring Issues
- If connectors don’t match the aftermarket unit, verify pin compatibility using a multimeter–some harnesses combine functions (e.g., power and ground in a single pin).
- For vehicles with steering wheel controls, locate a separate thin harness (often purple) near the fuse box–they require an adapter for retrofits.
- Corroded connections can mimic wiring failures; clean terminals with contact cleaner and a wire brush if audio cuts in/out.
- Label each wire with masking tape before disconnecting to prevent mix-ups during reassembly.
Integrating Third-Party Speakers with Your Original Vehicle Audio Harness
Start by identifying the harness connector behind the stock head unit–pinouts 12 (front left +), 14 (front left –), 16 (front right +), and 18 (front right –) carry amplified signals for standard 4-ohm speakers. Verify impedance with a multimeter before connecting aftermarket components; mismatches above 0.5 ohms can cause overheating or distorted output from the built-in amplifier.
For rear speaker installations, use wires 1 (rear left +), 3 (rear left –), 5 (rear right +), and 7 (rear right –). If upgrading to 2-ohm models, ensure the amplifier supports the lower impedance–stock units typically handle 4 ohms without modification. Splice leads directly to speaker terminals, avoiding tandem connections which degrade sound clarity.
| Harness Pin | Signal Type | Recommended Wire Gauge | Max Current (A) |
|---|---|---|---|
| 12 | Front Left Positive | 18 AWG | 5.2 |
| 14 | Front Left Negative | 18 AWG | 5.2 |
| 1 | Rear Left Positive | 16 AWG | 7.8 |
| 3 | Rear Left Negative | 16 AWG | 7.8 |
Secure connections with solder sleeves or crimp terminals–twist-and-tape methods fail under dashboard vibrations. Route wires along existing loom paths to prevent shorts; avoid sharp edges near the HVAC ducts. For subwoofer integration, tap into the pink (+12V switched) and brown (ground) wires behind the stereo, using a relay to avoid overloading the fuse.
Test each channel individually before finalizing the dashboard assembly. Use a 1kHz sine wave at 50% volume to check for clipping–audible distortion signals amplifier overload. Match crossover settings to speaker specifications; passive crossovers from higher-end models often exceed 12dB/octave roll-off, unnecessary for full-range aftermarket units.
Upgrade the ground connection if experiencing electrical noise–replace the factory bolt with a star washer and 4 AWG cable routed directly to the chassis rail beneath the driver’s seat. Insulate all splices with adhesive-lined heat shrink to prevent corrosion from moisture ingress.
For systems exceeding 50W RMS per channel, install a dedicated inline fuse (20A) within 18 inches of the battery terminal. Verify that parasitic draws (rear defroster, heated seats) do not exceed 30A combined during audio testing to prevent voltage drops that degrade bass response.
Troubleshooting Signal Loss
If treble cuts out, inspect the orange illumination wire (pin 9)–improper grounding here disrupts signal integrity to tweeters. For intermittent channels, probe the harness with an oscilloscope while flexing wires near the connector; micro-fractures in copper strands cause high-frequency dropouts not detectable with a multimeter.
