Start with the manufacturer-issued schematics found in the official service manual. These documents break down every circuit–fuel injectors, ECM, glow plugs, and alternator connections–with precise pinouts and color codes. If the manual is unavailable, extract schematics from authorized repair databases like Mitchell1 or ALLDATA, which offer verified diagrams for both under-hood and cabin wiring.
For quick diagnostics, isolate circuits using a multimeter. Probe connector terminals while referencing the schematic’s wire gauge, insulation color, and terminal designations. Pay specific attention to ground points–corrosion here often mimics faulty sensors. Replace damaged wires with heat-shrink tubing and solder, not crimp connectors, to prevent future resistance issues.

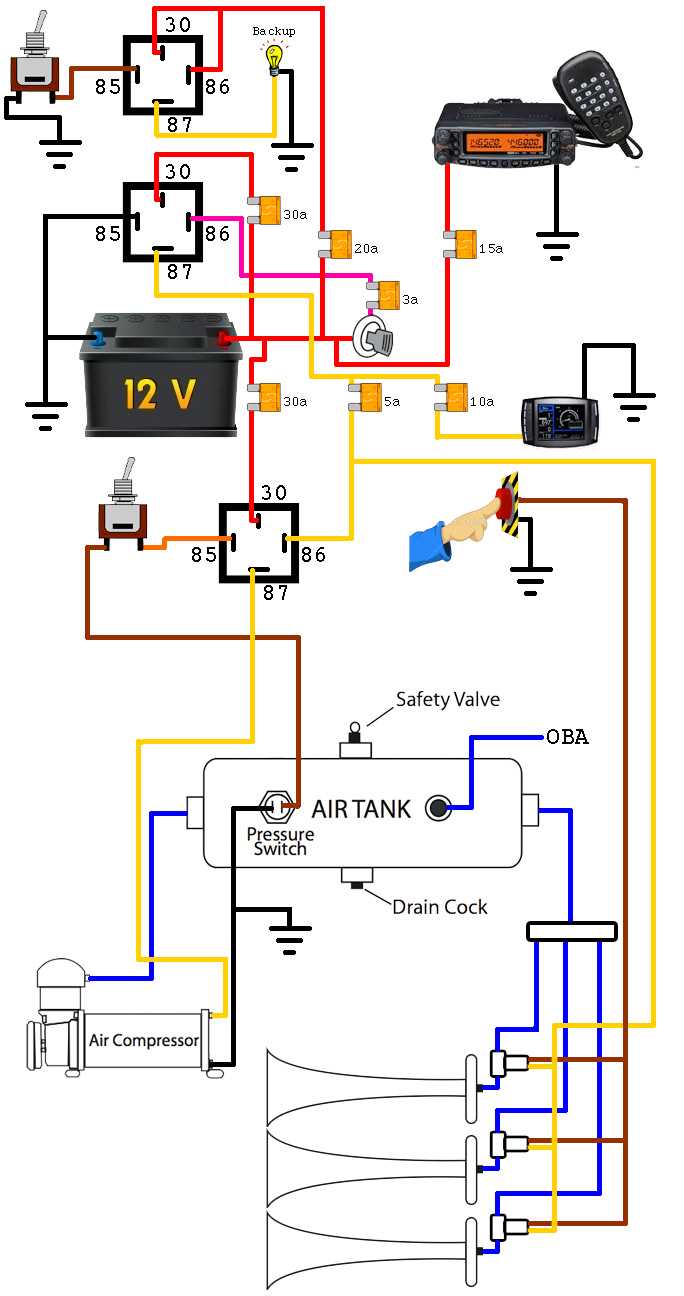

When tracing the CAN bus network, identify the twisted pair for communication lines–disruption here disables fuel delivery and turbocharger controls. Use an oscilloscope to verify signal integrity if intermittent faults persist. For aftermarket modifications (e.g., tuners or LED upgrades), cross-reference the original schematic to avoid conflicts with fused circuits or ECM-controlled relays.
Broken links in online forums often lead to mislabeled or incomplete diagrams. Instead, source schematics directly from OEM technical portals or reputable diesel tech communities like DieselPlace or Cummins Forum, where verified users upload scans of factory blueprints.

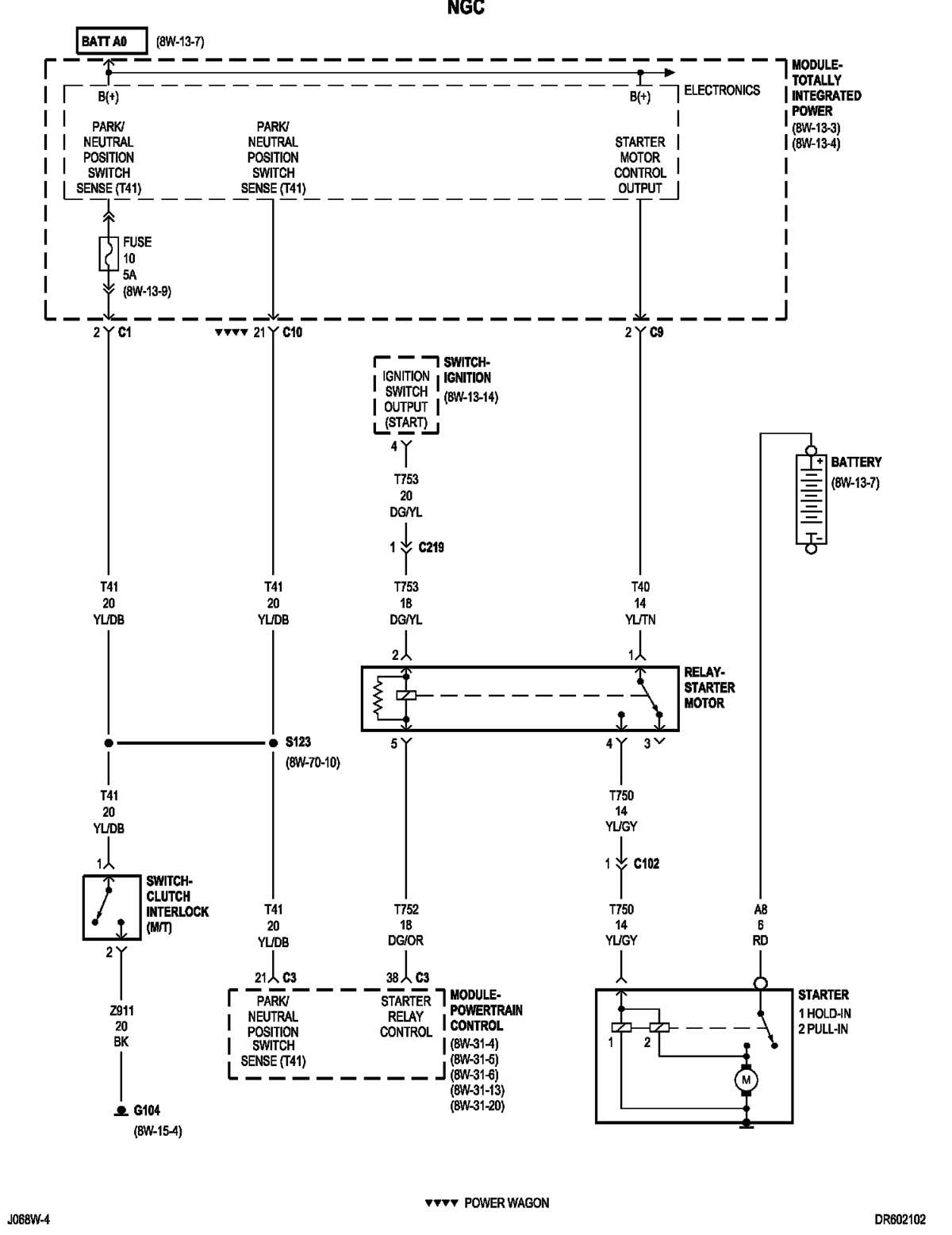

Full Schematic Breakdown for the 5.9L Turbo Diesel Electrical System
Locate the primary ignition feed at terminal 80 of the integrated power module (IPM) beneath the driver-side dashboard–this grey wire (Cavity C2, Pin 80) supplies 12V direct from the battery when the key is in the “ON” position. Verify continuity with a multimeter; resistance should not exceed 0.5 ohms. If readings fluctuate, inspect the 100-amp Mega fuse in the under-hood fuse block–the red cable exiting the fuse must show clean, uncorroded connections.
Trace the engine control module (ECM) ground circuits: three black wires (Pins 17, 40, 85 of the 104-pin connector) terminate at chassis bolt G300 near the left front shock tower. Scrape paint from the mounting surface if corrosion is visible–bare metal ensures a solid ground. Test each ground path individually; voltage drop from ECM pin to battery negative should remain under 0.1V during cranking.
Fuel injectors receive power from the yellow (14-gauge) wires routed through the valve cover grommet. Each injector solenoid connects via an individual splice pack near the firewall–observe color coding (Dark Blue/Orange for Cylinder 1, White/Violet for Cylinder 6). Back-probe the ECM connector (Pin 42 for Injector 1) while cranking–the signal should pulse between 0V and 85V at approximately 15 Hz.
| Component | ECM Pin | Wire Gauge | Expected Resistance |
|---|---|---|---|
| Crankshaft Position Sensor | 24 (Signal), 71 (Ground) | 18 | 750–1,250 ohms (20°C) |
| Camshaft Position Sensor | 77 (Signal), 78 (5V ref) | 20 | Open circuit (>1M ohm) |
| Intake Air Temp Sensor | 30 (Signal), 34 (Ground) | 18 | 3,800–4,200 ohms at 20°C |
Turbocharger boost pressure sensor links to ECM Pin 29 (Dark Green/Light Green wire) and requires a 5V reference (Pin 78). Probe Pin 29 with the engine idling–voltage should read 0.5V to 1.5V, scaling linearly to 4.5V at wide-open throttle. If readings plateau, replace the transducer before recalibrating the ECM.
Exhaust brake solenoid activates through the IPM at Pin 2 (Gray/Yellow wire). During deceleration, the ECM grounds this circuit–measure voltage at the solenoid connector (should switch from 12V to 0V). If the solenoid clicks but the brake fails to engage, check for a pinched air line between the solenoid and the turbo actuator.
Diagnose parasitic draws by disconnecting the negative battery cable and inserting an ammeter. Normal standby current is 50–80 milliamps–readings above 100 milliamps indicate a faulty IPM, aftermarket alarm, or glove box lamp remaining on. Isolate circuits systematically: pull fuses one by one while monitoring the meter until the draw disappears.
Identifying Key Electrical Link Points for Powertrain Management
Begin by locating the primary electrical link cluster beneath the vehicle’s driver-side dashboard–specifically near the firewall, where the main loom exits the cabin into the engine bay. This junction houses three critical plugs: the 81-pin ECM interface (largest, secured with a locking tab), the 12-pin injector driver module connector (adjacent, white housing), and the 16-pin transmission control port (offset slightly, black with pink latch). Mark each with tape to avoid misconnections during diagnostics.
The ECM harness splits into two branches: one routes along the valve cover toward the injection pump and MAP sensor, while the second descends behind the intake manifold to service the EGR cooler and turbo control solenoid. Use a mirror to trace the lower path–target the six-wire sensor bundle (turbo boost, oil pressure, and coolant temperature) bundled in abrasion-resistant sheathing. Probe carefully; these circuits are prone to chafing near the bellhousing due to vibration.
Ground reference points demand equal scrutiny. Check the rear-mounted engine strap (underneath the transmission bellhousing) and the front brace (bolted to the cylinder head, just left of the alternator). Corrosion here mimics ECM failure; clean terminals with a wire brush and apply dielectric grease before reassembly. For sensor circuits, prioritize the 5-volt reference wire (violet/white stripe)–a short here disables all downstream electronics.
Verify integrity by back-probing the 3-pin Crank Position Sensor (CPS) connector: pin A (signal) should read 2.5V AC at idle, pin B must hold chassis ground, and pin C (supply) tracks battery voltage. Deviations suggest chafed insulation near the harmonic balancer–inspect the harness where it bends over the front cover, as this is a known stress point.
Fuel System Sensor Circuit Color Codes: Precise Connection Guide
The fuel rail pressure (FRP) sensor on this powertrain uses a black connector with three pins: pin A (supply voltage, 5V reference, orange wire with red stripe), pin B (signal return, light blue wire), and pin C (ground, black wire with white stripe). Verify continuity between the sensor body and the engine block ground point–resistance should not exceed 0.5 ohms. If readings deviate, trace the black/white wire back to the main harness splice near the firewall; corrosion here is a frequent failure point.
Fuel Temperature Circuit Identifiers
Locate the fuel temperature sensor integrated into the fuel filter housing. Two wires exit the sensor: a tan wire with a purple stripe (signal) and a solid brown wire (ground). Disconnect the battery negative terminal before probing–this sensor shares a ground with the ambient air temperature sensor, and stray voltage can skew readings. Back-probe pin 53 of the powertrain control module (PCM) connector C3 with a digital multimeter set to DC volts; with ignition on, voltage should read between 0.5V (cold fuel) and 4.5V (hot fuel).
For the lift pump control circuit, follow the dark green wire with an orange stripe from the PCM (pin 71, connector C1) to the fuel pump relay coil. The relay’s switched output is a dark blue wire with a white stripe, feeding the lift pump. Use a relay socket adapter to test pump operation: jumper terminals 85 and 86 to confirm coil function, then 30 and 87 to verify pump activation. If the pump fails to prime, inspect the dark blue/white wire for chafing where it passes through the left frame rail–this is a known wear point.
Injector Circuit Wiring Breakdown
Each fuel injector is actuated via a pair of wires: a solid-color lead (control) and a striped lead (power). Cylinder 1: dark blue (control), dark blue/orange stripe (power); Cylinder 2: green, green/black; Cylinder 3: yellow, yellow/red; Cylinder 4: orange, orange/black; Cylinder 5: white, white/brown; Cylinder 6: black, black/purple. Measure resistance across injector terminals–values should range between 0.14 and 0.18 ohms. Deviations indicate internal coil failure. For power delivery confirmation, back-probe the striped wire at the injector–voltage should pulse between 12V and 0V during cranking.
Faulty ground paths often mimic sensor failures. The PCM grounds all sensor returns through two primary routes: a heavy-gauge black wire bolted to the intake manifold (G101) and a secondary path near the battery tray (G103). Clean both ground surfaces with a wire brush and apply dielectric grease during reassembly. For the fuel level sensor, the signal wire is gray with a black stripe; it terminates at PCM pin 36 (C2). A fixed 2.5V reference voltage should be present here with the fuel cap removed–fluctuations suggest a faulty sender or corroded connector at the tank.

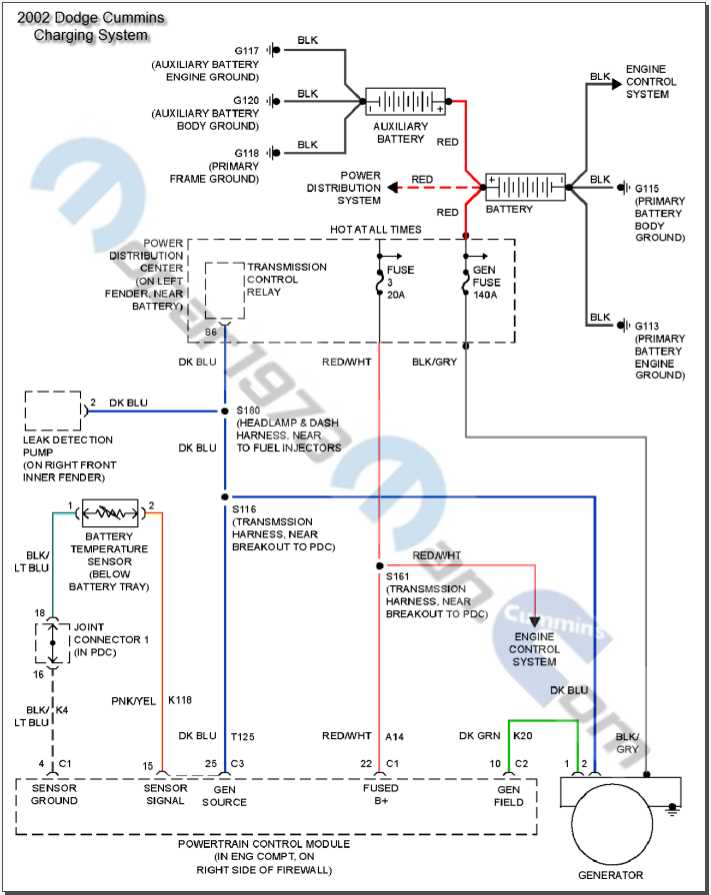

Tracing the Battery to Alternator Charging Circuit on Electrical Schematics
Locate the positive battery terminal on the schematic–marked as B+ or 30–and follow the thick red line leading toward the alternator. The first point of contact is typically a fusible link or maxi-fuse, rated between 80–120 amps, installed within 6 inches of the battery post. Verify this component’s presence; absence requires immediate replacement to prevent fire hazard.
After the fuse link, the circuit splits: one path feeds the ignition switch, the other heads directly to the alternator’s B+ stud. Trace the alternator-bound line–observe any inline connections labeled I (ignition feed), S (stator), or L (lamp/sense). The L wire is critical; it bridges the alternator’s internal voltage regulator to the charge indicator light on the dash. A broken L connection results in no dash light activation, even if voltage output exists.
- Measure voltage drop across the
B+line from battery post to alternator stud: maximum 0.2V drop at full load (engine at 2,000 RPM, high-beam headlights, blower on high, rear defrost active). Higher readings indicate corroded terminals or undersized cables–replace 4-gauge minimum. - Confirm the
Swire’s resistance: 0.5–1.5 ohms between alternatorSterminal and ground. Outside range suggests faulty rotor winding. - Check the
Iwire’s supply voltage: 12.4V+ KOEO (key on, engine off). No voltage? Trace upstream to ignition relay or fuse block–typically 20-amp fuse position 3.
The alternator’s internal diode trio converts AC to DC; follow the three-phase stator windings on the schematic–each winding connects to a diode and merges at the B+ stud. Isolate diodes by disconnecting the B+ cable and measuring forward/reverse bias with a multimeter (diode test mode). Forward bias: 0.4–0.6V drop; reverse bias: OL (open circuit). Any deviation confirms failed diode pack.
Ground path integrity is non-negotiable: locate the alternator’s case ground point on the engine block–schematic shows direct bolt connection. Scrape paint to bare metal; retorque to 35 ft-lbs. Secondary ground strap from engine to chassis? Ensure it’s present; absence induces erratic voltage readings. Probe ground continuity between battery negative post and alternator housing: must read below 0.1 ohms.
- Reassemble circuit after repairs: reconnect
B+,I,S, andLwires in that order to avoid transient spikes. - Start engine, verify dash light extinguishes within 3 seconds–longer illumination points to
Lwire circuit resistance above 0.3 ohms. - Monitor output at
B+stud: 13.8–14.4V at 2,000 RPM indicates functional voltage regulation.
Common failure points remain hidden in splices: inspect every crimp connector along the charging path. Corroded butt splices (green/white residue) mandate replacement with heat-shrink crimps; solder joints risk vibration fractures. Label each wire during disassembly–mismatched reconnection (e.g., I and S swapped) triggers overcharge and battery boil-off.
Final validation: perform load test–activate high-beam headlights, HVAC blower on high, rear defrost, and radio. Voltage at alternator B+ must not dip below 13.2V. If dip exceeds 0.5V, suspect weak stator windings or slipping drive belt (belt deflection
