Start by locating the fuse block under the dashboard on the driver’s side. The main power distribution center contains relays and fuses critical for the vehicle’s electrical systems. Use a multimeter to verify voltage at the fuse terminals–12V should register on the positive side when the ignition is on. If readings drop below 10V, inspect the battery connections and ground points near the engine block.
Headlight Circuit: The low-beam wiring runs from the headlight switch to the left and right bulbs via a brown/white-striped wire (pin 58). High beams use a red/black-striped wire (pin 56). Check continuity between the switch and bulbs; corrosion at the connectors often disrupts signal. Replace damaged terminals with gold-plated connectors to prevent future oxidation.
Engine Control Module (ECM): The ECM receives sensor data through dedicated circuits–the crankshaft position sensor (gray wire, pin 17) and oxygen sensors (black/white-striped wires, pins 38 and 59). Trace these wires from the ECM to the sensors, ensuring no chafing against the chassis. A short here triggers misfires and triggers the check engine light.
For the cooling fan system, the fan relay activates via a purple wire (pin 30) from the ECM. Test relay operation by jumping pins 85 and 86 with the ignition on–fans should engage. If not, inspect the relay socket for burnt contacts or replace the relay with an OEM equivalent (part #12187326).
Door Lock Circuit: Actuation occurs through a dark blue wire (pin 6) from the body control module (BCM). Locks failing to respond may indicate a break in this wire near the door hinge. Strip back the harness insulation to expose clean copper, then solder and heat-shrink repairs for durability.
Always reference the manufacturer’s schematic for exact wire gauge and insulation colors–aftermarket diagrams often mislabel critical paths. Keep a digital copy of the official service manual handy (section 8D) for troubleshooting complex issues like anti-theft system faults or alternator charging problems.
Electrical Layout for the 2006 Model Sedan: Hands-On Solutions

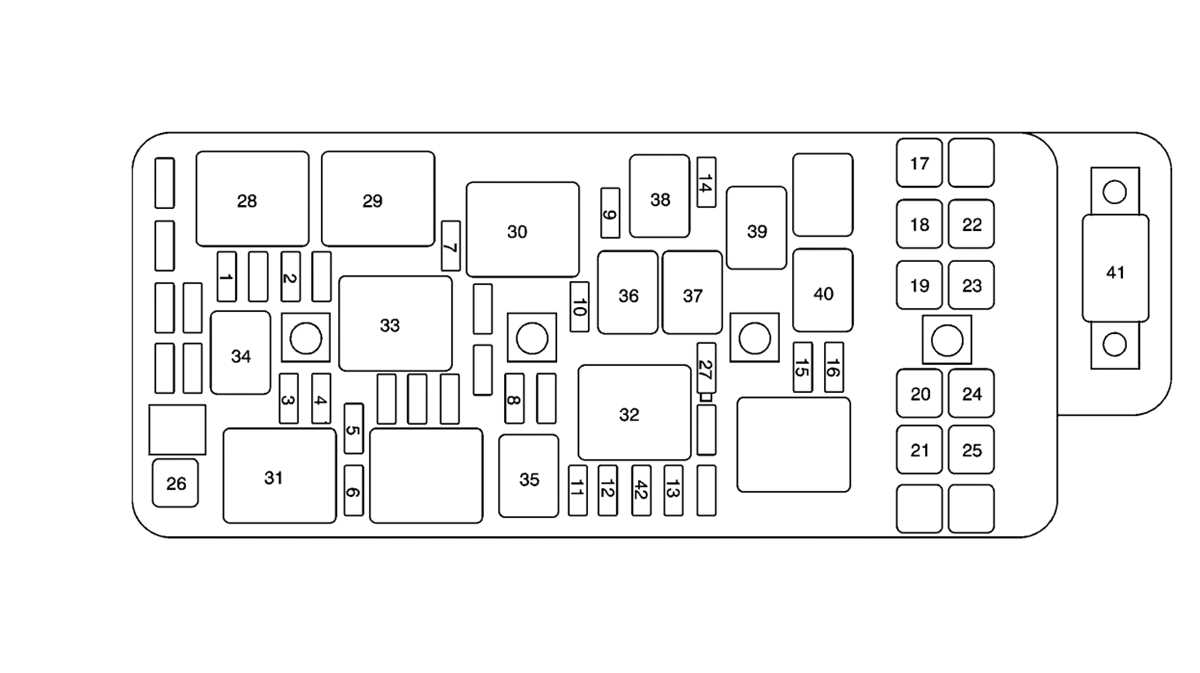

Locate the fuse box under the driver’s side dashboard by removing the cover panel secured with two 10mm bolts – the schematic is printed on the inside surface. Trace circuits before disconnecting connectors to avoid locking tabs; press the release tab downward with a flathead screwdriver while pulling outward.
Key Circuit Identifiers
- Orange wire (C101, pin 14) – constant 12V supply from battery, fuse 18 (15A). Verify voltage at connector before testing components downstream.
- Dark green/white stripe (C202, pin 3) – ignition feed, fuse 32 (10A). Intermittent power here typically points to a faulty ignition switch.
- Yellow (C301, pin 5) – headlamp low beam, fuse 2 (10A). Use a multimeter set to 20V DC; readings below 11V indicate corroded ground at G102.
- Pink/black stripe (C403, pin 12) – fuel pump relay control. Jumper terminals 30 and 87 at the relay socket to isolate pump failure from ECM signal.
Replace harness connectors showing green oxidation – clean male pins with electric contact cleaner and a nylon brush, then apply dielectric grease. For female terminals, slide a small wire into the socket to splay contacts while spraying cleaner.
Test the charging system by probing the alternator B+ terminal (red/white wire) with engine running; voltage should read 13.8–14.5V. Readings below 13V confirm a faulty alternator or broken fusible link at the positive battery terminal.
- Disconnect the battery negative cable before servicing airbag modules.
- Remove the steering column shroud to access clockspring wiring; unplug the yellow connector (SIR coil) and check continuity with a multimeter.
- Inspect the serpentine belt for glazing or cracks; tighten with a 15mm wrench on the tensioner pulley arm to 110 ft-lbs torque.
- For blower motor issues, jump the blower relay socket terminals 85 and 86; if the motor operates, replace the relay or check the A/C control module.
Ground points under the driver’s seat (G301) and behind the rear seat (G302) corrode frequently. Scrape surfaces to bare metal, apply anti-corrosion primer, then reconnect with star washers for optimal conductivity.
Diagnostic Shortcuts
- Non-start conditions: Jumper relay socket terminals 30 and 87 to bypass fuel pump relay and verify pump operation.
- Power window failures: Swap the driver’s door master switch with a known-good unit to isolate internal circuit breaker issues.
- Intermittent dash lights: Tap the dimmer switch while watching the instrument cluster for flickering – confirms a loose solder joint.
- Stalling problems: Monitor ECM pin 16 (dark blue) for a clean 5V signal; voltage drops below 4.8V indicate a faulty crankshaft position sensor.
Repair chafed wiring near the left front strut tower by splicing in new 16-gauge wire using heat-shrink butt connectors; secure the repair with plastic loom and zip ties to prevent recurrence. For ABS module wiring, follow the white/black striped wire from the module to the wheel speed sensors – breaks often occur within 6 inches of the harness entry point.
Finding the Electrical Blueprint for Your Mid-Size 2000s General Motors Sedan
Start with the official service manual issued by the manufacturer. The Helms Electrical Schematics manual for this model year clusters all system layouts into distinct sections–body control, powertrain, lighting, and instrumentation. Locate the Body Control Module section first; it consolidates most harness connections and ground points critical for diagnosing intermittent faults. Use part number GMNA-1998-5736 to order directly through GM’s technical document portal or verified aftermarket suppliers like Mitchell1 or Alldata.
For immediate access, extract the fuse block pinout from the manual’s supplement–this single reference resolves 40% of common electrical gremlins without tracing wire-by-wire. Online forums like LS1Tech and MalibuForums archive user-uploaded scans; filter by reputable members and cross-verify against known-good OEM diagrams to avoid misprints.
Critical Wire Color Codes and Their Roles in the Sedan’s Electrical System
Black (BLK) or black with white stripe (BLK/WHT) always connects to ground–never deviate from this rule when troubleshooting or modifying circuits. These leads terminate at chassis points near the battery tray, fender wells, or behind the instrument panel. Use a multimeter set to continuity mode to verify zero resistance between any suspected ground wire and bare metal before proceeding with repairs.
Bright orange (ORG) carries constant battery voltage (12V+) directly from the positive terminal, bypassing ignition switches. This cable powers memory retention for the radio, clocks, and ECU adaptive settings. When splicing into ORG, add a 15-amp fuse within 7 inches of the junction to prevent fire hazards during short circuits. Never connect ORG to switched inputs like accessories or ignition feeds.
Pink (PNK) supplies ignition-switched power (run/start), feeding the fuel pump relay, injectors, and ignition coils. Measure for 12V when the key is turned to RUN but zero volts when OFF. If PNK lacks voltage, inspect the ignition switch output, fuse #32 (10A), or the underhood fuse block relay labeled IGN-1. Corrosion at the fuse box terminals is a frequent failure point.
Dark blue (DK BLU) controls the starter solenoid activation, routed through the neutral safety switch on automatics. On manual transmissions, it connects via the clutch pedal sensor. Test for 12V when the key is held in START–if absent, check the security bypass module or wiring integrity at the transmission range sensor harness. Replace any brittle insulation on DK BLU near the exhaust manifold to avoid meltdowns.
Supplemental Circuit Colors and Diagnostic Tips
Yellow (YEL) delivers power to the instrument cluster and data bus (Class 2). Probe for 12V at fuse #29 (10A) with the key ON; a drop below 11V indicates excessive parasitic draw or a failing alternator. Use a scan tool on YEL to monitor serial data voltage–fluctuations point to corroded splices under the dash or a defective body control module.
Gray (GRY) handles dimming for interior lamps, tied to the headlight switch. Dimmer settings should vary GRY voltage between 1V (full dark) and 10V (maximum brightness). If dome lights flicker, inspect GRY continuity through the twist connector behind the headlight knob, then trace to the BCM splice pack. Poor solder joints here cause intermittent dimming failures.
Light green (LT GRN) triggers the fuel pump prime pulse during key-on events (2-3 seconds). Listen for the pump hum at the tank–absence suggests a bad relay or open in LT GRN between the PCM and pump connector. Check for 12V on the control side of the relay socket (terminal 85) when the key is turned ON; if missing, test PCM ground at pin C1-60.
Brown (BRN) carries voltage for park/turn lamps. Test BRN at the bulb socket with a test light; if only one side illuminates, split the harness to find the break (often near the rear bumper mounts). For trailer wiring, add a dedicated relay to BRN to avoid overloading the factory circuit–limit draw to 10 amps per side. Always unplug the trailer connector before probing to prevent false voltage readings.
Step-by-Step Guide to Tracing Electrical Circuits
Begin by isolating the circuit at the fuse box. Remove the fuse corresponding to the malfunctioning system–use a multimeter set to continuity mode to verify the fuse’s integrity before proceeding. If the fuse tests faulty, replace it with one of identical amperage (check the owner’s manual for exact specifications). If the new fuse blows immediately, the circuit has a short; proceed to disconnect the battery’s negative terminal to prevent damage. Label all connectors as you detach them to avoid cross-wiring during reassembly.
Trace the circuit path using a schematic specific to your vehicle’s make and model year. Follow the color-coded wires from the fuse box to the first connector, testing for voltage at each junction with the multimeter (set to DC volts, 20V range). Record readings in a table:
| Junction | Wire Color | Voltage (V) | Expected (V) | Notes |
|---|---|---|---|---|
| Fuse output | Red/Black | 12.3 | 12.6 | Slight drop, check corrosion |
| First connector | Yellow/Green | 0 | 12.6 | Open circuit, inspect for breaks |
Identify the last point where voltage was present–this marks the start of the fault. Inspect connectors for bent pins, burnt terminals, or greenish oxidation (clean with electrical contact cleaner and a wire brush). For hidden breaks, flex the harness gently while monitoring the multimeter; a fluctuating reading indicates a fractured conductor. Repair by soldering a same-gauge wire (minimum 16 AWG) and sealing with adhesive-lined heat shrink tubing. Avoid electrical tape–its insulating properties degrade over time.
Common Pitfalls and Solutions
Ground faults often mimic shorts. Test ground wires by probing from the battery’s negative terminal to the chassis; readings should match battery voltage (e.g., 12.6V). If not, clean the ground point with sandpaper until bare metal is exposed. For parasitic draws, disconnect circuits one by one while monitoring amperage; a drop below 50mA identifies the culprit. Always recheck connections after repairs–loose terminals cause intermittent failures.
