Locate the fuse block beneath the instrument panel on the driver’s side to identify power sources. Label F4 (10A) supplies constant 12V to the head unit, while F36 (20A) delivers switched power via the ignition circuit. Confirm connections with a multimeter before soldering–voltage fluctuations above 14.5V indicate a faulty alternator or inadequate ground.
Trace the orange (+12V memory) and yellow (switched +12V) wires from the harness to the aftermarket stereo’s 16-pin ISO connector. Interruptions in these lines often stem from corroded terminals or improper crimp connections. Use AWG 18 gauge wire or thicker to prevent voltage drop over distances exceeding 3 meters.
Ground the chassis at G102, a bare-metal bolt near the firewall, using a star washer to ensure low-resistance contact. Avoid daisy-chaining grounds–parallel connections to the same point reduce noise. For amplified systems, route the remote turn-on (blue/white stripe) wire directly to the amplifier’s trigger input; bypass factory relays if signal delay exceeds 100 milliseconds.
Aftermarket harness adapters for OE Bose systems require bridging pins 2 and 3 on the factory connector to retain steering wheel controls. Verify speaker polarity with a 9V battery–positive deflection confirms correct phase alignment. Replace blown fuses with exact amperage ratings; upsizing risks fire in high-current draw circuits.
Document modifications with annotated diagrams. Label splices with heat-shrink tubing and silver solder for corrosion resistance. Test continuity post-installation–intermittent faults often trace to loose bullet connectors or insufficient insulation displacement.
Vehicle Audio System Connection Guide for G2500 Van
Locate the factory harness behind the dashboard’s central panel–black/white wires power the constant 12V memory feed, orange supplies ignition-switched voltage, and yellow delivers accessory power.

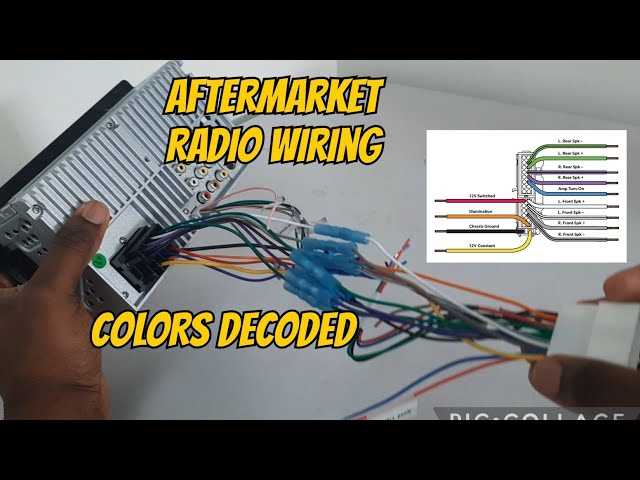

Splice the aftermarket harness by matching colors directly: pink to pink (illumination), gray to gray (left front speaker positive), and dark blue to dark blue (antenna trigger). Avoid solderless connectors–use crimp caps rated for 18-gauge circuits to prevent corrosion.
Verify ground points before finalizing connections. The primary chassis ground sits beneath the driver-side kick panel; strip ½ inch of paint around the mounting stud, apply dielectric grease, then torque bolts to 8-10 ft-lbs. Secondary grounds for rear speakers attach to the inner wheel well frame rails–use star washers to bite through surface oxidation.
Test speaker polarity before securing door panels. Temporarily wire brown/white (right rear negative) and tan (left rear negative) to their positive counterparts–reverse-phase audio produces hollow bass, requiring immediate correction.
- Black harness: battery negative
- Dark green/white: right front speaker negative
- Light blue/white: left rear speaker positive
- Purple: parking brake signal
Integrate steering wheel controls by tapping the gray/black controller wire–use a 1k-ohm resistor between the interface module and harness to mimic the original system’s impedance. Without this, button presses may register as simultaneous inputs, causing erratic volume fluctuations.
Secure loose wires with split loom tubing, routing bundles away from sharp edges near the HVAC ducts and pedal assemblies. Zip ties should be placed every 6 inches with slack loops to accommodate dashboard removal.
Finalize power validation by setting a multimeter to DC volts: key-off readings should show 12.3V (memory), key-on 13.8V (radio), and accessory 12.6V (amps). Deviations below 0.5V indicate parasitic draws–isolate circuits by removing fuses one at a time.
Replace the original fuse block’s 10A pink fuse with a 15A fuse if adding amplifiers; trace the power wire to its source at the under-hood junction box to avoid overloading the instrument cluster’s shared circuit.
Finding the Audio System Connector in Your Van
Begin by removing the center dash panel to access the harness. Slide a plastic trim tool under the front edge of the console and gently pry upward–clips snap at three points along the top. The lower trim section comes away next, held by four 7 mm screws; two near the climate controls and two beneath the cup holders. Set both pieces aside without disconnecting attached cables.
The main electrical bundle is directly behind the climate control assembly. Look for a rectangular black plug with 16 pins arranged in two rows–eight on top, eight below. Labels stamped on the housing read “C101” on the left and “C201” on the right; you need the left connector for speaker and power feeds.
A 5 mm bolt secures the climate module to the support bracket; remove it only if the connector remains inaccessible. Once exposed, the plug sits angled downward, so gently pull the release tab toward you with a flat screwdriver–it clicks at ~20 degrees. Tug the connector straight back; forceful twisting risks damaging the locking tab or bending pins.
Color Codes and Pin Functions
Left row (top to bottom): yellow (constant 12 V), red (switched 12 V), orange/black (dim), light green (front left +), dark green (front left –), brown/white (front right +), dark brown (front right –). Right row: gray (rear left +), light blue (rear left –), tan (rear right +), white (rear right –), purple (illumination), black (ground), empty, empty.
Tape a test light to the black lead and probe each wire while the ignition is on. Switched power should illuminate only the red and yellow leads–any other lit wires indicate aftermarket splicing or shorts. If both rear speaker wires show voltage, suspect a short in the door jamb harness where chafing commonly occurs against the hinge.
Reassembly Tips
Align the lower trim’s clip rails with the chassis first–there are narrow channels behind the knee bolster. Push upward until the two release buttons click audibly. Slide the upper console down into its tracks; the front edge should sit flush with the dash lip. Replace the center bolt last; torque spec is 12 in-lbs–over-tightening cracks the mounting boss.

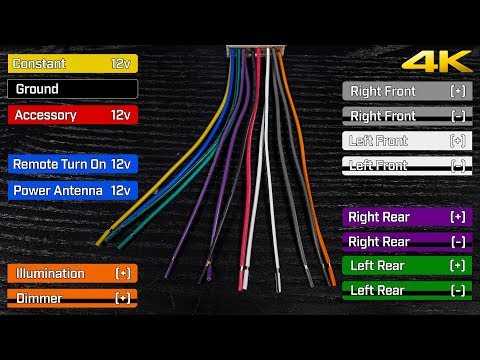

Step-by-Step Guide to Pinpointing Each Cable Color and Role
Locate the harness connector behind the audio unit–it’s a rectangular plug with 12 to 16 pins. Pinch the release tab with needle-nose pliers to detach it without bending the terminals.
The power feed cables are critical first targets. A bright yellow strand carries 12V constant from the battery, while an orange one activates under ignition. Probe both with a multimeter set to DC volts; yellow should read steady, orange should spike only when the key turns.
Ground connections use black wires, typically one thick and two thinner. The thick strand attaches directly to chassis metal; thinner ones often splice into accessory circuits. Scrape paint off the chassis contact point to ensure zero resistance.
- Purple: left front speaker positive
- Dark blue: left front speaker negative
- Gray: right front speaker positive
- White: right front speaker negative
- Dark green: left rear speaker positive
- Brown: left rear speaker negative
- Light green: right rear speaker positive
- Tan: right rear speaker negative
Illumination pairs use a light gray and a violet strand. Gray dims with the instrument cluster lights; violet carries switched 12V only when headlights engage. Test by toggling the dimmer switch–gray voltage should drop proportionally.
Troubleshooting Common Misconnections
- Check speaker polarity by tapping 9V battery leads to each pair; correct wiring produces audible clicks from the cone.
- Reversed polarity flips stereo image–listen for instruments bleeding into opposite channels.
- Intermittent volume cutting usually traces to corroded terminals inside the harness; apply dielectric grease after cleaning.
- Buzzing noise often stems from missing ground–reroute black wires to a clean chassis bolt near the dash.
A pinkish-white stripe signifies the antenna trigger wire. It outputs 12V to power mast amplifiers; verify continuity with the radio turned on. If the mast fails to extend, splice this wire directly to a fused ignition source.
Essential Equipment for Secure Audio System Integration
Begin with a multimeter calibrated to at least 10 MΩ impedance to prevent false readings when probing live circuits. Fork-style crimp terminals rated for 18-22 AWG ensure vibration-resistant connections, while solder sleeves with integrated heat-activated adhesive create moisture-proof joints for high-current paths. A low-wattage (
Trim excess wire strands before crimping with precision cutters featuring a 0.5mm offset blade to produce flush terminations. For panel disassembly, use nylon pry tools with a 3mm tip radius to avoid marring dash plastics–metallic tools risk shorting exposed traces on the backside of cluster displays. Anti-static wrist straps with a 1 MΩ resistor protect surface-mount transistors during handling, especially when working near microcontroller ICs.
| Tool | Key Specification | Application Scenario |
|---|---|---|
| Crimping pliers | 0.5-1.5mm² jaw capacity | Joining speaker leads to bulkhead connectors |
| Insulated wire strippers | Adjustable 0.2-0.8mm depth stop | Preparing coaxial feeds for GPS modules |
| Thermal fuse puller | 250°C max temperature | Extracting in-line fuse links from blended harnesses |
Include a 12V test light with a 21-watt load capacity to verify proper accessory power distribution–avoid LED testers, as their low impedance can trip sensitive circuit protection. When routing harnesses behind instrument panels, use split-loom tubing with a 10mm inner diameter to organize bundles and prevent chafing against sharp chassis edges. Always disconnect the negative terminal from the power source for at least 10 minutes before servicing to allow capacitor discharge in amplifier circuits.
For front-facing adjustments, a torque screwdriver set with interchangeable bits prevents overtightening M4 mounting screws–apply no more than 2.5 Nm to avoid stripping thin-gauge metal threads. When terminating multiplex signals, use gold-plated connectors with a mating cycle rating above 50 insertions to maintain signal integrity over repeated installations. Store removed fasteners in magnetic trays to prevent accidental shorts during reassembly.
