Locate the thin red wire emerging from the back of the key cylinder assembly–this carries the 12V signal from the battery to the starter solenoid when the tumbler turns. Follow it to the white connector block beneath the steering column; pin #3 on the harness side is critical for engagement. If the engine cranks but stalls immediately, inspect this connection for corrosion or fraying–common failure points after 80K miles.
The purple wire supplies voltage to the ignition coil pack; trace it to the yellow 4-pin relay in the under-dash fuse panel. Check resistance between this wire and ground–values above 0.5 ohms indicate internal shorts requiring relay replacement. For intermittent no-start conditions, bypass this relay temporarily with a jumper wire (pins 85/86) to confirm failure.
Under the driver’s side dashboard, identify the dark blue wire leading to the immobilizer control module. This security feature often disrupts power flow if the transponder chip in the key fob malfunctions. Measure voltage drop across this circuit–any reading below 9V suggests a dying battery in the remote or antenna misalignment.
For vehicles with manual transmissions, the neutral safety switch splices into the light green wire. If the starter engages while in gear, replace this switch immediately to prevent clutch damage. In automatics, the same wire connects to the transmission range sensor–ensure continuity between pins A and B during ‘Park’ selection.
Electrical Schematic for Compact GM Sedan Starter Circuit
Disconnect the battery before handling the harness connector to prevent short circuits or accidental engine cranking. Locate the 4-pin black plug behind the steering column–pin 1 (red) carries 12V constant, pin 2 (pink) feeds the run/crank signal from the key cylinder, pin 3 (yellow) energizes the starter solenoid via the theft-deterrent module, and pin 4 (dark blue) grounds the circuit. Use a multimeter set to DC voltage: probe pins 1 and 4; reading should stabilize near 12.6V before proceeding.
Trace the pink wire upward to the fusible link labeled “IGN 1” in the under-hood fuse box–this wire must show continuity when the key moves from OFF to START; if voltage drops below 10V, inspect the link for oxidation or replace the 40A fuse. The yellow wire branches into two junctions: one leads to the anti-theft control unit (verify 8-10V on-demand), the other splices into the purple wire heading toward the starter relay. Check relay terminals 85 (ground), 86 (yellow trigger), 87 (purple output), and 30 (thick red feed)–resistance across 85-86 should measure 50-120 ohms.
Critical Harness Connections
| Wire Color | Function | Expected Voltage (Key Position) | Test Point |
|---|---|---|---|
| Red | Battery constant | 12.6V (OFF/ON/START) | Fusible link output |
| Pink | Switch-run/start input | 10.5V+ (START) | Cylinder connector pin 2 |
| Yellow | Solenoid control | 8-10V (anti-theft engaged) | Theft-deterrent module C2 pin 12 |
| Dark blue | Ground reference | 0V (any) | Harness bolt near pedal assembly |
When soldering repairs, use heat-shrink tubing over splices and secure the harness away from moving pedals with nylon zip ties–avoid electrical tape that degrades at 200°F. Replace the key cylinder if the tumbler binds; broken wafers interrupt the pink wire feed, mimicking a faulty relay. Always re-test with the original key post-repair–aftermarket transponder chips may require reprogramming via GM’s Tech2 tool or equivalent scan interface.
Finding the Starter Control Connector on Your Vehicle
Begin by removing the lower steering column cover. Use a T20 Torx bit to unscrew the three fasteners securing the plastic panel–two at the bottom and one near the hazard button. Gently pry the cover away, starting from the driver-side edge to avoid snapping the clip tabs. The electrical junction you need sits directly behind this panel, mounted on the metal bracket above the pedal assembly.
Identifying the Correct Plug
The target connector is a 6-pin rectangular plug with gray housing, noticeably larger than the adjacent sensors. It’s held in place by a small white retaining clip on the top edge–press this clip inward while pulling the plug straight out. Avoid tugging the wires; the clip releases only when fully depressed. If the plug resists, check for debris or corrosion around the pins using a flashlight.
Trace the wiring harness from the starter relay under the dashboard. The bundle snakes upward toward the column, branching near the fuse box–follow the thicker wire gauge (typically 10-12 AWG) to confirm you’ve located the correct path. Misidentifying the connector risks damaging the anti-theft module or the fuel pump circuit, so double-check the pinout: two power inputs on the left, two ground returns on the right, and two smaller signal wires in the center.
Safety Checks Before Disconnecting
Disable the battery’s negative terminal before handling the plug to prevent short circuits. If the engine cranks but fails to start, probe the power pins (marked 30 and 15) with a multimeter–should read 12V with the key in the “ON” position. No voltage suggests a blown fuse (F2 in the under-dash box) or a break in the harness near the bulkhead grommet. For intermittent issues, wiggle the plug while monitoring voltage to detect loose connections.
After servicing, reattach the plug firmly until the retaining clip clicks. Reinstall the steering column cover by aligning the guide tabs first, then snapping the lower edge into place. Test the key operation in all positions (LOCK, ACC, ON, START) before finalizing the assembly–hesitation or grinding usually indicates improper seating of the connector.
Decoding Wire Colors for Your Vehicle’s Starter Control System
Begin by locating the harness connector at the back of the ignition cylinder–the plastic plug houses four primary leads, identifiable by their insulation:
The bright pink wire delivers constant battery voltage from the distribution block, maintaining 12V regardless of key position. Verify with a multimeter set to DC range; probe between this conductor and chassis ground–expect steady reading without fluctuation.
Adjacent sits a dark blue lead, which carries the activation signal when the key rotates to the crank position. Interrupt this wire’s path temporarily (use a fused jumper) to confirm starter motor engagement–if the engine turns over, the circuit functions correctly.
The yellow wire, often striped with a thin black line, serves as the accessory circuit–energizes radios, interior lighting, and auxiliary components when the key rests in the “on” slot. Check for voltage drop under load (below 0.5V) to rule out resistance issues in the harness.
A brown wire terminates at the dash fuse panel, grounding the system when the key returns to the off position. Test continuity between this lead and a known chassis point–ohmmeter should show near-zero resistance. Corrosion here mimics intermittent failure symptoms.
For vehicles equipped with manual transmissions, a secondary safety neutral wire (typically orange with a white stripe) connects to the clutch pedal sensor. Ensure the switch closes fully when the pedal depresses–measure resistance transition from open to closed states.
Trace each conductor back to its origin point using a tone generator if insulation colors appear faded or repainted. Avoid relying on aftermarket repair manuals where wire hues may deviate–cross-reference with factory schematics downloaded directly from the manufacturer’s technical portal.
When splicing repairs, use heat-shrink tubing and crimp connectors rated for 20–22 AWG wire gauge–solder joints introduce brittleness in engine bay vibrations. Label each connection immediately to prevent miswiring during reassembly.
Step-by-Step Electrical Path Verification for Power and Earth Lines

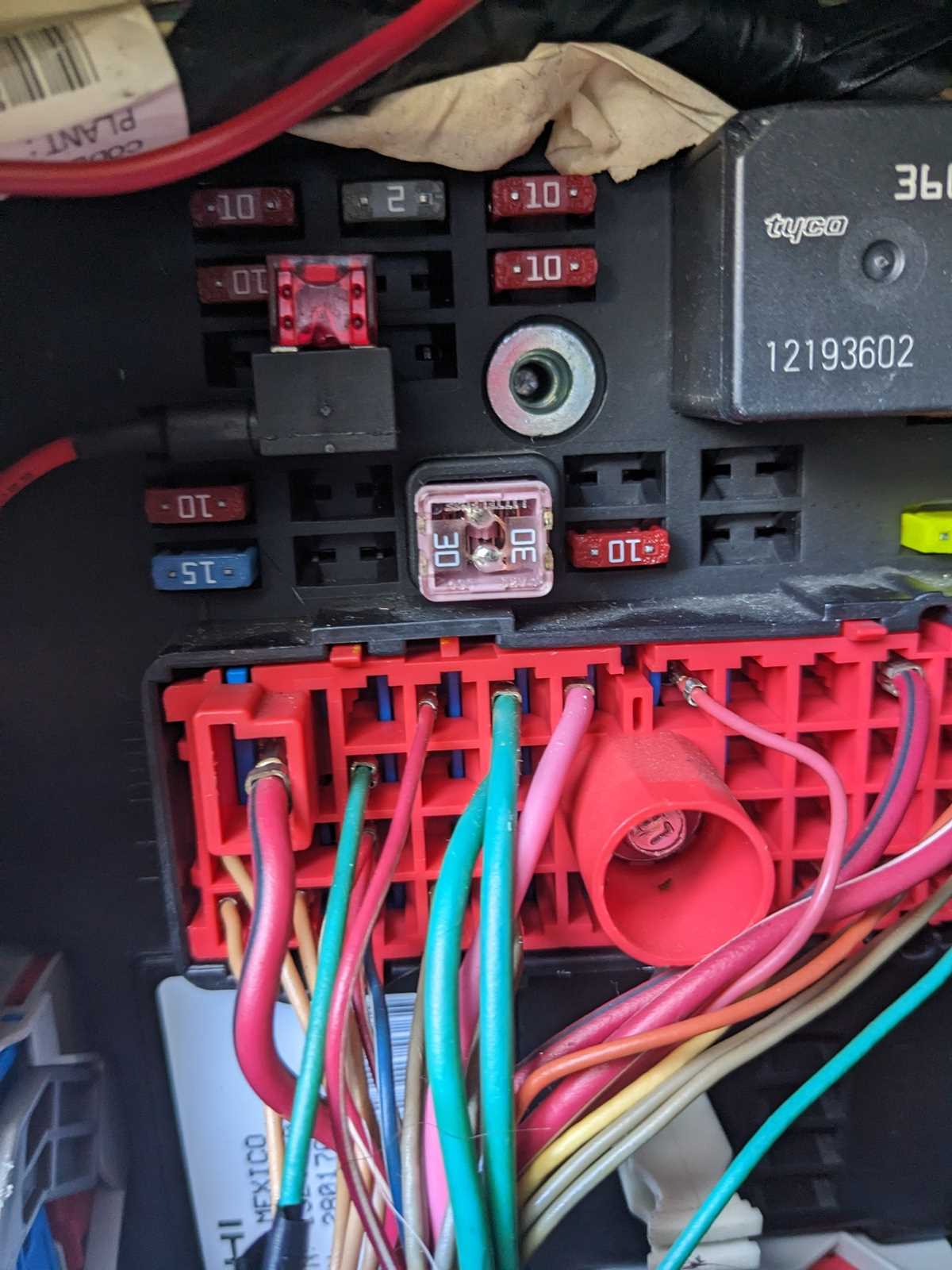

Locate the fuse panel under the left dashboard–remove the cover to expose slot 30 (10A) for the primary control circuit. Use a multimeter set to 20V DC; probe the fuse’s metal clips while the key rotates to “RUN.” Voltage below 11.5V signals corrosion on terminal 52 (purple) or a frayed lead back to the battery’s positive post. Trace the purple lead through the harness grommet near the steering column; check for pinched insulation where it routes behind the kick panel. If voltage holds, move to the switch’s pin 85–this earth return must read under 0.2 ohms to chassis ground; corrosion at the bolt securing the ground strap to the firewall often causes intermittent dropouts.
- Disconnect the negative battery cable–verify the main ground strap (black, gauge 8) connects to the engine block near cylinder 4; clean both surfaces with a wire brush if resistance exceeds 0.5 ohms.
- Follow the ignition harness (bundle radius 8mm) from the column towards the engine bay; inspect the inline splice near the brake booster for oxidation–clip, strip, and crimp a new connector if insulation looks brittle.
- Test continuity from pin 30 (yellow) to the ECM pin C1-1 with the key off–resistance should remain below 2 ohms; a break here mimics a failed relay.
- Reconnect power; key to “START” while probing pin 50–fluctuations above 0.4V indicate a faulty solenoid or poor engagement from the starter motor brushes.
Verifying Power Across Key Cylinder Connection Points
Start by probing the red 12-gauge lead labeled “BAT” with the multimeter set to DC volts. Expect a steady 12.6V reading regardless of the tumbler’s position–this confirms uninterrupted battery feed to the power distribution node. If voltage fluctuates or drops below 11.8V, inspect the fusible link and main harness for corrosion or loose crimps, focusing on the harness splice near the steering column lower shroud.
- Purple/white 18-gauge (run/start circuit): Should deliver 12V only when the tumbler is rotated to “crank.” A faulty solenoid relay or corroded battery cable typically manifests as a 0.2–0.5V sag during engagement.
- Yellow 16-gauge (accessory circuit): Must show 12V exclusively in “on” position. Voltage present in “off” indicates a bypassed resistor pellet or shorted A/C relay.
- Light blue 20-gauge (fuel pump trigger): Readings below 9.5V at the ECM connector suggest excessive resistance in the pass-through connector under the driver’s kick panel.
If testing the black 22-gauge ground reference yields anything above 0.1V, clean the chassis ground G103 behind the instrument cluster with a stainless-steel brush and apply dielectric grease to prevent oxidation recurrence. For intermittent drops below 10.5V on red or yellow leads during key cycling, replace the ignition cylinder–internal contact erosion often develops after 80,000 miles even with OEM tumblers.
